Plan 444112GDN
Craftsman Cottage with Two Master Suites
Heated S.F.
1,428
Beds
2
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 444112GDN

Main Level
slide image 0
Basement Option
slide image 1

Plan 444112GDN

1-800-854-7852

1-262-521-4596

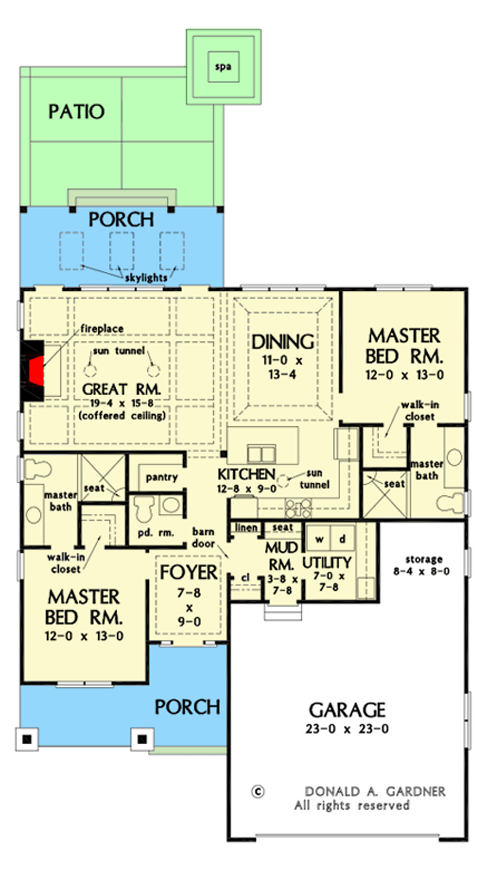

Main Level
floor plan image Main Level

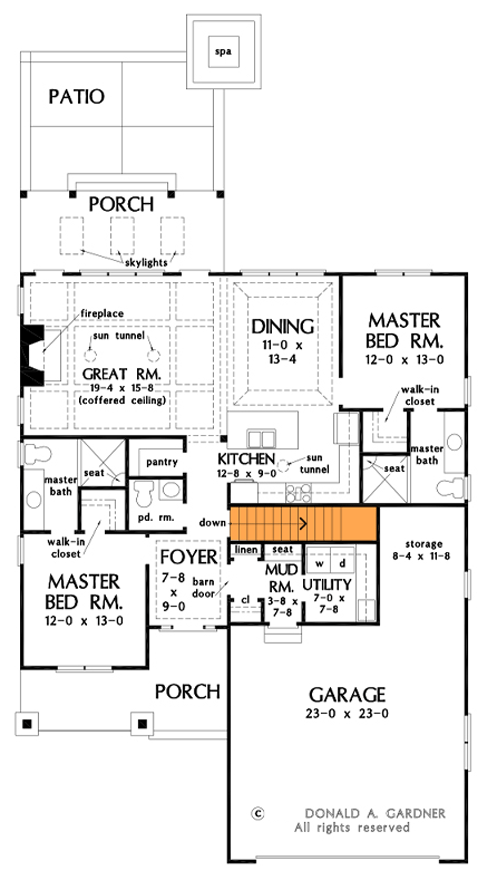

Basement Option
floor plan image Basement Option
Plan Details
  • This Craftsman cottage house plan with two master suites is a perfect narrow lot house design. Simple and attractive, the exterior features board-and-batten, gable brackets, shutters, and columns.
  • With only two bedrooms, the master suites are of equal size and on opposite sides of the floor plan.
  • An island kitchen with pantry nearby, a large dining room, and a generous great room compose the open living spaces.
  • The foyer and garage entry share a mud room and the utility room is multi-functional with a laundry sink and built-in cabinetry.
  • Skylights and sun tunnels create a feeling of spaciousness in the modest floor plan.
  • Please allow 8 weeks for delivery if it includes 2x6 upgrade.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,428 sq. ft.

1st Floor

1,428 sq. ft.

Porch, Front

154 sq. ft.

Porch, Rear

160 sq. ft.

Covered Patio

314 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

44' 2"

Depth

62' 4"

Max Ridge Height

27' 5"

Garage

Type

Attached

Area

620 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Master Suites
