Plan 23026JD
Craftsman Design With Multiple Versions To Choose From
Heated S.F.
2,400
Beds
3 - 4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 23026JD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 23026JD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

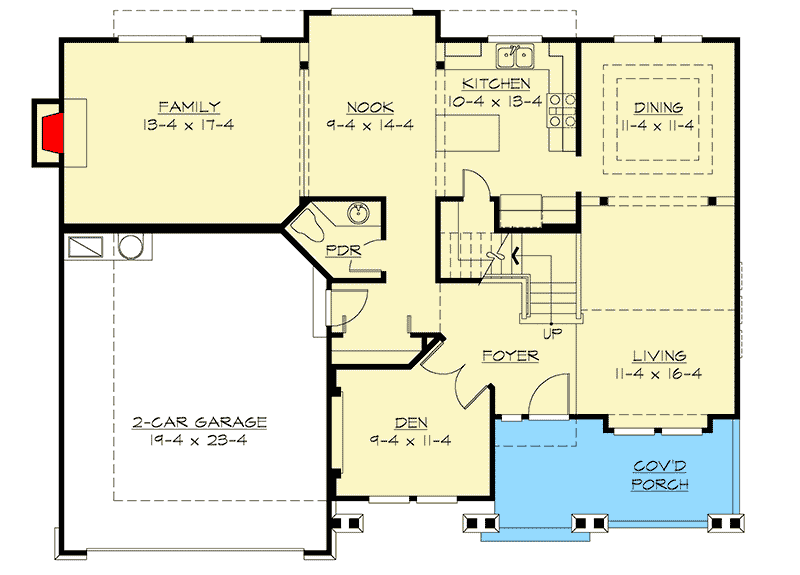

  • A wealth of amenities comes with this good-looking Craftsman house plan including a big, open layout, formal and informal living space and a quiet den that faces front.
  • There's even a playroom for the kids up on the second floor so toys can be out of sight when company comes.
  • A walk-in pantry in the kitchen is hidden under the stairs and there's a kitchen island for extra counter space.

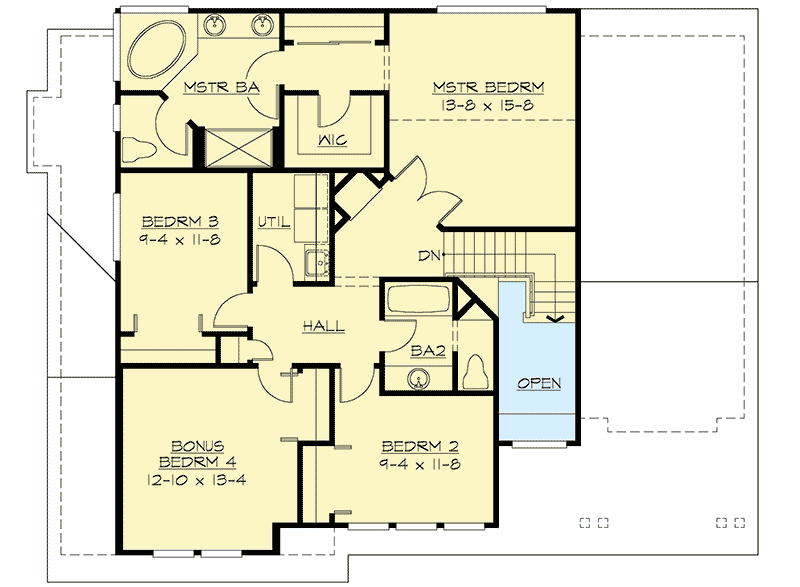

  • On the upper floor, the vaulted master suite gets both linear and walk-in closets plus a big bathroom with corner soaking tub.
  • Related Plans: Get a smaller version with house plan 2301JD (2,130 sq. ft.). Get a basement with house plan 23071JD. Get alternate exteriors with house plans 23015JD, 23726JD and 23027JD. Get a side-load garage with house plans 23328JD and 23273JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

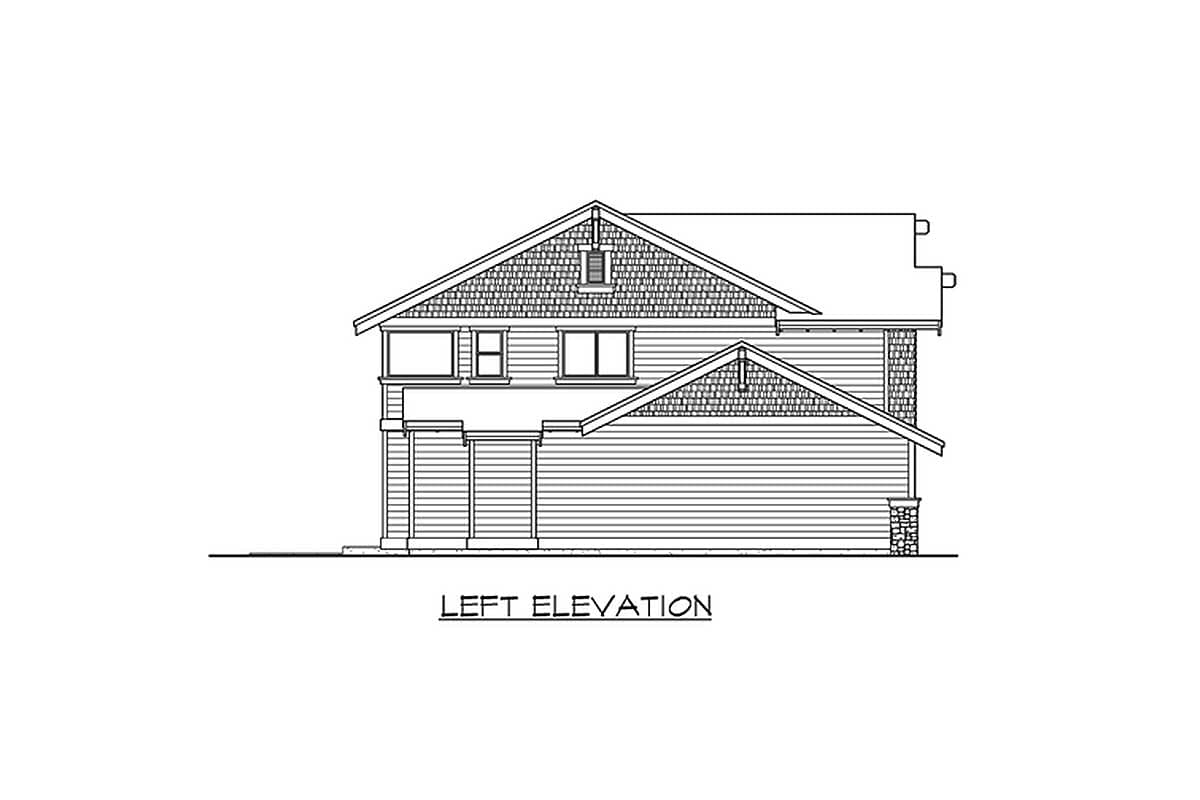

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,400 sq. ft.

1st Floor

1,230 sq. ft.

2nd Floor

1,170 sq. ft.

Porch, Front

136 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

40' 0"

Max Ridge Height

25' 5"

Garage

Type

Attached

Area

470 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bonus Room

Butler Walk-in Pantry

Den

Laundry - Upstairs

Master Suite - 2nd Floor

Playroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,400 sq. ft.

1st Floor

1,230 sq. ft.

2nd Floor

1,170 sq. ft.

Porch, Front

136 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

40' 0"

Max Ridge Height

25' 5"

Garage

Type

Attached

Area

470 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bonus Room

Butler Walk-in Pantry

Den

Laundry - Upstairs

Master Suite - 2nd Floor

Playroom

Plan Collections

Photo Gallery
