Plan 62572DJ
Craftsman Garage with Man Door
Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
1
Floor Plan

Plan 62572DJ

Main Level
slide image 0

Plan 62572DJ

1-800-854-7852

1-262-521-4596

Main Level

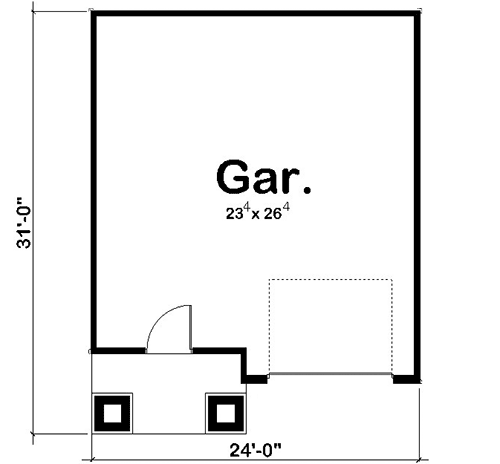

floor plan image Main Level
Plan Details
  • This single-story Craftsman-style garage has a sturdy covered entry with columns set on stone bases and an attractive decorative wood truss across the open gable.
  • It has an 8'x7' garage door as well as the man door in front.
  • Store a vehicle inside, or yard gear, or make it a workshop or playroom.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

30' 0"

Max Ridge Height

20' 0"

Garage

Type

Detached

Area

626 sq. ft.

Count

1 Cars

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Architectural Style

Craftsman

Special Features

Playroom

Workshop
