Plan 69050AM
Craftsman Home Plan
Heated S.F.
2,514
Beds
3
Baths
2.5
Stories
2
Cars
3
Floor Plan

Plan 69050AM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 69050AM

1-800-854-7852

1-262-521-4596

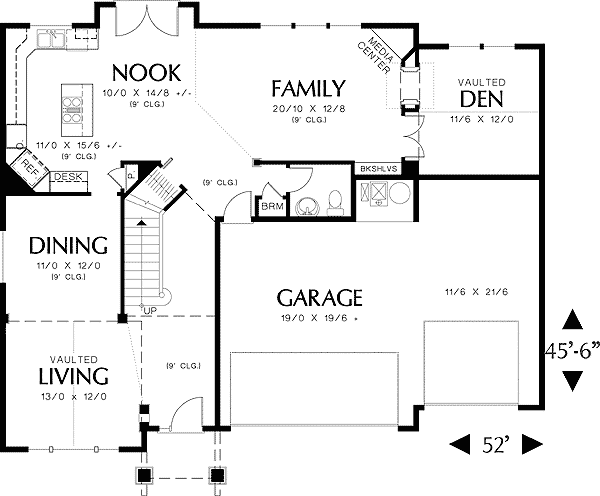

Main Level
floor plan image Main Level

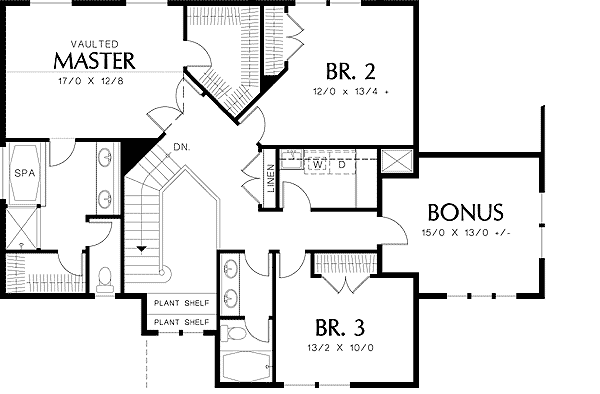

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Not only does this home offer comfortable living for a family, it also has space to grow. Develop the bonus room at the building stage, or finish it later as you need the extra space.
  • The traditional floor plan puts formal living and dining rooms at the front of the plan. The living room is vaulted and has a wide triple window looking out to the front yard. Casual living space is at the back of the plan: an island kitchen, a breakfast nook with double doors to the yard and a sizable family room with built-in media center and bookshelves. The family room and den share a through fireplace; double doors open to the vaulted den.
  • The upper level holds three bedrooms and the laundry room. A vaulted master bedroom has the use of two walk-in closets and a bath with spa tub and compartmented toilet. The hall bath serves the other bedrooms and is sectioned for convenience. Note the triple garage, which opens to the main house near a half-bath.
  • Related Plan: For an alternate exterior and layout, see house plan 69051AM.
What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,514 sq. ft.

1st Floor

1,360 sq. ft.

2nd Floor

1,154 sq. ft.

Bonus

202 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

46' 0"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

668 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bonus Room

Breakfast Nook

Den

Laundry - Upstairs

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

2,514 sq. ft.

1st Floor

1,360 sq. ft.

2nd Floor

1,154 sq. ft.

Bonus

202 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

46' 0"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

668 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bonus Room

Breakfast Nook

Den

Laundry - Upstairs

Master Suite - 2nd Floor
