Plan 2305JD
Craftsman Home Plan with Many Options
Heated S.F.
2,805
Beds
3
Baths
2.5
Stories
2
Cars
3
Floor Plan

Plan 2305JD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 2305JD

1-800-854-7852

1-262-521-4596

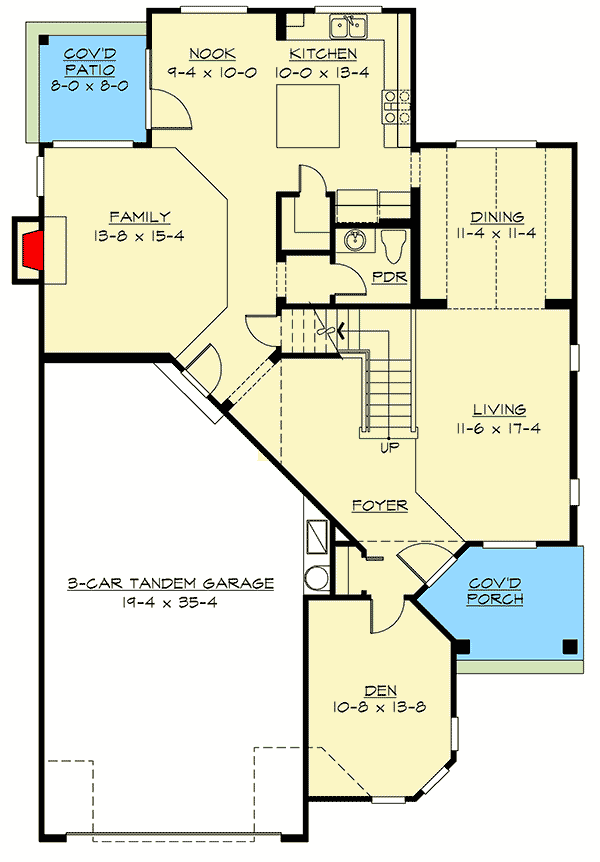

Main Level
floor plan image Main Level

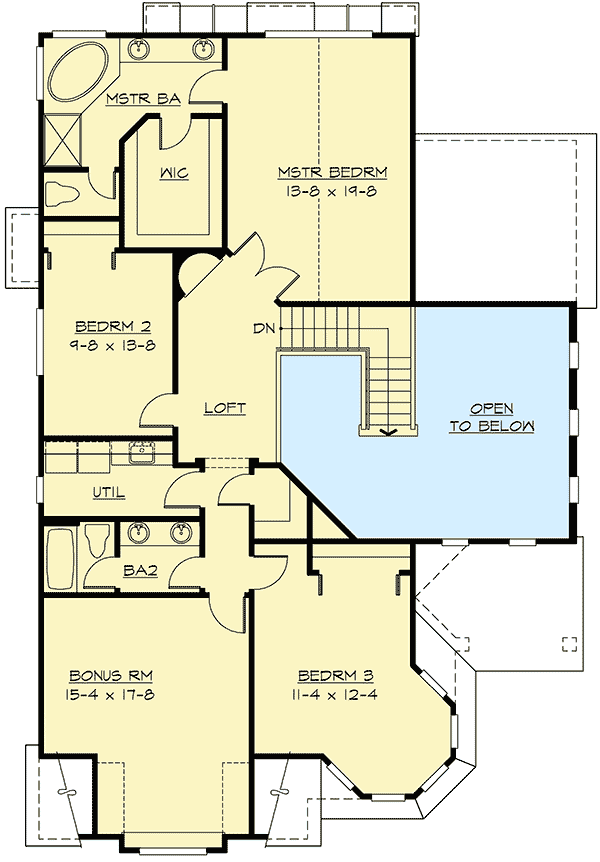

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This roomy Craftsman house plan offers formal living and dining rooms plus a kitchen with island and walk-in pantry, an eating nook and family room with fireplace. A cozy covered patio is a great spot for relaxing.
  • The two-story foyer and living room can be viewed from the stairway.
  • A turret-like feature crowns bedroom three and the den below. The master-bedroom ceiling is vaulted, and the master bath includes a walk-in closet, twin sinks, garden tub and separate shower.
  • Bedrooms two and three share the other full bath. The nearby bonus room could become a fourth bedroom.
  • Related Plans: This house plan comes in several versions. Two that keep the turret feature and that share a gambrel-style roof are 2303JD (crawl space) and 23088JD which features a finished walkout basement.
  • Gain a three-car-wide garage with 2302JD and 2304JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

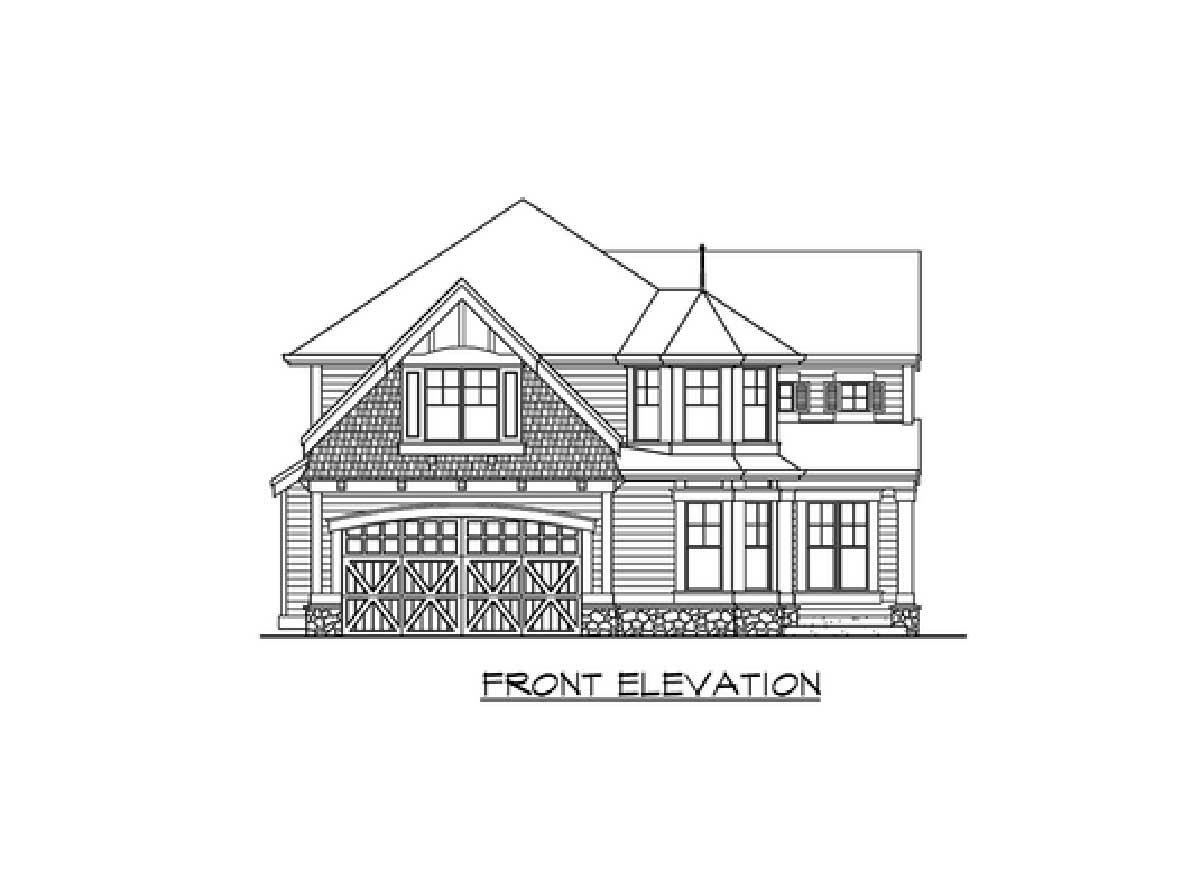

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
