Plan 51739HZ
Craftsman House Plan Loaded with Style
Heated S.F.
2,151
Beds
3 - 4
Baths
2.5 - 3.5
Stories
1-2
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 51739HZ comes to life in Texas

House Plan 51739HZ comes to life in Texas

19

Photos

build gallery item - House Plan 51739HZ comes to life in Texas

House Plan 51739HZ comes to life in Texas

11

Photos

build gallery item - House Plan 51739HZ comes to life in North Carolina

House Plan 51739HZ comes to life in North Carolina

16

Photos

Photos
Floor Plan

Plan 51739HZ

Main Level
slide image 0
Optionally Finished Bonus Room
slide image 1

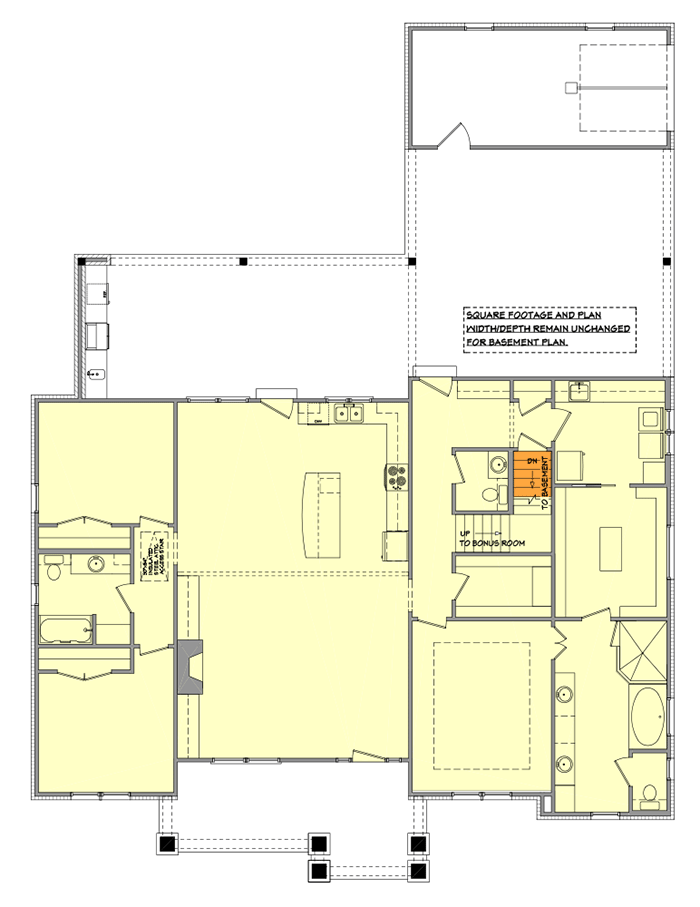

Basement Stairs Location
slide image 2
Unfinished Basement
slide image 3

Plan 51739HZ

1-800-854-7852

1-262-521-4596

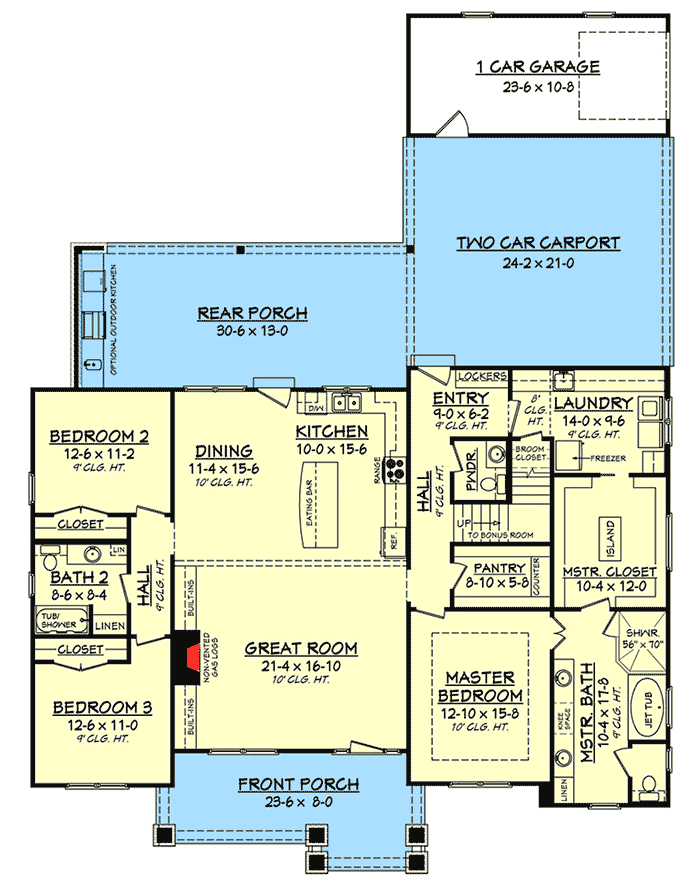

Main Level
floor plan image Main Level

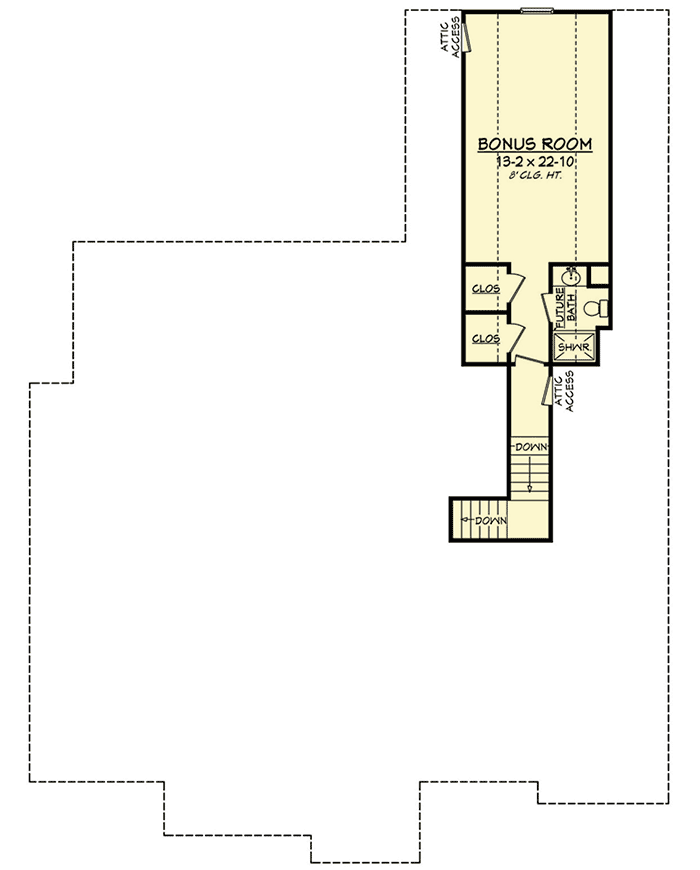

Optionally Finished Bonus Room
floor plan image Optionally Finished Bonus Room
Basement Stairs Location
floor plan image Basement Stairs Location

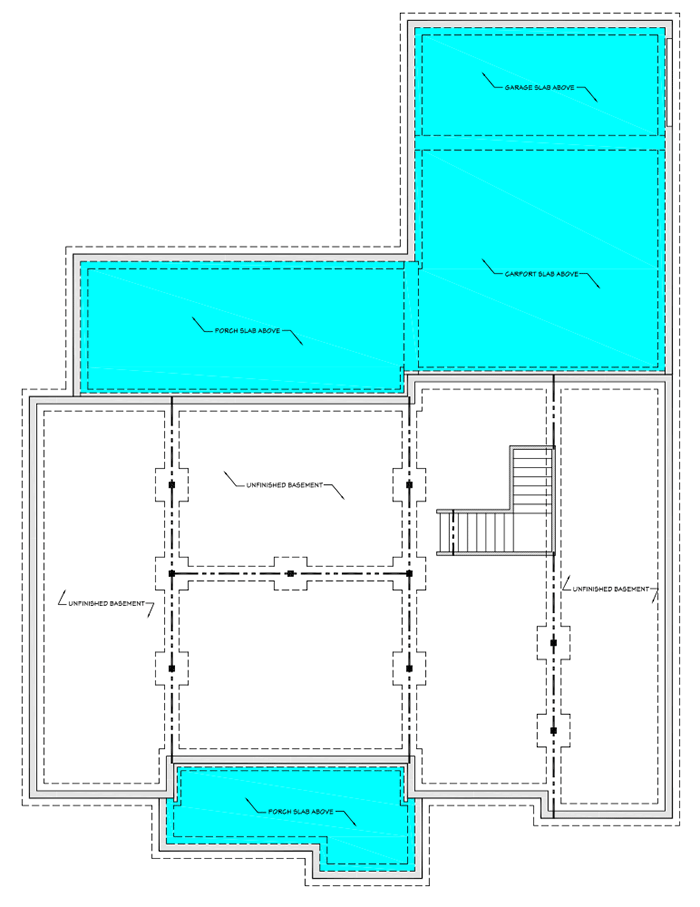

Unfinished Basement
floor plan image Unfinished Basement
Plan Details
  • This wonderful 3 bedroom, 2 ½ bath Craftsman house plan is loaded with features and style.
  • It offers a luxurious master suite, oversized utility room, mudroom entry with lockers, large walk-in pantry, specialty ceilings and tremendous curb appeal.
  • The popular open concept layout offers great spaces for entertaining and the rear porch boasts an outdoor kitchen area.
  • A bonus room is also provided above the carport and offers a perfect space for future expansion.
What's Included
Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Bonus floor plan

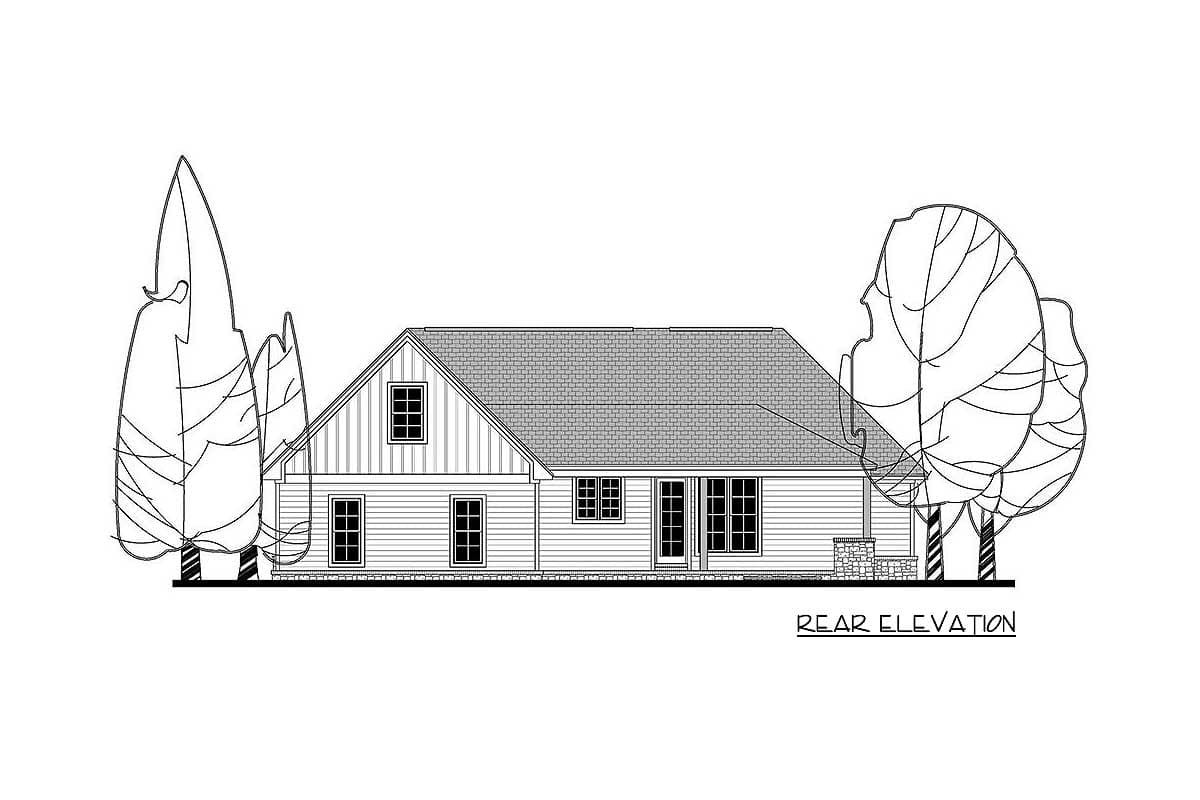

Page 5  Front and rear exterior views with notes and wall sections
Page 6  Right and left exterior views with carport section
Page 7  Cross Section & kitchen cabinet views
Page 8  Roof plan & span charts
Page 9  Electrical plans & notes/ legend
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,151 sq. ft.

1st Floor

2,151 sq. ft.

Bonus

475 sq. ft.

Carport

500 sq. ft.

Porch, Front

209 sq. ft.

Porch, Rear

397 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 8"

Depth

78' 4"

Max Ridge Height

21' 8"

Garage

Type

Carport

Area

250 sq. ft.

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Northwest

Traditional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Plan Collections

Photo Gallery

USDA Approved
