Plan 520001RKY

Craftsman House Plan with Angled Garage and Master Suite - 2450 Sq Ft

Heated S.F.

3,822

Beds

3 - 4

Baths

2.5+ - 3.5+

Stories

1

Cars

3

Floor Plan

Main Level

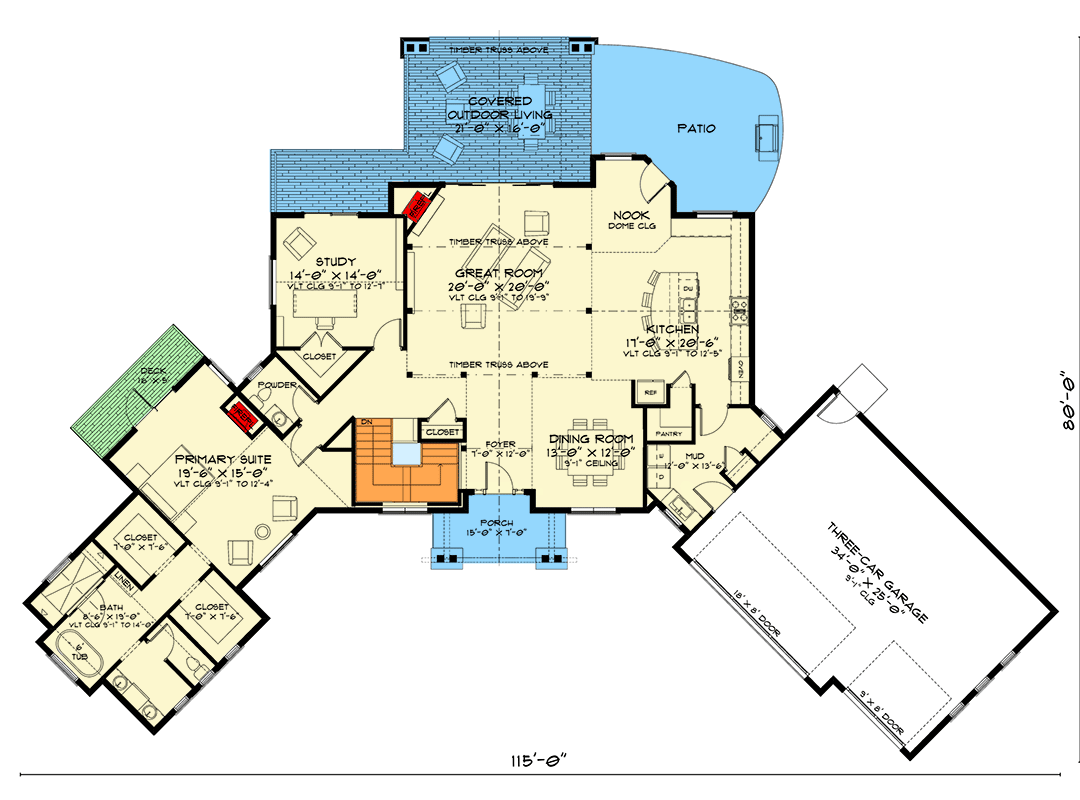

floor plan image Main Level

Lower Level

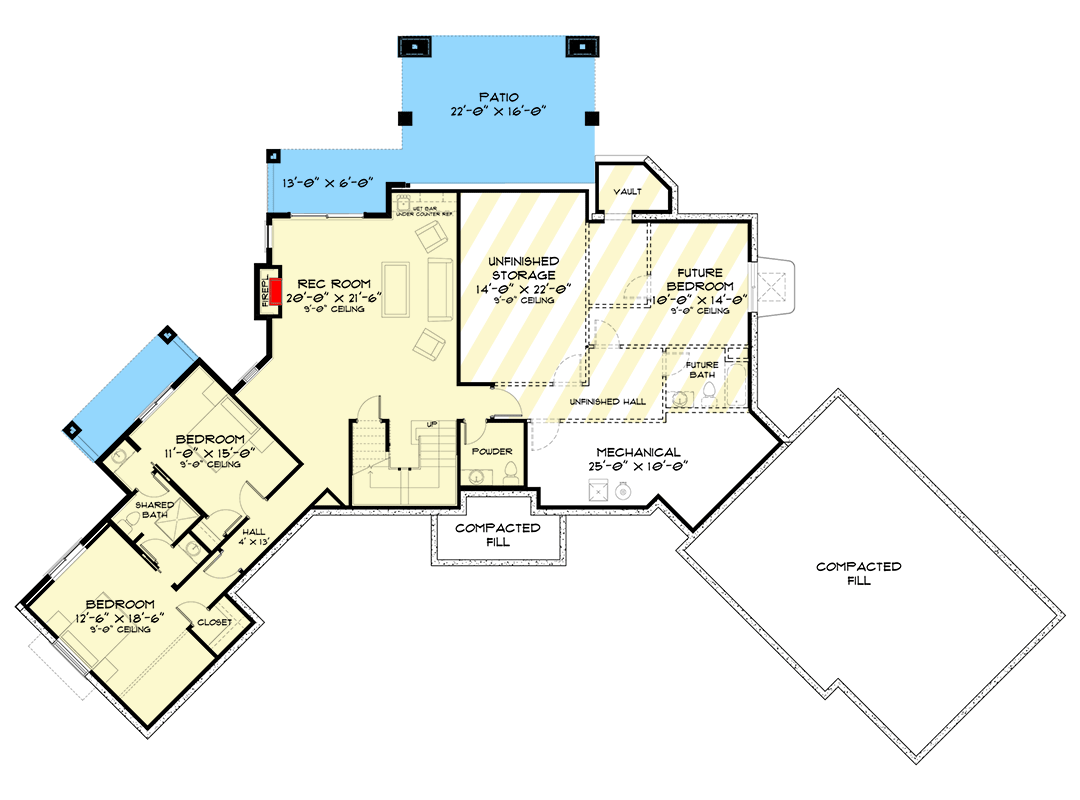

floor plan image Lower Level

Plan Details

The grandeur of nature meets the comforts of home in this luxe mountain lodge house plan. Designed for a wide hillside site with views to the rear, the home opens with soaring vaulted ceilings that begin at the foyer and draw the eye through the great room and beyond. A grand corner fireplace allows you to take in the view while nestled near a cozy fire in the winter, and in the warmer months, you can simply open the sliding glass doors to extend your entertaining space outdoors.
The main level open floor plan features timber trusses above and a domed ceiling over the breakfast nook, maintaining the impressive feel and proportions of a true mountain lodge. The gourmet kitchen is a dream for any home chef – with plenty of counter space and room for professional appliances – along with a walk-in pantry. The kitchen also has easy access to the formal dining area and to the patio, where there’s room for an outdoor kitchen.
An ample primary suite wing provides an idyllic sanctuary away from the rest of the home. The owner’s retreat includes a fireplace and access to a private deck, as well as dual closets and a spa-like bath with a luxurious tub and double shower.
A three-car garage, mud room, powder room, and a home office with vaulted ceilings and outdoor living access finishes out the main level of this home plan, coming in just under 2500 square feet.
The daylight basement offers flexibility to expand based on your needs. As designed, the lower level includes two bedrooms with a shared bath, plus the option to add a third bedroom and an additional full bath. The rec room is ideal for game nights, movies, and casual entertaining, and it features a fireplace, wet bar, a powder room, and patio access.
With an impressive main level designed for easy aging-in-place, plus a walkout basement well-suited for family and guests, this mountain lodge house plan is the home you’ve been dreaming of.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Cover Sheet
Specifications
Foundation Layout Plan
Floor Plans
Sections
Elevations
Roof Ridge Plan
Details sheet(s)
Electrical Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Plumbing & Electrical plans
Mechanical Drawings (location of heating and air equipment and duct work)
Framing layouts with beam sizes and locations
Renderings, photography, or marketing imagery
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,822 sq. ft.

Lower Level

1,372 sq. ft.

1st Floor

2,450 sq. ft.

Basement Unfinished

1,100 sq. ft.

Optional Lower Level

1,100 sq. ft.

Porch, Front

95 sq. ft.

Deck

179 sq. ft.

Covered Deck

329 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

115' 0"

Depth

79' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

849 sq. ft.

Count

3 Cars

Entry Location

Front, Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9' 1"

Room

Ceiling Type

Height

Great Room

Vaulted

9' 1''

Study

Vaulted

9' 1''

Kitchen

Vaulted

9' 1''

Primary Bedroom

Vaulted

9' 1''

Foyer

Vaulted

9' 1''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen

Stacked Porches

Two Story Great Room

Square Footage Breakdown

Total Heated Area

3,822 sq. ft.

Lower Level

1,372 sq. ft.

1st Floor

2,450 sq. ft.

Basement Unfinished

1,100 sq. ft.

Optional Lower Level

1,100 sq. ft.

Porch, Front

95 sq. ft.

Deck

179 sq. ft.

Covered Deck

329 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

115' 0"

Depth

79' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

849 sq. ft.

Count

3 Cars

Entry Location

Front, Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9' 1"

Room

Ceiling Type

Height

Great Room

Vaulted

9' 1''

Study

Vaulted

9' 1''

Kitchen

Vaulted

9' 1''

Primary Bedroom

Vaulted

9' 1''

Foyer

Vaulted

9' 1''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen

Stacked Porches

Two Story Great Room
