Craftsman House Plan with Awesome Outdoor Living Room - 1880 Sq Ft - 23267JD

Plan 23267JD

Craftsman House Plan with Awesome Outdoor Living Room - 1880 Sq Ft

Heated S.F.

1,880

Beds

Baths

Stories

Cars

Photos

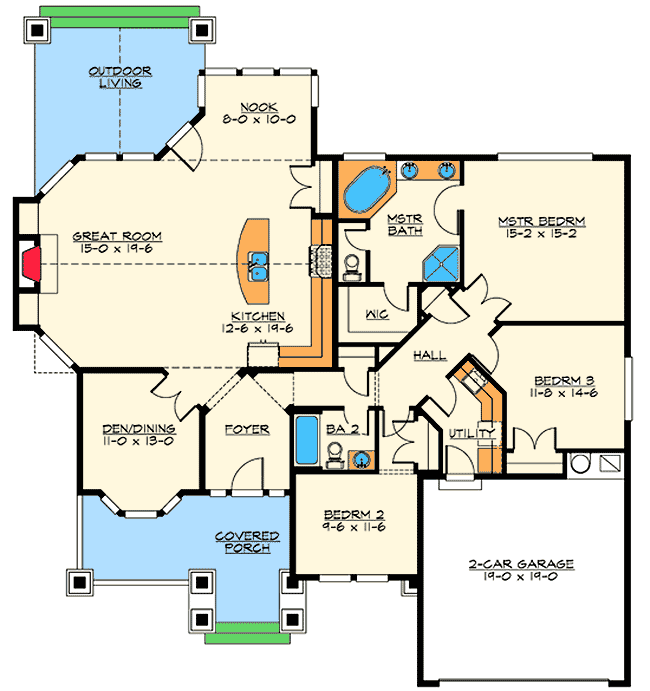

Floor Plan

Main Level

Plan Details

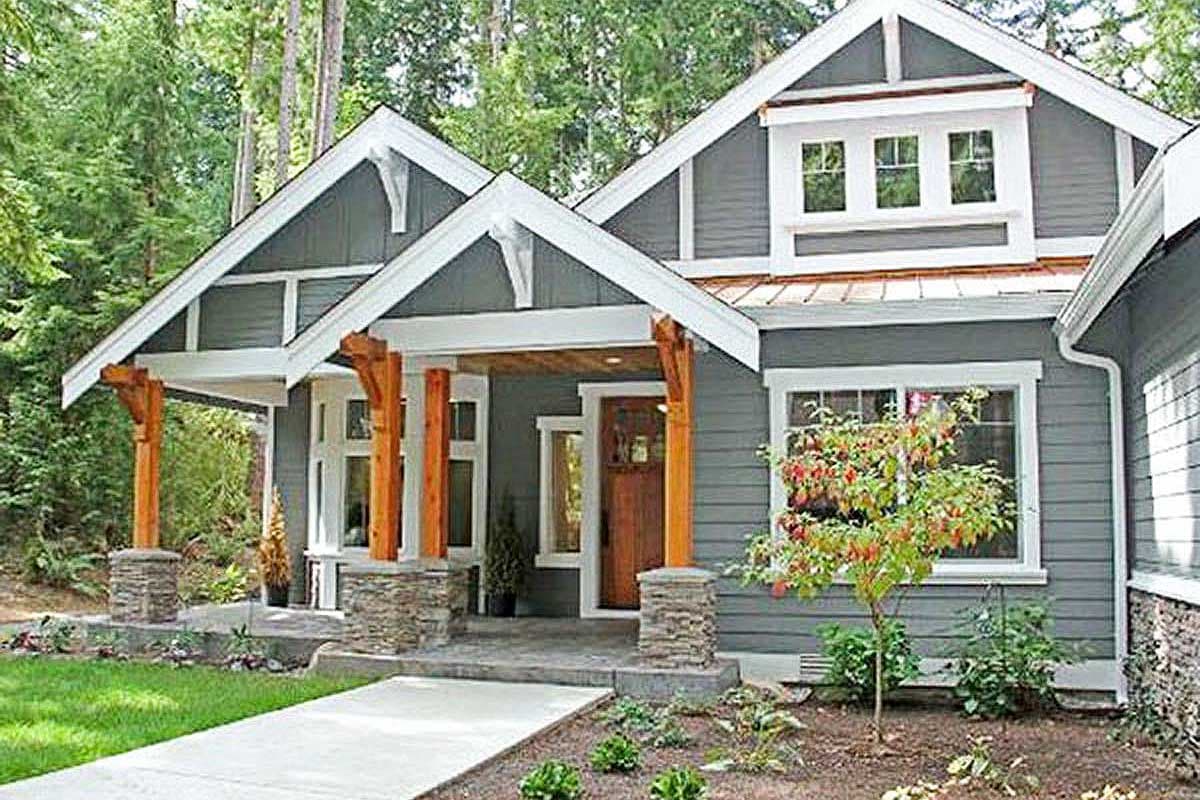

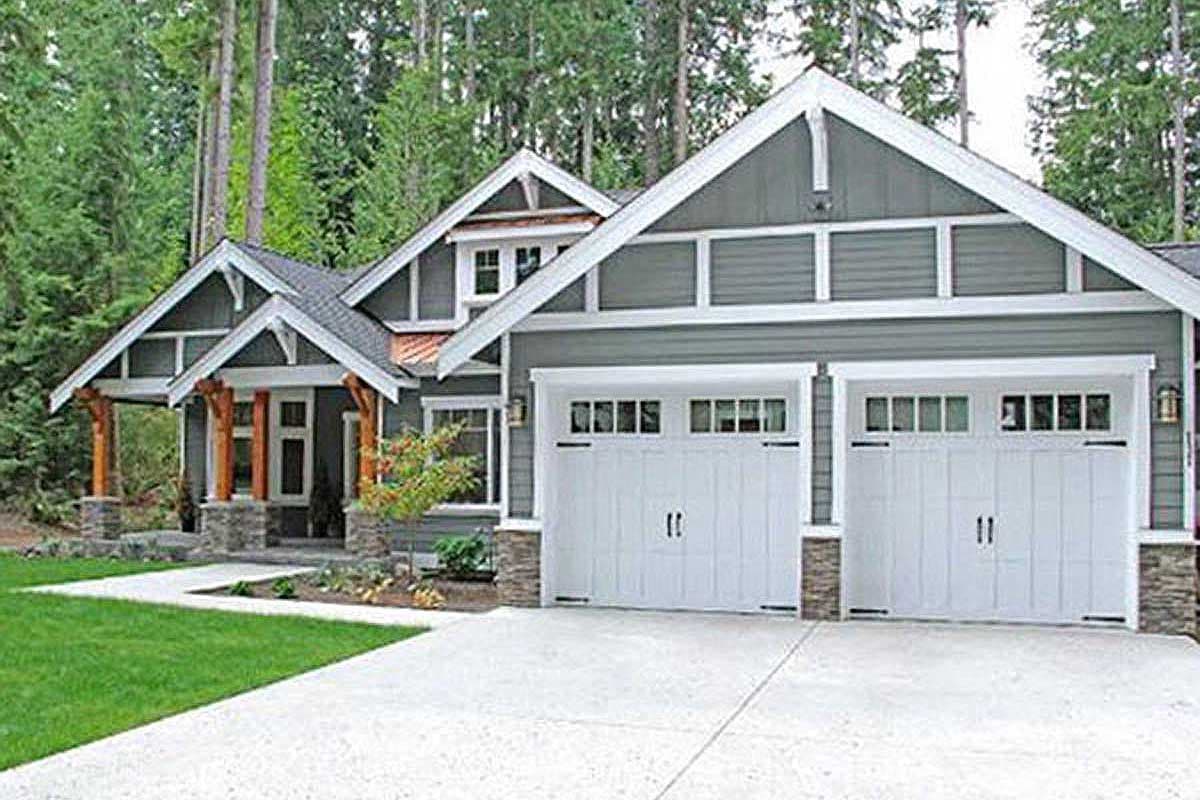

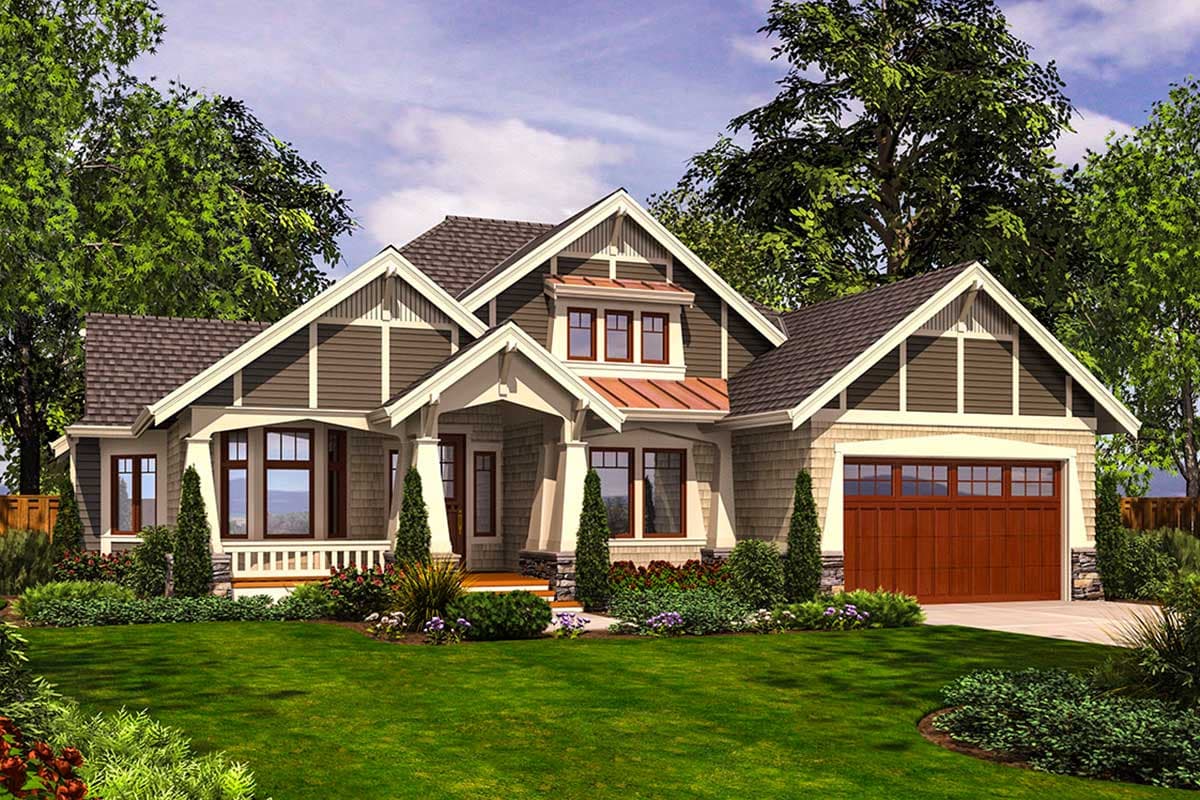

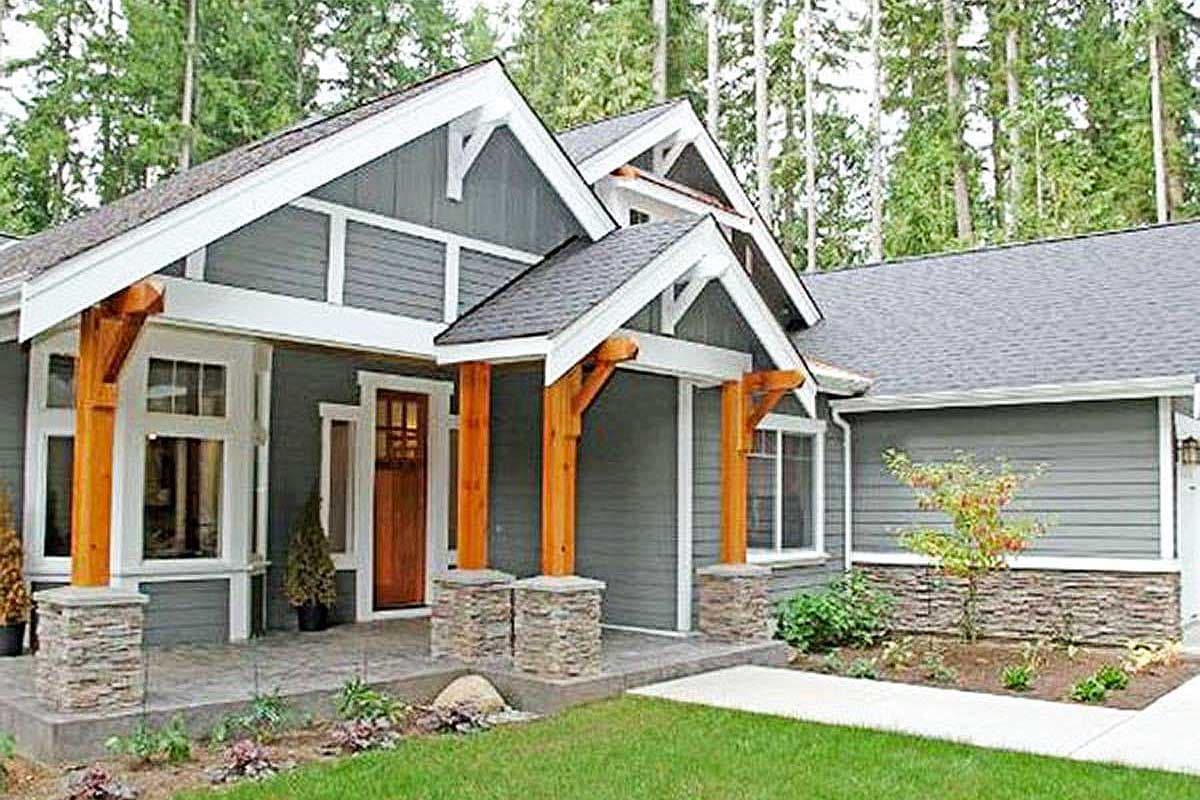

A unique exterior with multiple gables and a covered entry and porch greet you to this unique Craftsman house plan. It is available in both 2 and 3 car versions.

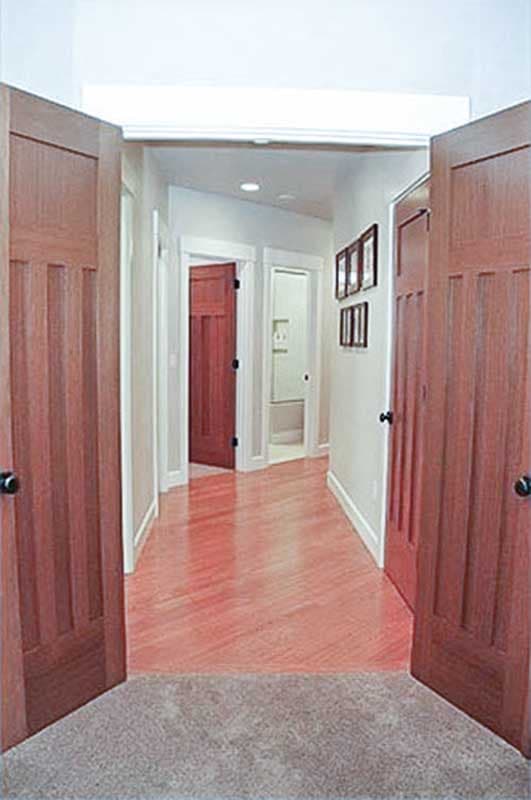

The foyer gives you two angled options - left to the common living areas and right to the private bedrooms.

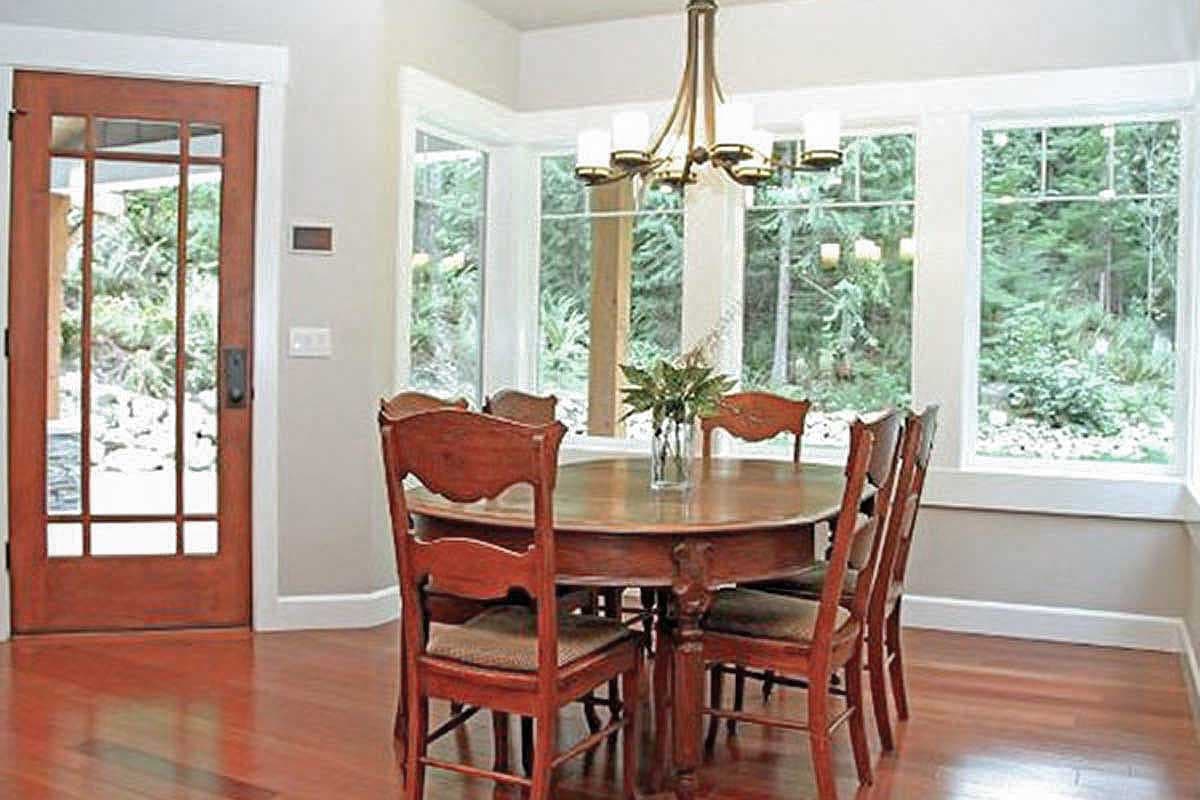

French doors lead to your dining room or den and a bumpout gives you three sets of windows to enjoy the views.

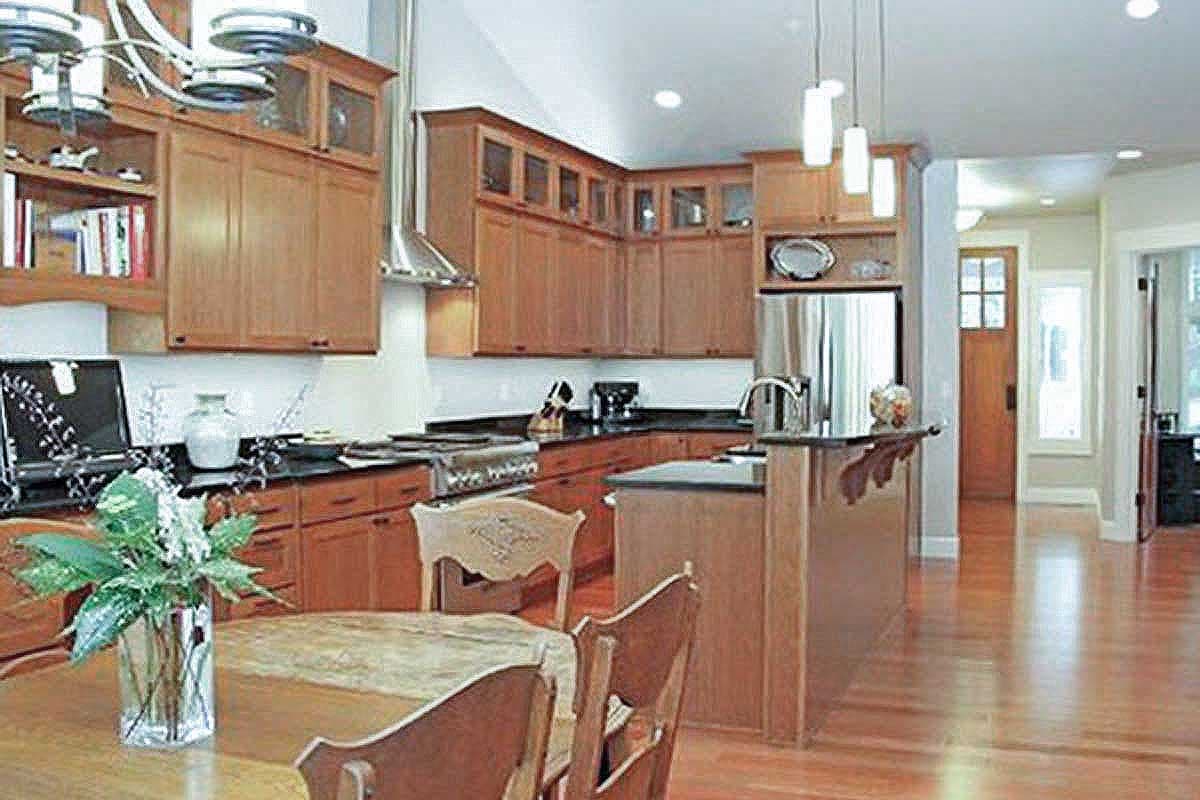

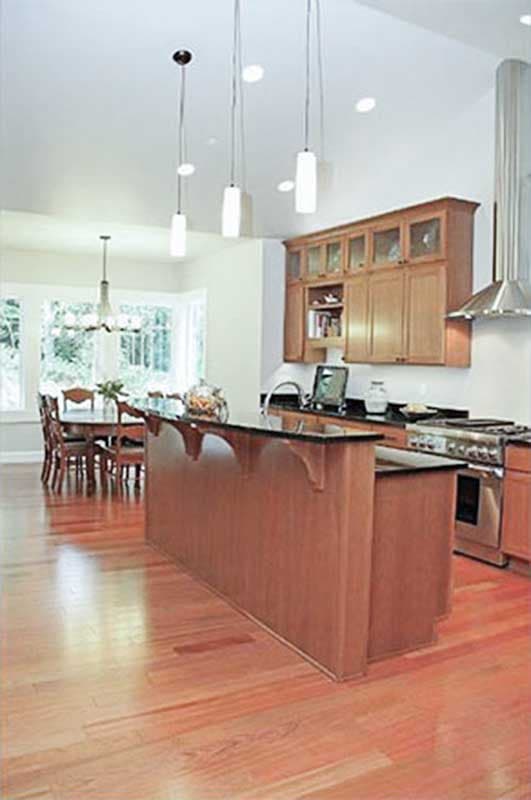

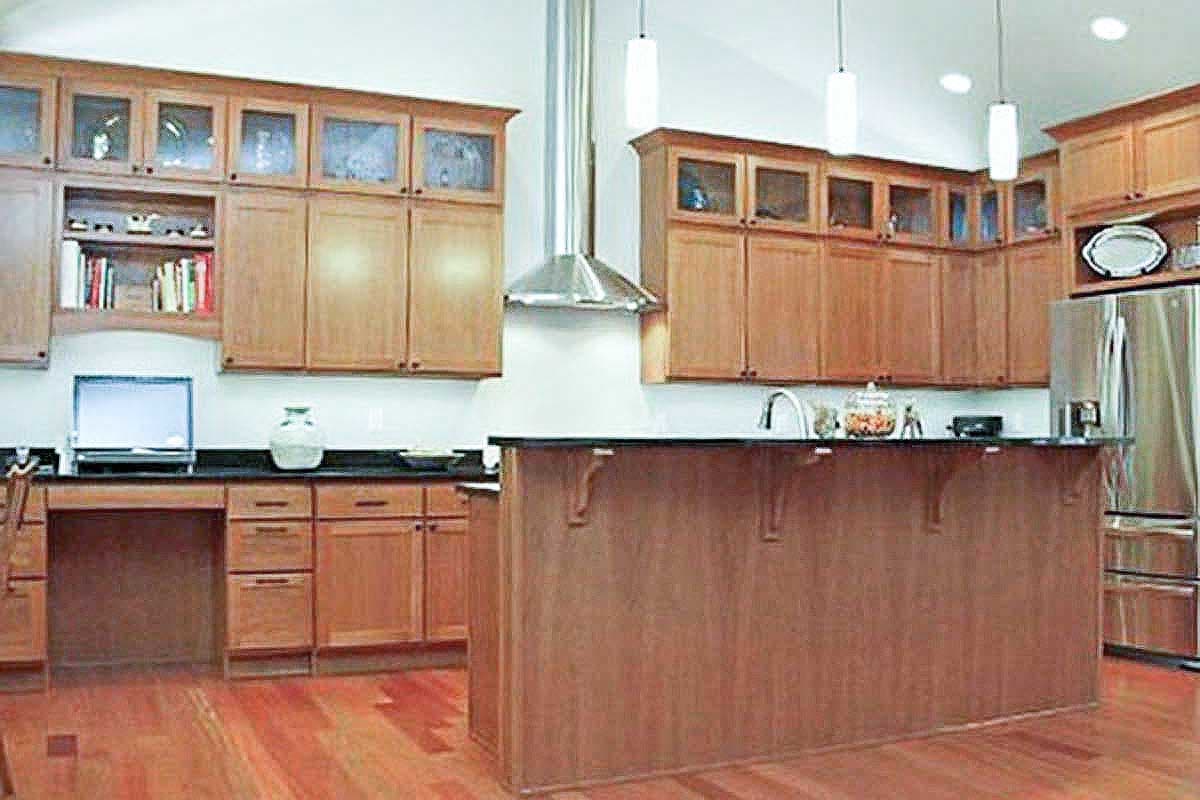

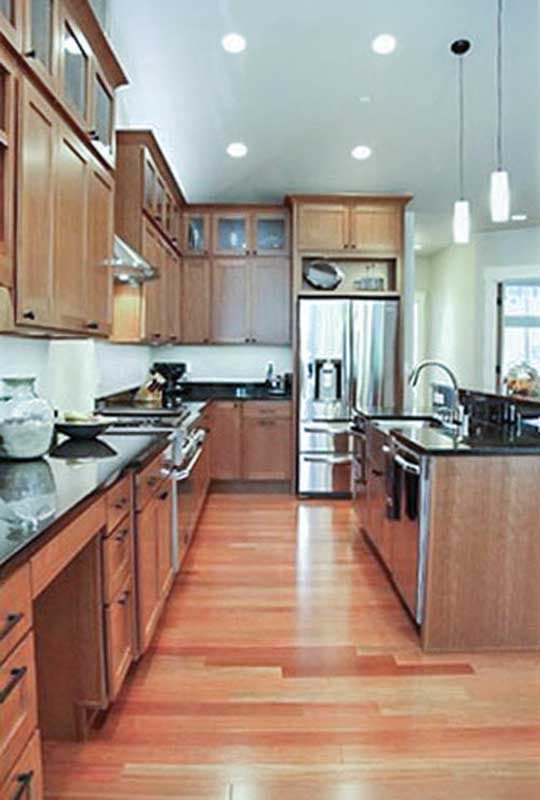

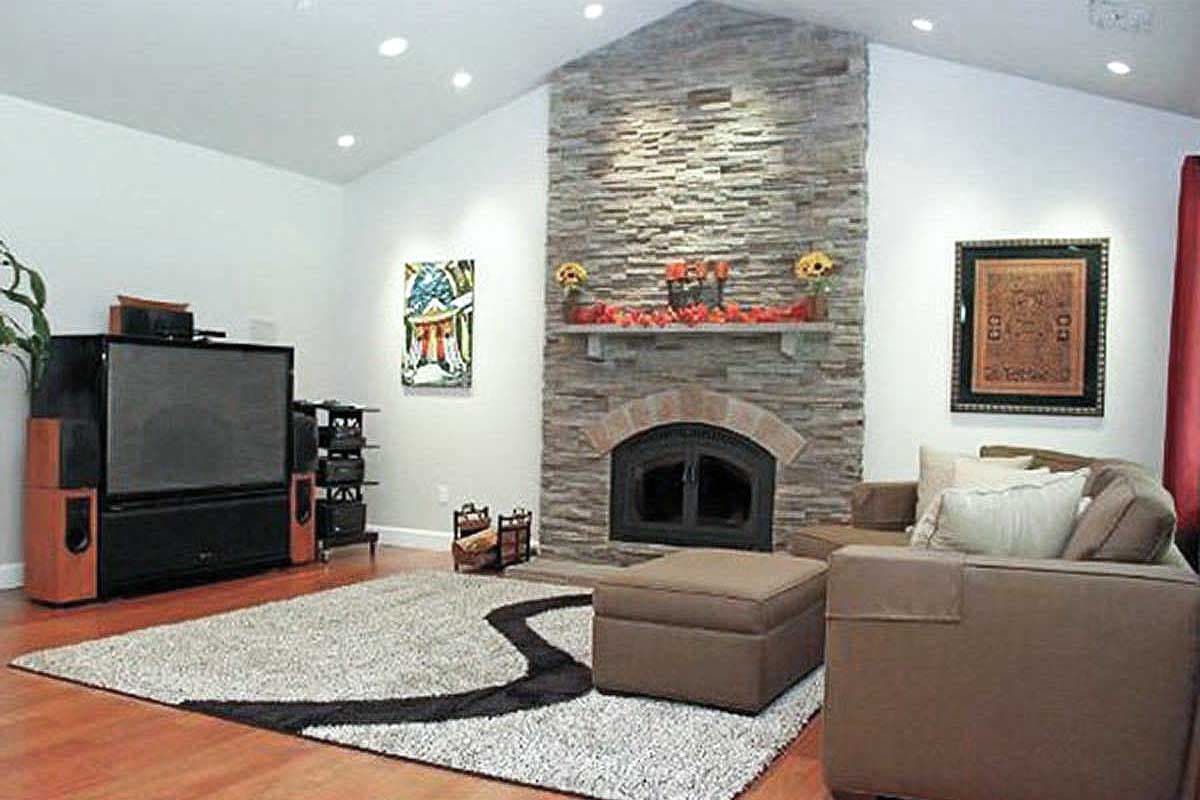

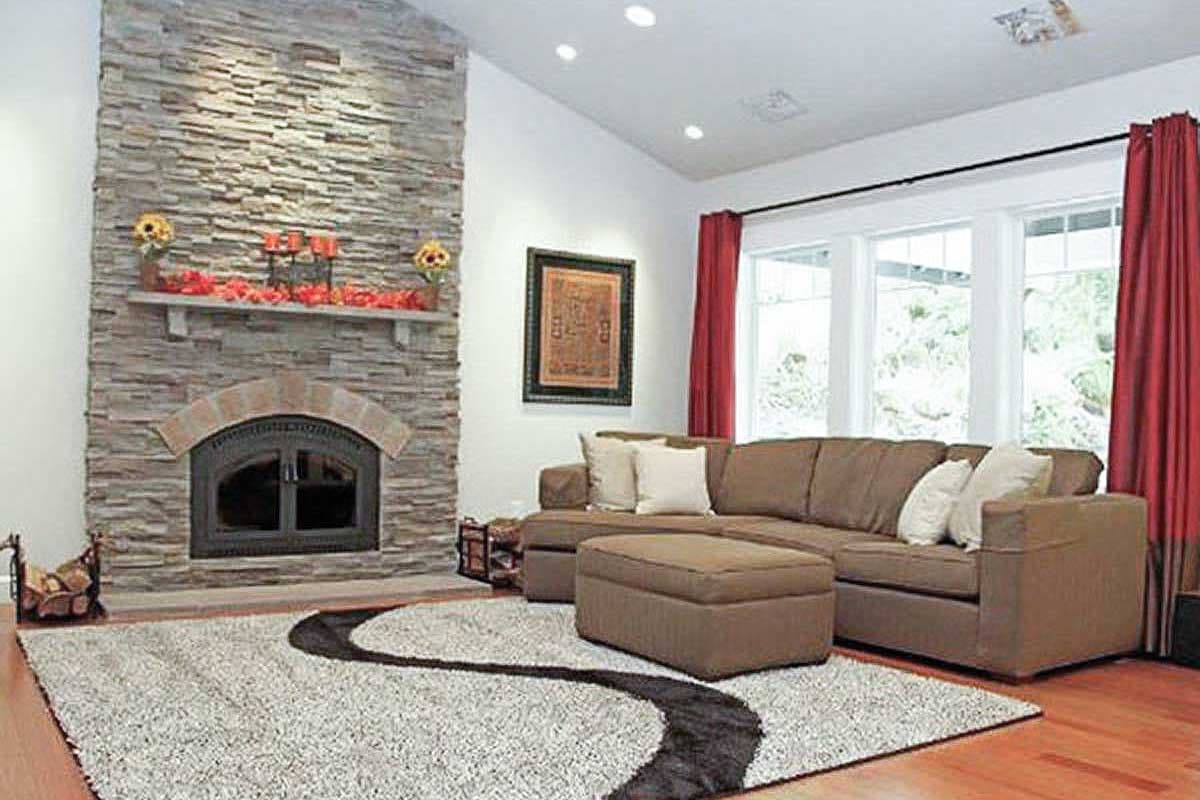

The great room is vaulted and features a fireplace flanked by built-ins. It is wide open to the kitchen and the nook with its views out the back.

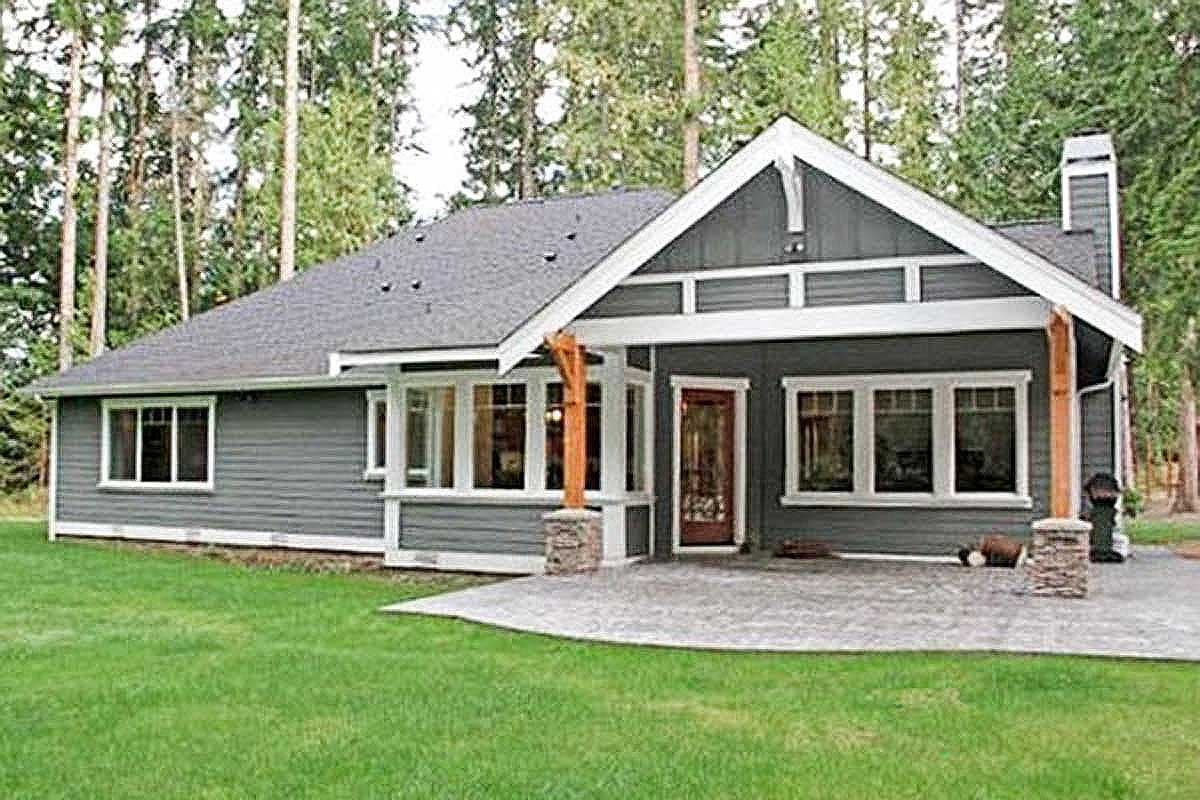

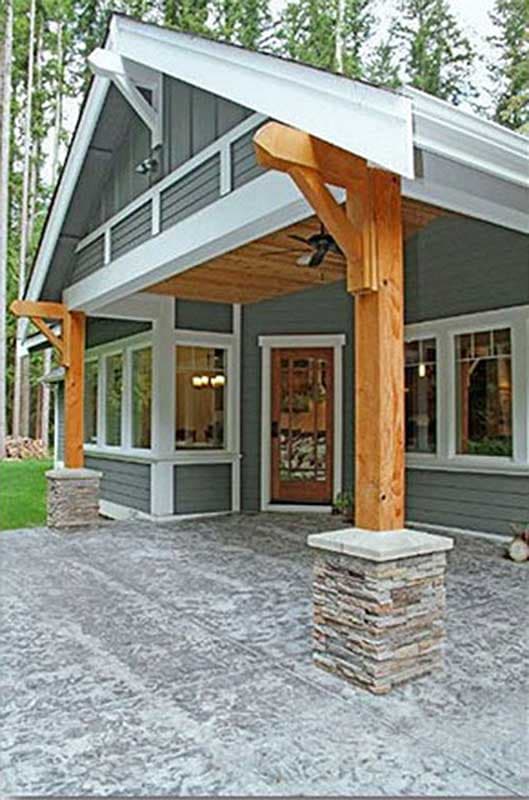

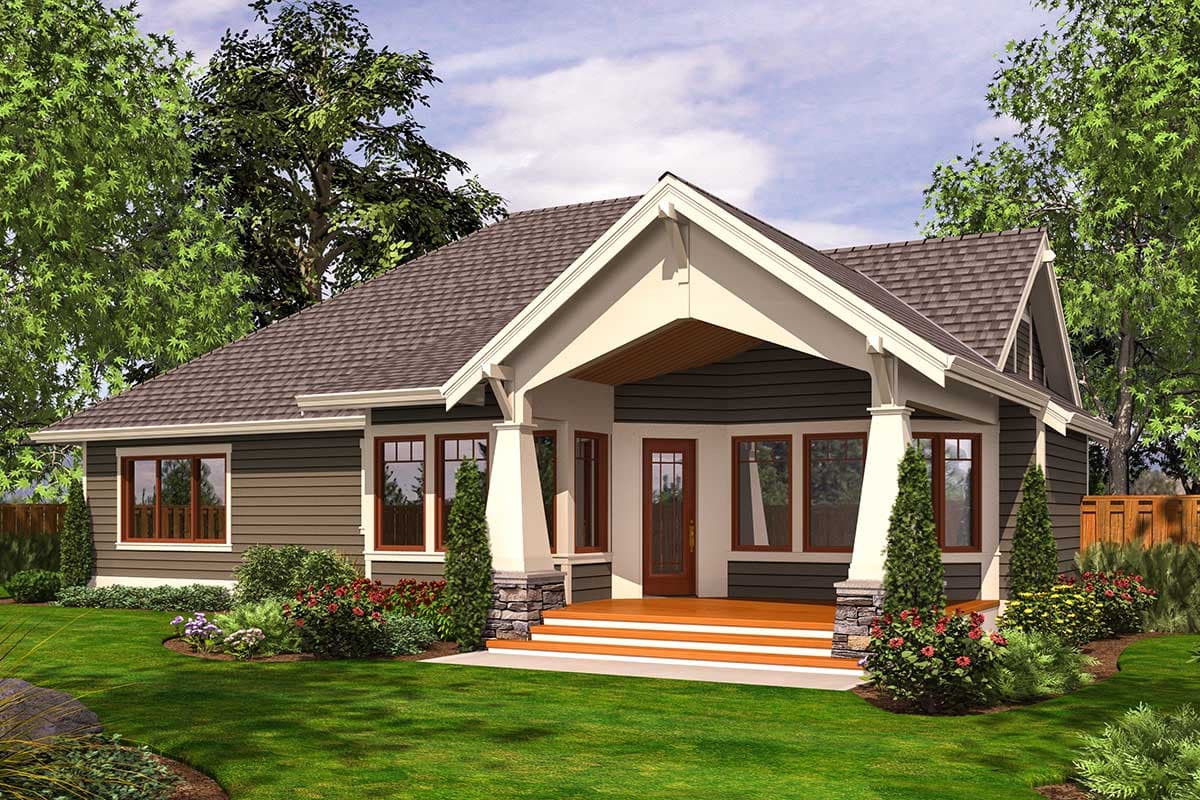

You'll love the vaulted outdoor living room. Sturdy square columns support the large overhang and add character to the rear of this home plan.

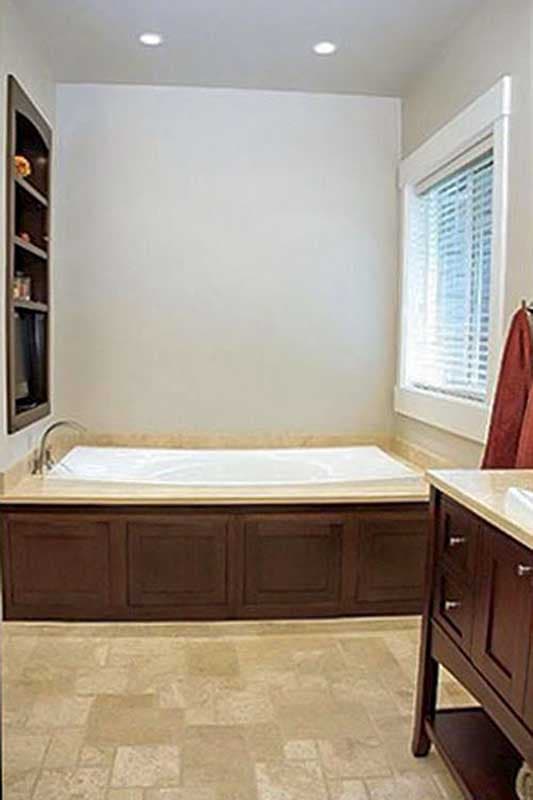

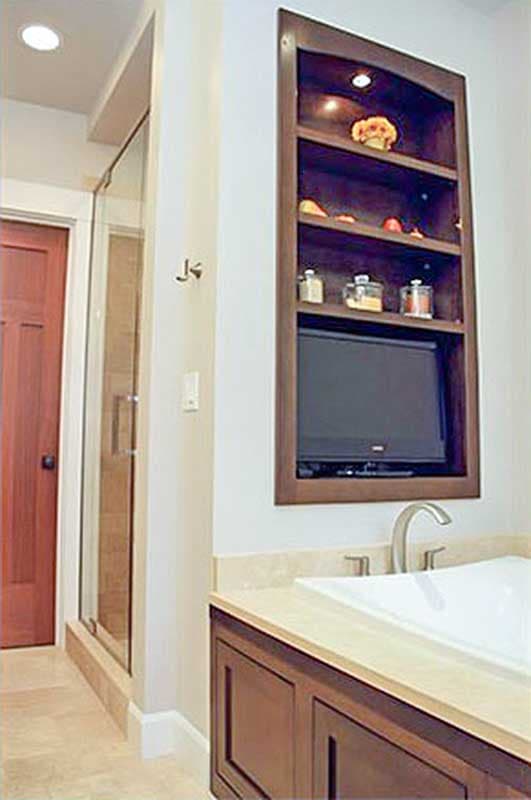

The master suite features a walk-in closet and a five-fixture bath. Two bedrooms round out this unique design.
Related Plans: Get a 3 car garage with house plan 23385JD. Get more room with house plans 23375JD (2,320 sq. ft.), 23381JD (2,580 sq. ft.) and 23383JD (3,020 sq. ft.).
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

House Plan 23267JD comes to life in North Carolina

Photos

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

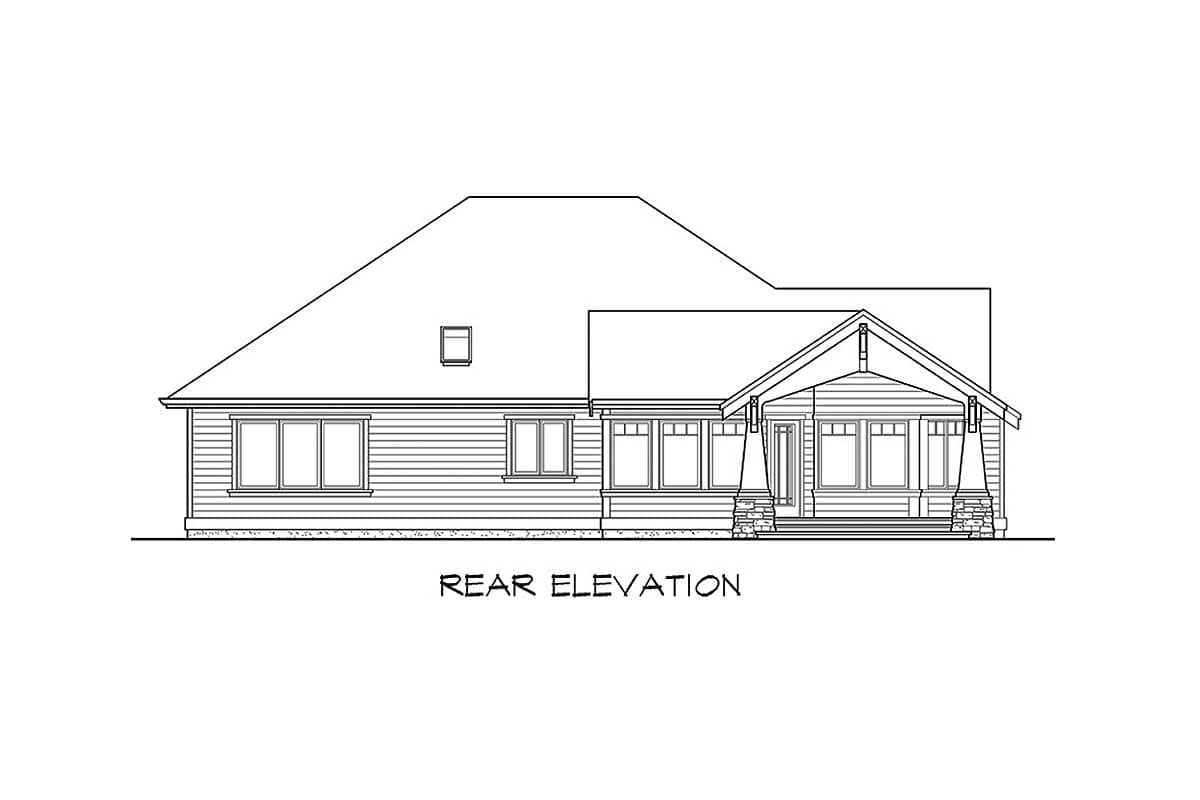

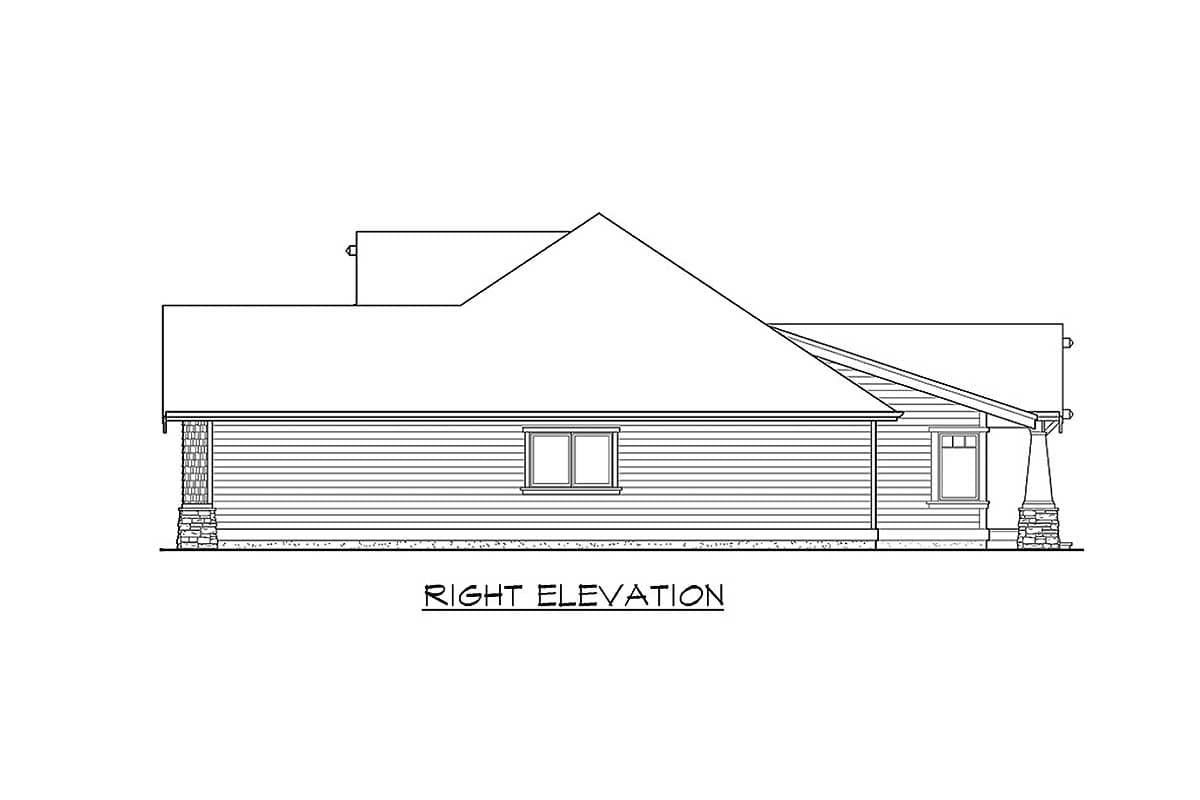

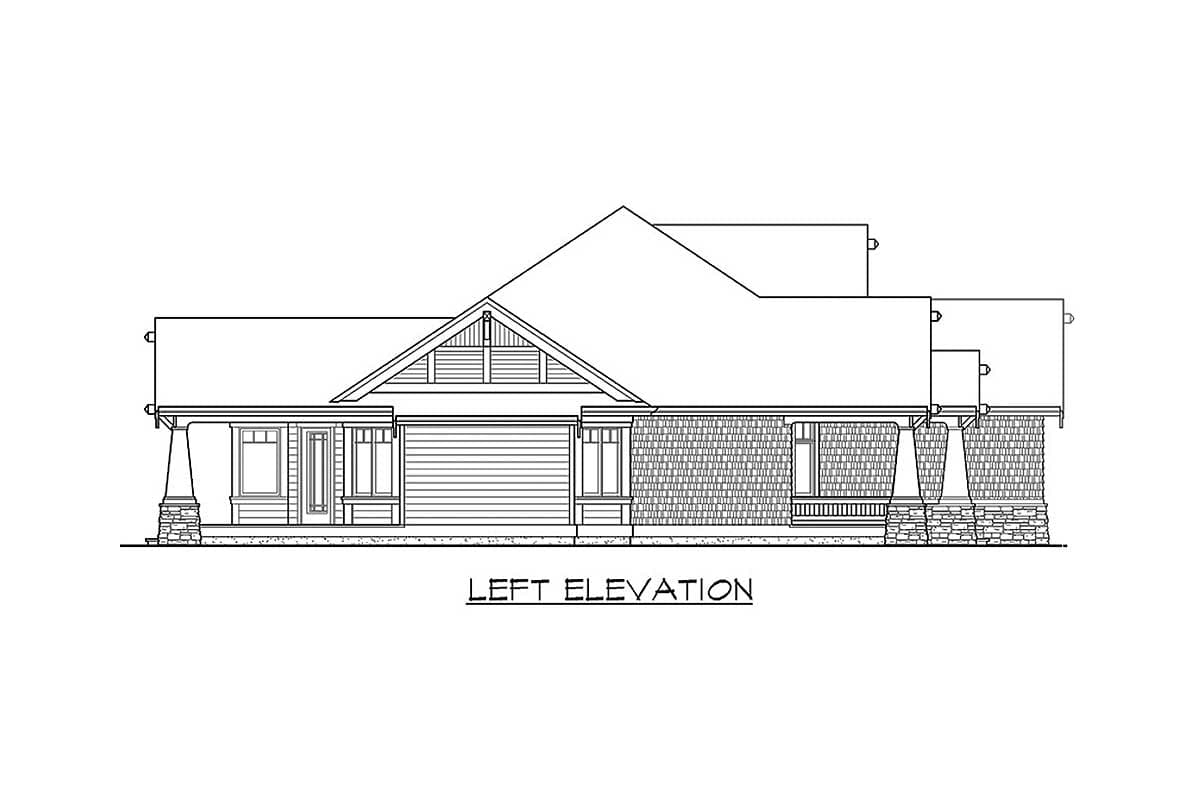

Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
