Plan 67816MG
Craftsman House Plan with Flex Room and 2-Car Garage - 1232 Sq Ft
Heated S.F.
1,232
Beds
1 - 4
Baths
2 - 3
Stories
1
Cars
2
Floor Plan

Plan 67816MG

Main Level
slide image 0
Optionally Finished Lower Level
slide image 1

Plan 67816MG

1-800-854-7852

1-262-521-4596

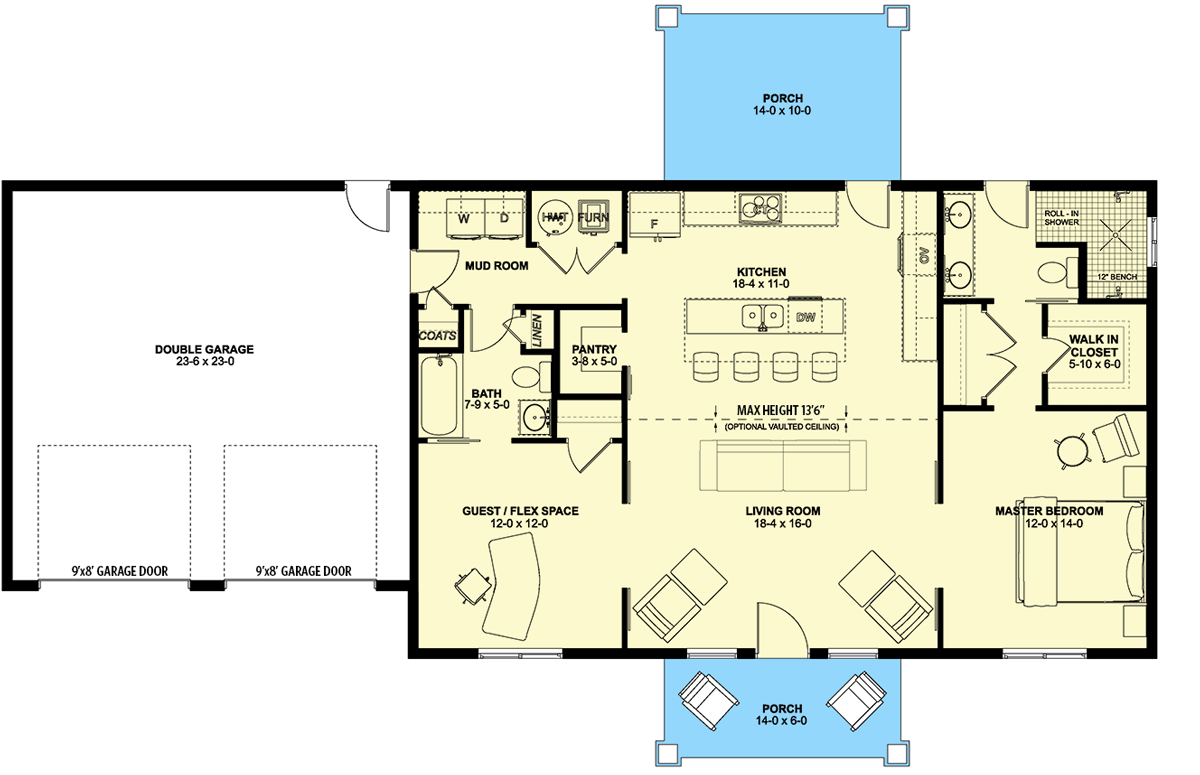

Main Level
floor plan image Main Level

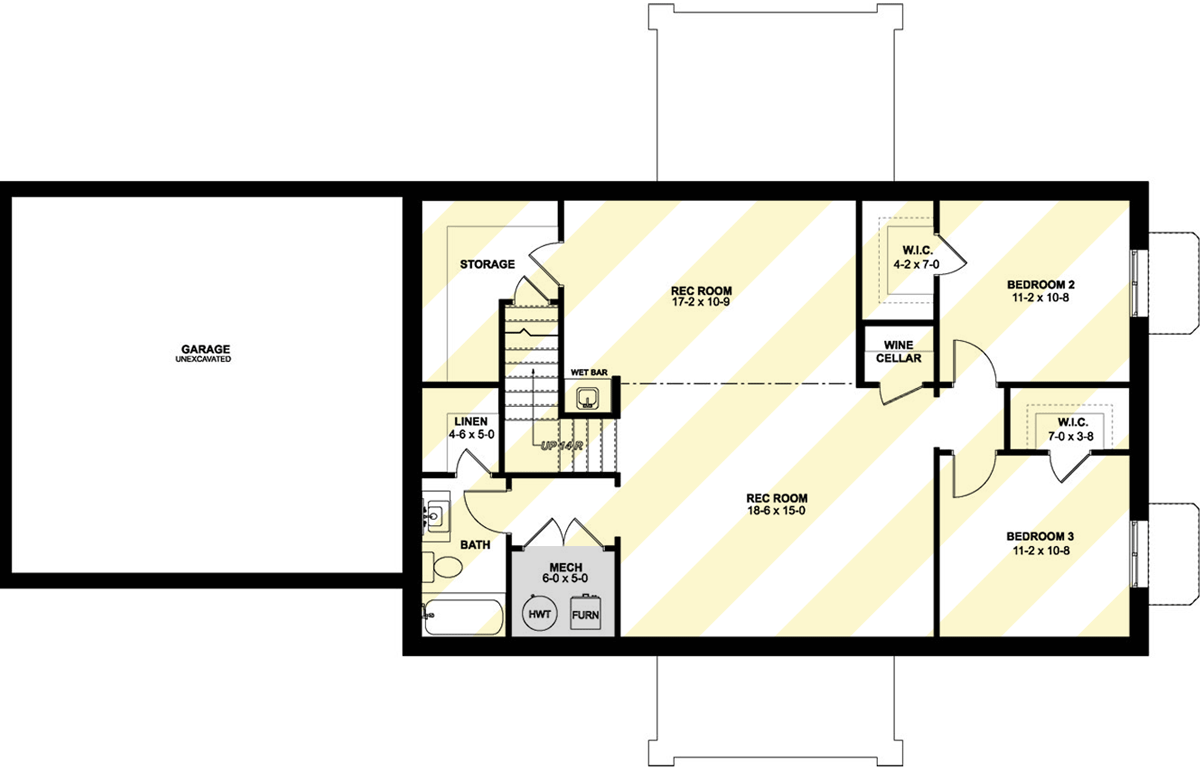

Optionally Finished Lower Level
floor plan image Optionally Finished Lower Level
Plan Details

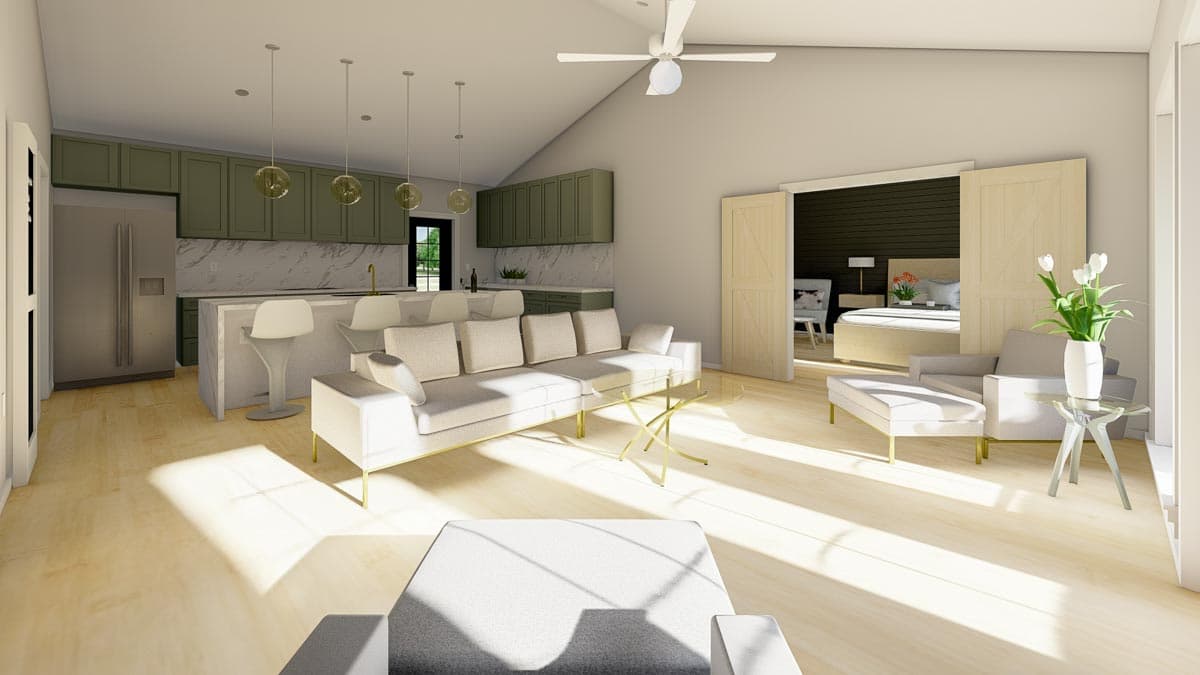

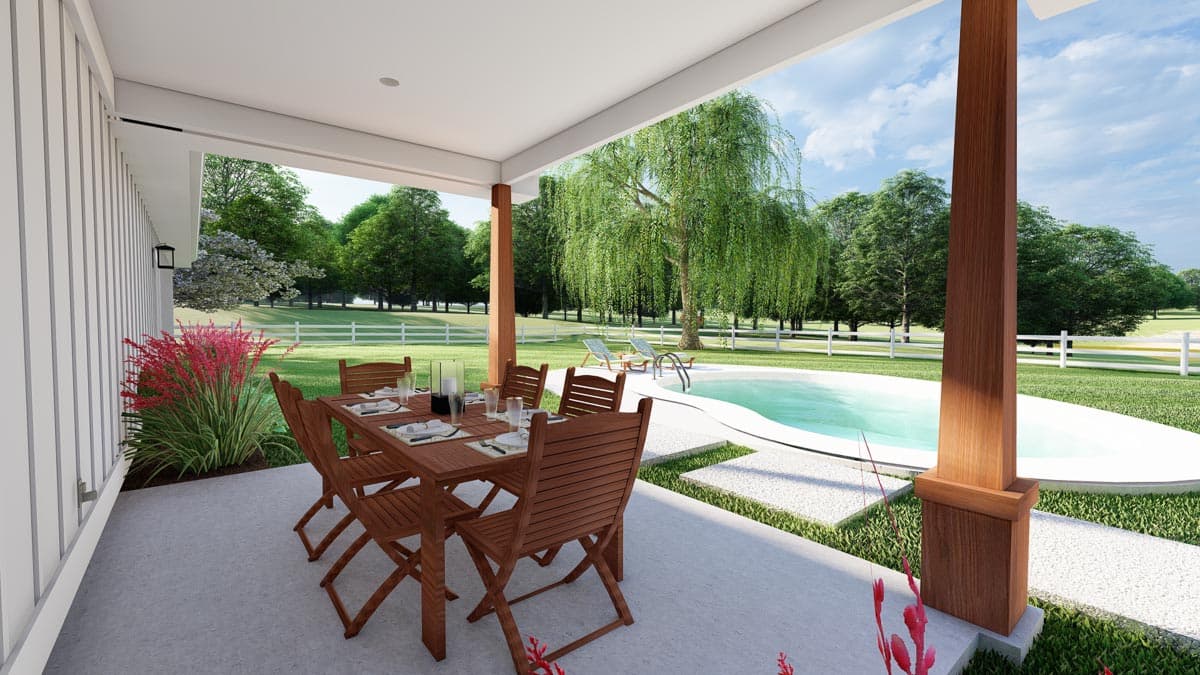

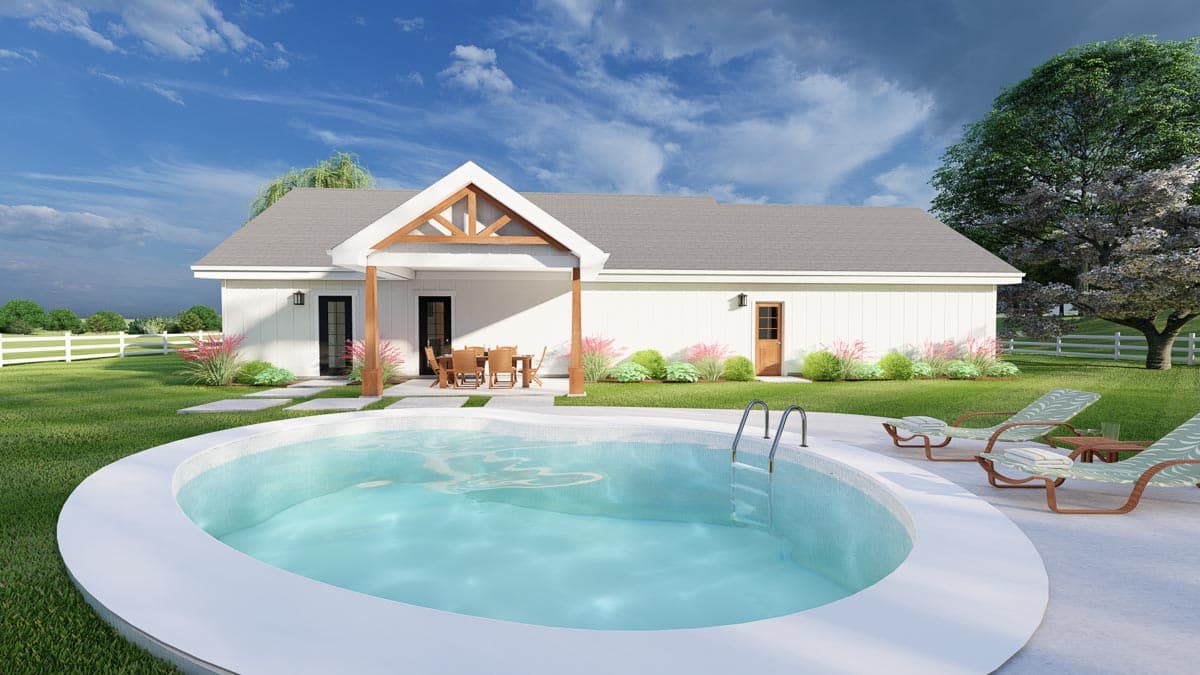

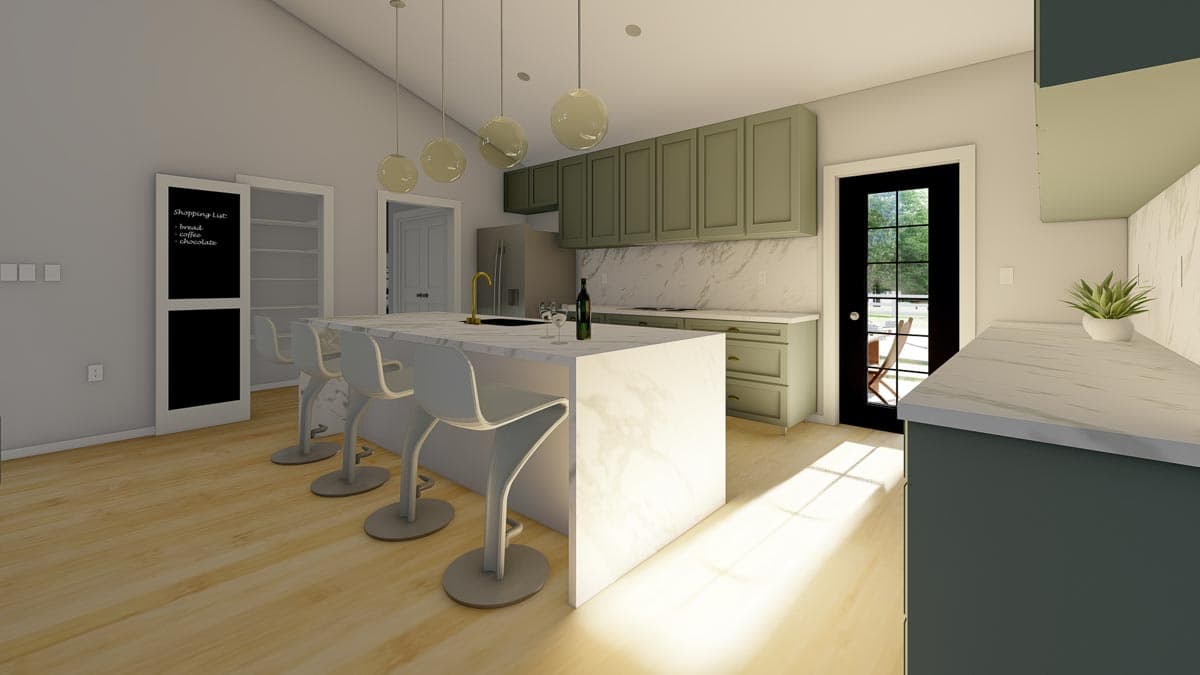

  • This one-floor house plan features a spacious kitchen with ample storage and a large 9'6"-long center island which comfortably seats up to four. The kitchen has direct access to both the walk-in pantry and rear dining porch which can be screened in or left open. The optional vaulted ceiling in the living room and kitchen rises to 13'6" at the center.

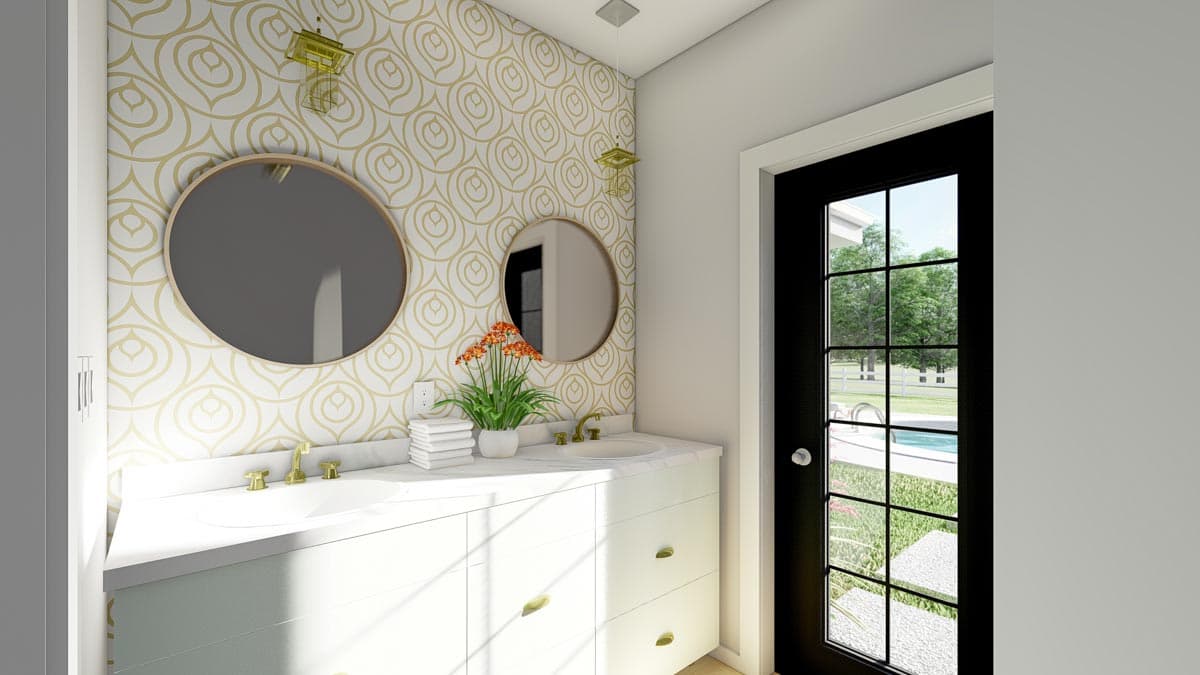

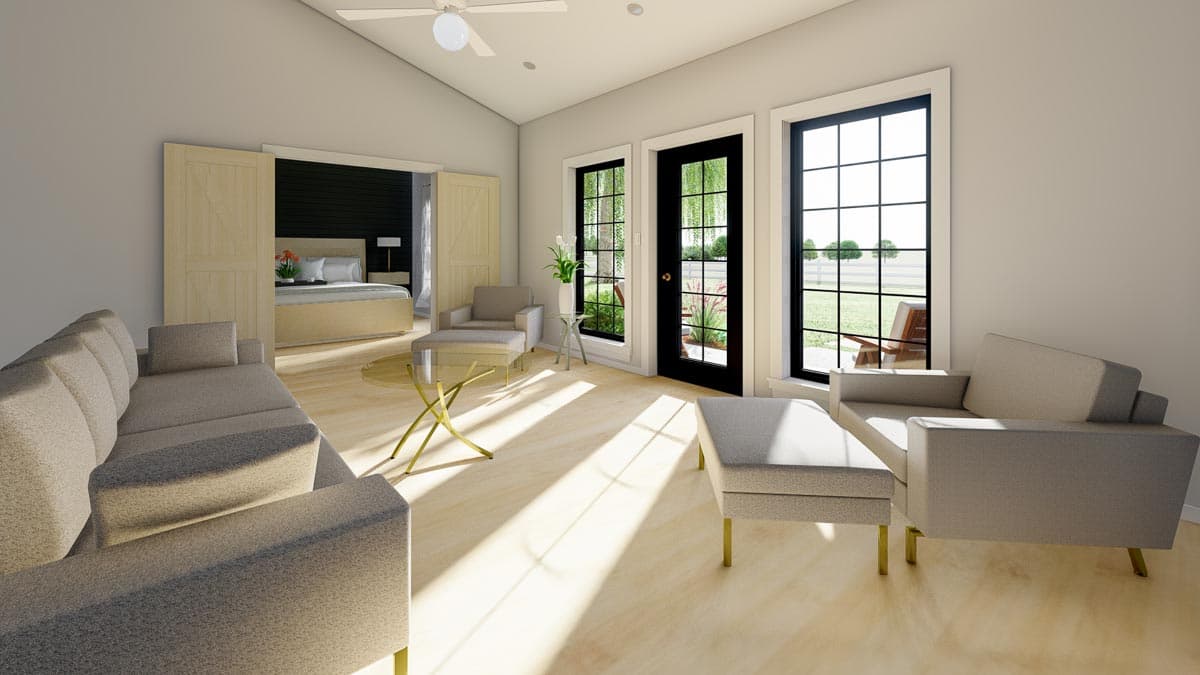

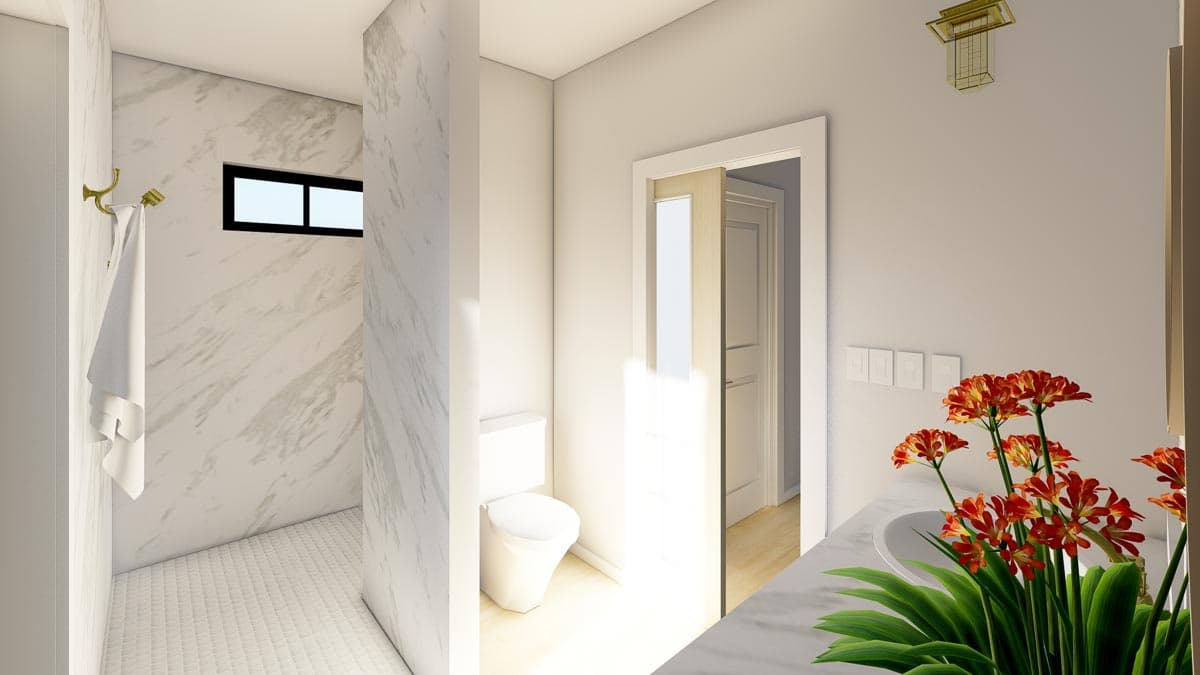

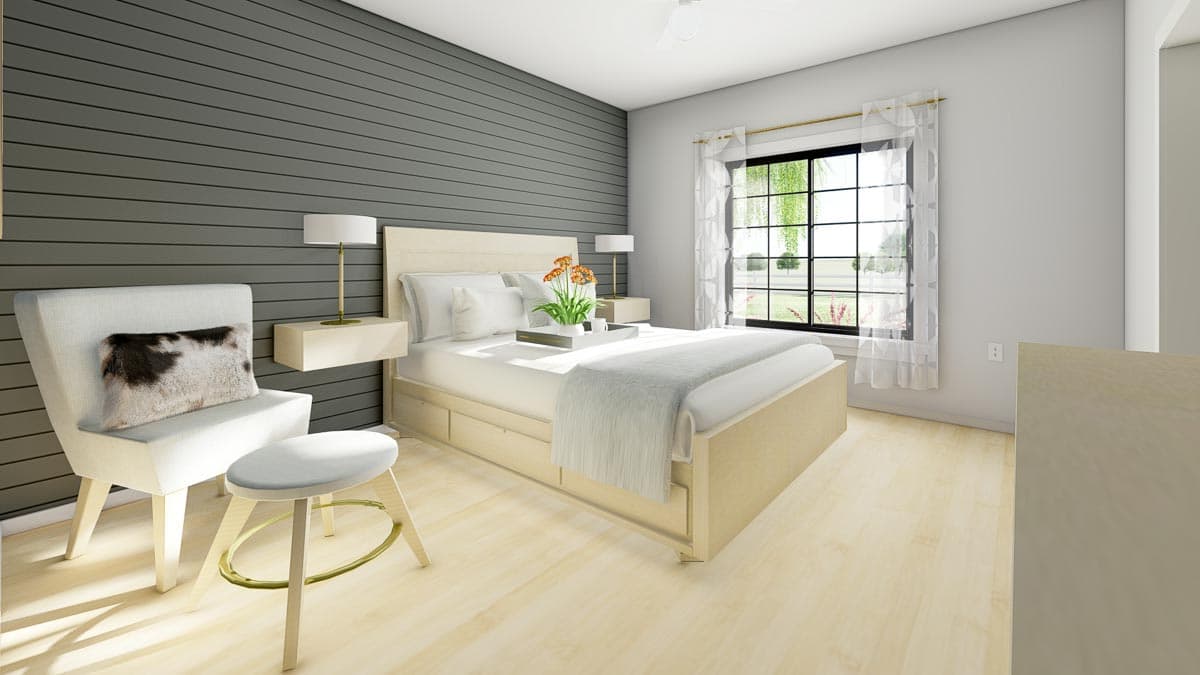

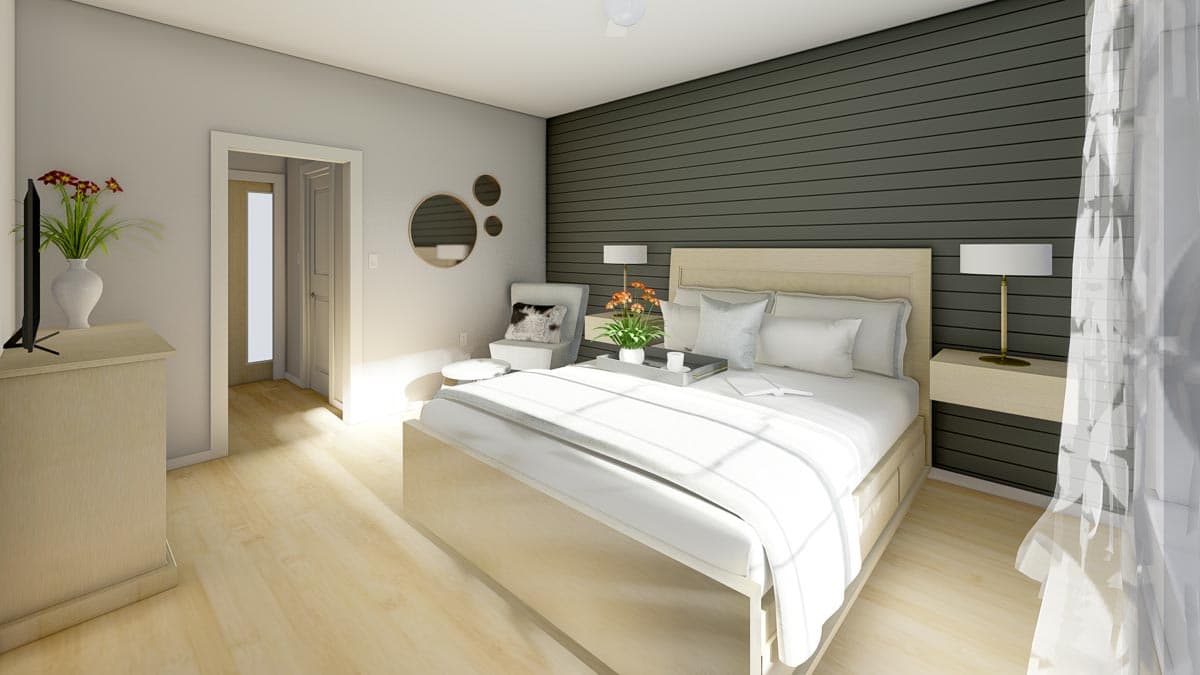

  • Barn doors leading into the master suite and guest room can either be closed for privacy or left open to provide great sightlines through the large 5' wide opening. The modern walk-in shower in the master bathroom provides both easy access and eliminates the maintenance required by glass doors. Measuring over 6' from end to end, the shower accommodates dual shower heads. The master bathroom also includes a dual sink vanity and direct backyard access. The master suite includes both a standard closet and a walk-in closet.

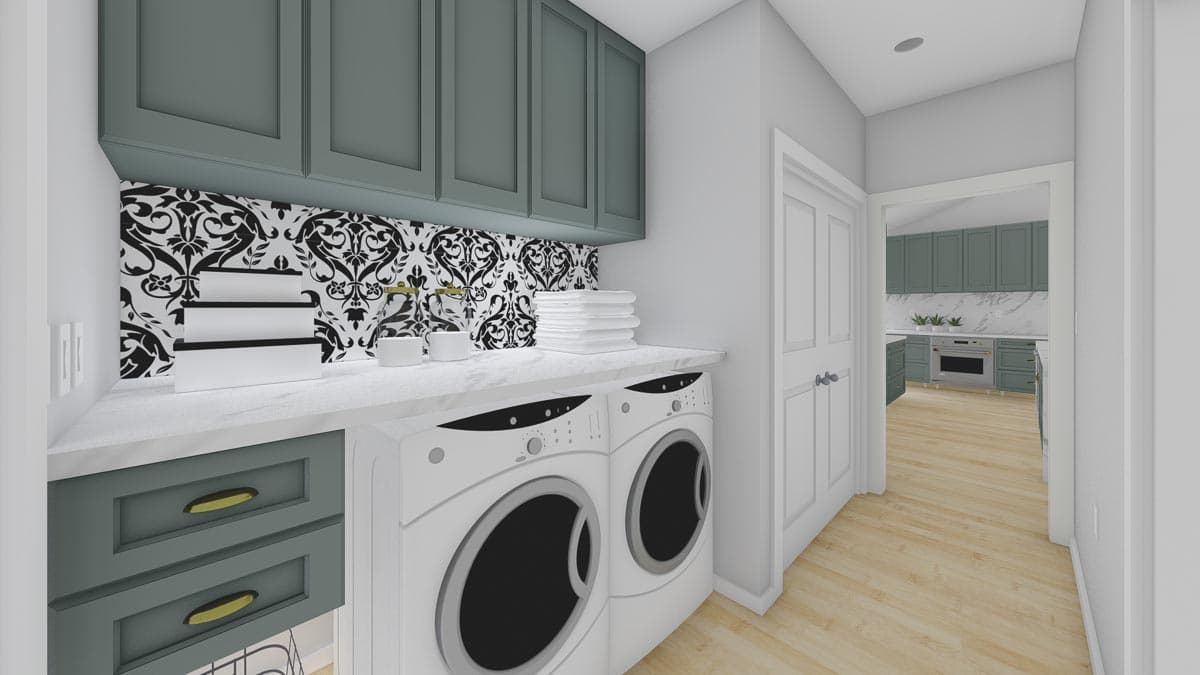

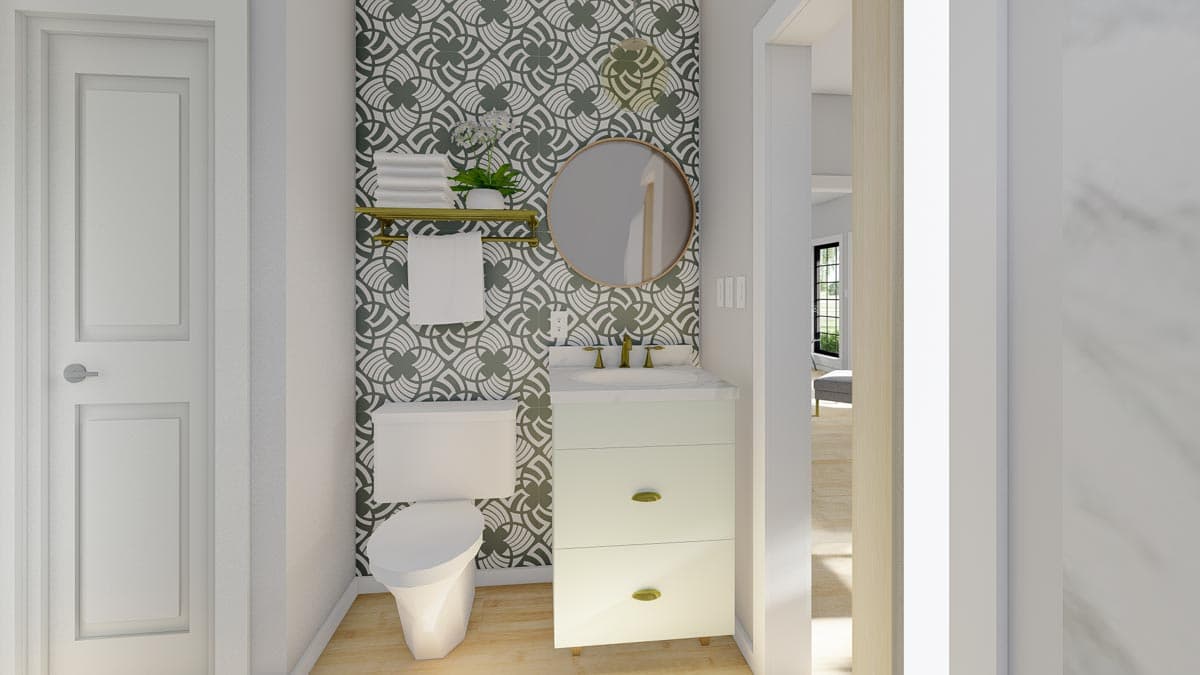

  • This design also features a covered front porch, mudroom/laundry room, linen and coat closets, large mechanical closet and a full bath for guests.

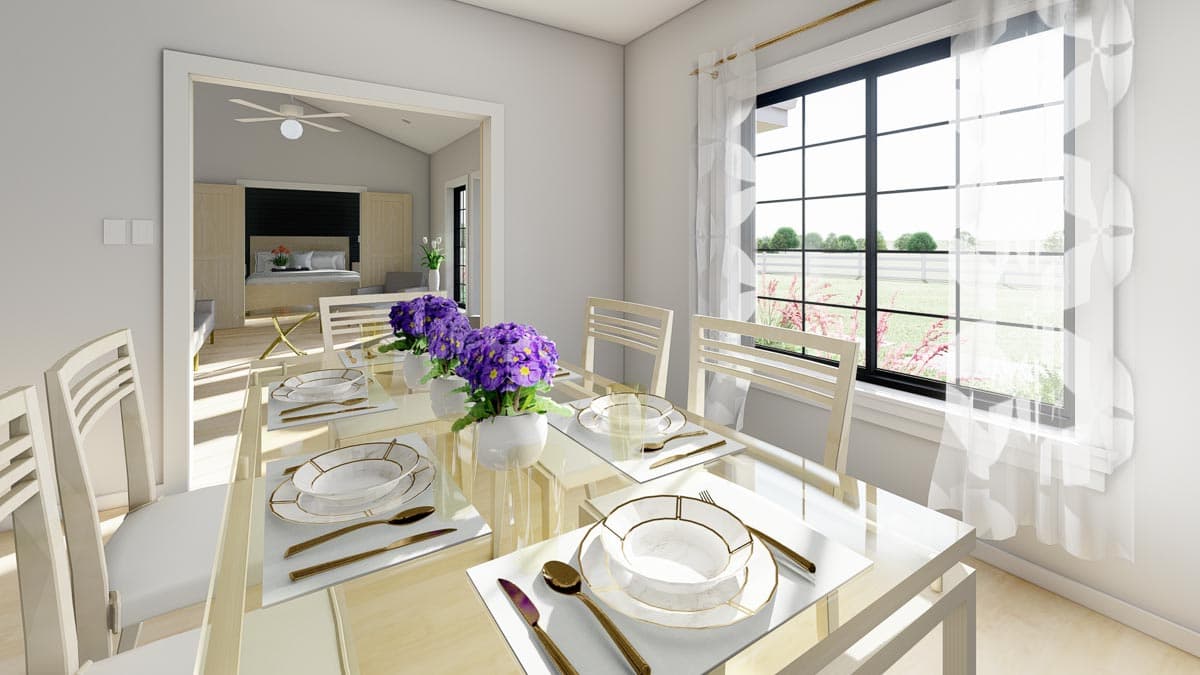

  • The guest room flex space can also be used for a home office or formal dining parties.
  • Related Plans: Get an alternate version with a garage with house plans 67761MG (928 sq. ft.) and 67823MG (988 sq. ft.). Get a version with a carport with house plan 67817MG (1,064 sq. ft).
What's Included
  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans
  • Elevations
  • Cross section
  • Wall details, etc.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,232 sq. ft.

1st Floor

1,232 sq. ft.

Porch, Front

84 sq. ft.

Porch, Rear

140 sq. ft.

Porch, Combined

224 sq. ft.

Beds/Baths

Bedrooms

1, 2, 3, or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Crawl, Monolithic Slab, Slab, Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

44' 0"

Max Ridge Height

20' 1"

Garage

Type

Attached

Area

576 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Garage

9' 4''

Room

Ceiling Type

Height

Great Room

Vaulted

9' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room
