Plan 911043JVD
Craftsman House Plan with Lower Level Expansion - 2813 Sq Ft
Heated S.F.
2,813
Beds
3 - 4
Baths
2.5 - 3.5
Stories
1
Cars
4
Tour
Floor Plan

Plan 911043JVD

Main Level
slide image 0
Optionally Finished Lower Level
slide image 1

Plan 911043JVD

1-800-854-7852

1-262-521-4596

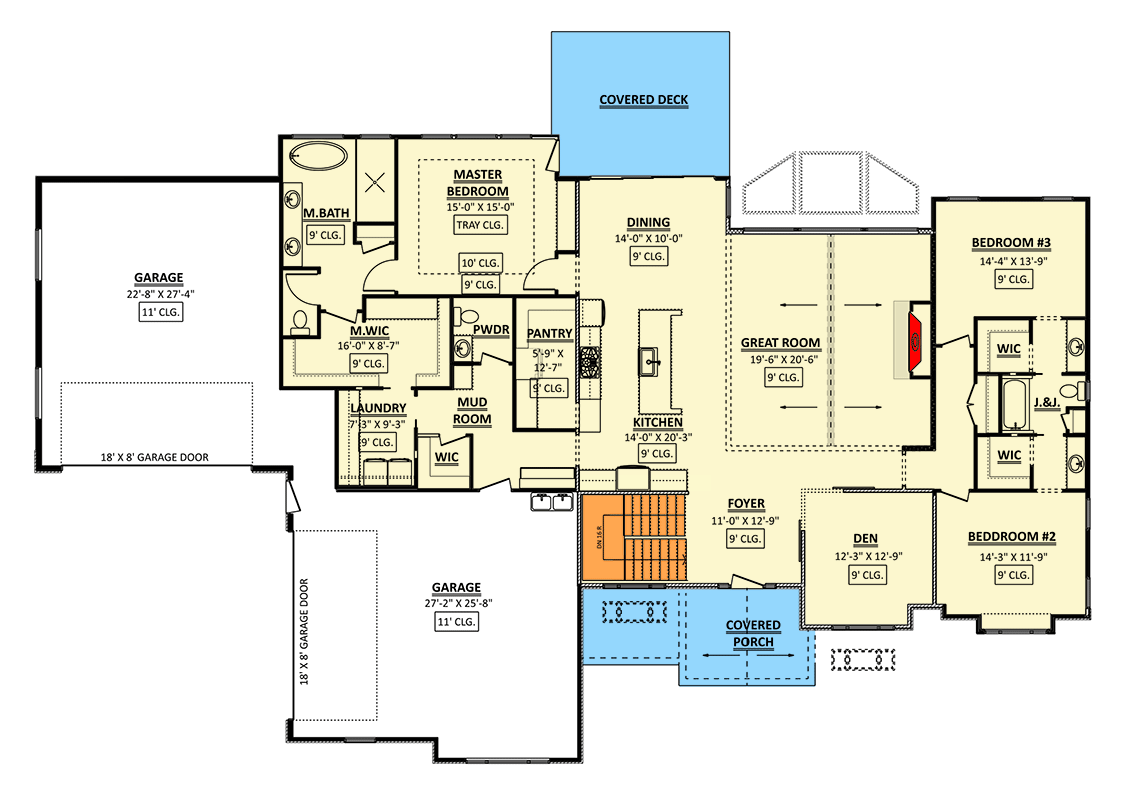

Main Level
floor plan image Main Level
Optionally Finished Lower Level
floor plan image Optionally Finished Lower Level
Plan Details
  • This Craftsman House Plan gives you 3 beds and 3.5 baths and 2,813 square feet of heated living space with a fourth bedroom and 1,859 square feet of expansion space on the optional finished lower level.
  • on Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,813 sq. ft.

Lower Level

1,859 sq. ft.

1st Floor

2,813 sq. ft.

Basement Unfinished

784 sq. ft.

Optional Lower Level

1,859 sq. ft.

Porch, Front

188 sq. ft.

Deck

238 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

100' 6"

Depth

70' 4"

Max Ridge Height

26' 8"

Garage

Type

Attached

Area

1414 sq. ft.

Count

4 Cars

Entry Location

Side, Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

Hill Country

New American

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Den

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Two Story Great Room

Wet Bar
