Plan 500007VV

Exclusive

Craftsman House Plan with Main Floor Game Room and Bonus Over Garage
Heated S.F.
3,273
Beds
4 - 5
Baths
4.5
Stories
2
Cars
3
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

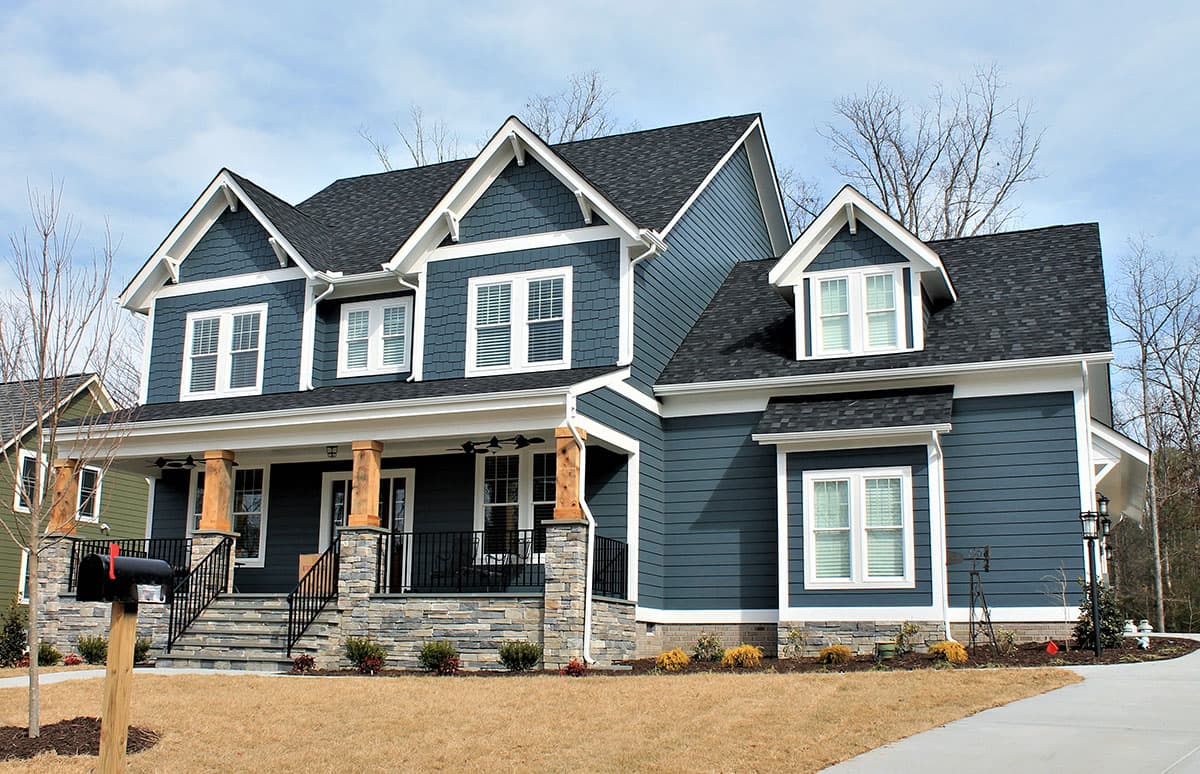

build gallery item - Exclusive House Plan 500007VV comes to life in Virginia (again)

Exclusive House Plan 500007VV comes to life in Virginia (again)

33

Photos

Photos
Floor Plan

Plan 500007VV

Main Level
slide image 0
2nd Floor
slide image 1

Plan 500007VV

1-800-854-7852

1-262-521-4596

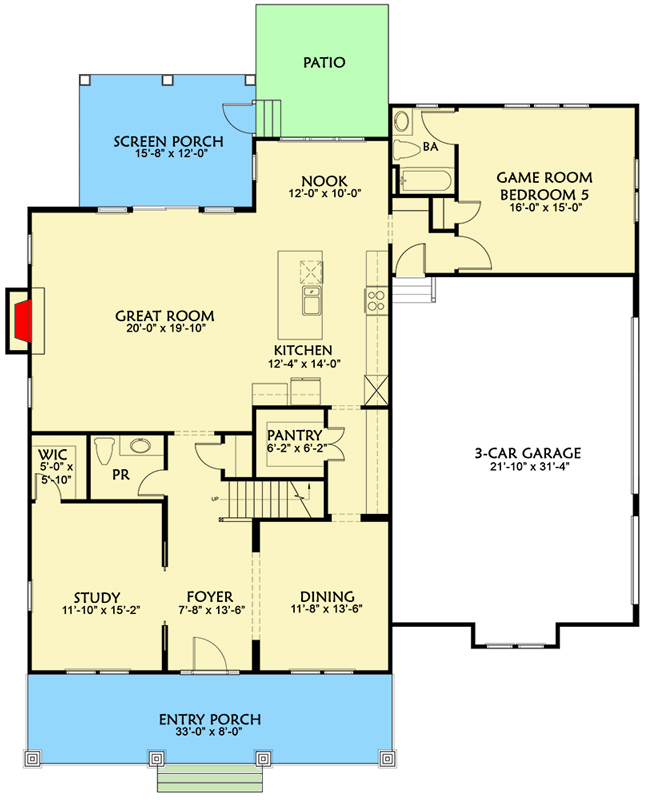

Main Level
floor plan image Main Level

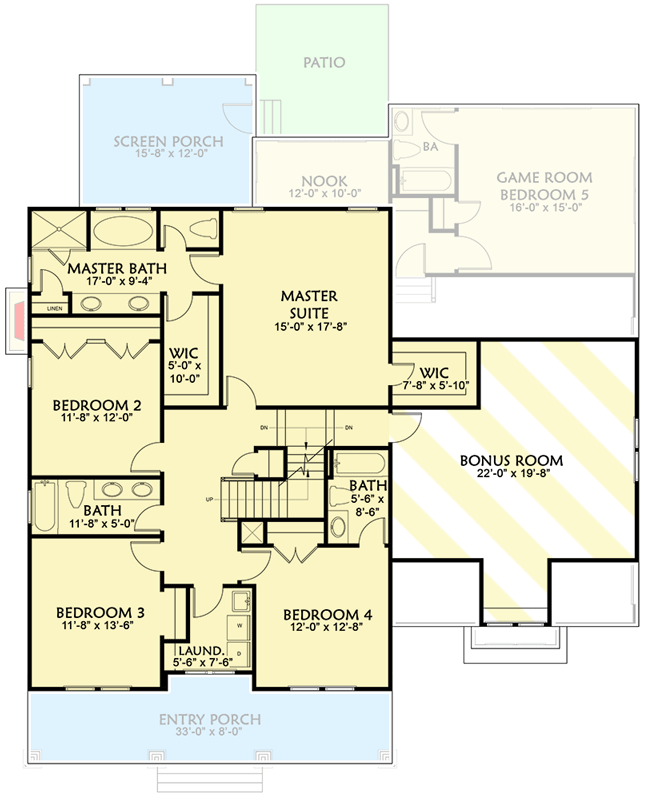

2nd Floor
floor plan image 2nd Floor
Plan Details

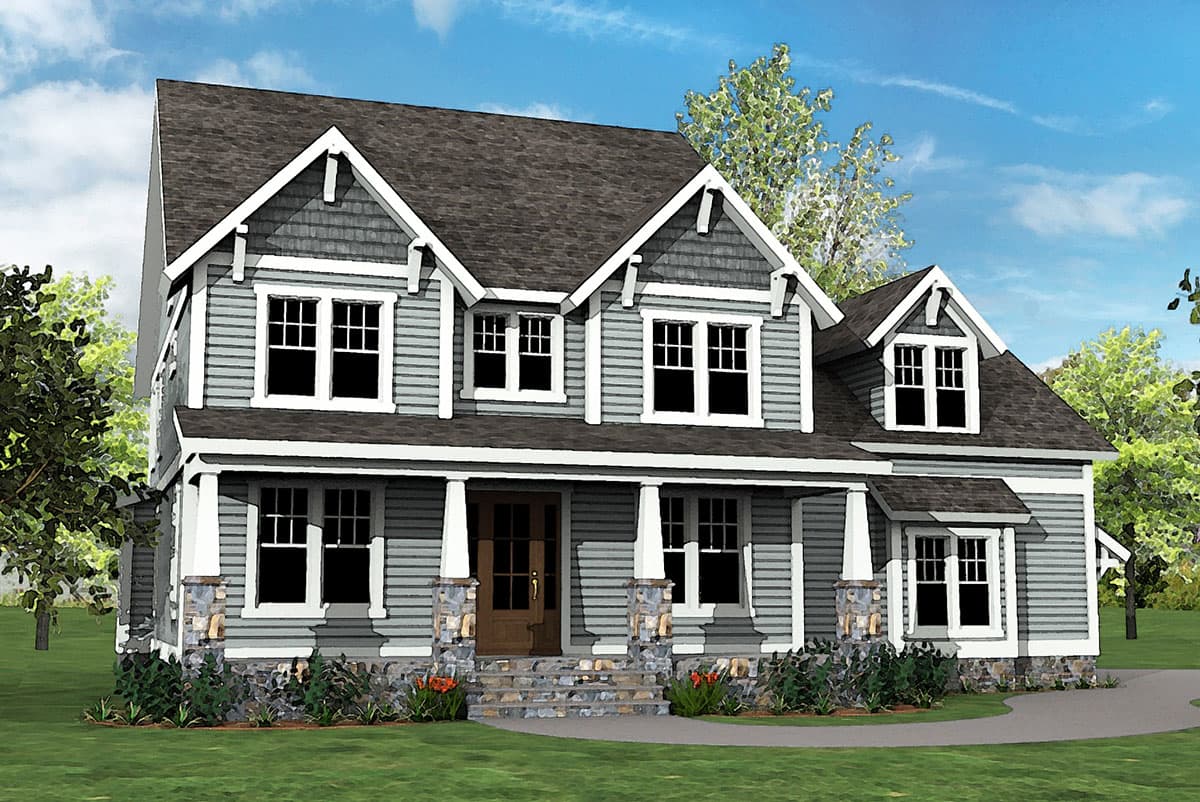

  • A front porch with timber supports and trimmed with stone greets you to this Craftsman house plan with 4 or 5 beds.
  • The foyer is flanked by the study and dining rooms, the latter connected to the kitchen giving the home a circular flow.
  • The great room has a fireplace and access to the rear screened porch and is open to the kitchen.
  • The kitchen island has counter seating and a large walk-in pantry gives you great storage
  • Behind the garage, a game room with full bath can be used as a fifth bedroom.
  • The upstairs gives you four bedrooms each with their own bath plus a large laundry room. Expand over the garage if you need more space.
  • Related Plans: Get a basement with house plan 500030VV. And get an alternate exterior and remove the game room with house plan 500010VV. Need less square footage?  Check out plan 500031VV.
What's Included
1.Cover sheet with notes
2. Foundation
3. Floor plans (there are three sheets for this house)

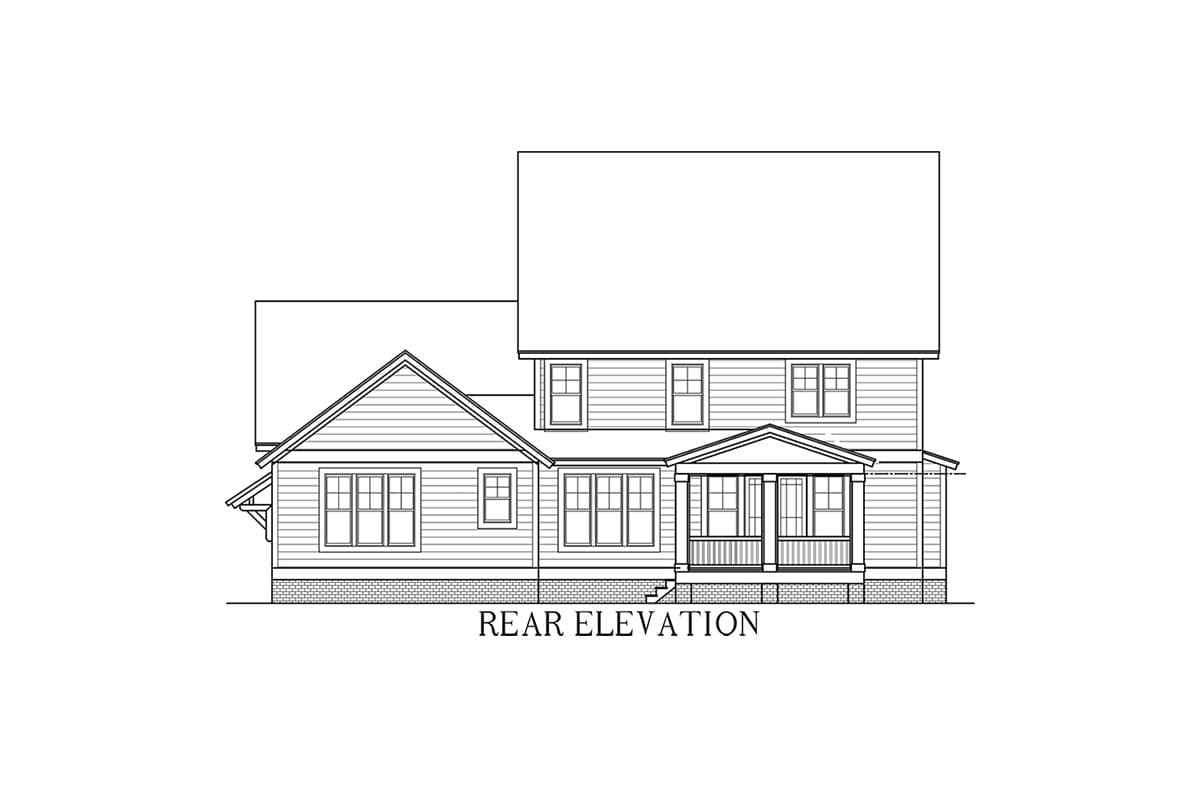

4. Elevations
5. Sections
6. Framing plans
7. Electrical plans (there are three sheets for this house)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,273 sq. ft.

1st Floor

1,828 sq. ft.

2nd Floor

1,445 sq. ft.

Bonus

440 sq. ft.

Porch, Front

267 sq. ft.

Porch, Rear

190 sq. ft.

Screened Porch

190 sq. ft.

Attic

439 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 4"

Depth

62' 8"

Max Ridge Height

38' 5"

Garage

Type

Attached

Area

723 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Plan Collections
