Plan 290040IY
Craftsman House Plan with Optional Lower Level
Heated S.F.
1,930
Beds
3 - 5
Baths
2.5 - 3.5
Stories
1
Cars
2
Photos
Floor Plan

Plan 290040IY

Main Level
slide image 0
Optional Lower Level
slide image 1

Plan 290040IY

1-800-854-7852

1-262-521-4596

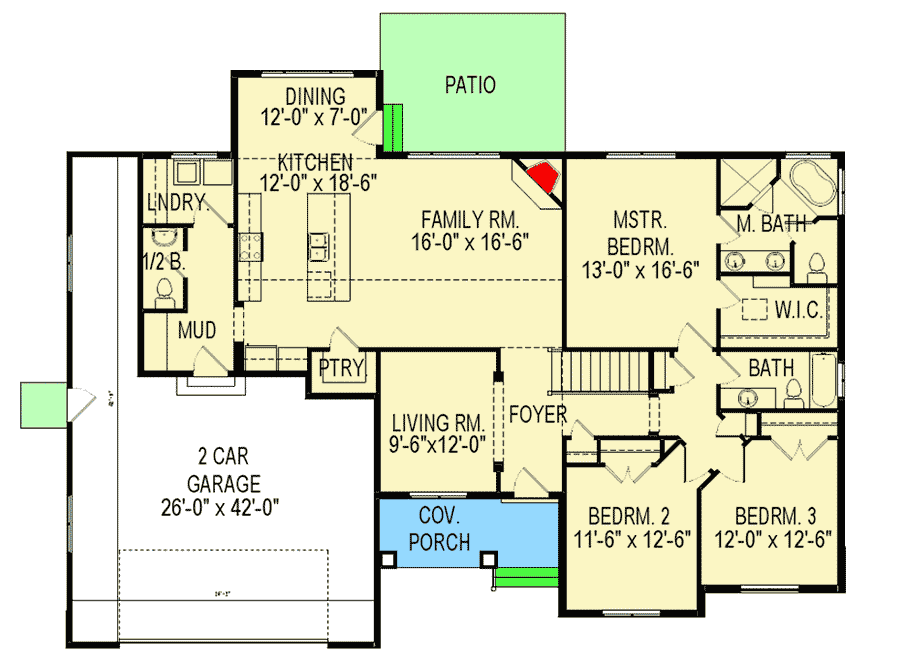

Main Level
floor plan image Main Level

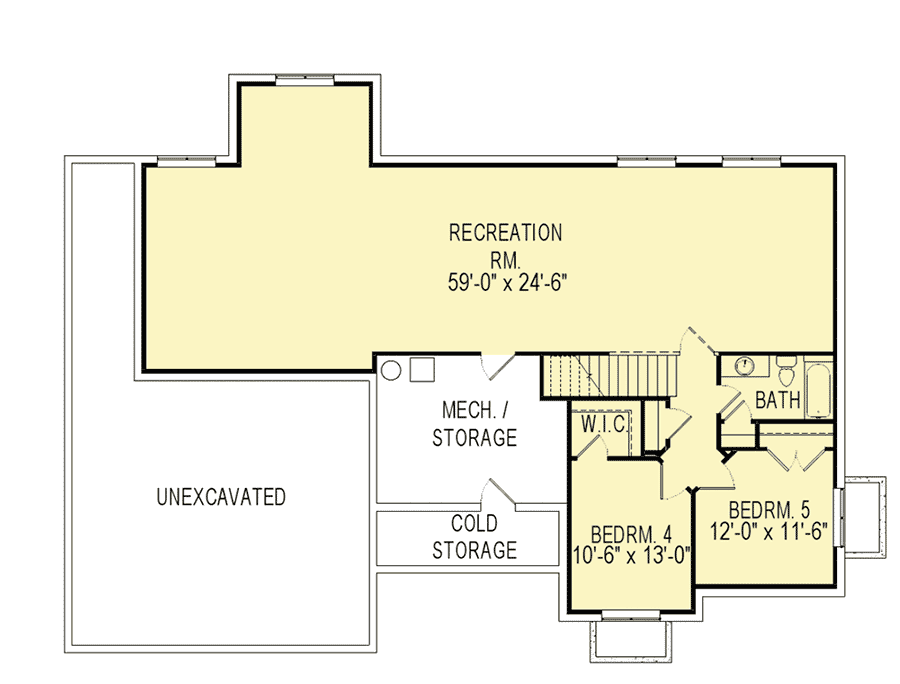

Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • The small living room off the foyer of this Craftsman home can be used as a study with the addition of double doors.
  • The kitchen, family room and dining room form one large space with views that stretch from the kitchen island to the big corner fireplace.
  • Step out to the rear patio when you want to eat outdoors or gill up your dinner.
  • All the bedrooms are grouped on the right side of the home, with the big master suite in back.
  • The optional lower level adds an additional 1,593 square feet of living space if finished.
