Plan 970040VC
Craftsman House Plan with Optional Sun Room
Heated S.F.
2,425
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 970040VC

Main Level
slide image 0
Lower Level
slide image 1

Plan 970040VC

1-800-854-7852

1-262-521-4596

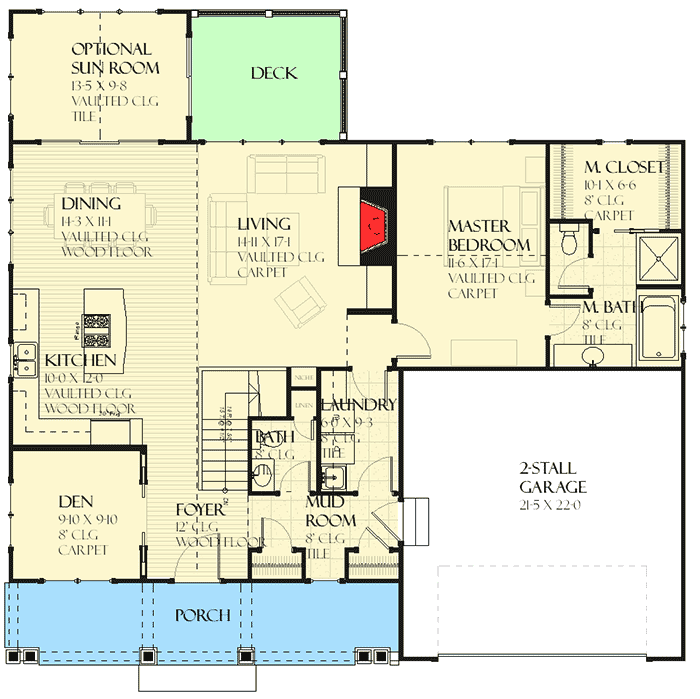

Main Level
floor plan image Main Level

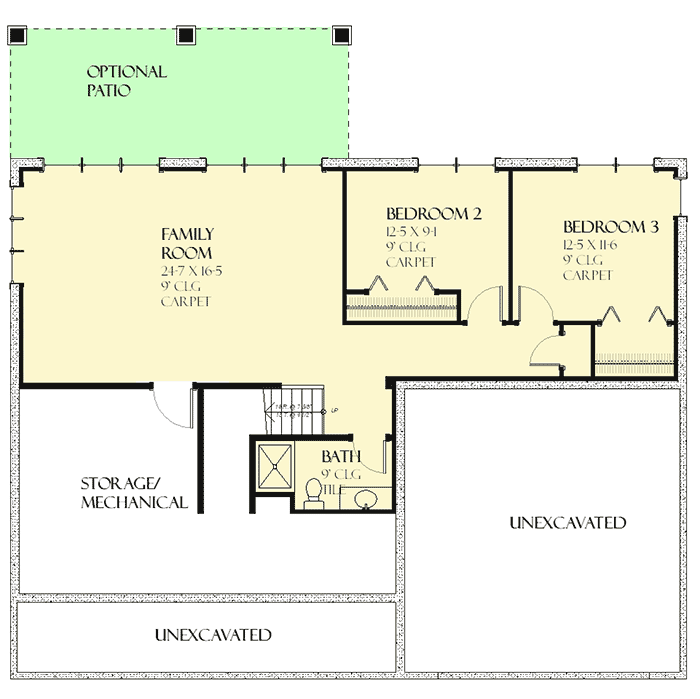

Lower Level
floor plan image Lower Level
Plan Details
  • Open living spaces and a gorgeous optional sun room give your family a bright and airy home to live in.
  • Pocket doors close off the den to give you quiet and privacy when working from home.
  • Built-in cabinets on each side of the fireplace add storage as well as good looks.
  • Homeowners are treated to a vaulted first floor master suite complete with a large walk-in closet.
  • The optional sun room is also vaulted and is brightened by glass on three sides.
  • A finished lower level is part of the total living area and gives you a spacious family room and two more bedrooms plus a bathroom.
What's Included
  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

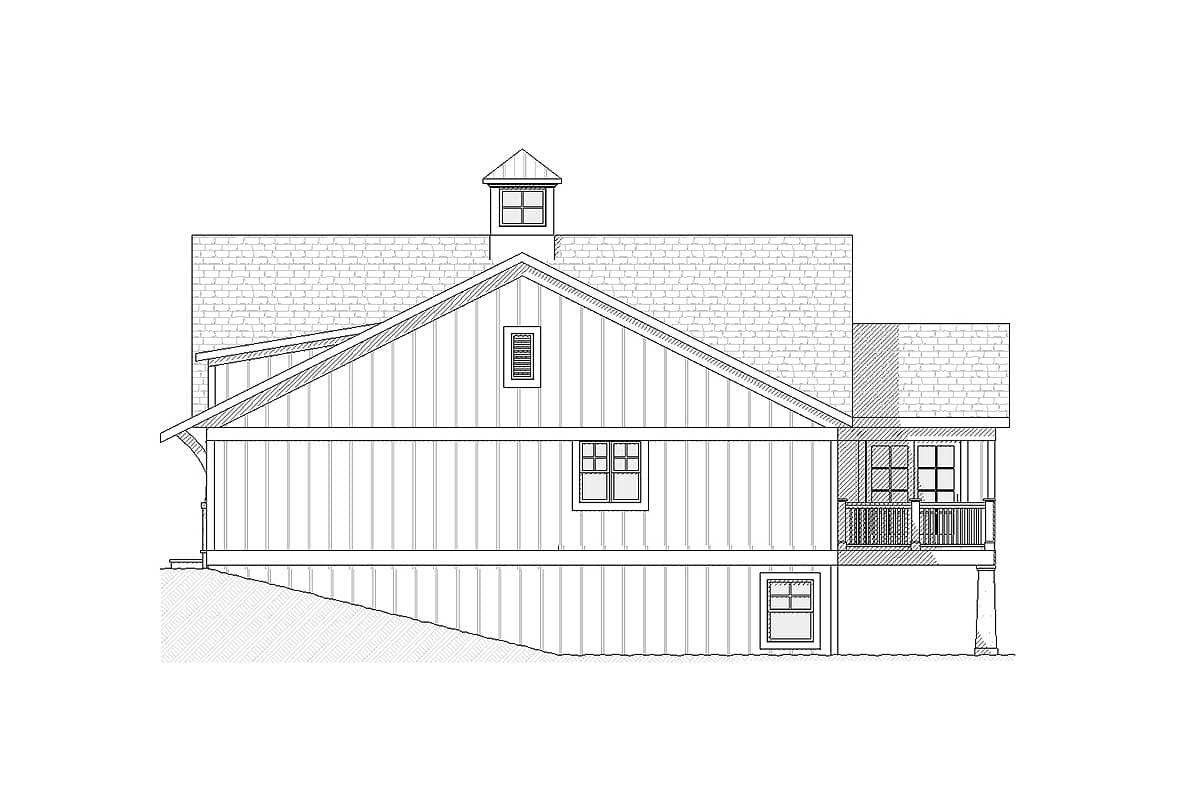

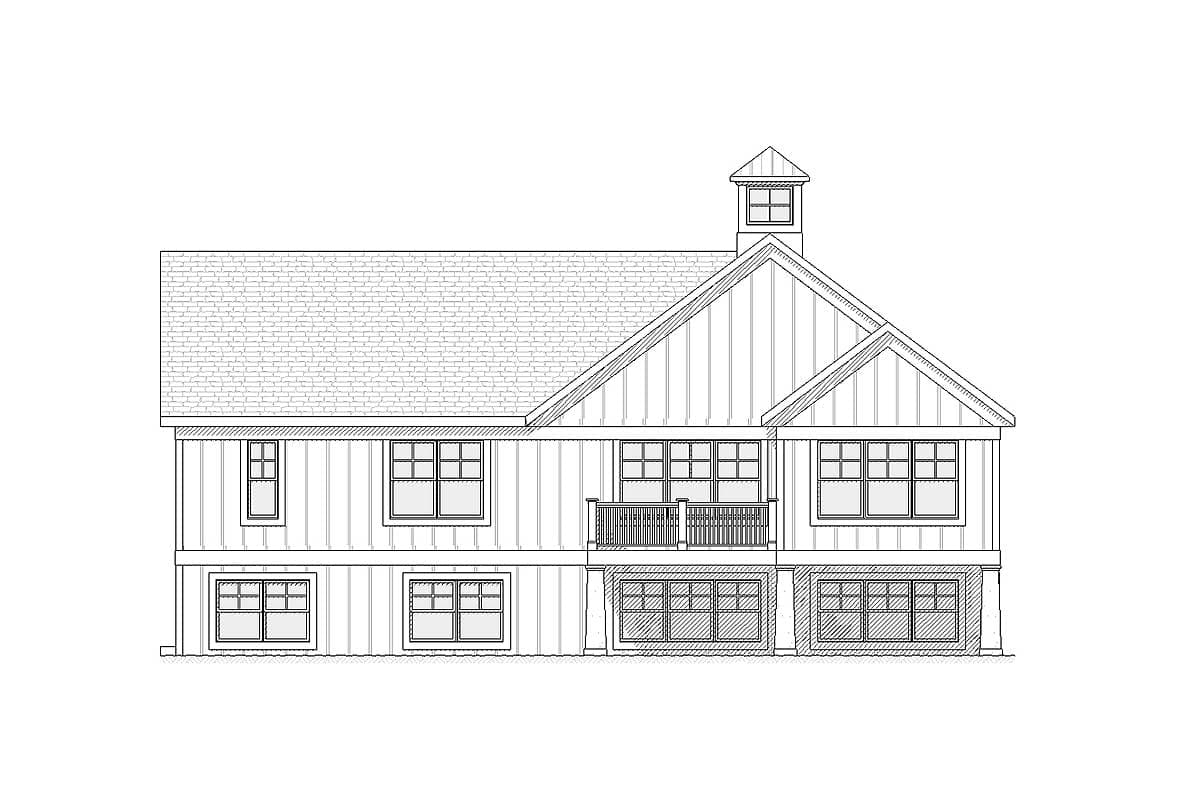

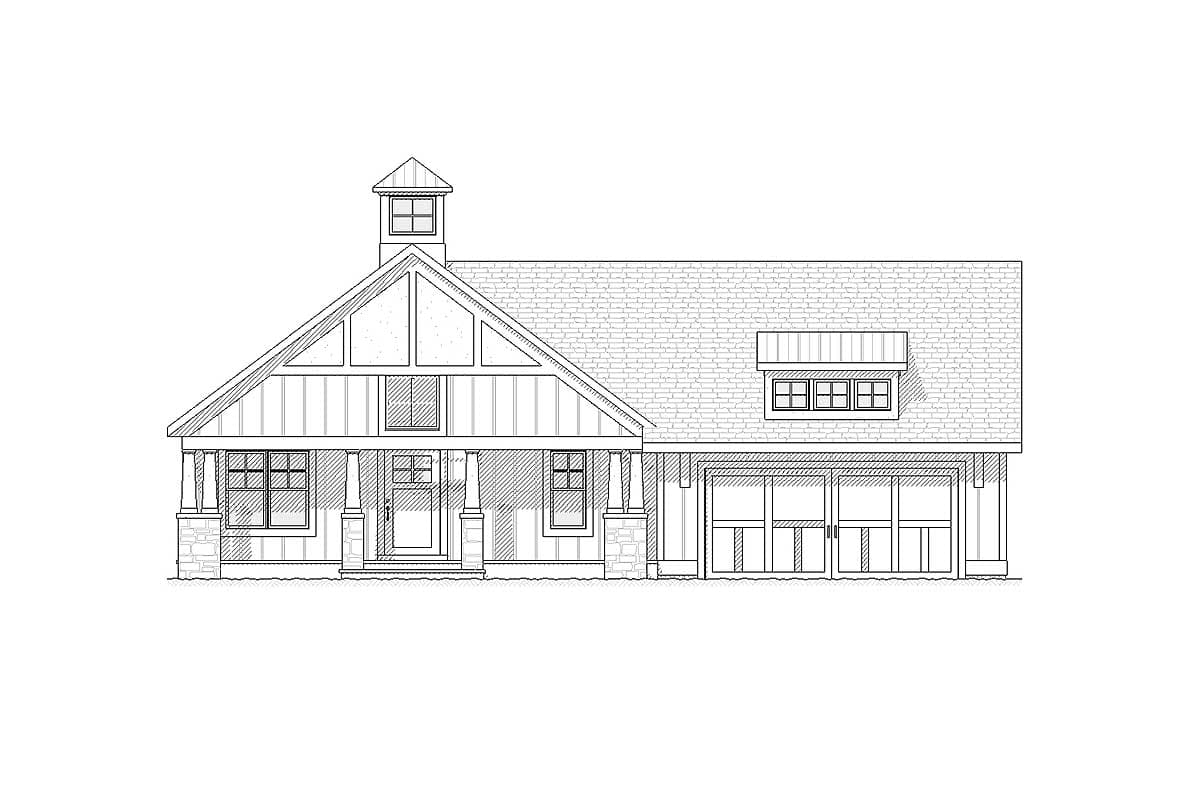

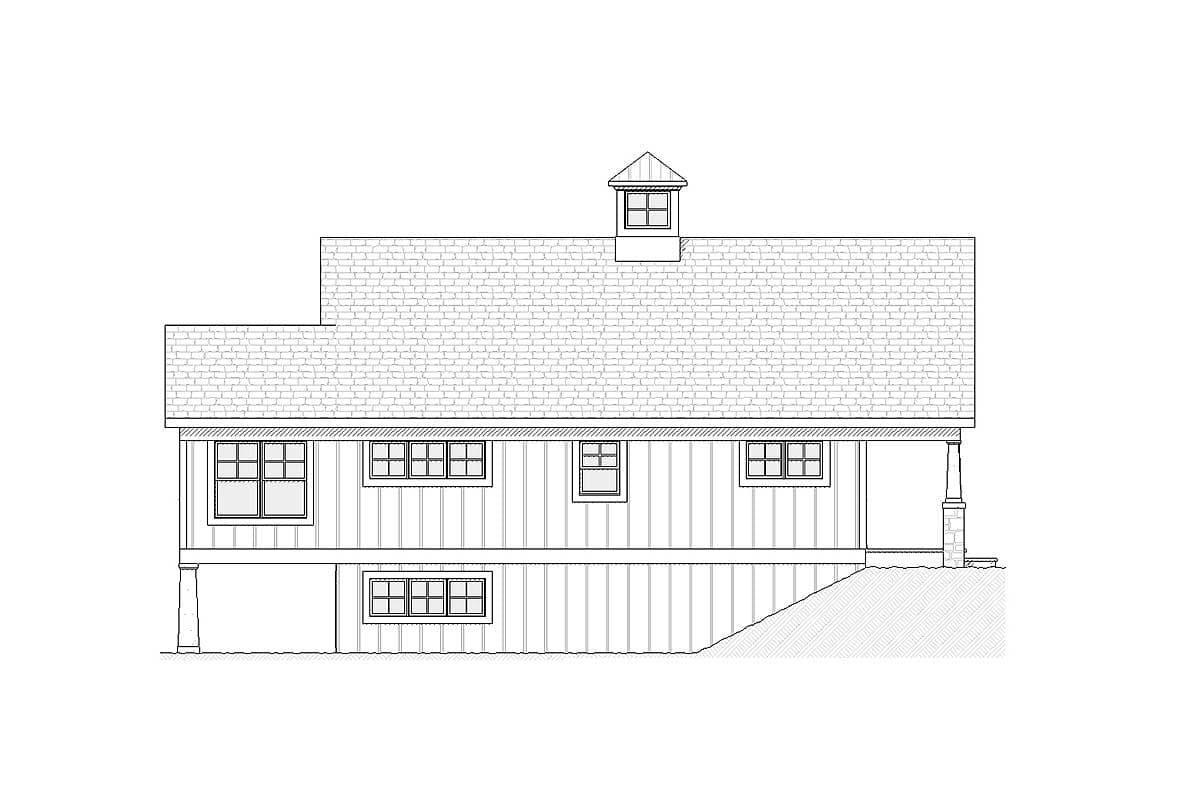

  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,425 sq. ft.

Lower Level

1,011 sq. ft.

1st Floor

1,414 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

52' 0"

Depth

40' 0"

Garage

Type

Attached

Area

472 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

8'

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Den

Master Suite - 1st Floor

Sunroom
