Craftsman House Plan with Split Bedrooms and Covered Patio - 1924 Sq Ft
Heated S.F.
1,924
Beds
3
Baths
2
Stories
1
Cars
3
Photos
Floor Plan

Plan 280140JWD

Main Level
slide image 0

Plan 280140JWD

1-800-854-7852

1-262-521-4596

Main Level

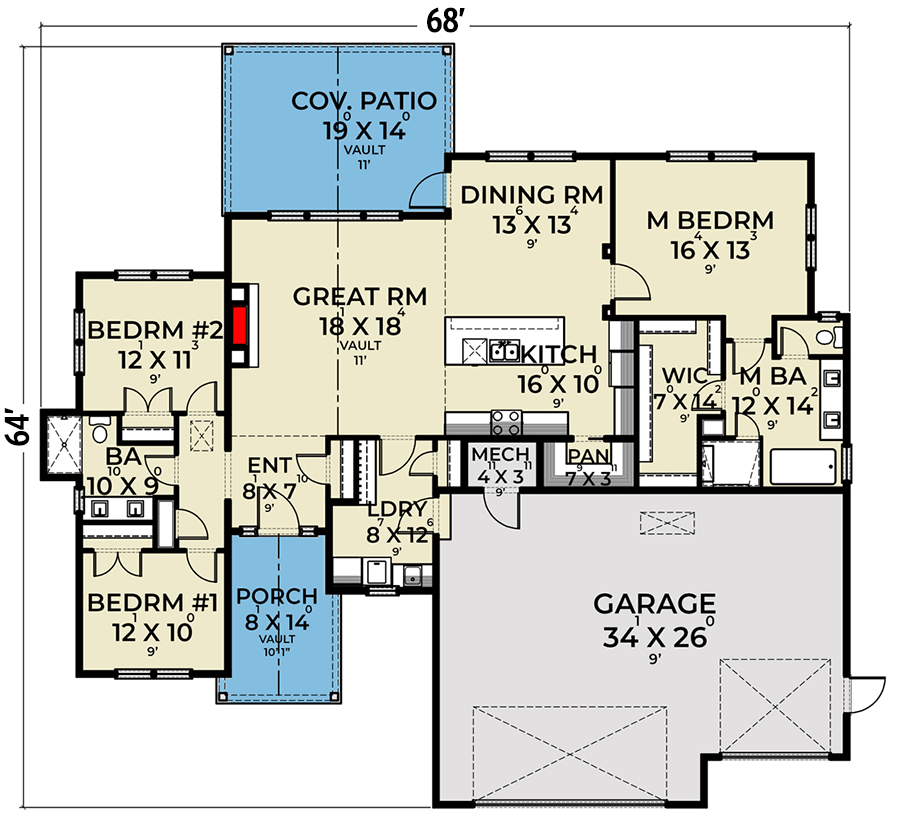

floor plan image Main Level
Plan Details
  • A stone trim, topped by horizontal and vertical siding, adds texture and visual appeal to this Craftsman house plan.
  • The vaulted front porch welcomes you inside, where a coat closet anticipates your outdoor gear and personal items. Straight ahead, the great room presents a vaulted ceiling that continues through the rear patio, along with a cozy fireplace to warm the open living space.
  • The seamless flow into the eat-in kitchen creates an ideal space to host gatherings, while the eating bar at the island provides a natural spot for conversation.
  • The master bedroom is set apart from the secondary rooms for privacy and includes a 5-fixture bathroom and a walk-in closet.
  • The 3-car garage leads to a mud / laundry room combo with a coat closet and built-in bench with overhead hooks.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

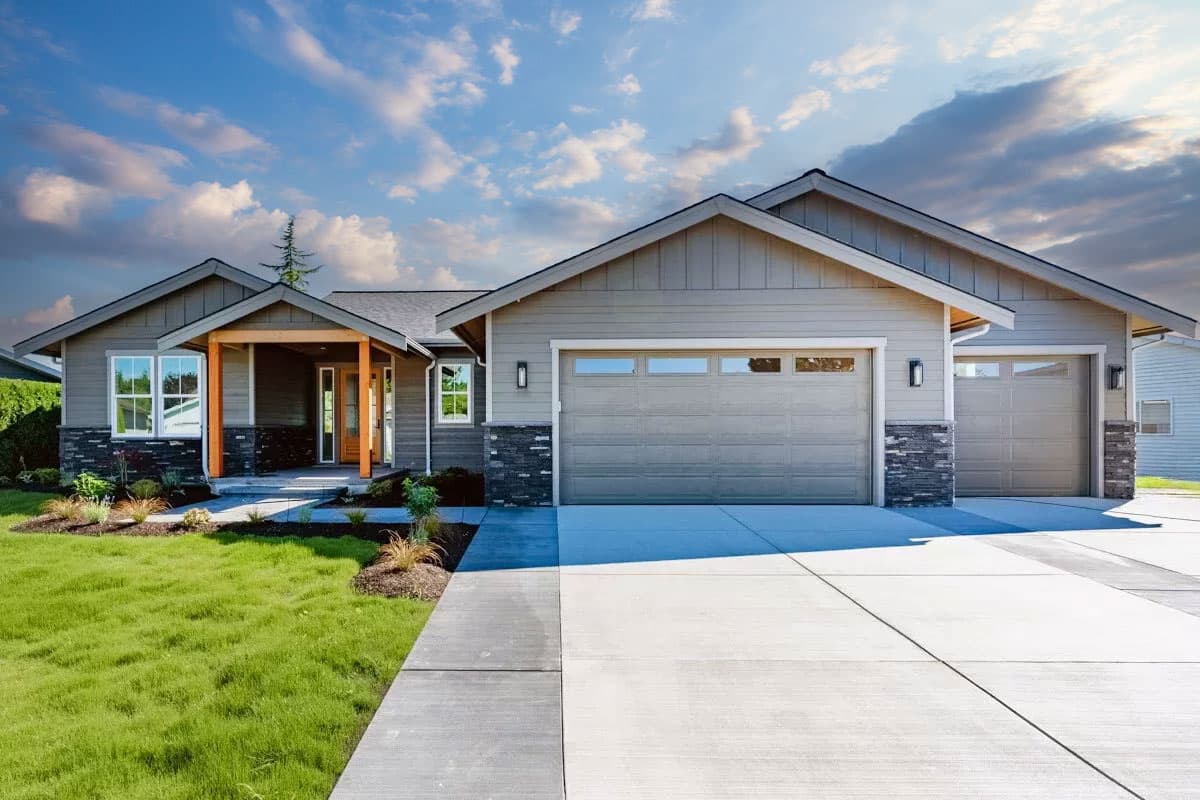

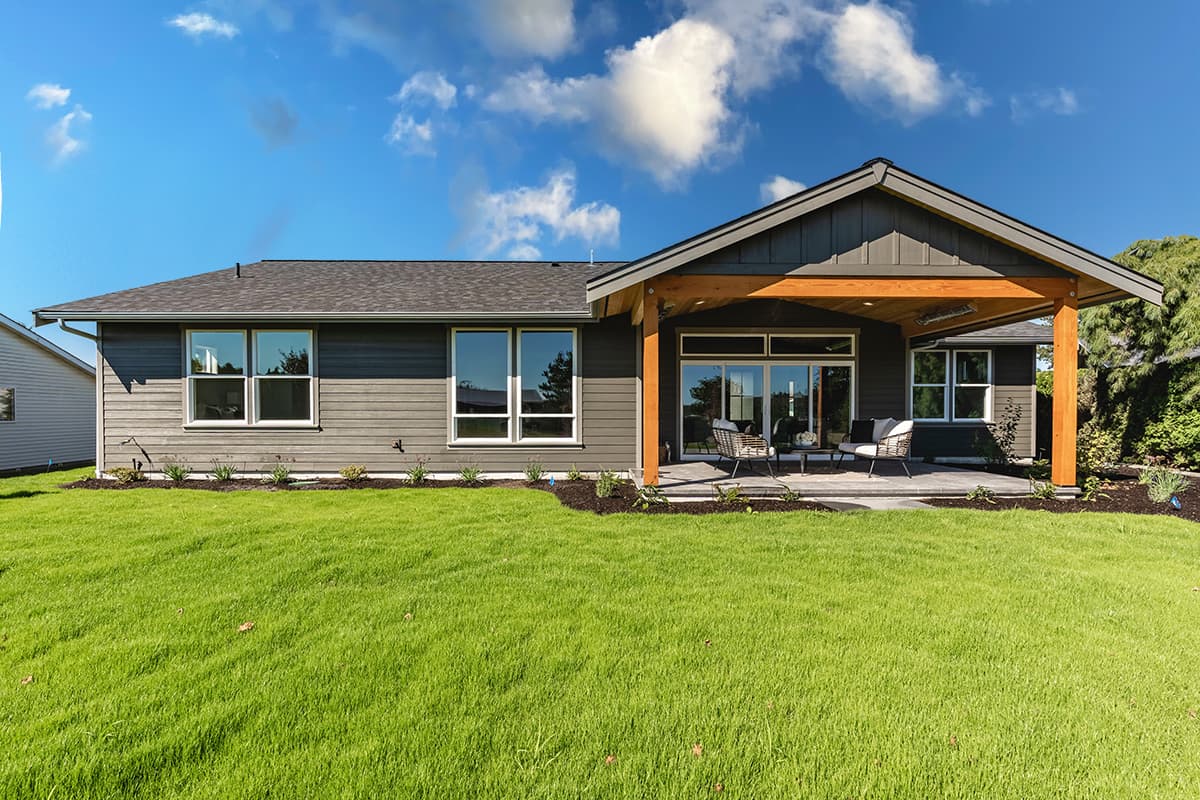

build gallery item - House Plan 280140JWD Comes to Life in Washington

House Plan 280140JWD Comes to Life in Washington

42

Photos

What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,924 sq. ft.

1st Floor

1,924 sq. ft.

Covered Patio

264 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

64' 0"

Max Ridge Height

17' 11"

Garage

Type

Attached

Area

875 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,924 sq. ft.

1st Floor

1,924 sq. ft.

Covered Patio

264 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

64' 0"

Max Ridge Height

17' 11"

Garage

Type

Attached

Area

875 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
