Name: Plan 23199JD: Craftsman House Plan with Upstairs Secluded Master Suite with Fireplace - 4650 Sq Ft
SKU: 23199JD
Price: 2700.0 USD
Availability: InStock

Plan 23199JD

Craftsman House Plan with Upstairs Secluded Master Suite with Fireplace - 4650 Sq Ft

Heated S.F.

4,650

Beds

Baths

4.5

Stories

Cars

Floor Plan

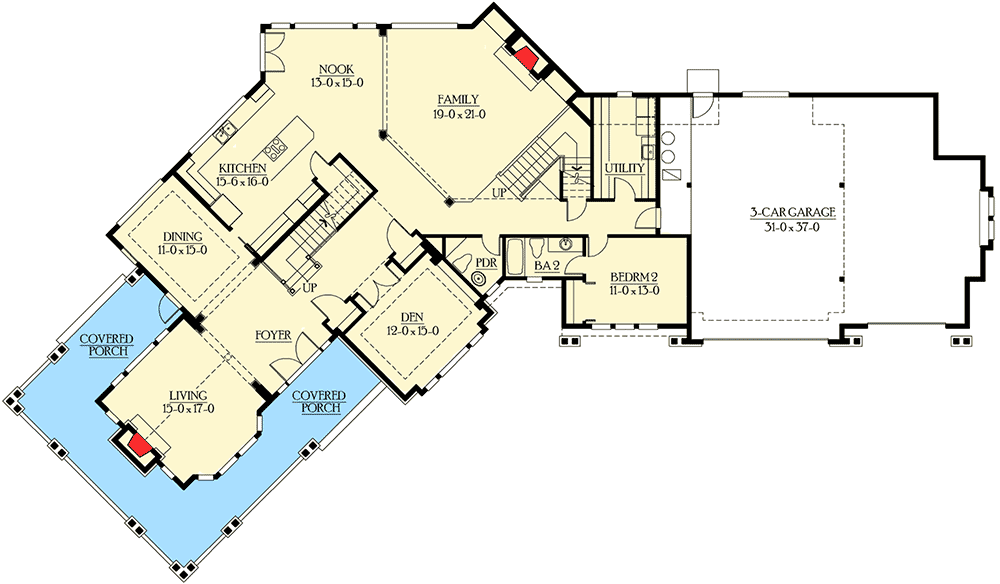

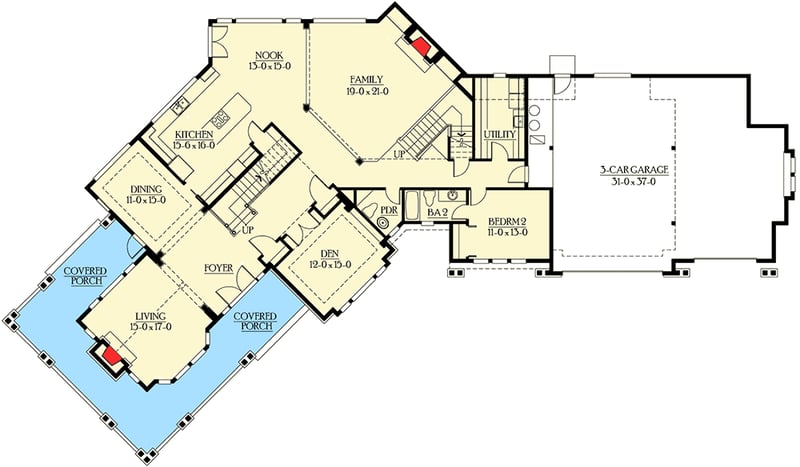

Main Level

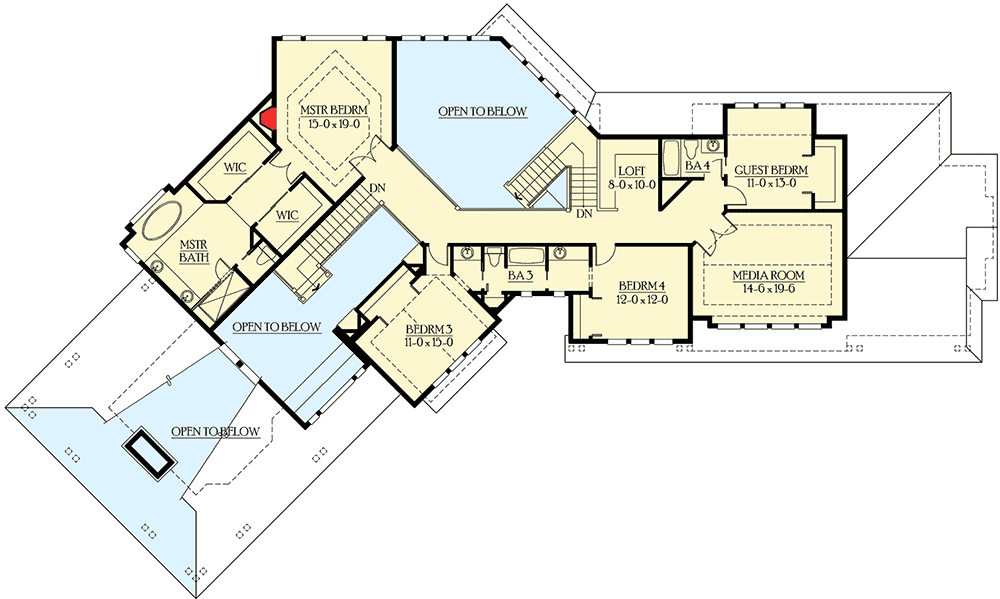

2nd Floor

Plan Details

Large, comfortable rooms with vaulted, tray and two-story ceilings will make your family feel right at home in this exciting Craftsman home plan.

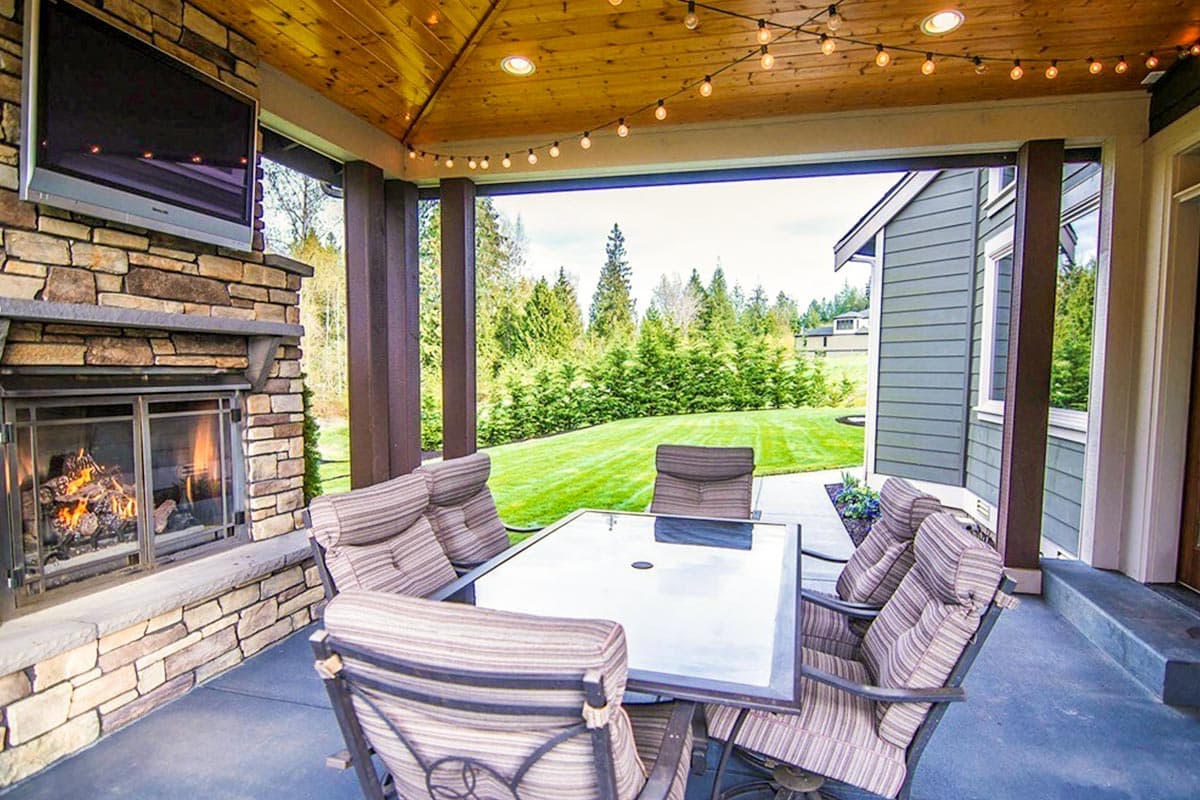

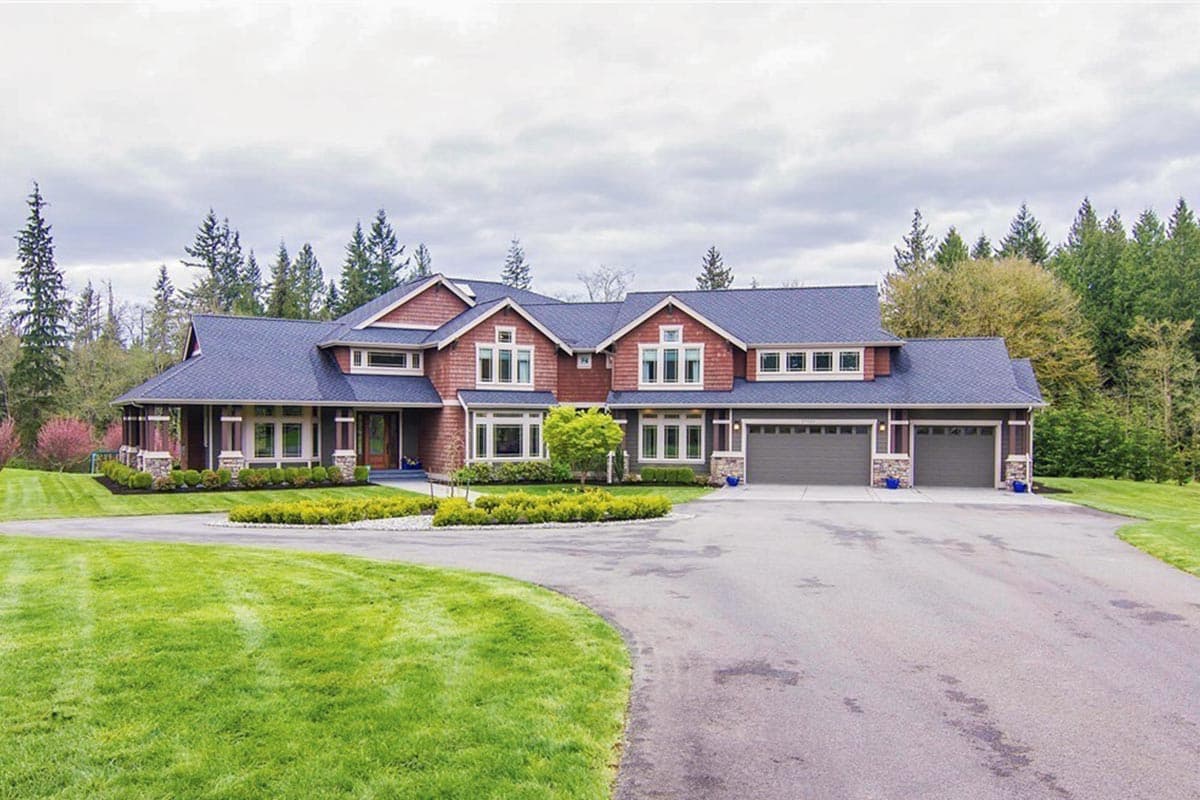

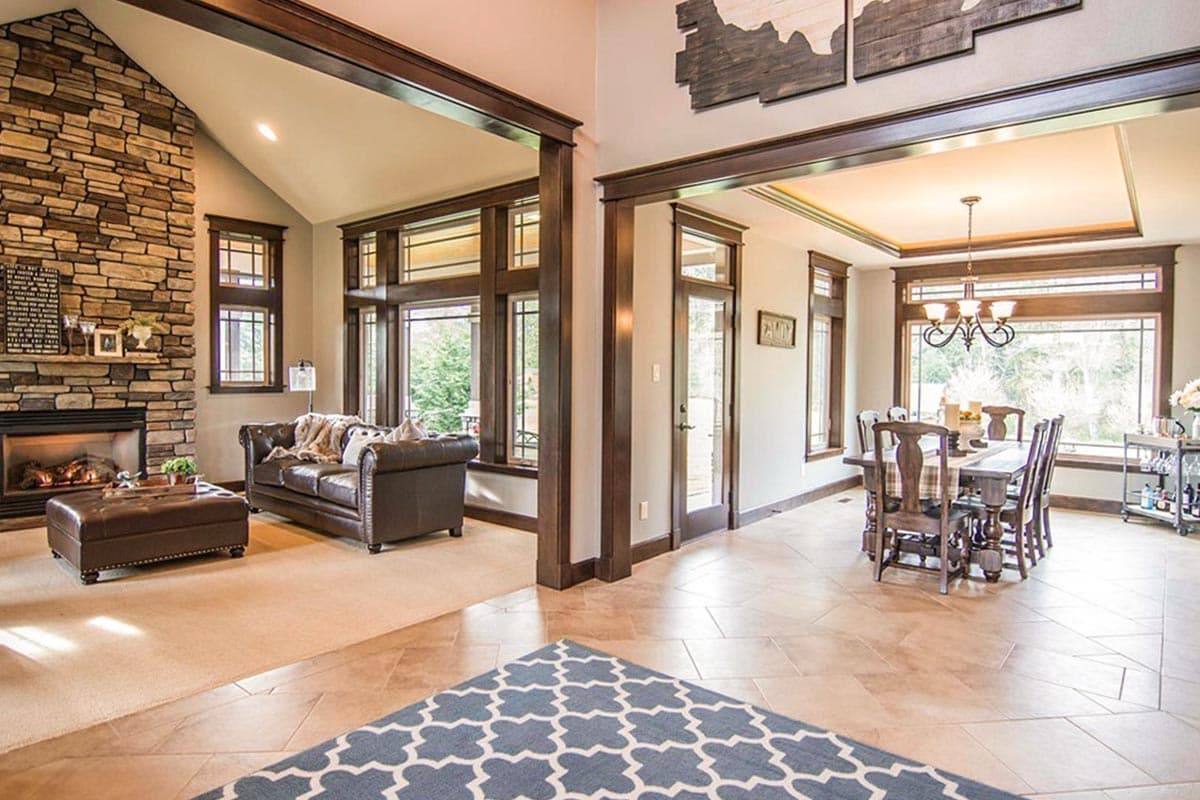

A big covered porch wraps around the huge living room that has a bay window and a large fireplace as well as a vaulted ceiling that soars upward.

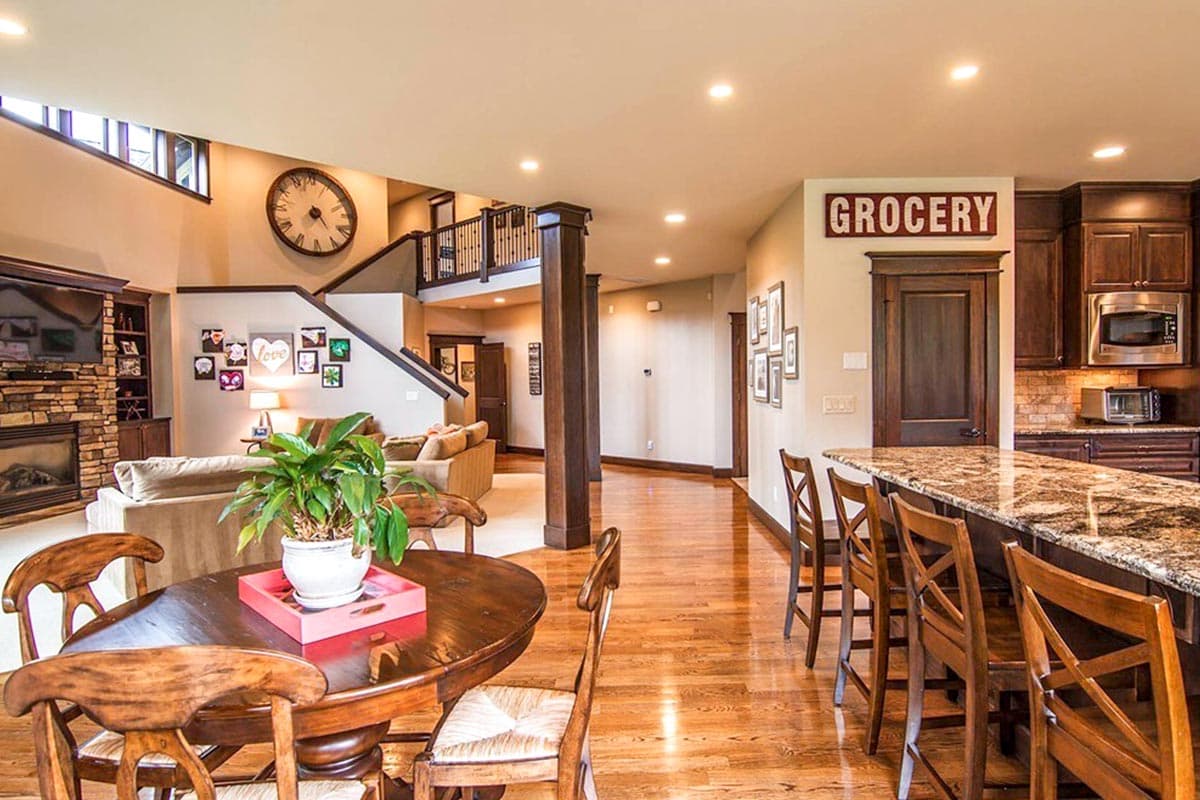

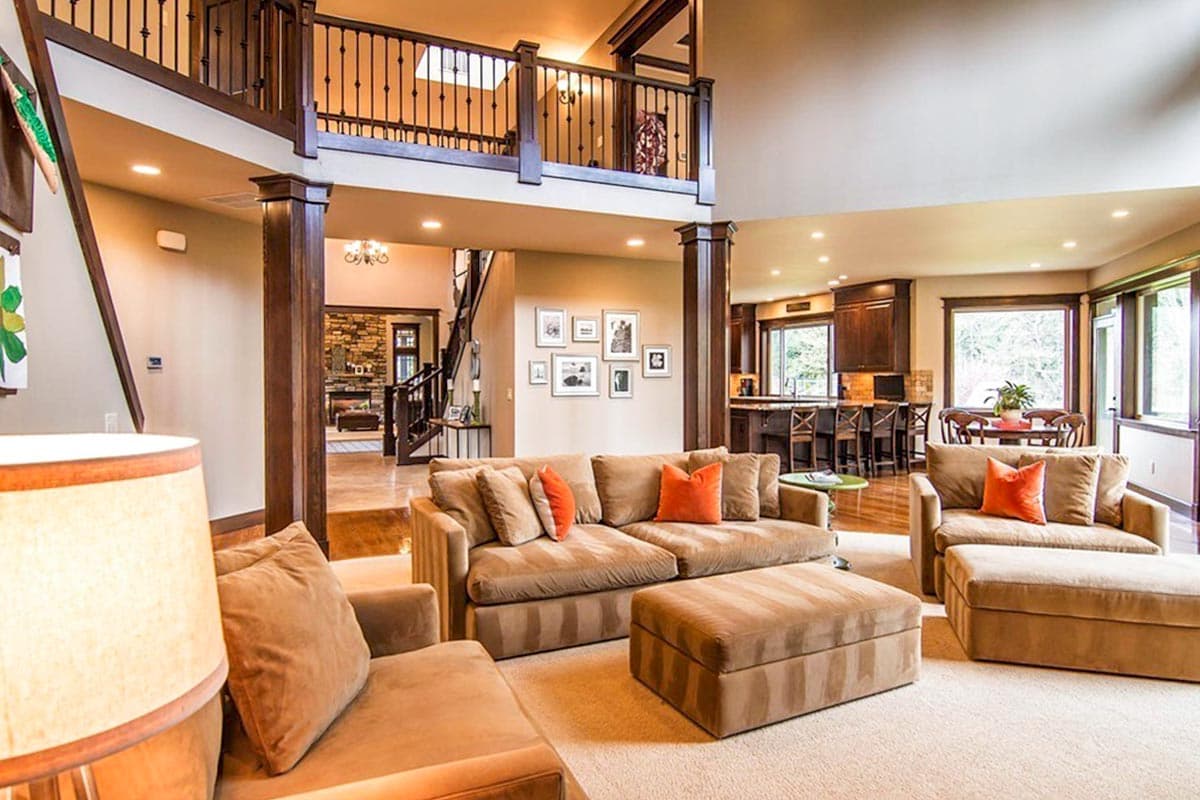

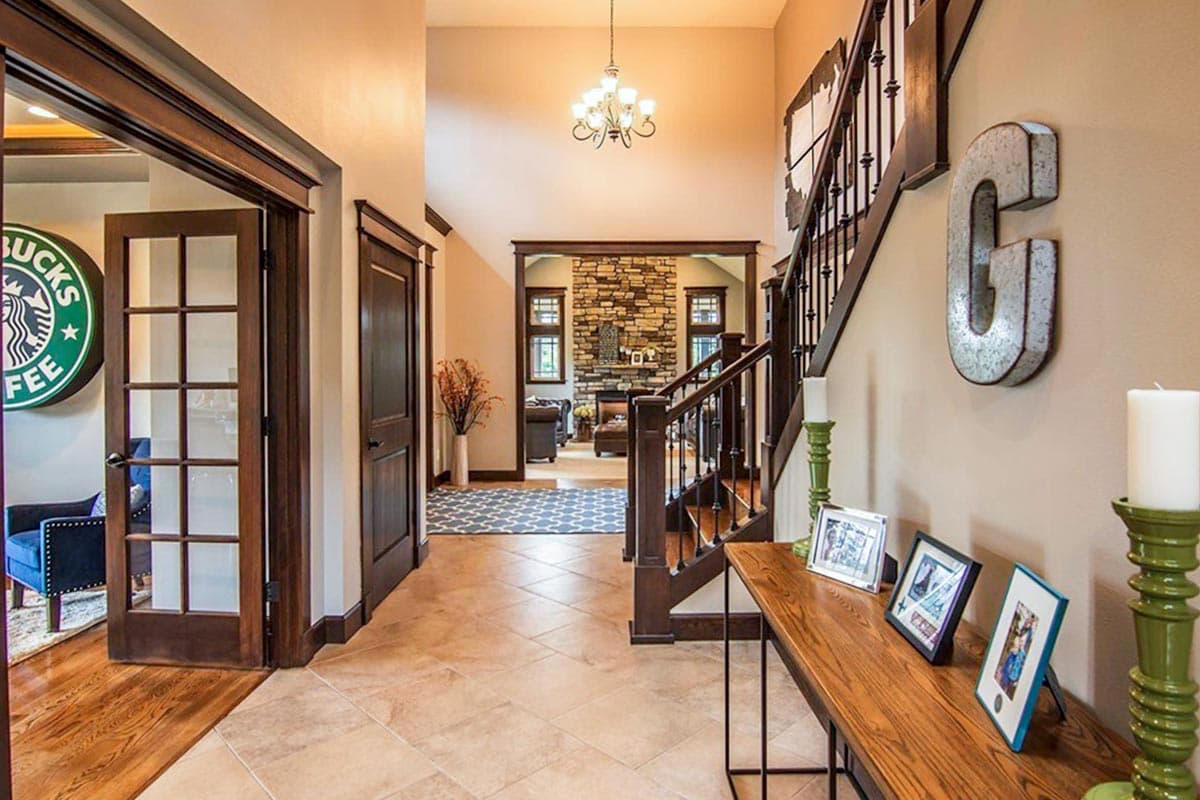

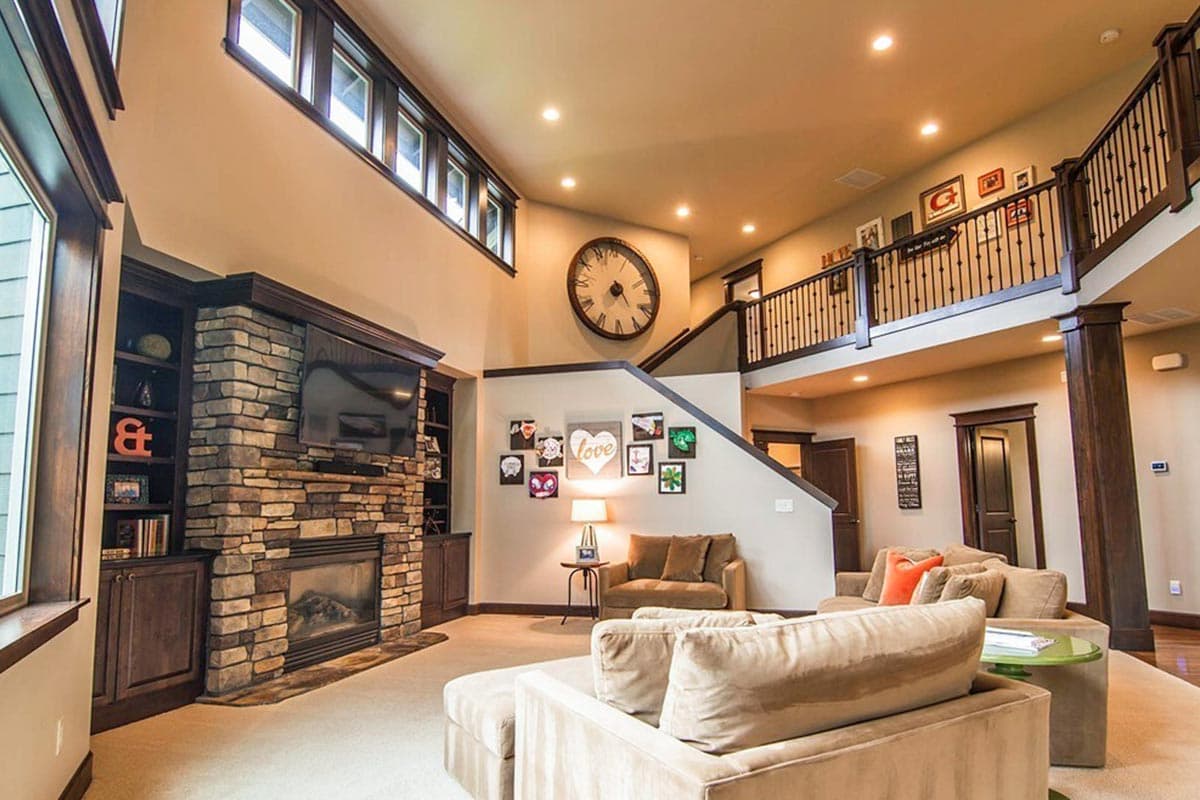

Both the foyer and family room have two-story ceilings that add to the feeling of spaciousness.

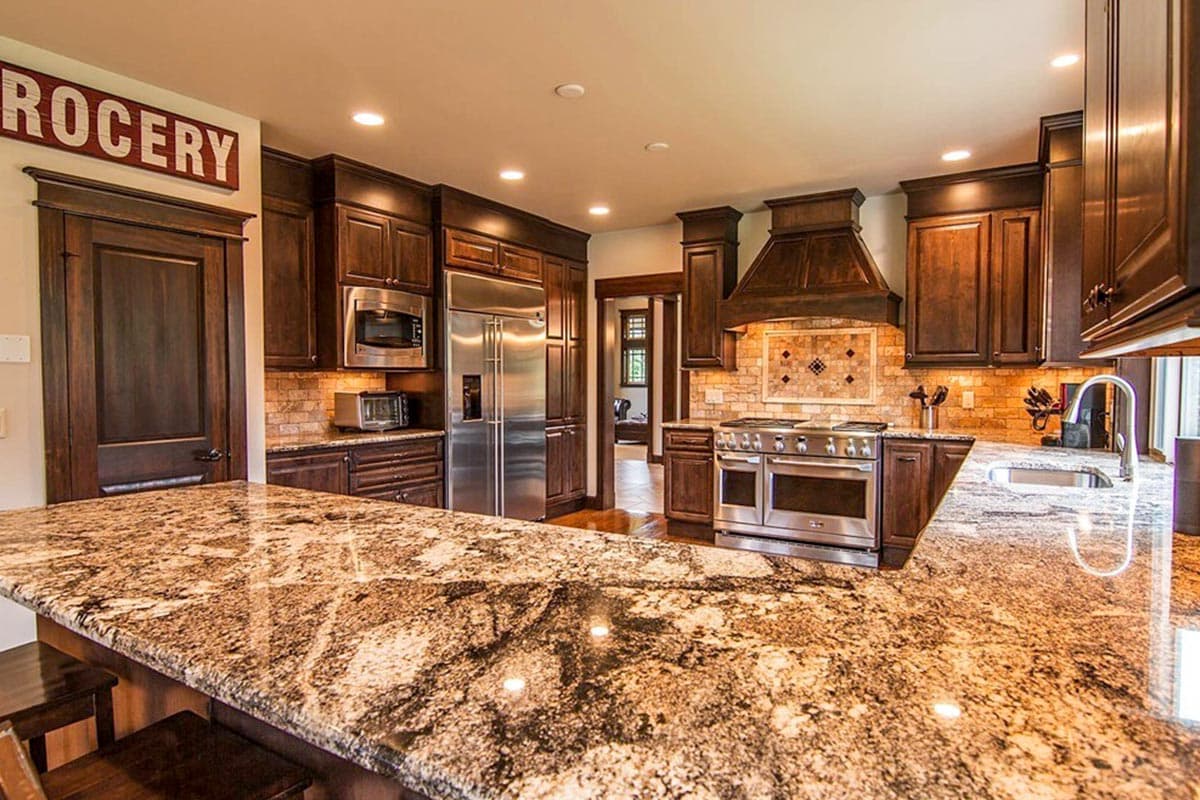

Dine informally in the large breakfast nook set in a bay, where you can see all of the gourmet kitchen.

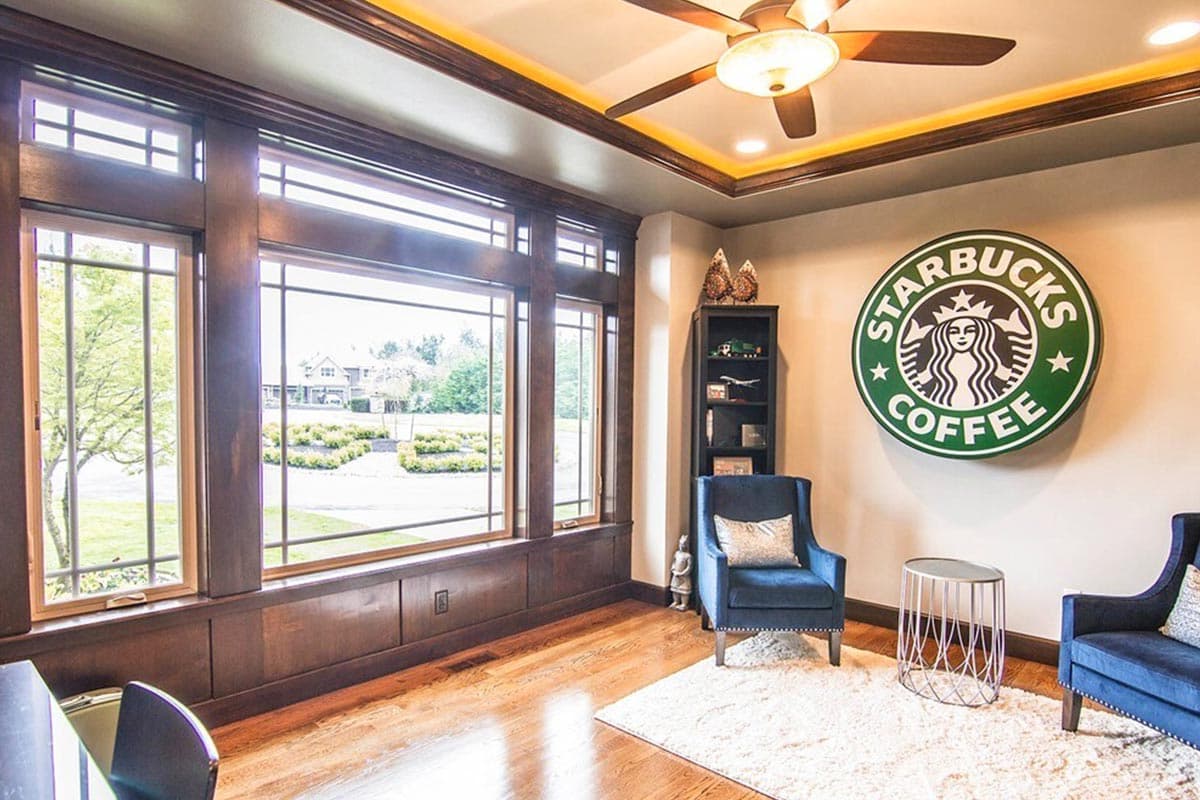

Tray ceilings top both the study and the formal dining room, for an elegant touch.

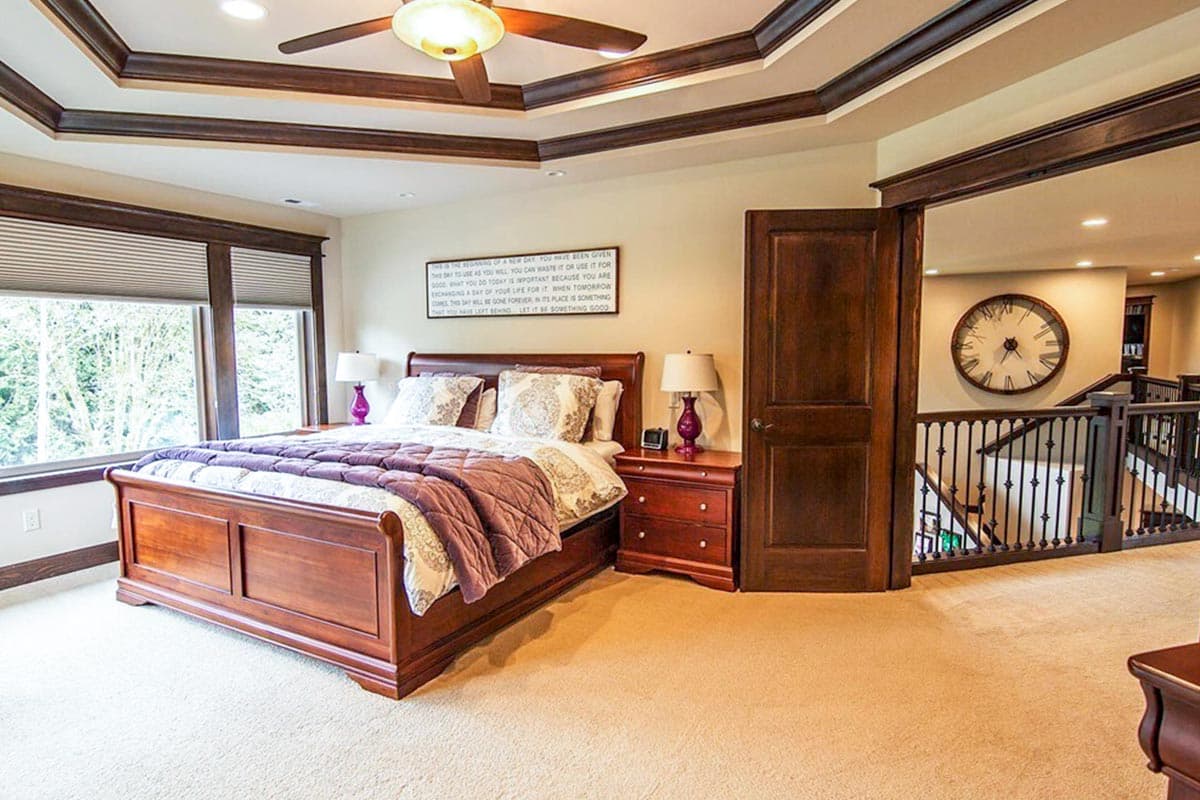

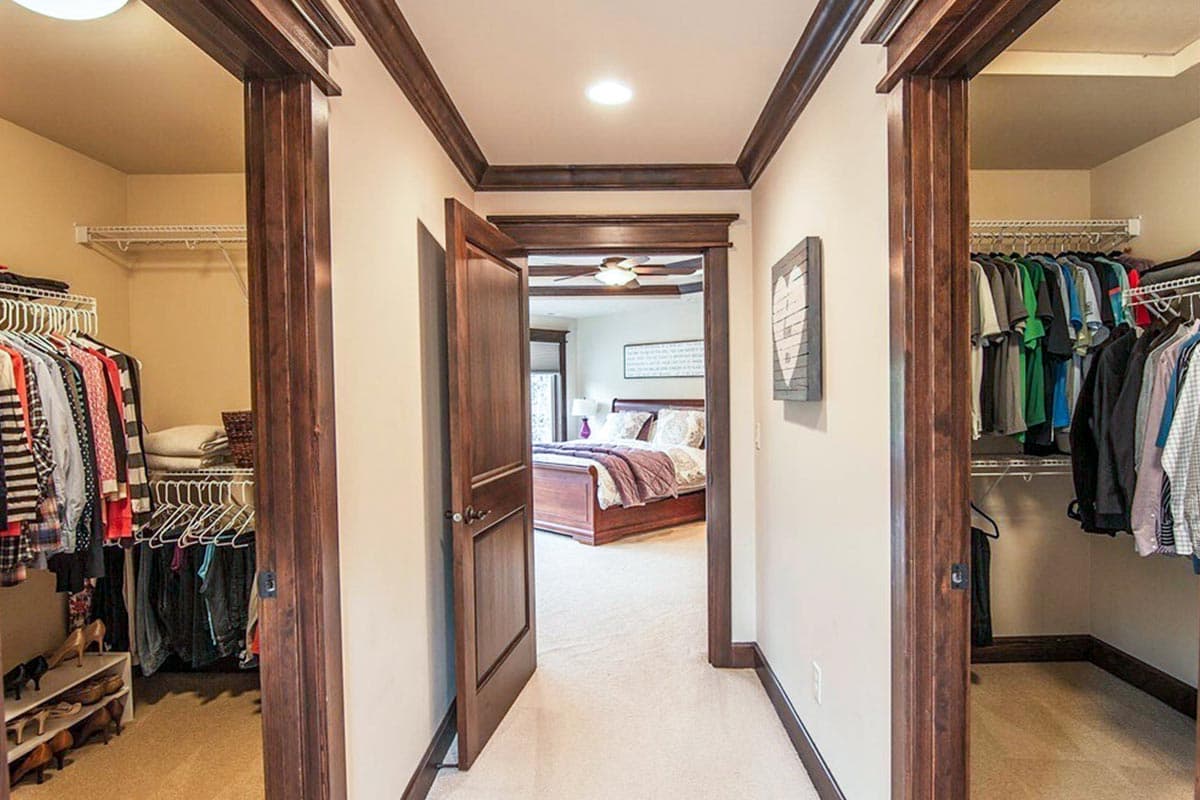

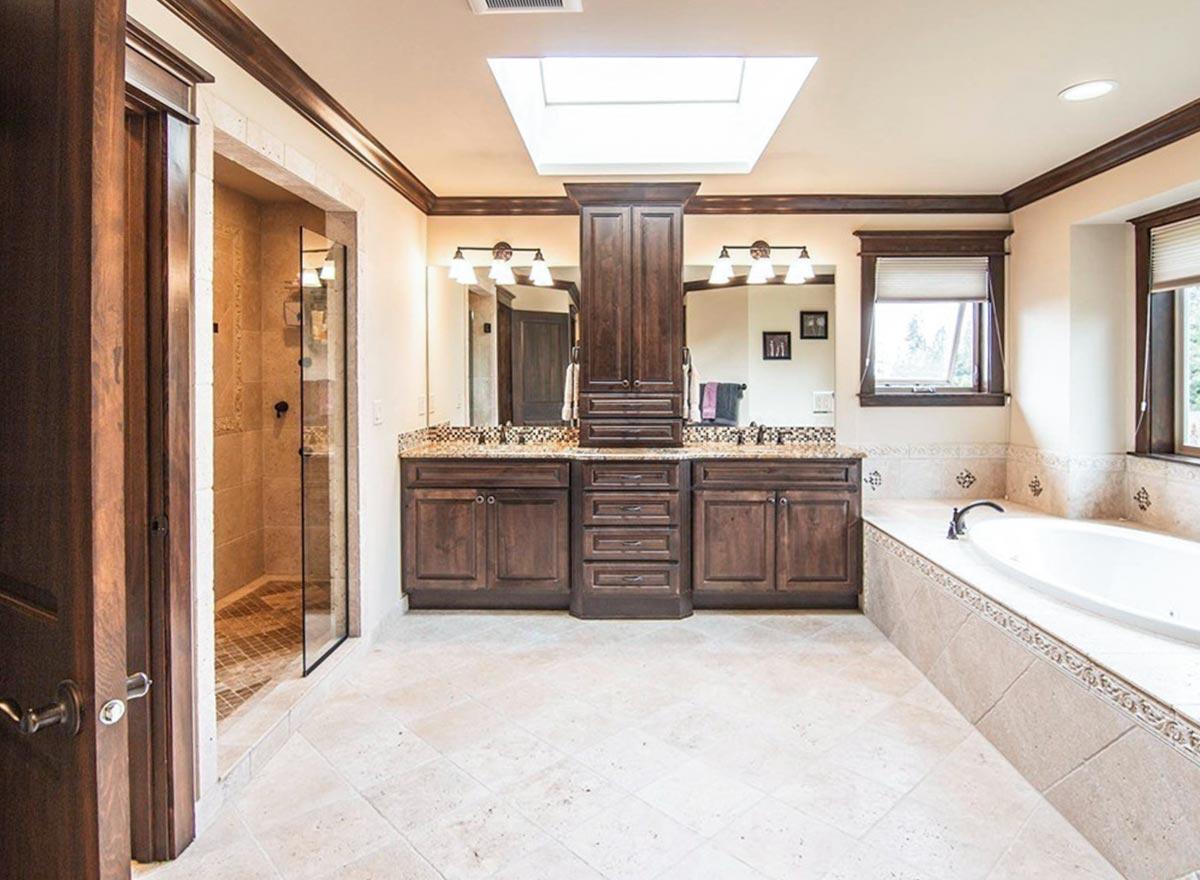

In the second floor master suite, homeowners get a lovely tray ceiling and two giant walk-in closets.

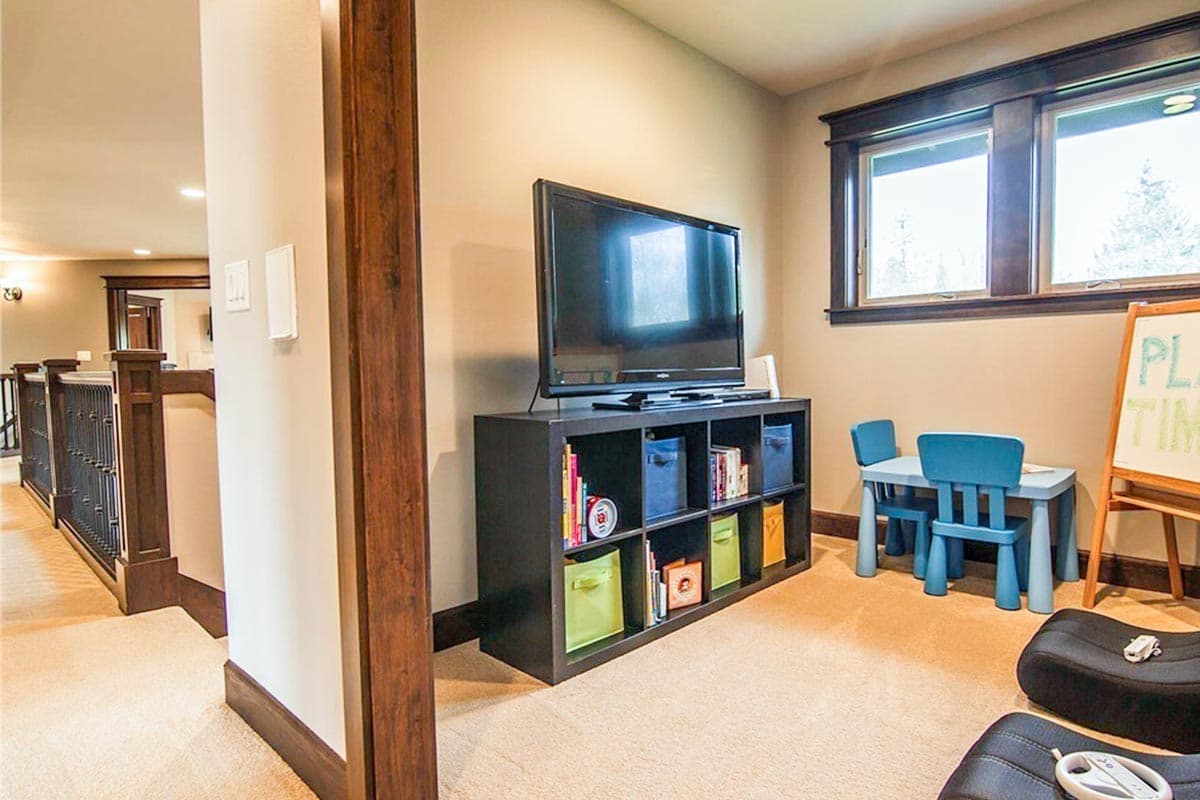

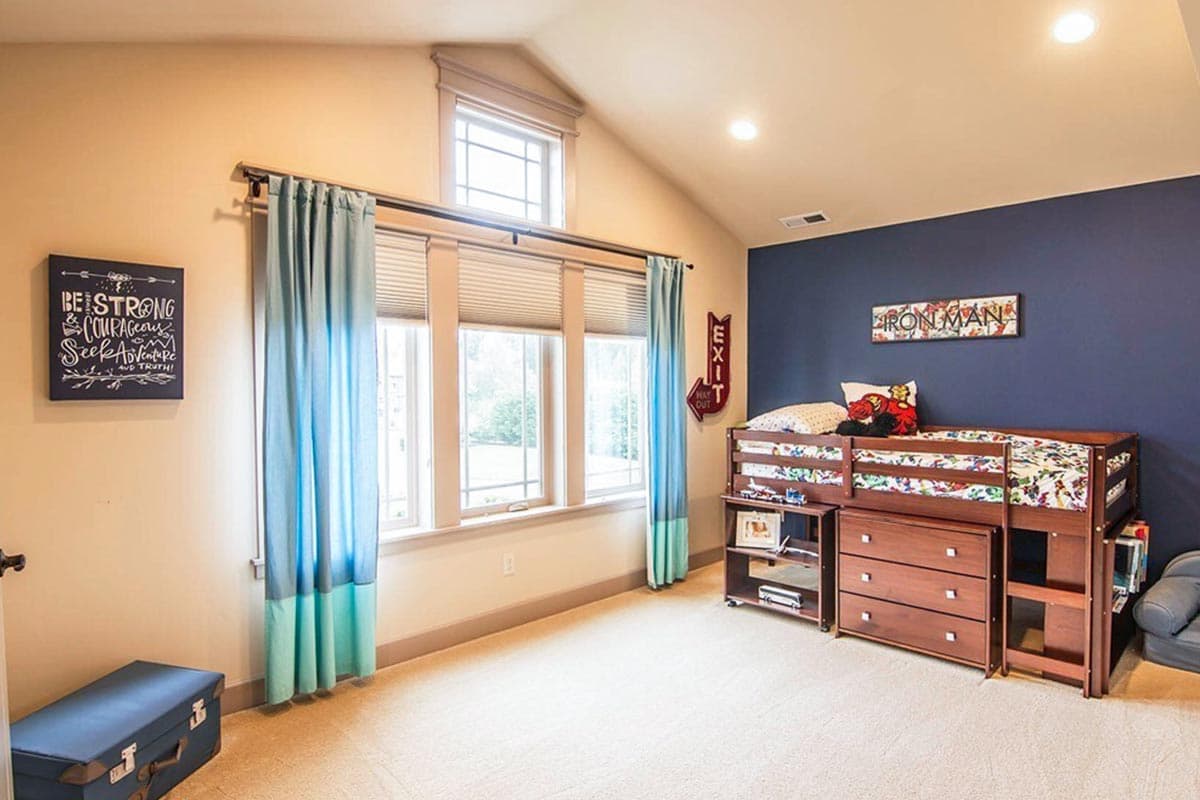

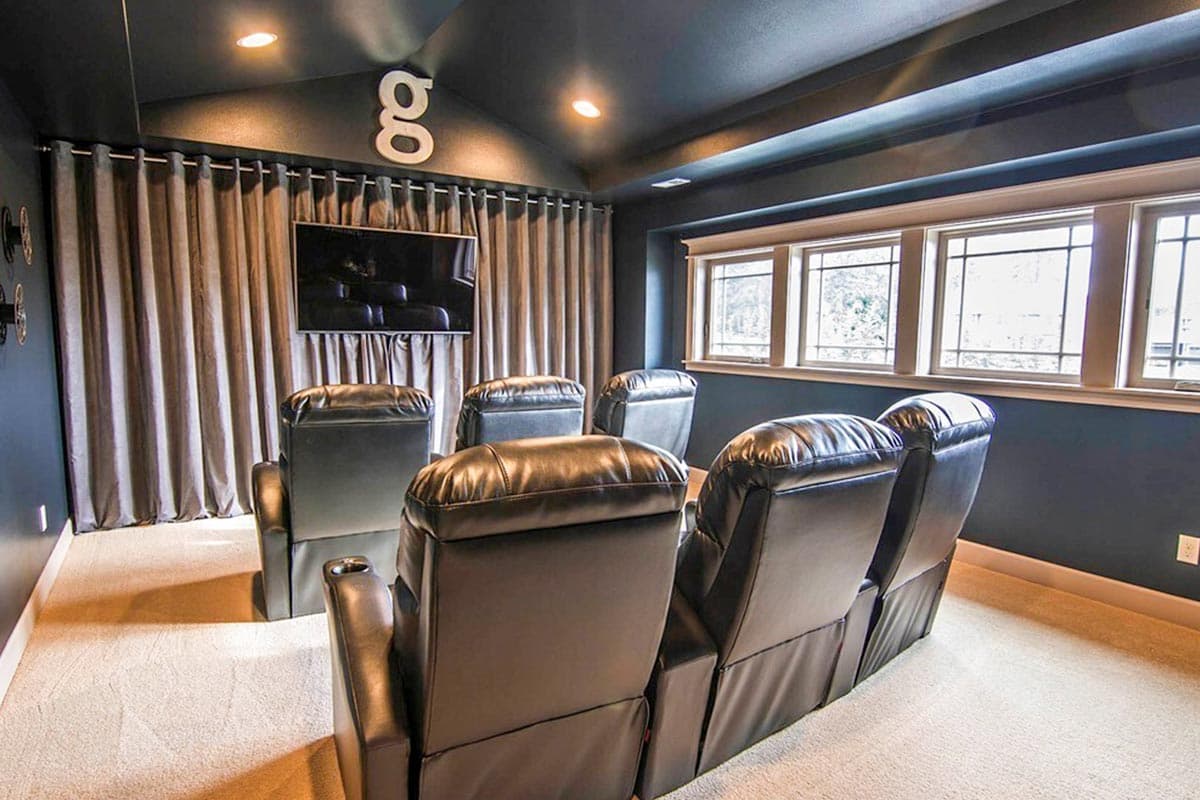

Watch movies in the second floor media room that is close by the other family bedrooms.

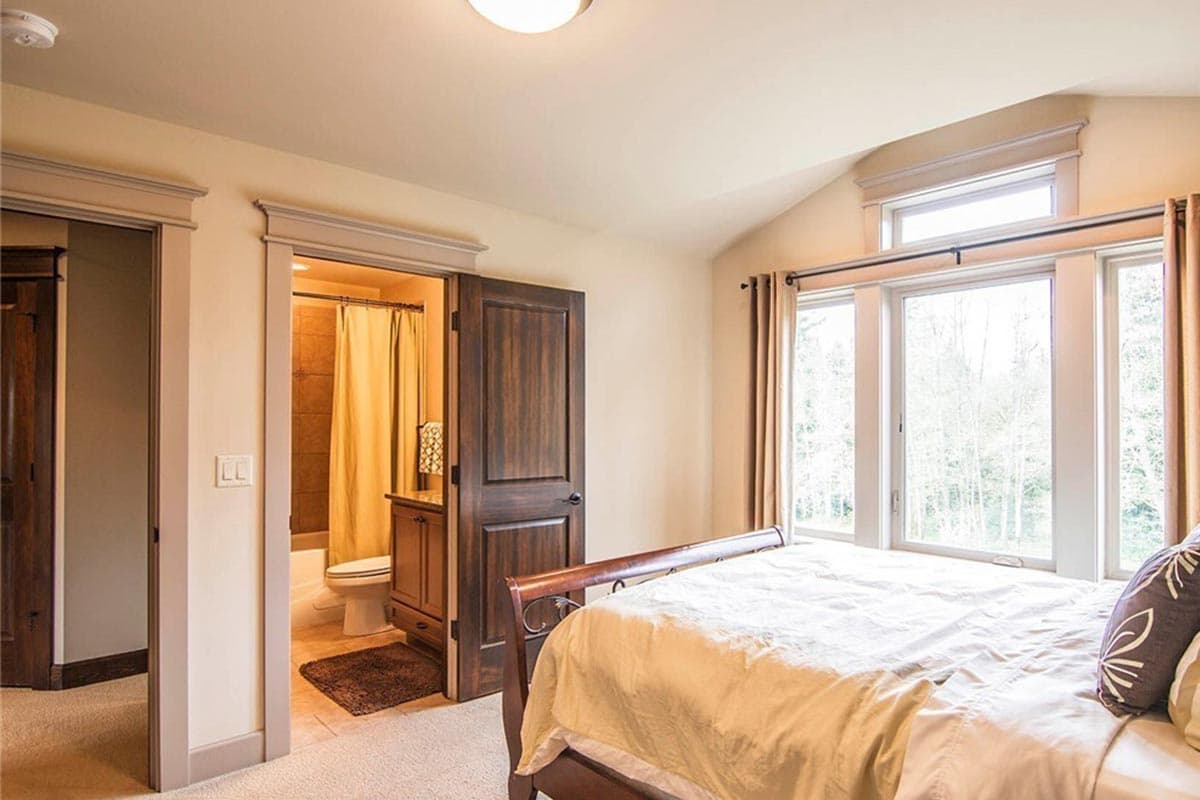

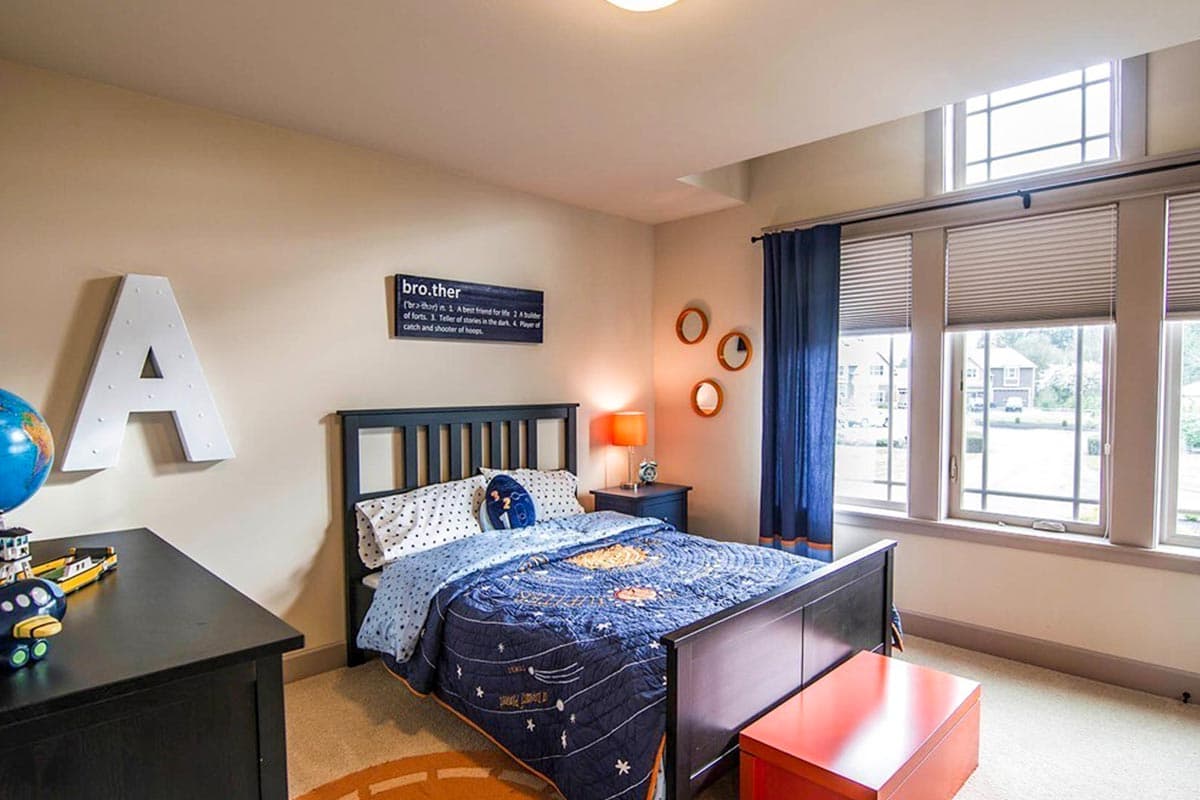

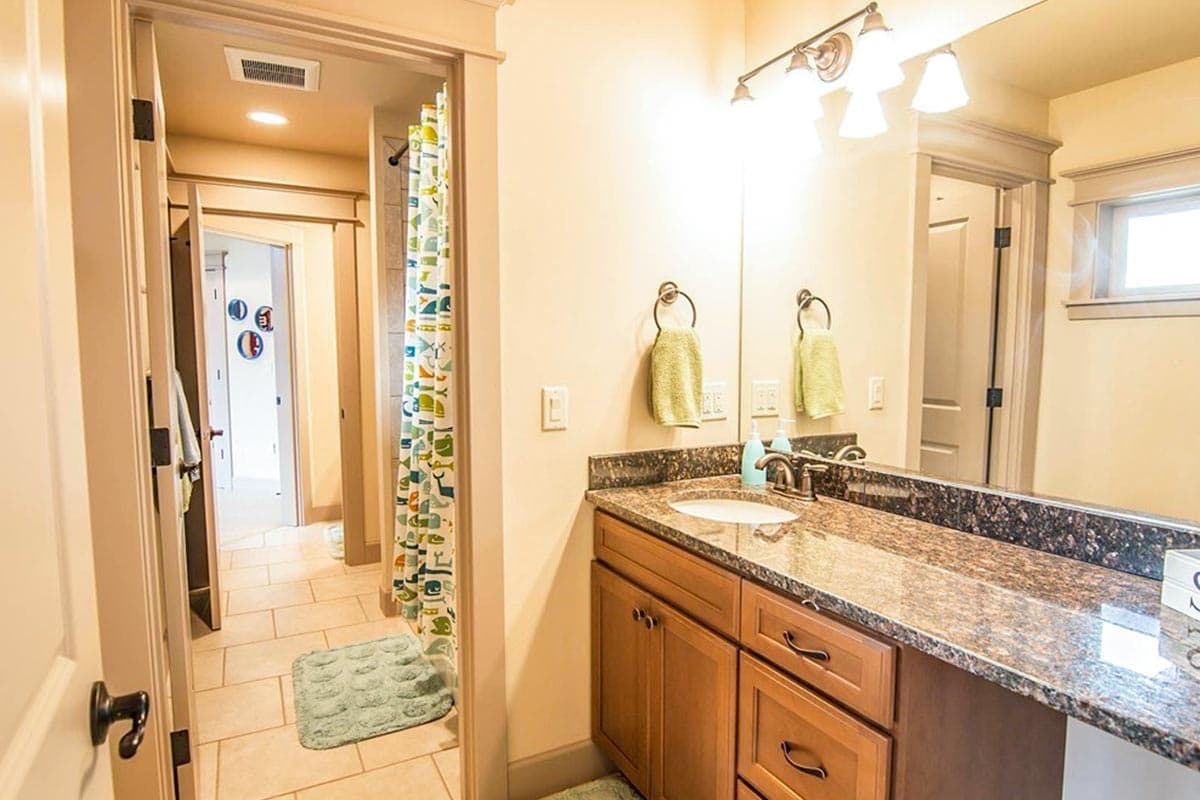

Two of the bedrooms have a shared jack and jill bathroom.

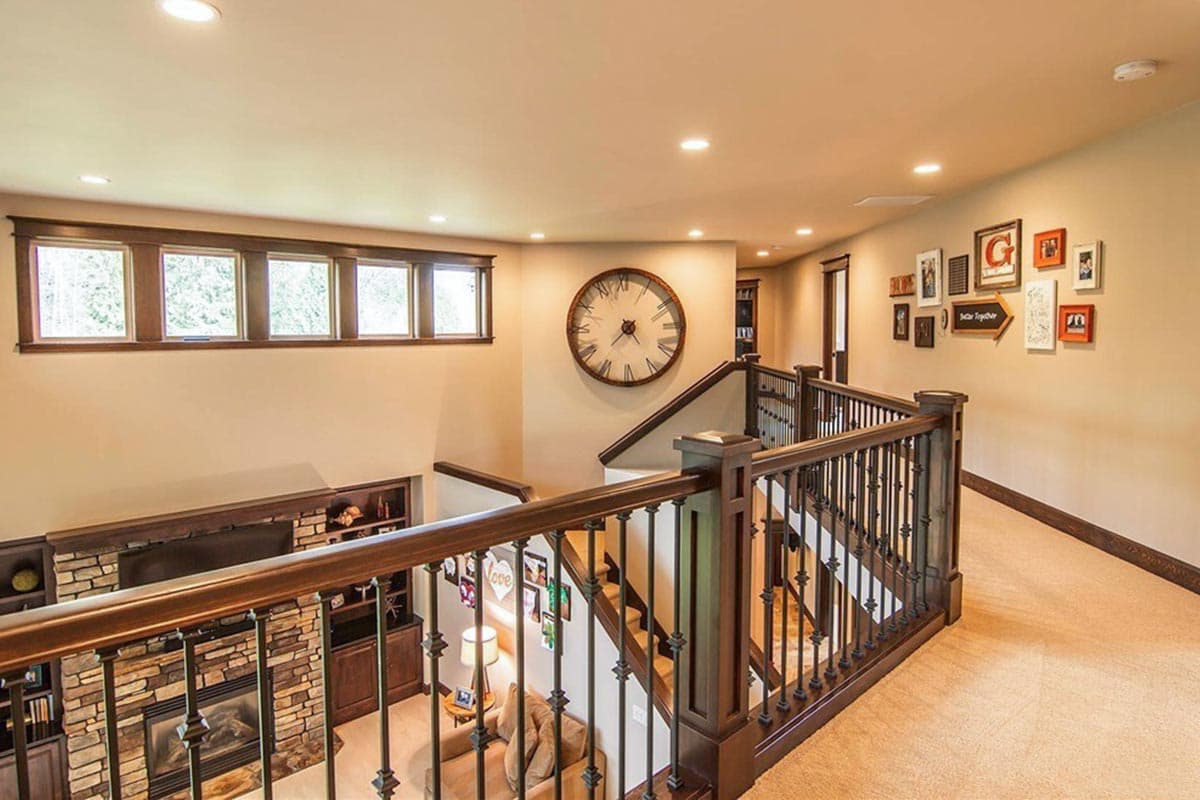

A dramatic balcony bridge has open railing that lets you see down to the foyer and family room at the same time.
Related Plans: Need a rear-entry garage? See house plan 2328JD (4,650 sq. ft.), 23312JD (4,025 sq. ft.) and get a 4-car garage with house plan 2378JD (3,645 sq. ft.). Get an angled garage with house plan 23559JD (4,530 sq. ft.).
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
