Plan 530002UKD
Craftsman House Plan with Wrap-Around Porch - 2025 Sq Ft
Heated S.F.
2,025
Beds
3
Baths
2
Stories
1
Floor Plan

Plan 530002UKD

Main Level
slide image 0

Plan 530002UKD

1-800-854-7852

1-262-521-4596

Main Level

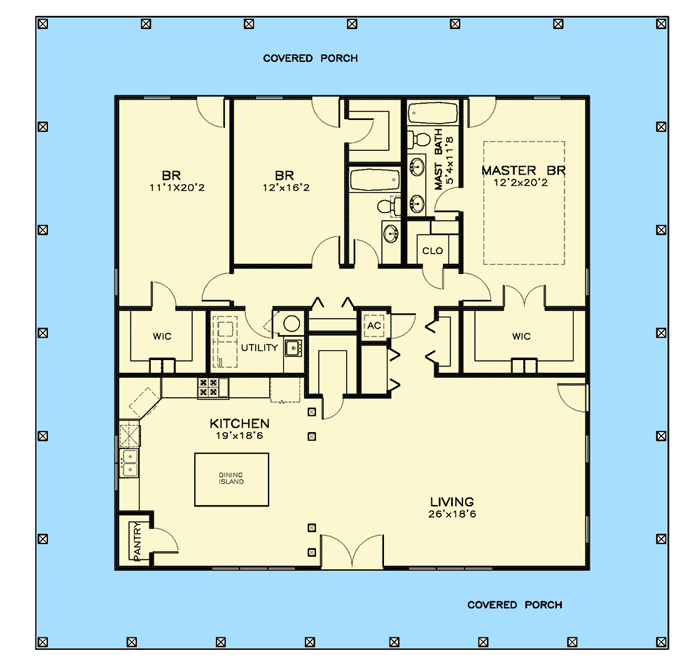

floor plan image Main Level
Plan Details
  • A gorgeous covered porch wraps full around this one-story Craftsman house plan.
  • Inside, an added plus is the open floor plan that unites the eating, cooking and dining areas of the home.
  • Each of the three bedrooms is spacious and has a large walk-in closet.
  • There are also two walk-in pantries off the kitchen.
  • Related Plan: Get a different exterior with house plan 530003UKD.
What's Included
  • Title Sheet - Isometric of Front Elevation
  • Foundation Plan ‐ shows the foundation plan and details. ¼” = 1’-0
  • Floor Plan ‐ shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house. ¼” = 1’-0 scale

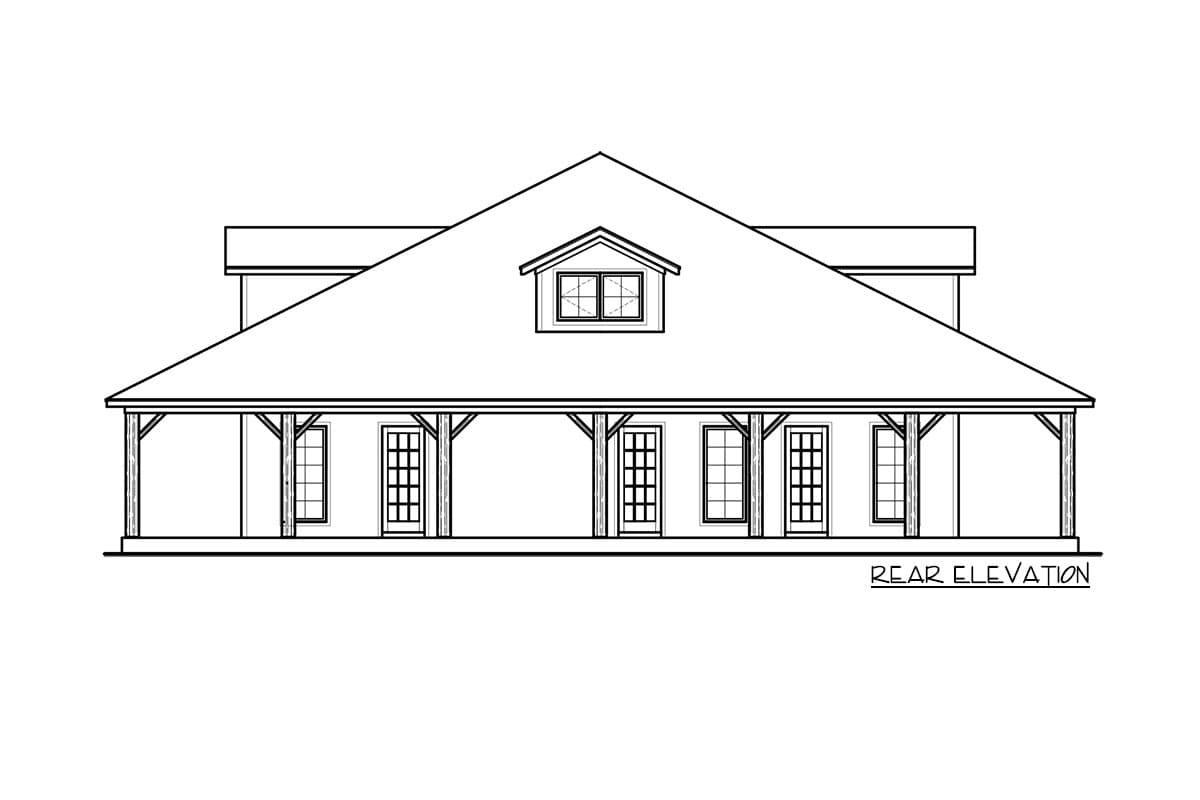

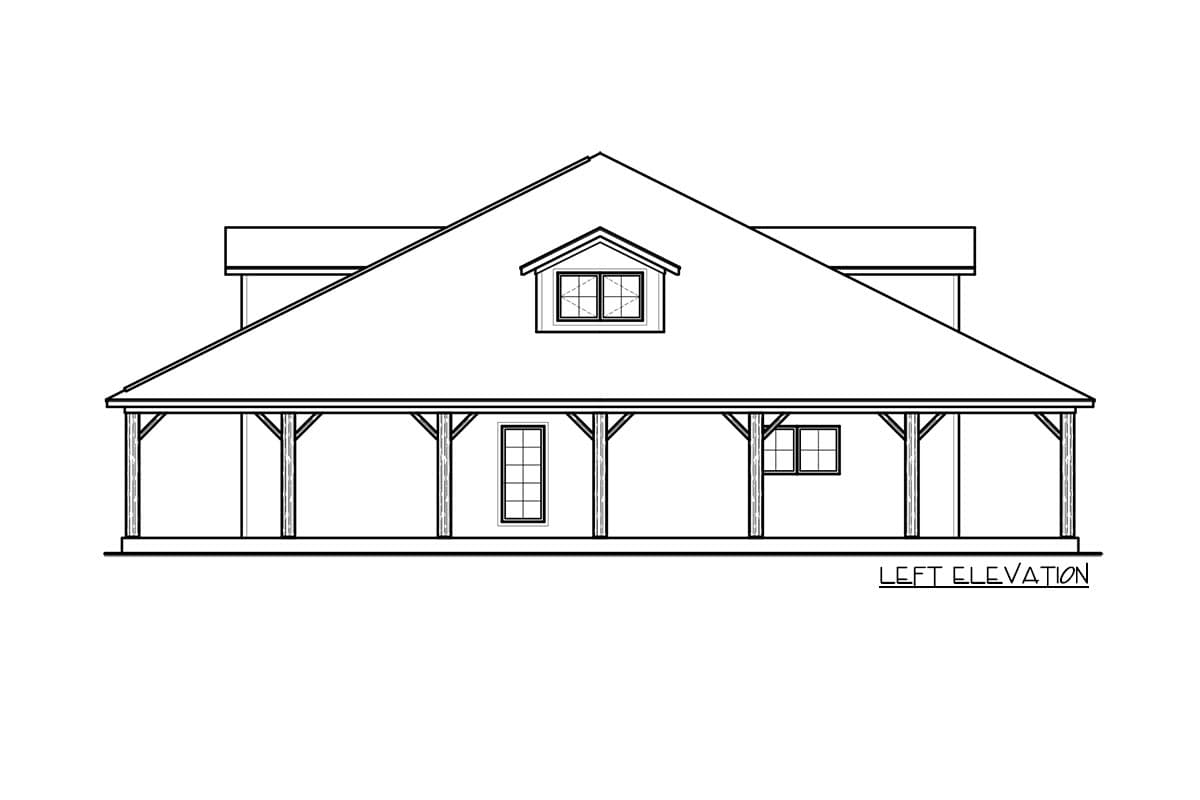

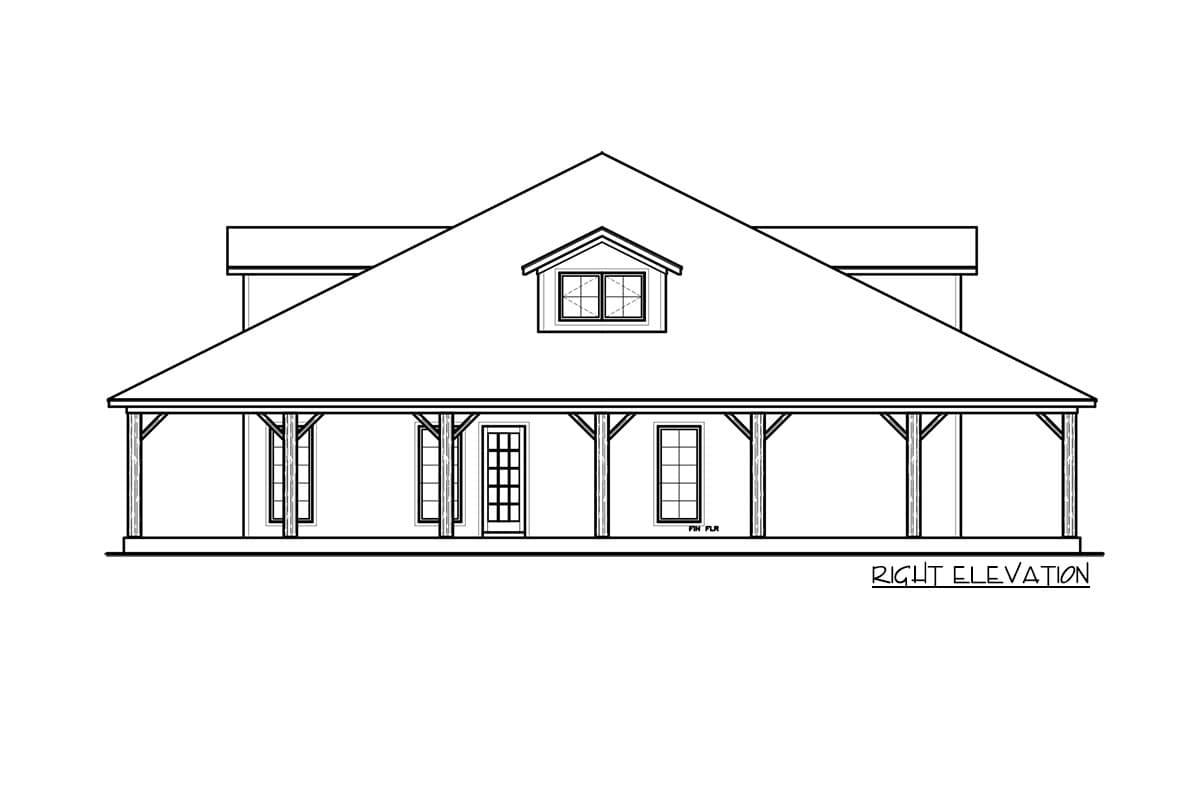

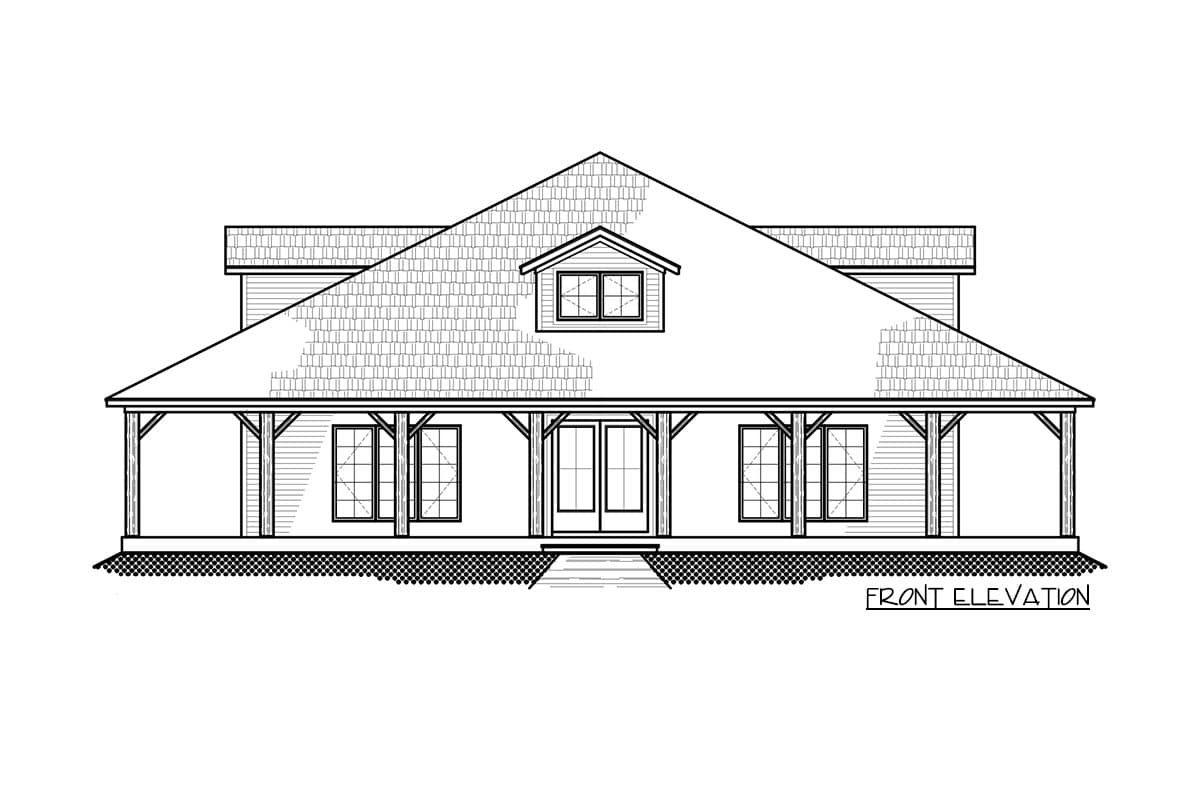

  • Exterior Elevations ‐ shows the front, rear and sides of the house, including exterior materials, details, applicable dimensions and roof pitches. ¼” = 1’-0
  • Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the construction of the home, insulation, flooring and roofing.
  • Interior Elevations ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.
  • Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers. Roof Framing Plan - provides guideline for rafters, ridges, hip framing
  • Electrical Plan ‐ shows the suggested locations for fixtures, outlets, switches, etc.
  • Notes & Details ‐ per IRC 2015
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,025 sq. ft.

1st Floor

2,025 sq. ft.

Porch, Combined

1,575 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

60' 0"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Tray

0' 0''

Roof Details

Primary Pitch

7 on 12

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch

Square Footage Breakdown

Total Heated Area

2,025 sq. ft.

1st Floor

2,025 sq. ft.

Porch, Combined

1,575 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

60' 0"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Tray

0' 0''

Roof Details

Primary Pitch

7 on 12

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch
