Plan 24367TW

Craftsman On The Lake

Heated S.F.

3,041

Beds

4

Baths

3.5

Stories

1

Cars

3

Floor Plan

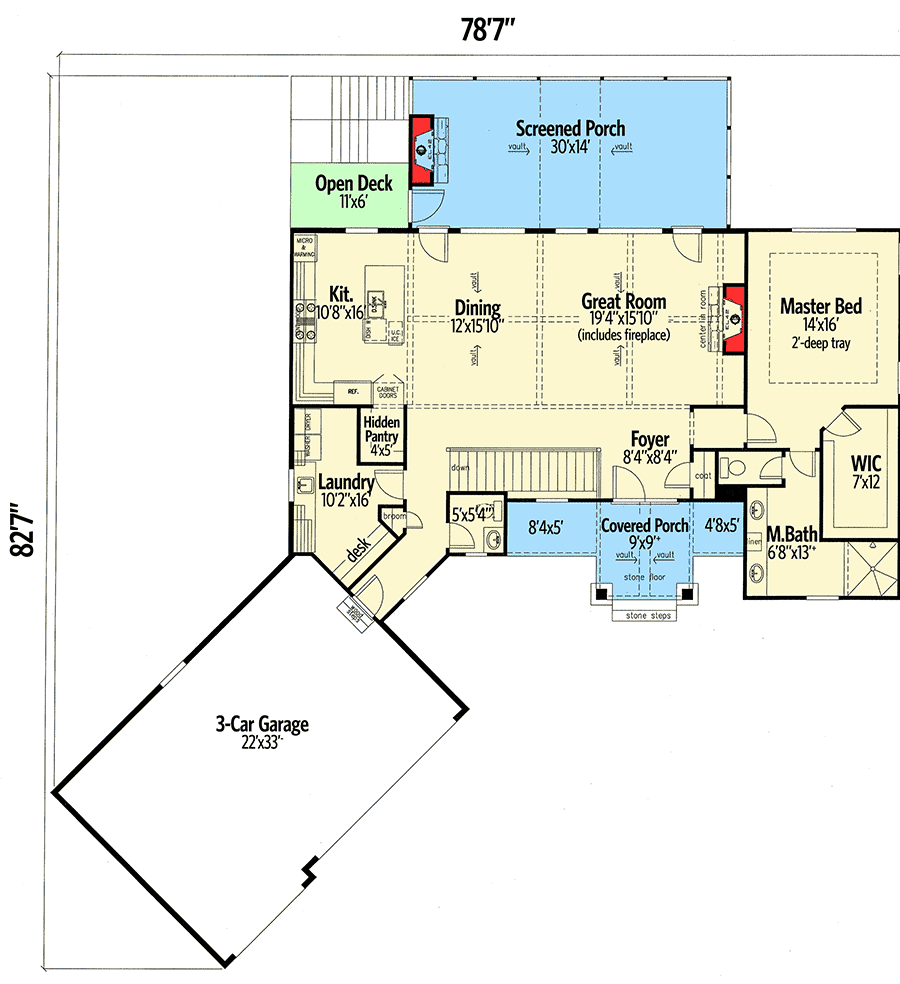

Main Level

floor plan image Main Level

Basement

floor plan image Basement

Plan Details

A finished lower level almost doubles your square footage in this first-rate Craftsman house plan.

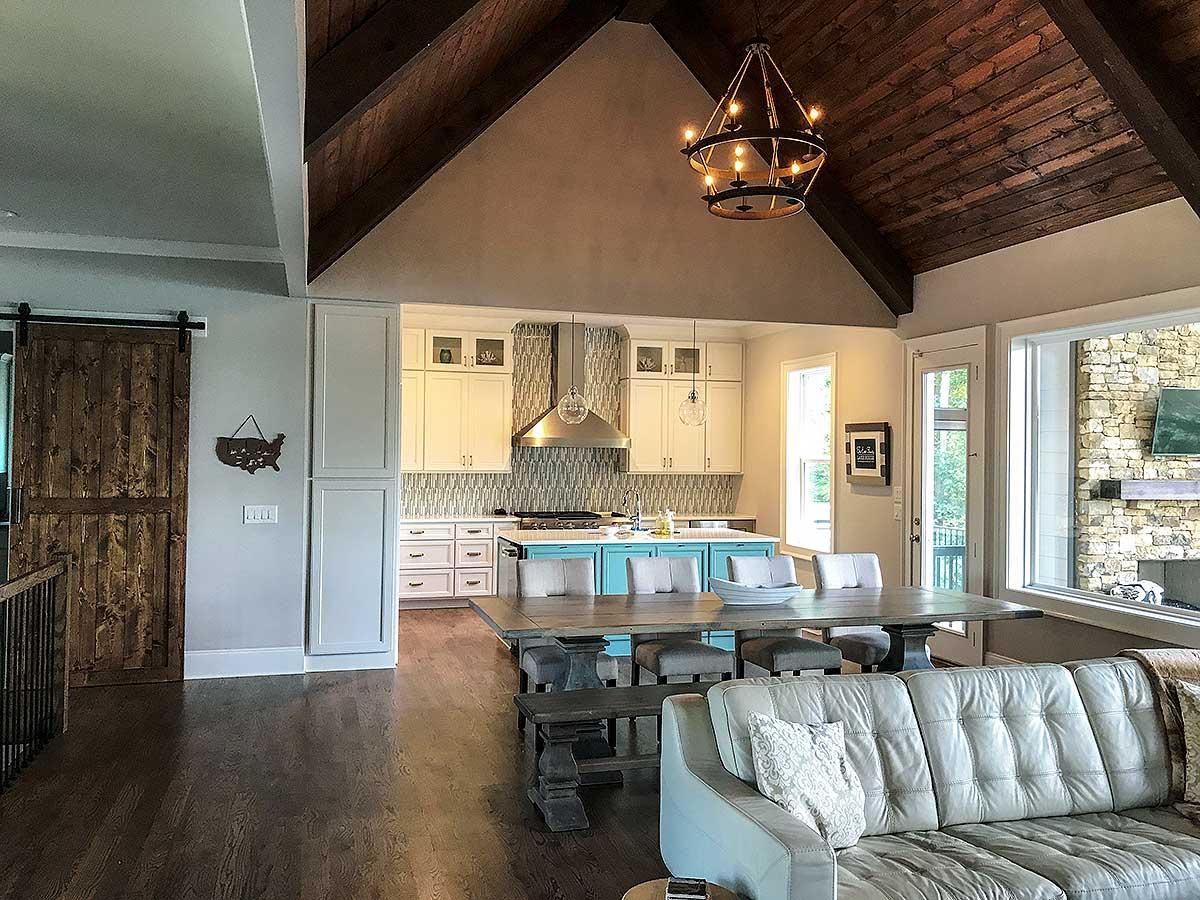

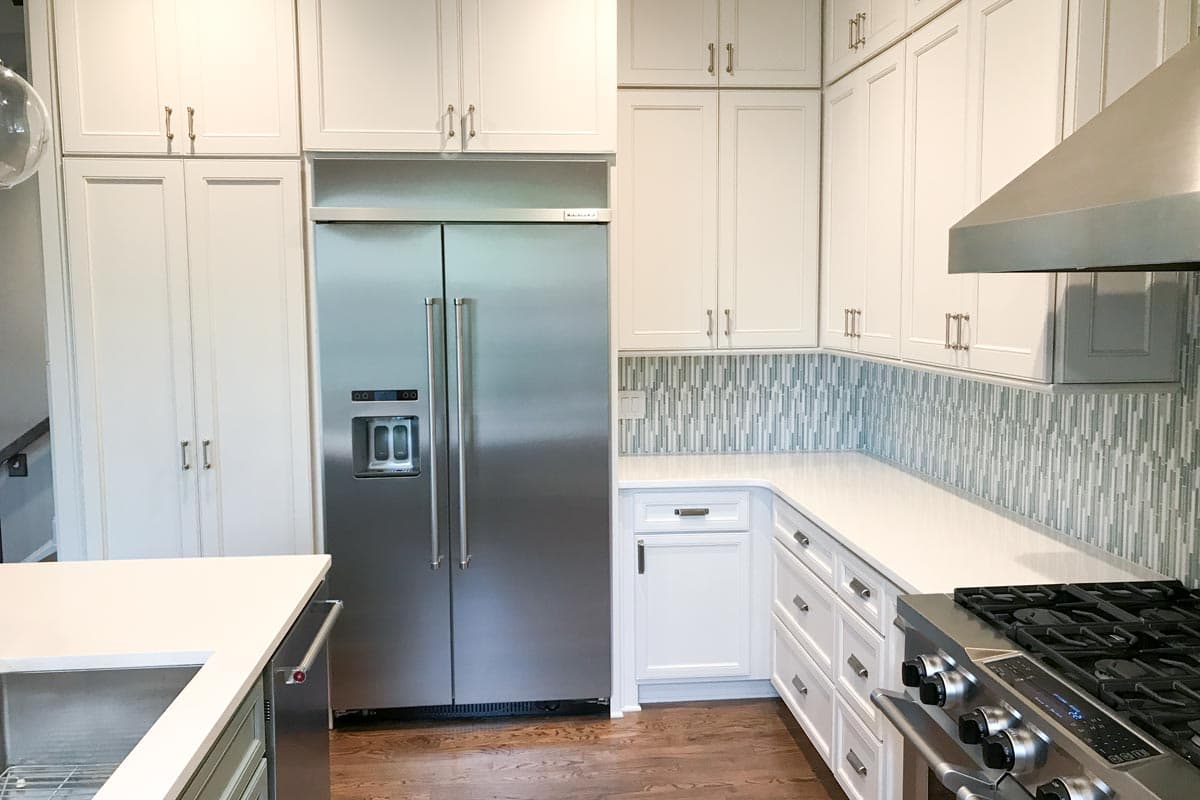

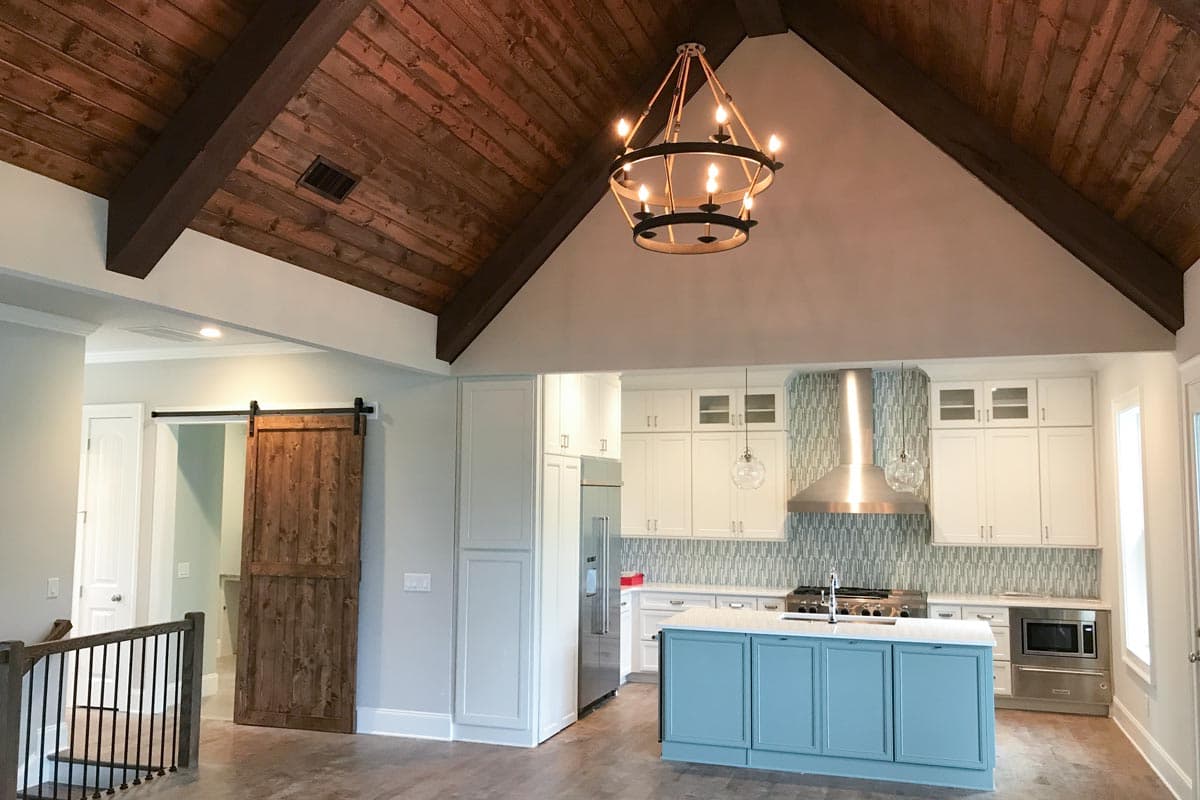

Views start right at the front door where the sight lines stretch to include the kitchen, informal dining area and great room.

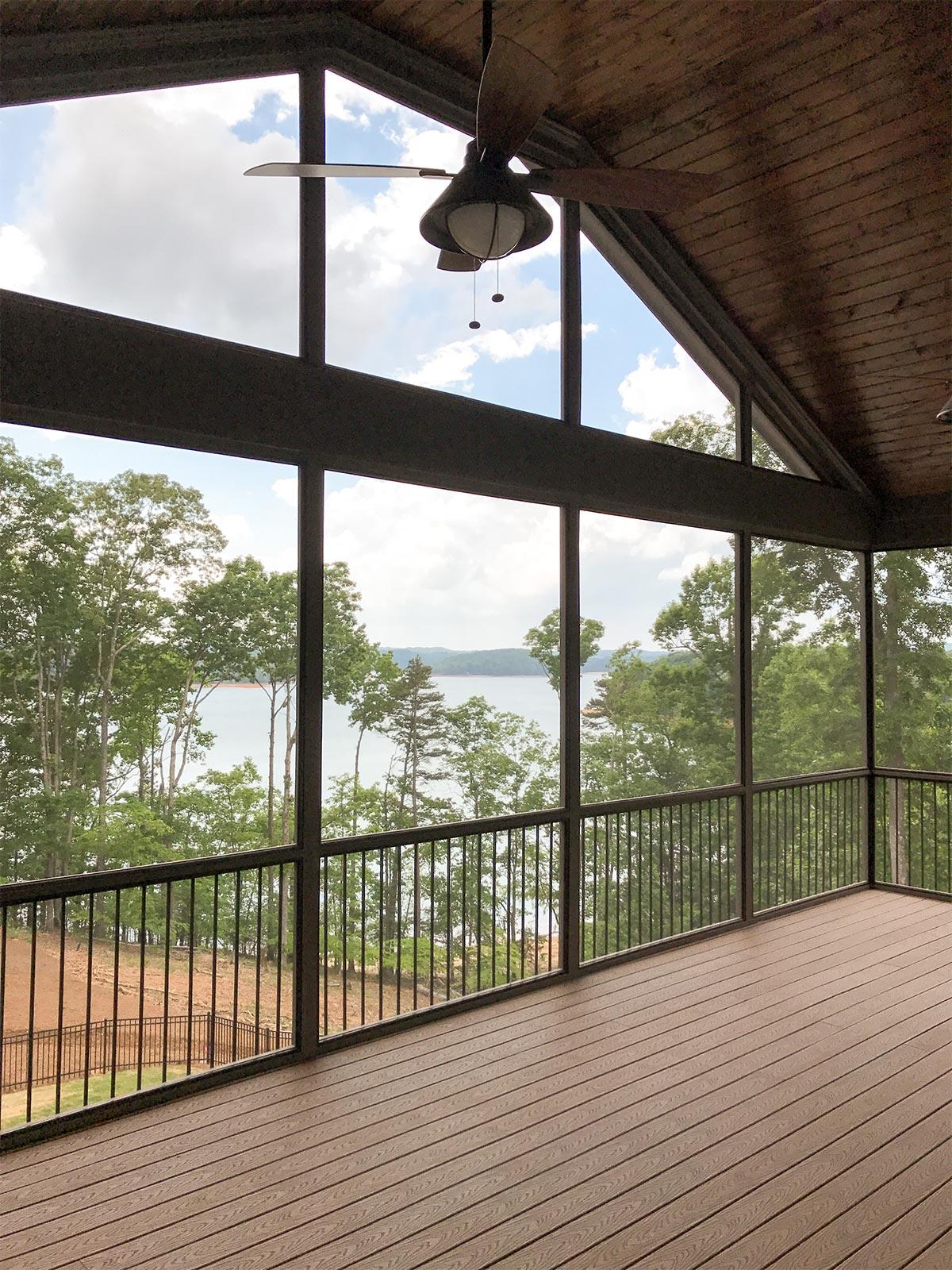

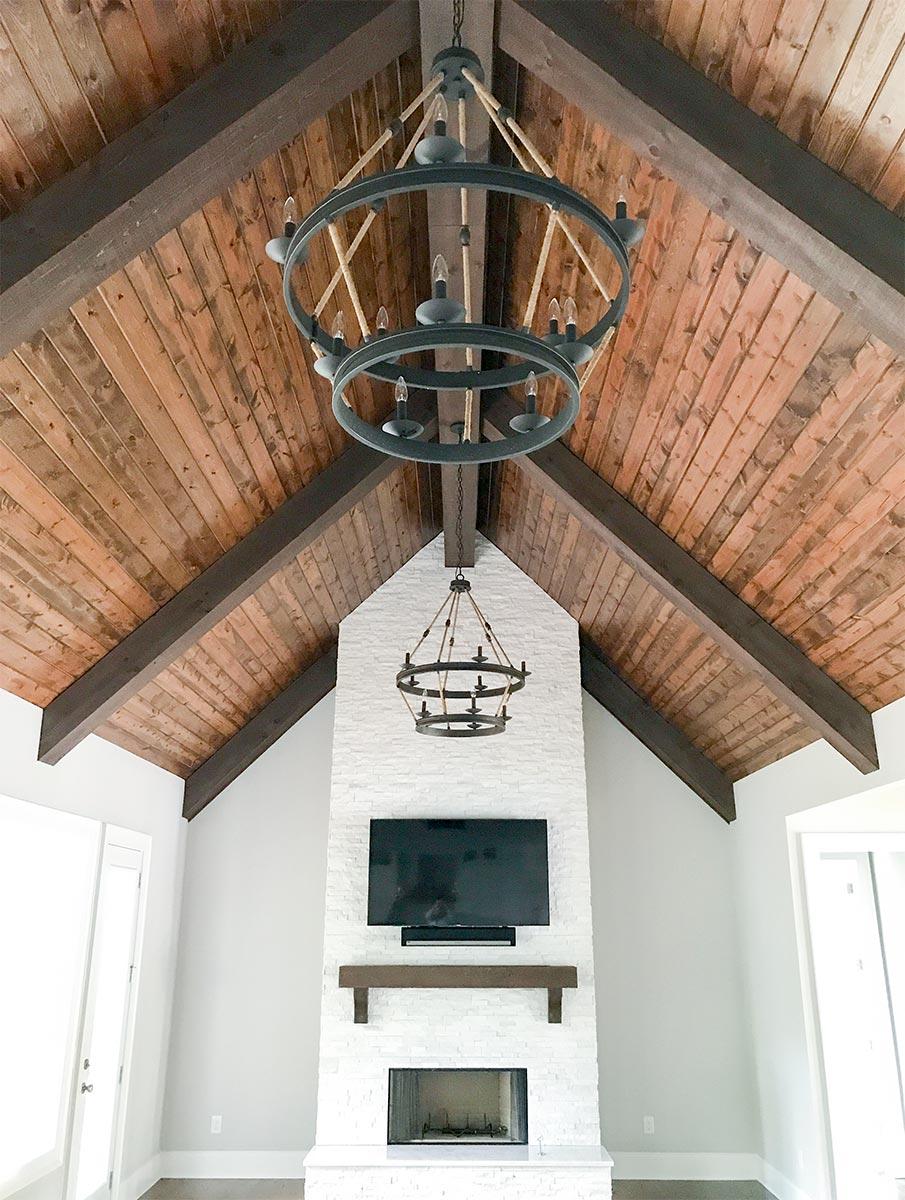

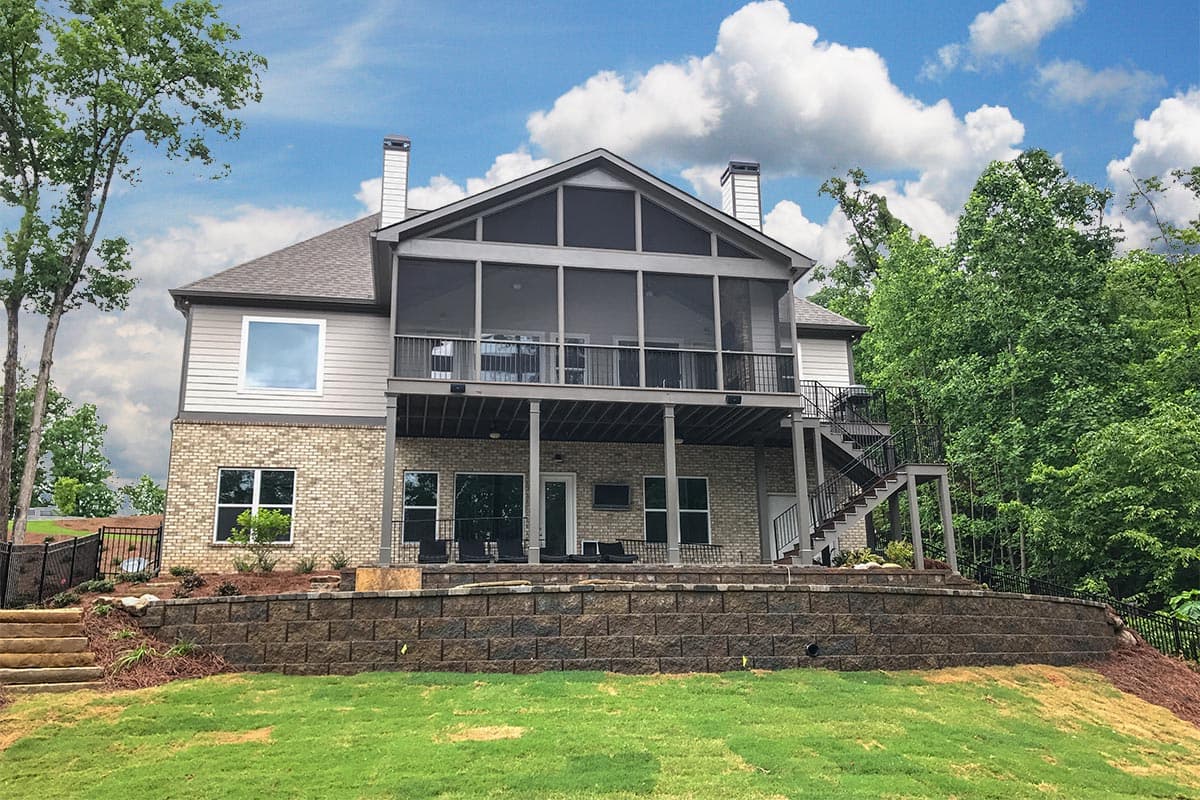

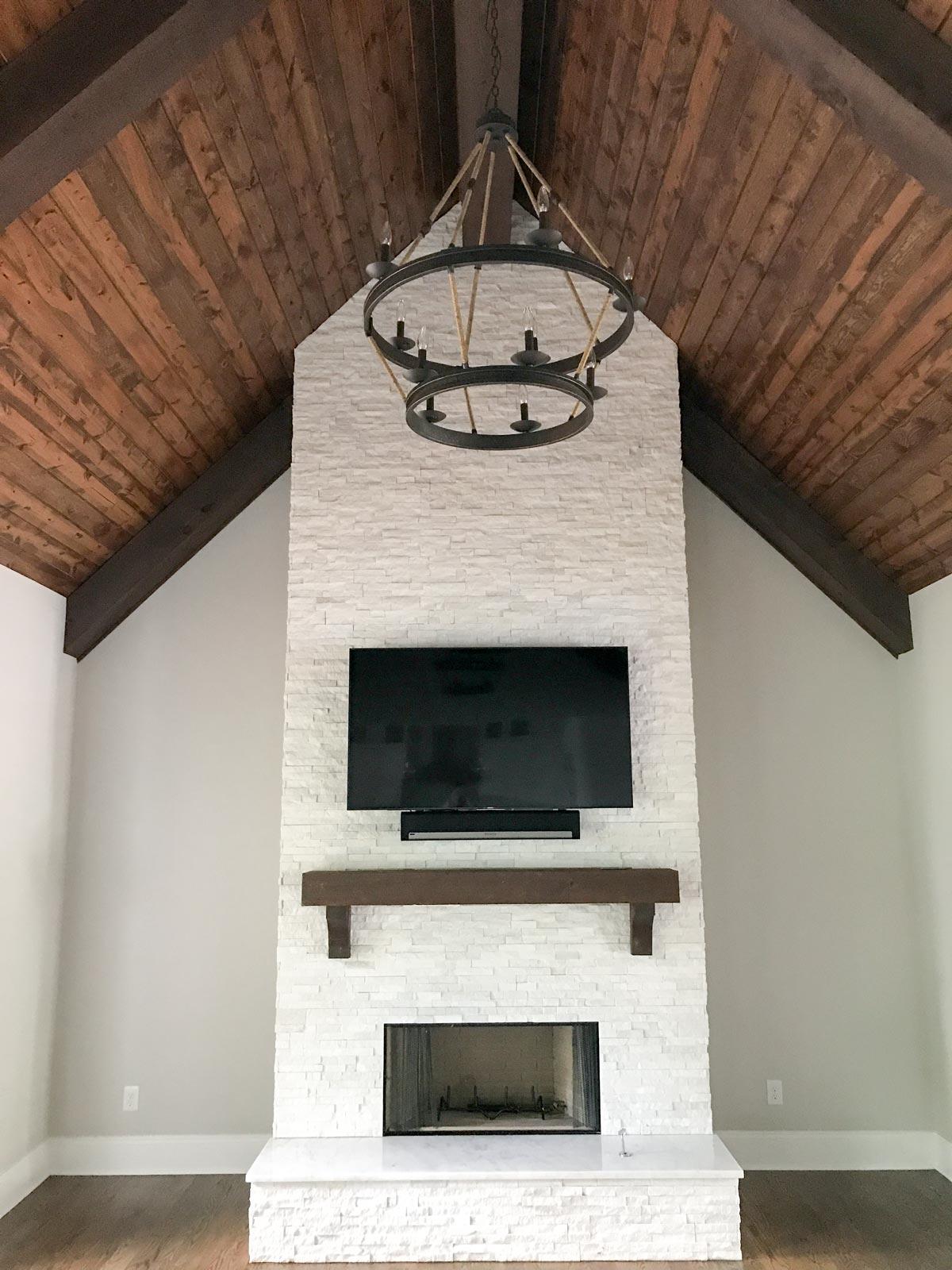

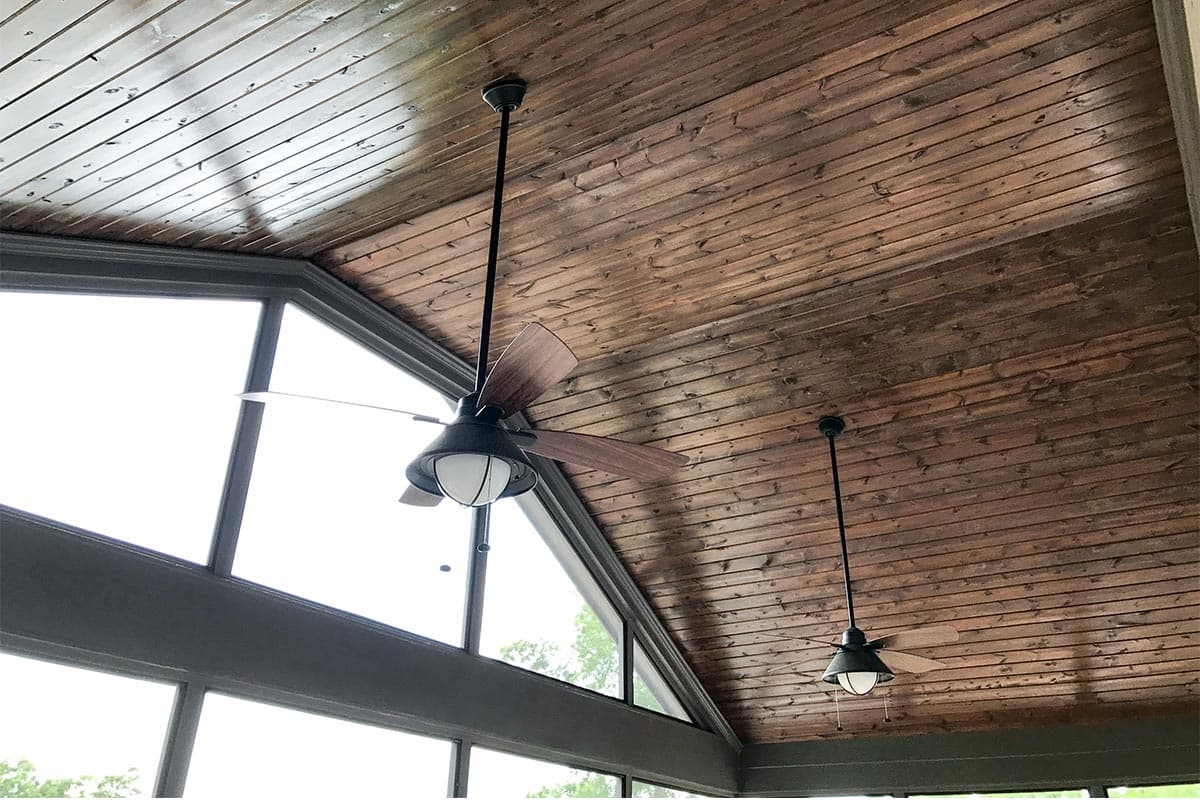

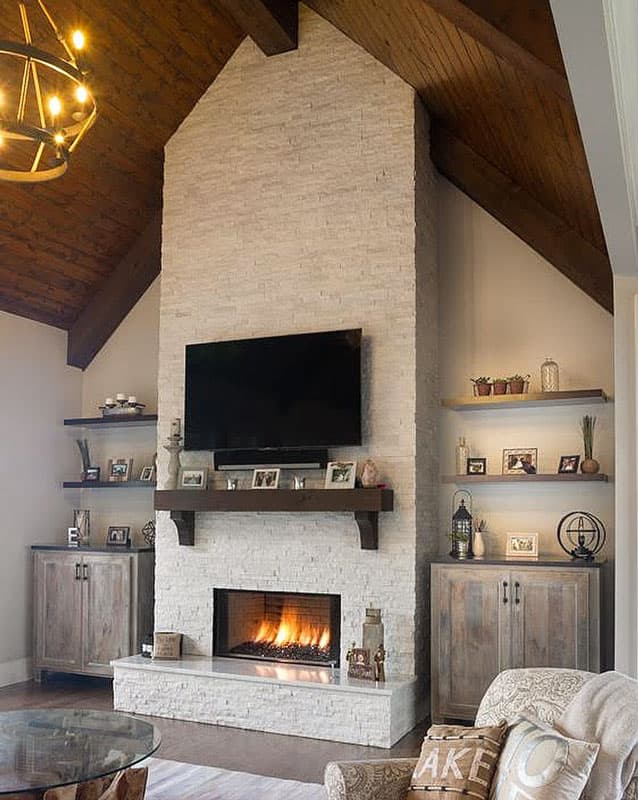

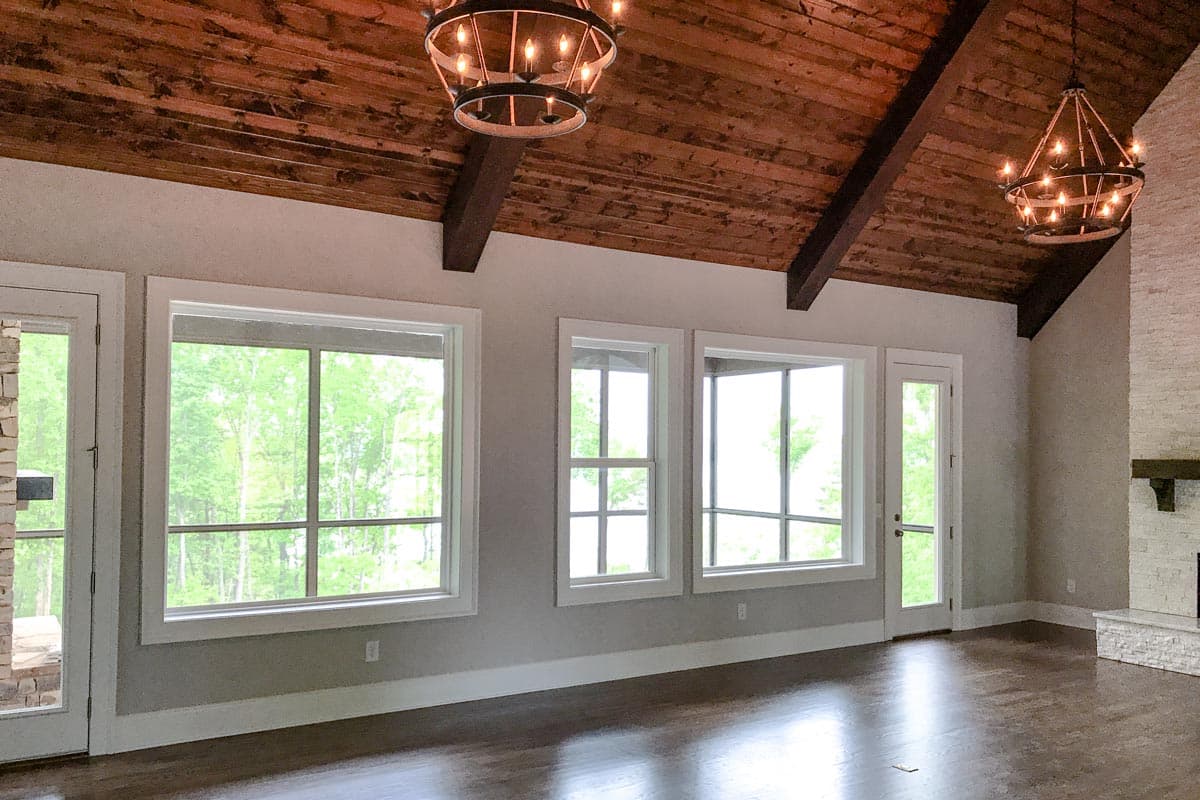

The beamed and vaulted ceiling is a special treat and a wall of glass lets you see out to the huge screened porch with its outdoor fireplace.
The deluxe master suite is the only bedroom on this floor giving you a secluded retreat.

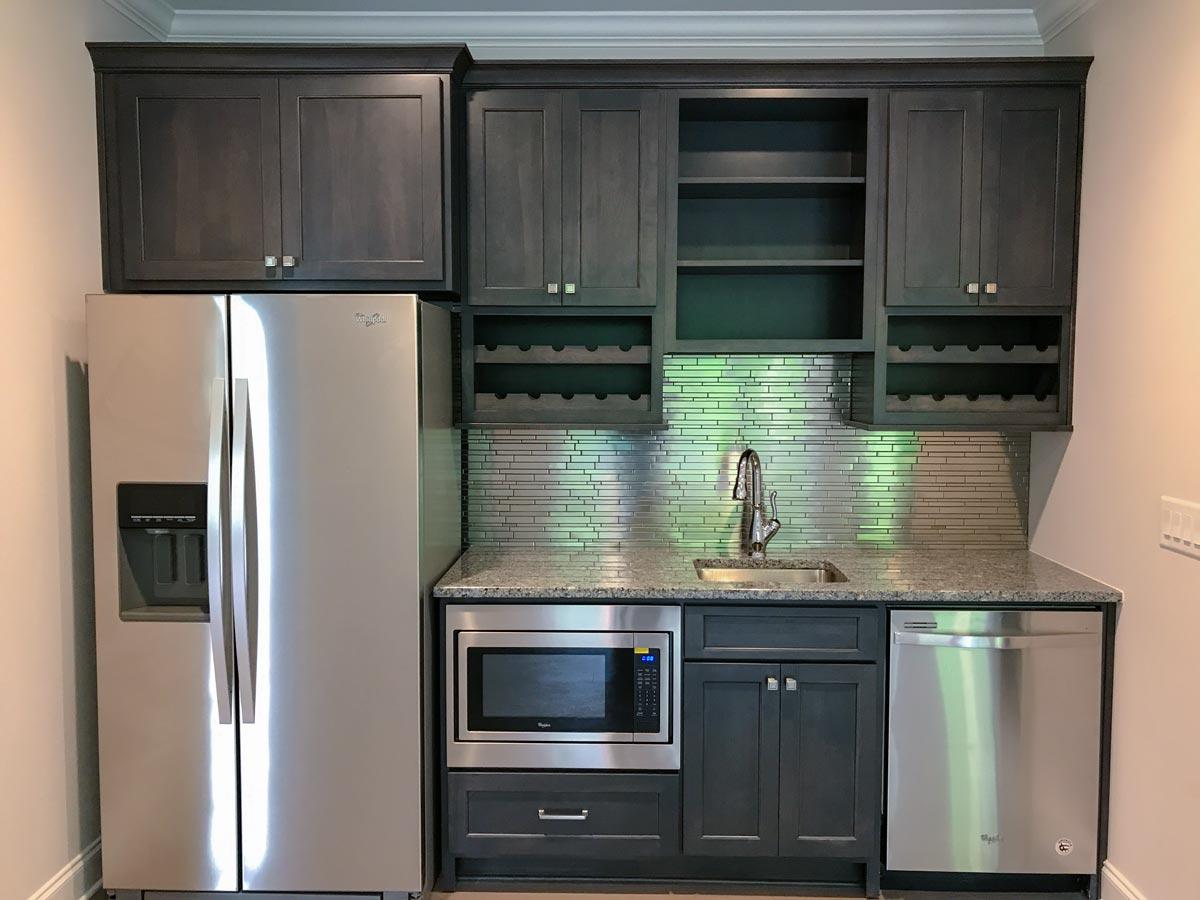

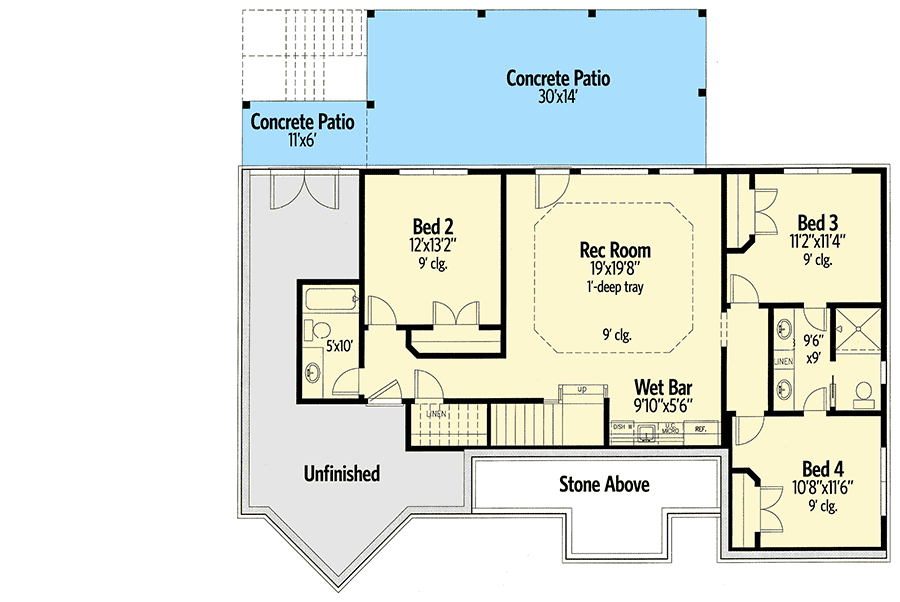

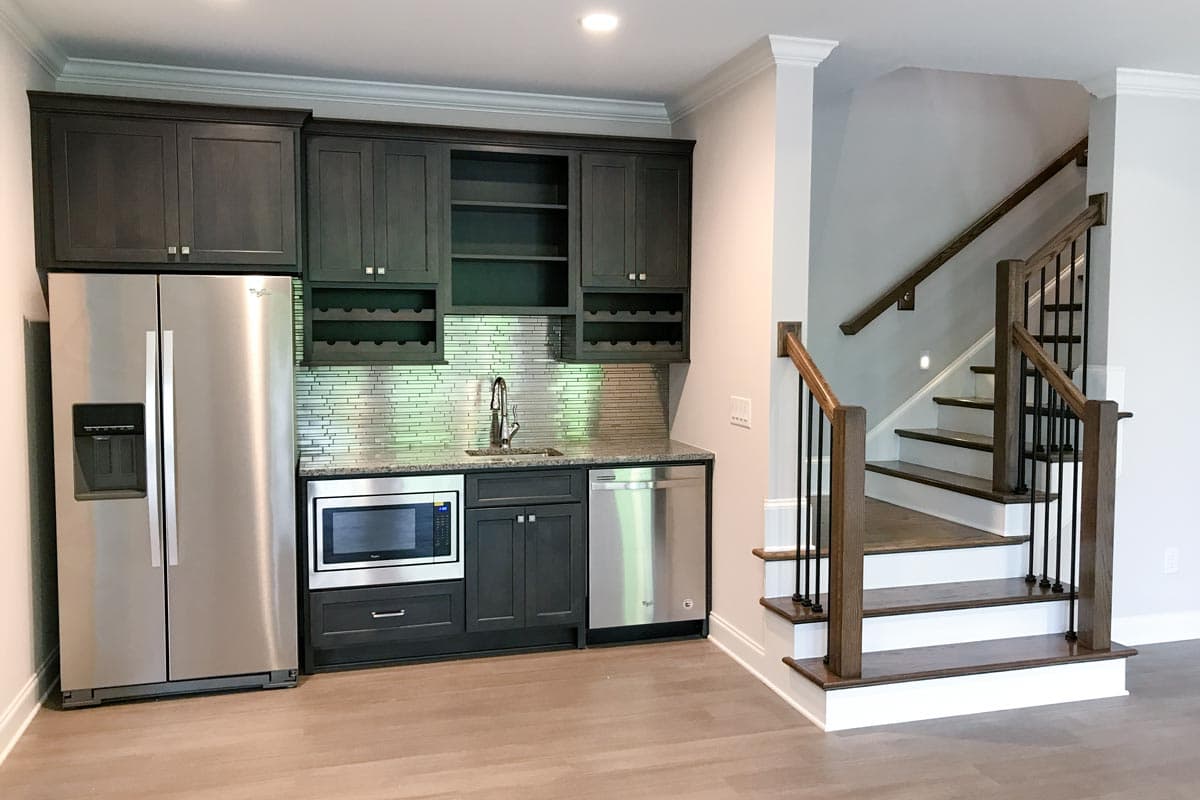

Head down the the finished lower level to relax in the enormous rec room with its wet bar.

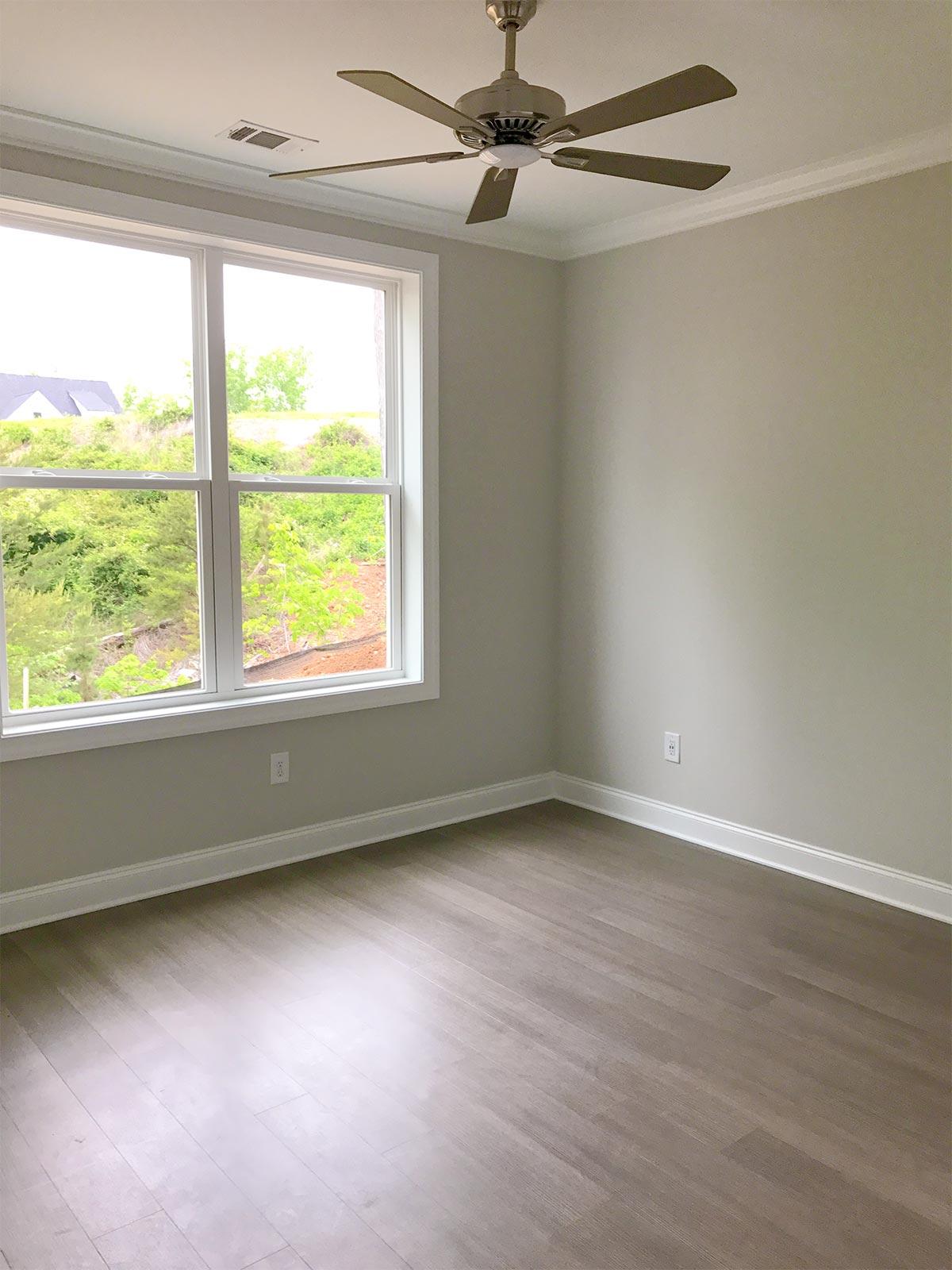

Three bedrooms and two more bathrooms provide lots of room for family and guests.
NOTE: The crawlspace version comes with the same elevations as the basement version.

What's Included

Four elevations (front, rear, right & left) with finish details
Fully dimensioned floor plans which include window and door sizes
Foundation plan with footing details
Roof plan with cornice details
General framing details
Floor joists layout
Electrical layout

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,041 sq. ft.

Lower Level

1,322 sq. ft.

1st Floor

1,719 sq. ft.

Basement Unfinished

397 sq. ft.

Porch, Front

146 sq. ft.

Screened Porch

420 sq. ft.

Deck

66 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

78' 7"

Depth

82' 7"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

731 sq. ft.

Count

3 Cars

Entry Location

Front, Courtyard

Ceiling Heights

Lower Level

9'

First Floor

10'

Room

Ceiling Type

Height

Great Room

Vaulted

0' 0''

Dining Room

Vaulted

0' 0''

Master Bedroom

Tray

0' 0''

Screened Porch

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Outdoor Fireplace

Plan Collections

Lake House Plans

Premium Collection

Square Footage Breakdown

Total Heated Area

3,041 sq. ft.

Lower Level

1,322 sq. ft.

1st Floor

1,719 sq. ft.

Basement Unfinished

397 sq. ft.

Porch, Front

146 sq. ft.

Screened Porch

420 sq. ft.

Deck

66 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

78' 7"

Depth

82' 7"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

731 sq. ft.

Count

3 Cars

Entry Location

Front, Courtyard

Ceiling Heights

Lower Level

9'

First Floor

10'

Room

Ceiling Type

Height

Great Room

Vaulted

0' 0''

Dining Room

Vaulted

0' 0''

Master Bedroom

Tray

0' 0''

Screened Porch

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Outdoor Fireplace

Plan Collections

Lake House Plans

Premium Collection
