Plan 69099AM
Craftsman Plan with Bright Natural Light
Heated S.F.
3,463
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 69099AM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 69099AM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Beautiful windows seize the eye on the exterior of this Arts and Crafts-inspired home plan. Banks of triple windows and a strip of stationary windows above the front porch gleam with a crisp welcome and offer hints to the light-filled interior. The front porch, anchored by flared pillars atop ledgestone pedestals offers a transitional respite. Beyond the front door, the dining room, great room, and kitchen draw you in to the open living areas. Light spills into the dining room from windows on two walls, dissolving any hint of stuffiness.

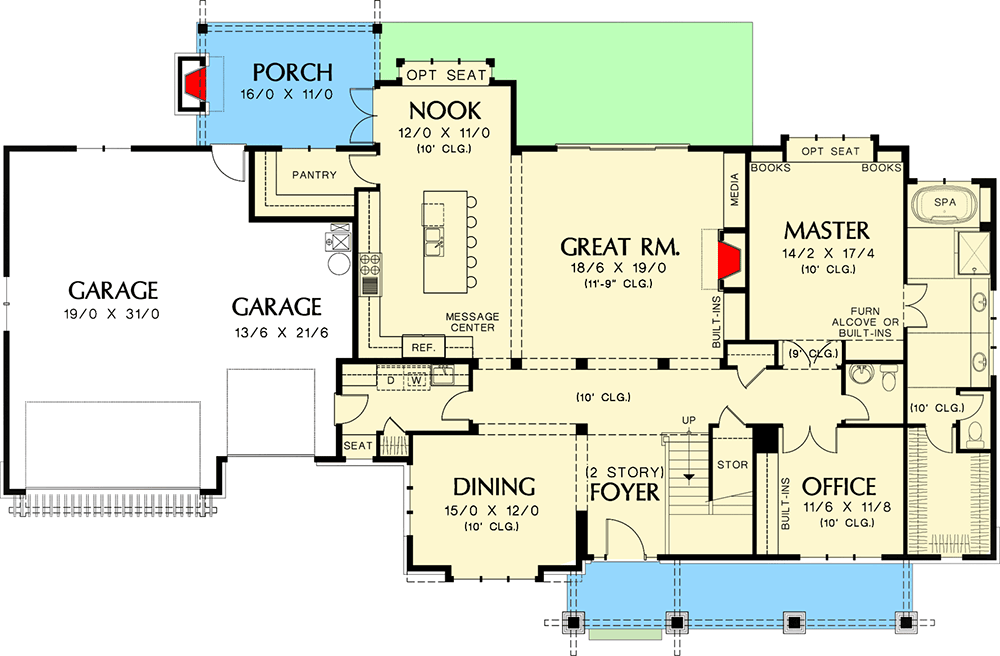

  • Casual Sunday brunches and elegant holiday parties are equally at home in the kitchen, where a long island delineates work and eating areas and a large pantry provides plenty of storage. A bump-out window in the breakfast nook can include a built-in seat or simply provide extra floor space. From the nook, a set of French doors opens to the back porch, which includes an outdoor fireplace.
  • The master suite wing joins the living areas on the main level. The bedroom and an office flank a private hallway. Built-ins - a desk in the office and bookshelves in the bedroom - supply focal points in each room.

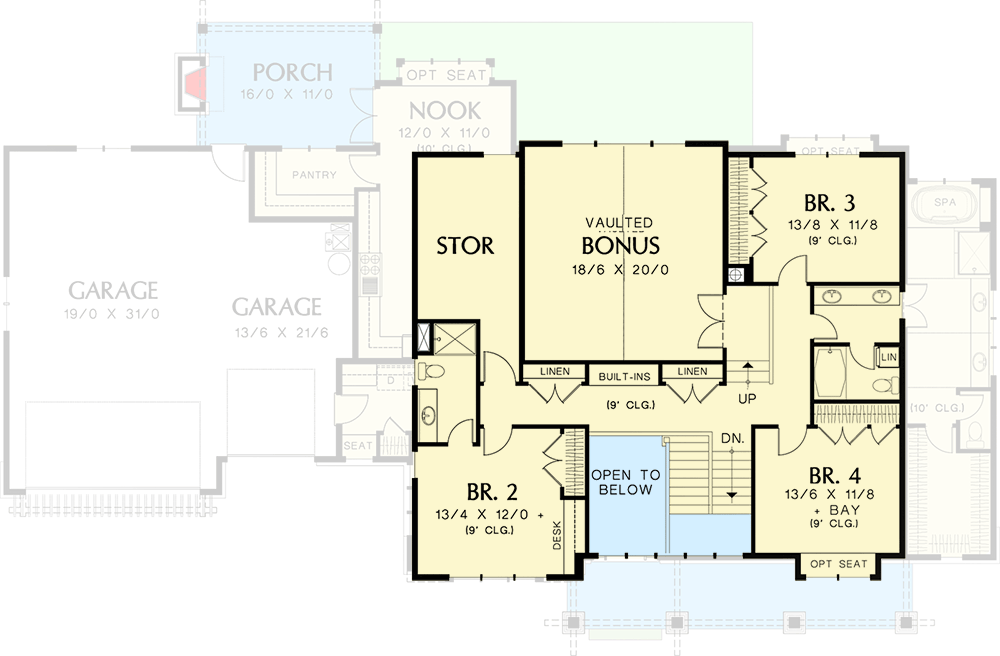

  • Three additional bedrooms, two baths, a storage area, and a bonus room are on the upper level. The bonus room has many options: it can become a hang-out space for the kids or an exercise room for the whole family.
What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,463 sq. ft.

1st Floor

2,384 sq. ft.

2nd Floor

1,079 sq. ft.

Bonus

390 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

91' 0"

Depth

55' 0"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

907 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Square Footage Breakdown

Total Heated Area

3,463 sq. ft.

1st Floor

2,384 sq. ft.

2nd Floor

1,079 sq. ft.

Bonus

390 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

91' 0"

Depth

55' 0"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

907 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace
