Plan 23375JD: Craftsman Rambler with 3 Beds and a 2-Car Front-Facing Garage

Plan 23375JD

Craftsman Rambler with 3 Beds and a 2-Car Front-Facing Garage

Heated S.F.

2,320

Beds

Baths

Stories

Cars

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

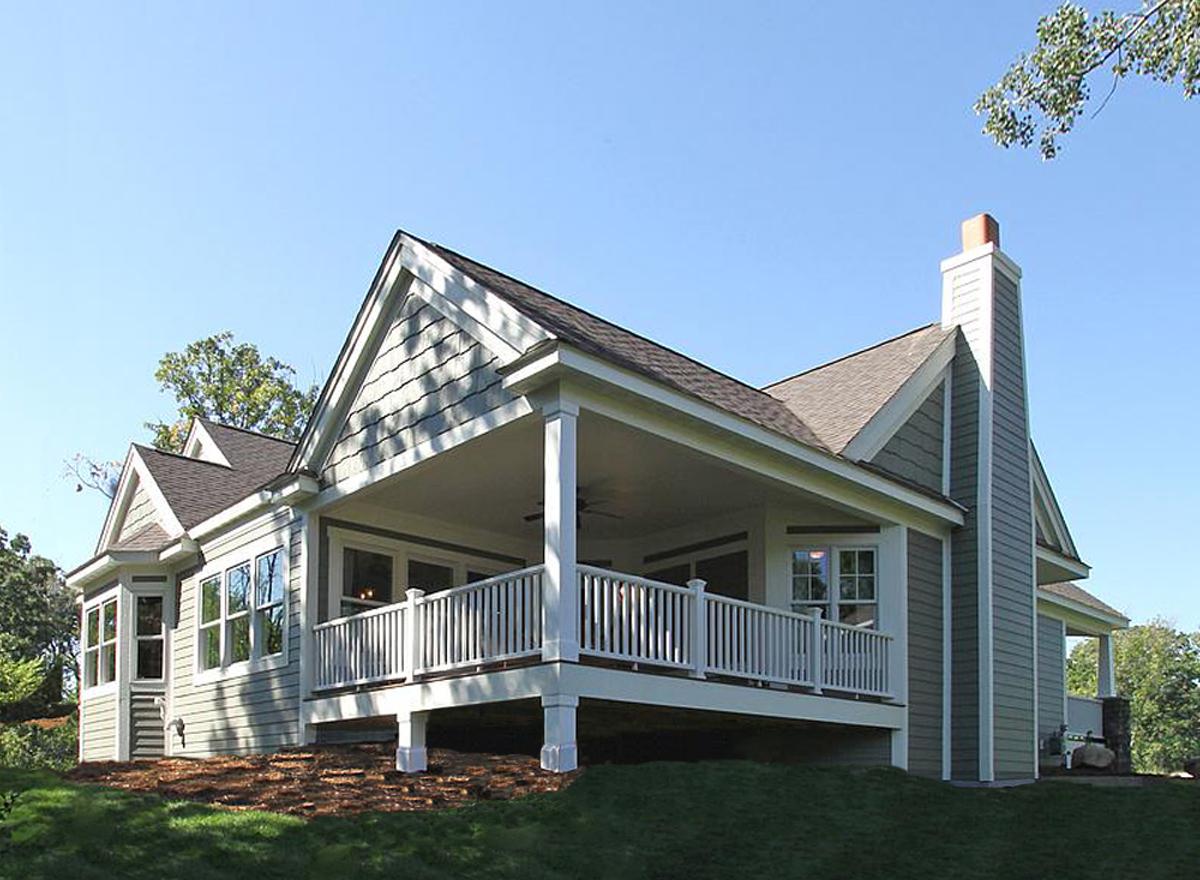

House Plan 23375JD comes to life in Michigan!

Photos

House Plan 23375JD comes to life in Kansas!

Photos

House Plan 23375JD comes to life in Ohio

Photos

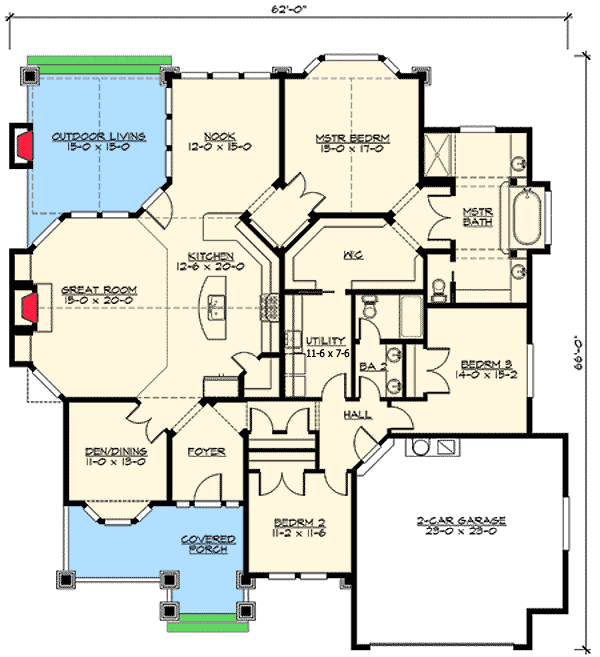

Floor Plan

Main Level

Plan Details

A unique exterior with multiple gables, covered entry and porch greet you to this unique Craftsman house plan.
The foyer has an angled entryway taking you into the spacious vaulted great room with fireplace and built-ins. It is open to the kitchen with its spacious island and walk-in pantry.
The nook is brightly lit with two walls of windows and a door leads you to your outdoor vaulted living room with fireplace and sturdy columns.
Turn the corner room into a formal dining room or private den behind its french doors.
The master suite is vaulted and a bumpout makes a cozy sitting area.
Two bedrooms share a hall bath.
The windows above the porch are decorative and open to attic space.
Related Plans: Get a 3-car garage with house plan 23522JD.
Get a side-entry garage with house plan 23256JD and 23497JD (with an unfinished basement).
Get more room with house plans 23381JD (2-car) and 23382JD (3-car), both 2,580 sq. ft and 23383JD (3,020 sq. ft.).
For a smaller version, see house plan 23267JD (1,880 sq. ft.).
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
