Plan 350036GH
Craftsman Ranch Plan with Split-bed Layout
Heated S.F.
2,334
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 350036GH

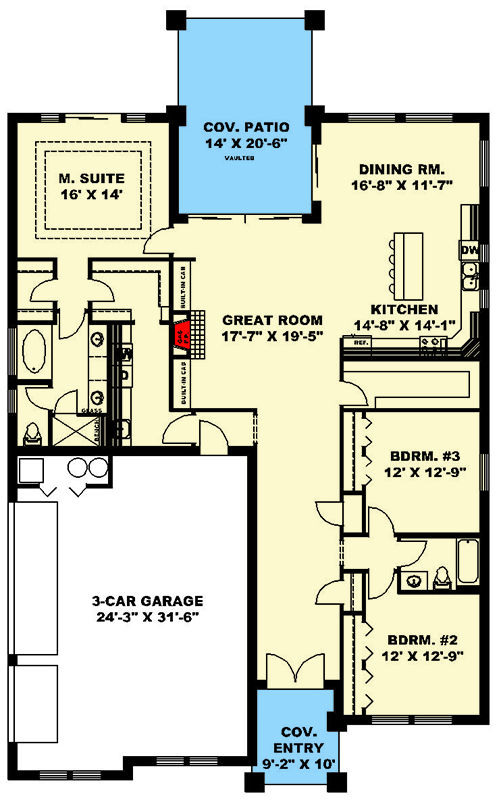

Main Level
slide image 0

Plan 350036GH

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • The split-bedroom layout provides a little extra privacy in this Craftsman Ranch home plan that totals 2,334 square feet of living space.
  • A fireplace anchors the left wall of the great room and glass sliders encourage you to spend time on the covered patio.
  • The heart of the home features a breakfast bar at the island, while the adjoining dining room sets the scene for family meals around the table.
  • Retreat to the master suite for peace and quiet and discover a tray ceiling, dual closets, and 5-fixture bathroom with access to the laundry room.
  • Identical bedrooms in the entry hall are separated by a full bath to round out the design.
What's Included

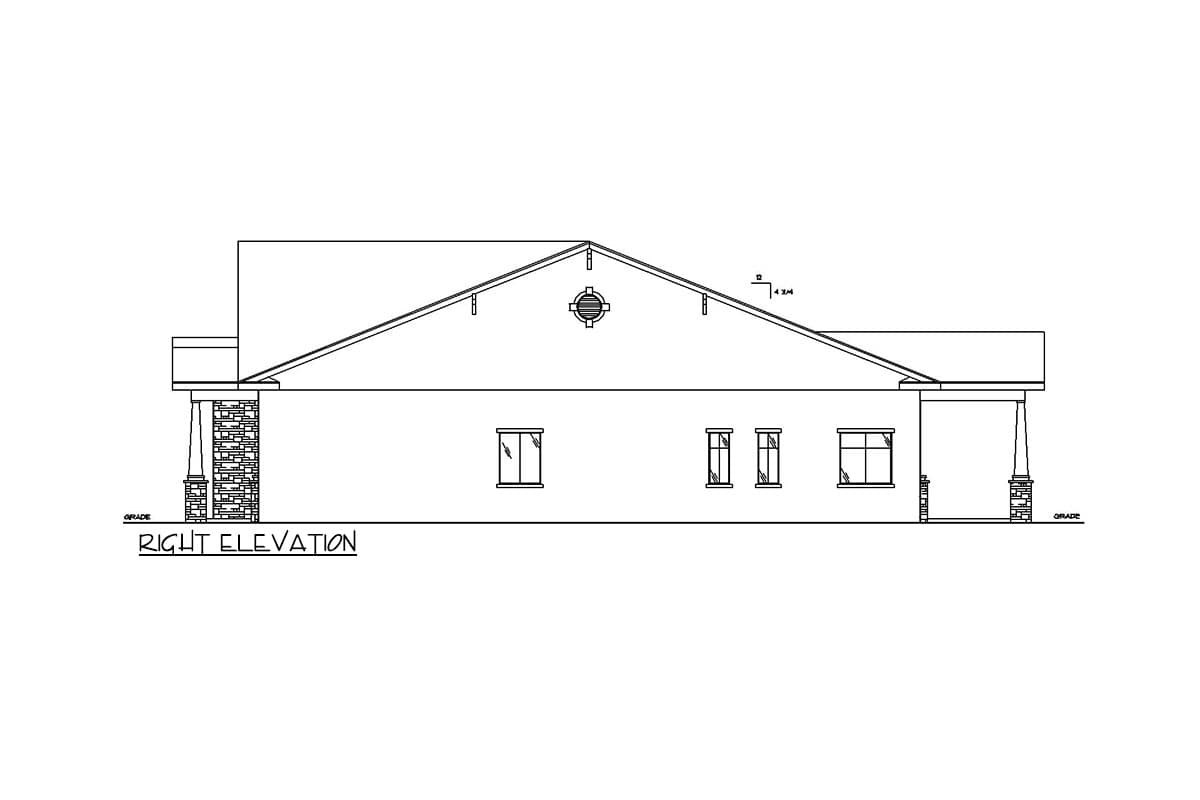

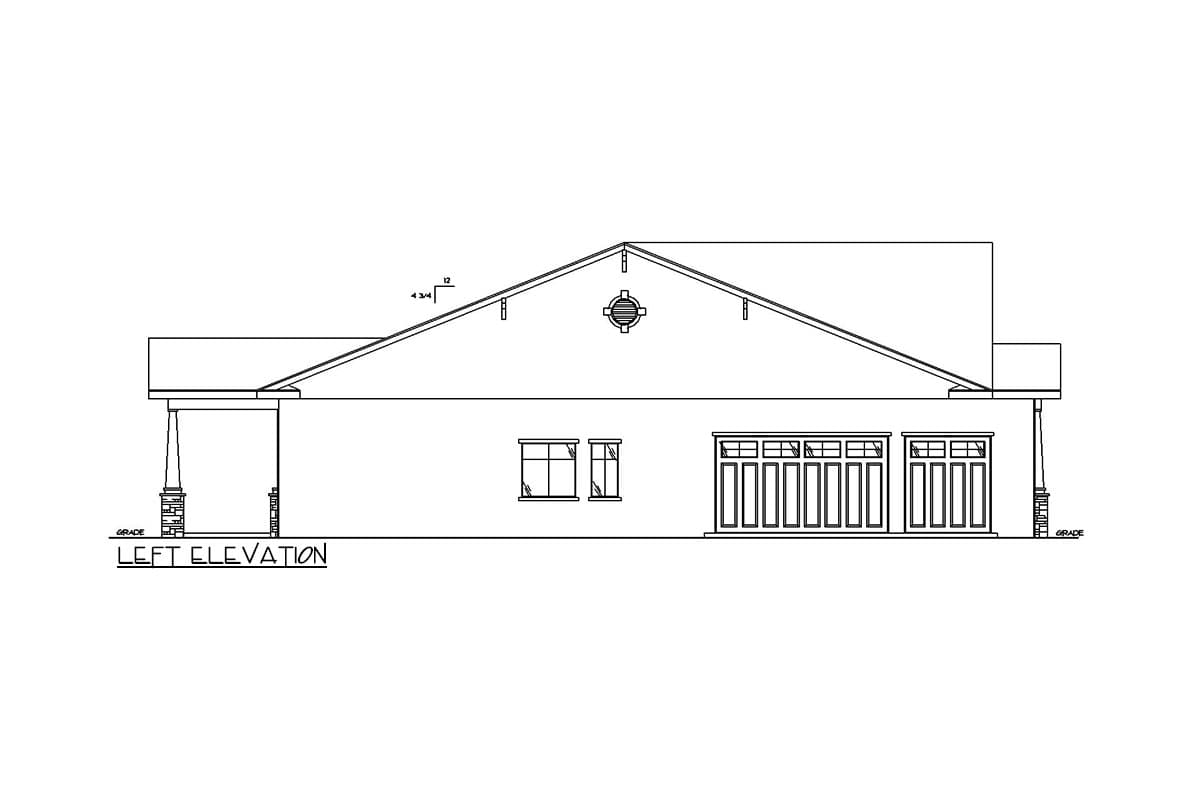

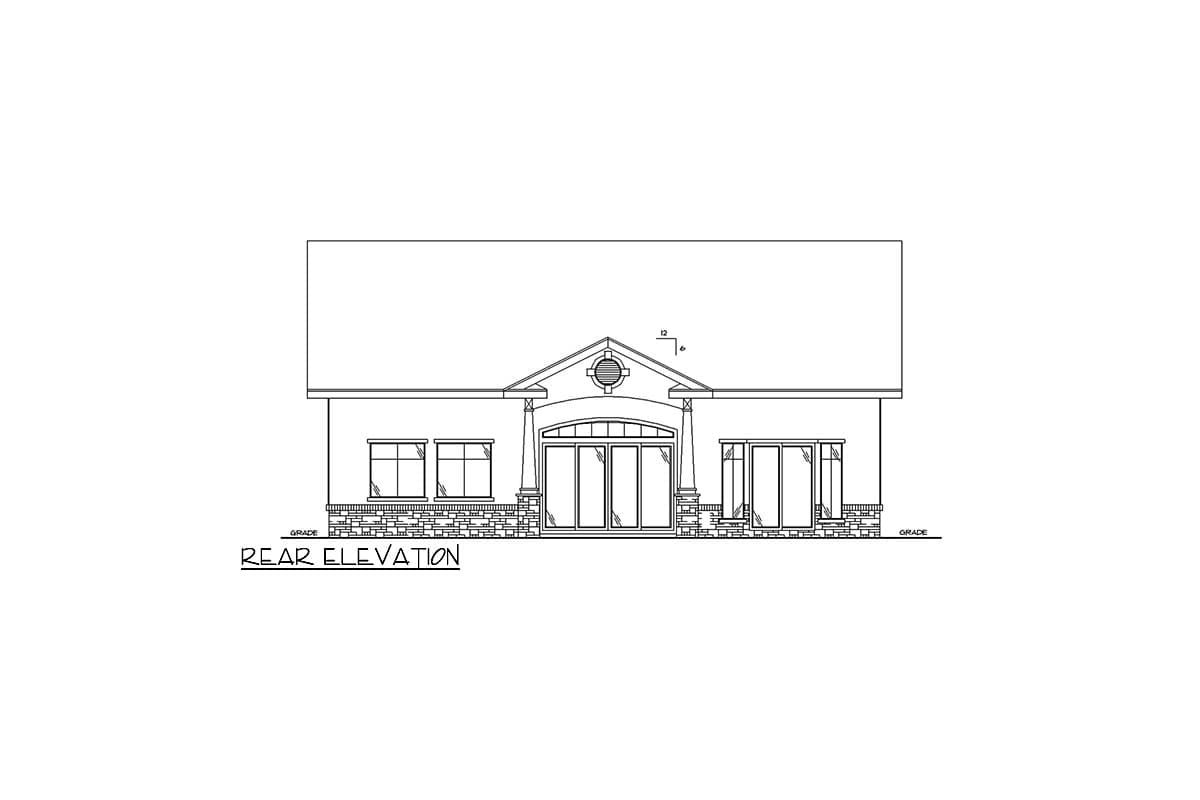

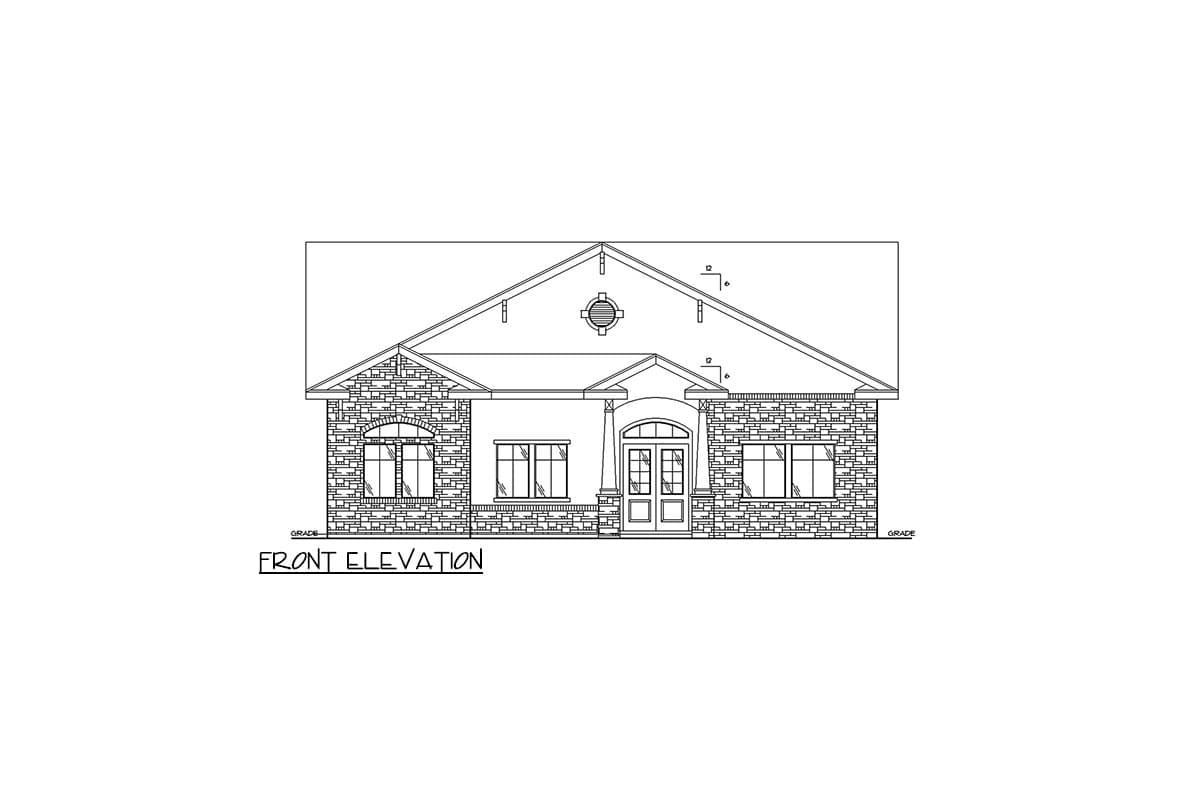

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,334 sq. ft.

1st Floor

2,334 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

ICF

Dimensions

Width

50' 5"

Depth

70' 3"

Max Ridge Height

27' 3"

Garage

Type

Attached

Area

843 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

12' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4.75 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

European

Transitional

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
