Plan 2892J

Craftsman Ranch with Vaulted Ceilings

Heated S.F.

1,825

Beds

3

Baths

2

Stories

1

Cars

2

Floor Plan

Main Level

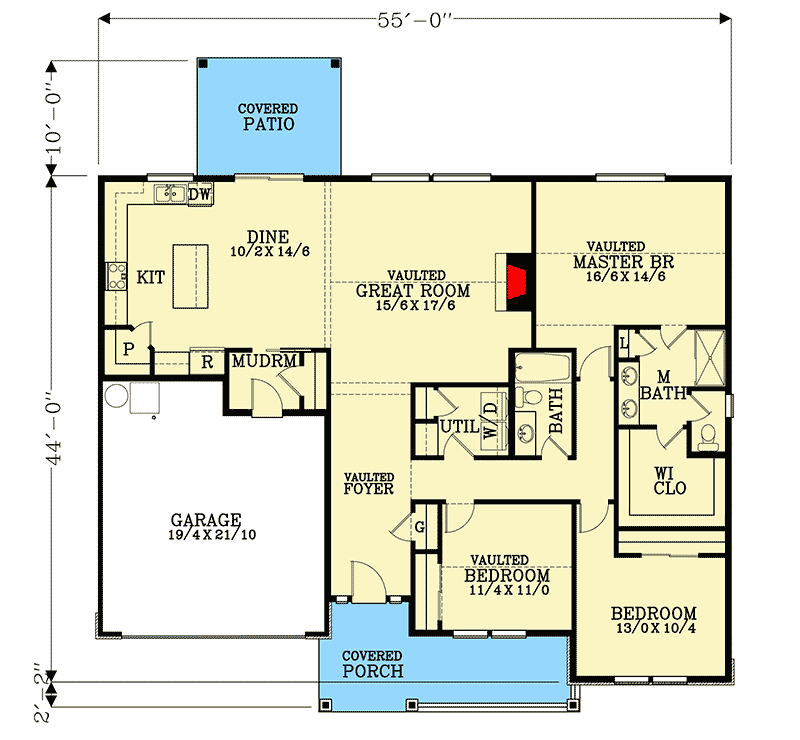

floor plan image Main Level

Plan Details

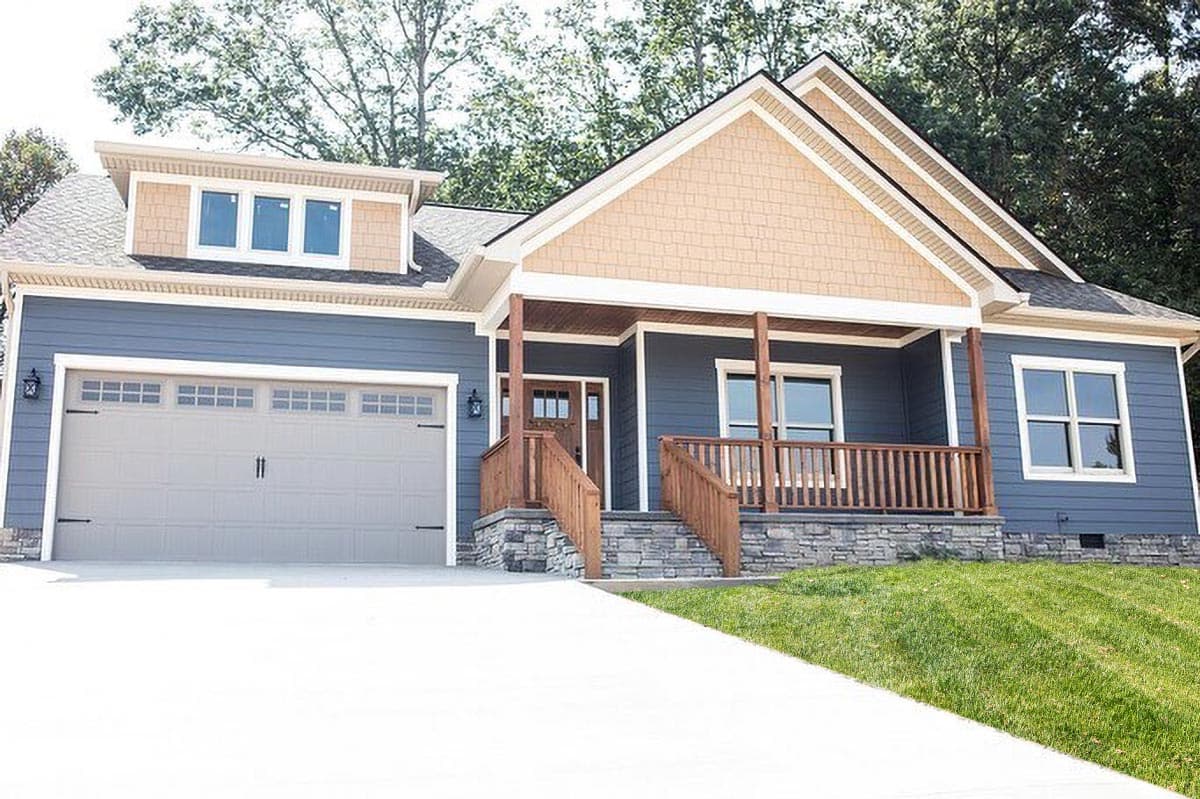

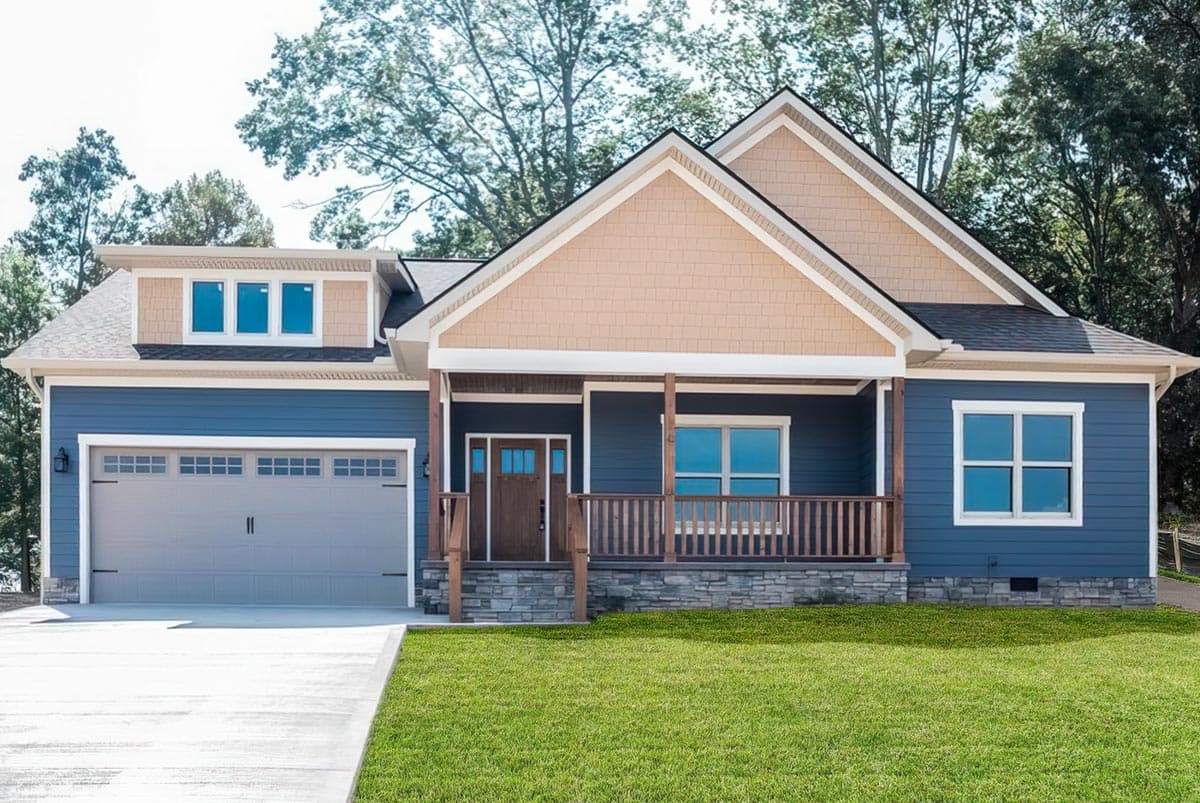

While the standard ceiling height of this lovely Craftsman house plan is 9', there are vaulted ceilings all throughout the home.
A long, wide foyer leads straight back to the open living area that gives you a clear line of sight from the kitchen to the vaulted great room fireplace.
In the kitchen, a walk-in pantry and big island add extra storage.
Two of the bedroom face front while the master suite is all by itself at the back of the house.
Related Plan: Get a smaller version with house plan 28119J (1,726 sq. ft.).

What's Included

Foundation plan with details
Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

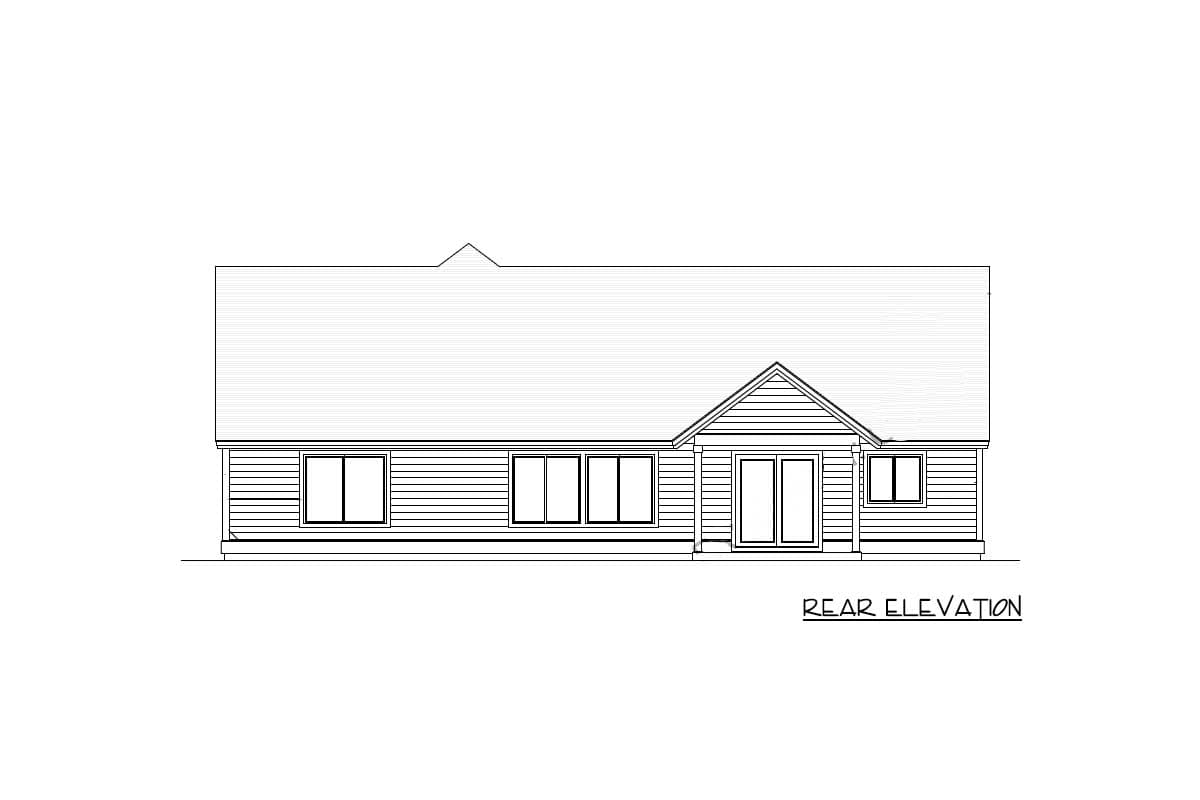

Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Wall section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,825 sq. ft.

1st Floor

1,825 sq. ft.

Porch, Front

132 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

44' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

423 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Square Footage Breakdown

Total Heated Area

1,825 sq. ft.

1st Floor

1,825 sq. ft.

Porch, Front

132 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

44' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

423 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections
