Plan 623370DJ
Craftsman-Style Cottage ADU with Open Concept Great Room
Heated S.F.
843
Beds
1
Baths
1
Stories
1
Tour
Floor Plan

Plan 623370DJ

Main Level
slide image 0

Plan 623370DJ

1-800-854-7852

1-262-521-4596

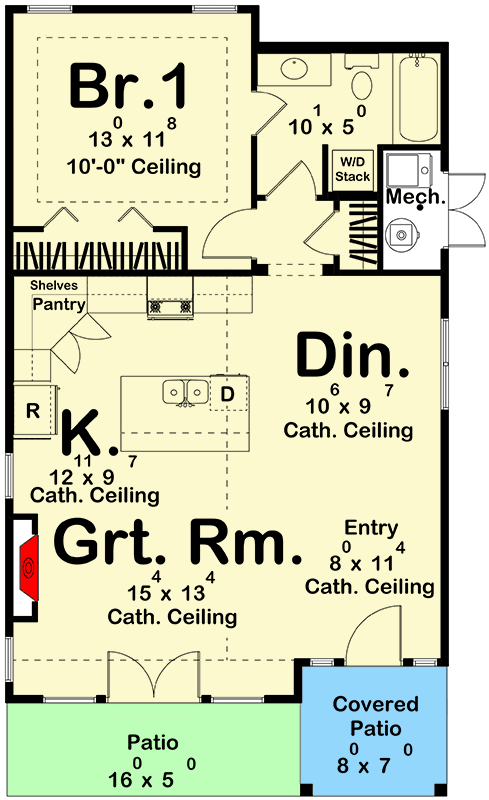

Main Level
floor plan image Main Level
Plan Details
  • This Craftsman-style ADU has one bedroom and one bath.
  • The cathedral ceiling enhances openness, while the fireplace in the great room adds warmth and charm.
  • Embrace comfort and style with this inviting retreat, ideal for guests or a peaceful secondary space in your backyard.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

843 sq. ft.

1st Floor

843 sq. ft.

Porch, Front

59 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

43' 0"

Max Ridge Height

19' 7"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Cottage

Country

Craftsman

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

843 sq. ft.

1st Floor

843 sq. ft.

Porch, Front

59 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

43' 0"

Max Ridge Height

19' 7"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Cottage

Country

Craftsman

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
