Plan 72820DA
Craftsman Style Garage with Bonus Room
Heated S.F.
0
Beds
0
Baths
0
Stories
1-2
Cars
2
Floor Plan

Plan 72820DA

Main Level
slide image 0
Bonus
slide image 1

Plan 72820DA

1-800-854-7852

1-262-521-4596

Main Level

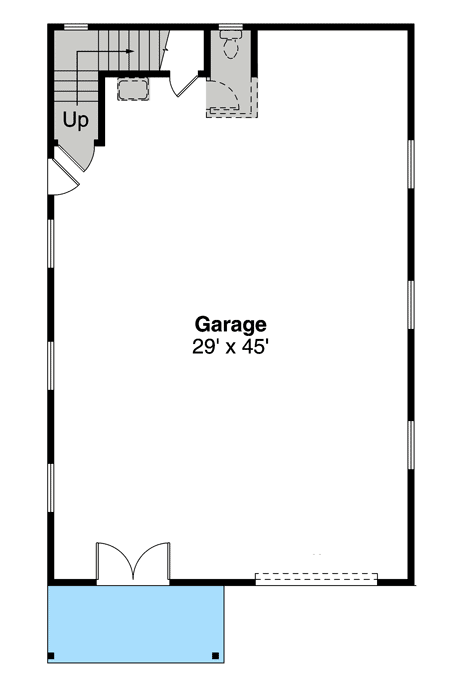

floor plan image Main Level
Bonus
floor plan image Bonus
Plan Details
  • This spacious Craftsman style garage can house up to two cars.
  • The single garage door is 10' wide and 9' tall but with 45' of interior depth you could park two cars stacked one behind the other.
  • Double doors on the front open to additional garage space that can be used as storage or a shop.
  • In the back of the garage is a set of stairs that lead up to a bonus room on the second floor.
  • The roof is a truss design with an 8:12 pitch.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

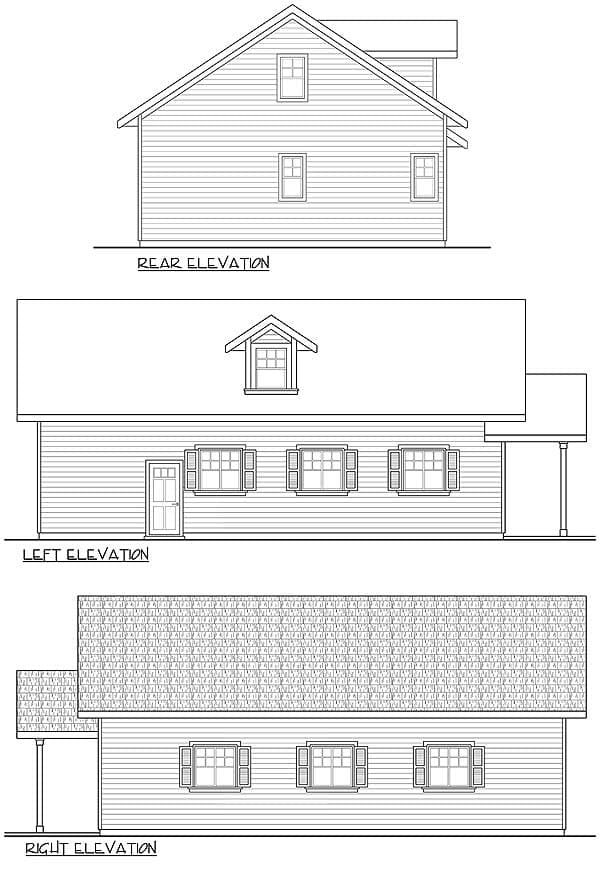

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

723 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

52' 0"

Max Ridge Height

23' 8"

Garage

Type

Detached

Area

1380 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Special Features

Bonus Room

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

723 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

52' 0"

Max Ridge Height

23' 8"

Garage

Type

Detached

Area

1380 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Special Features

Bonus Room
