Plan 69035AM
Craftsman With Two Story Great Room - 2262 Sq Ft
Heated S.F.
2,262
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 69035AM

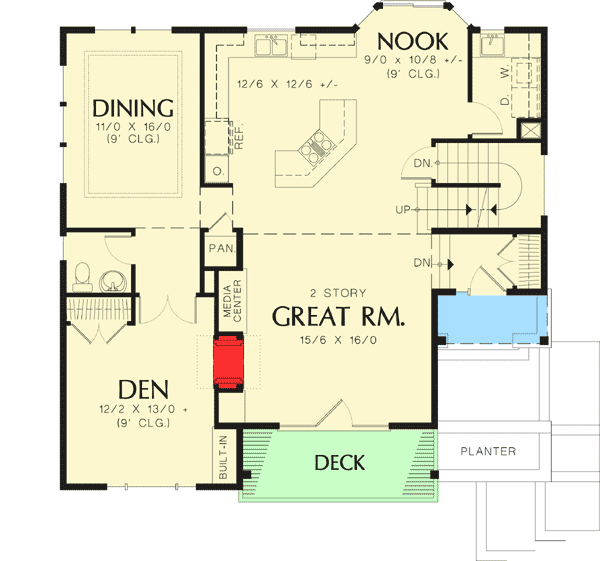

Main Level
slide image 0

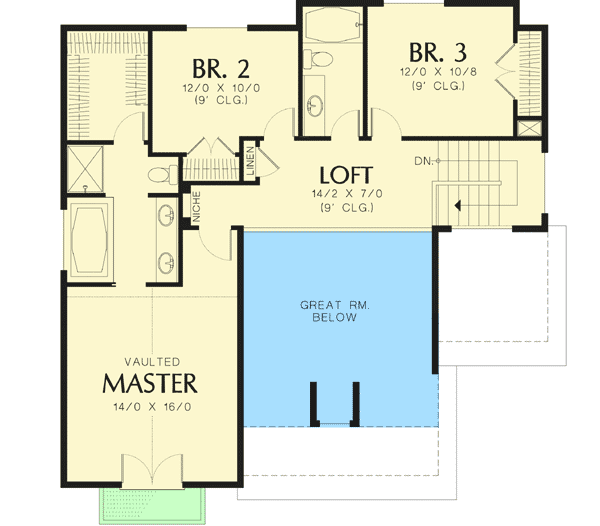

2nd Floor
slide image 1

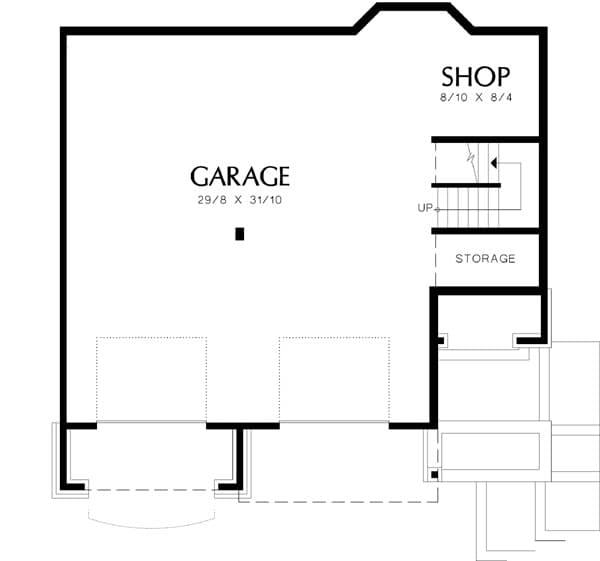

Lower Level
slide image 2

Plan 69035AM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Lower Level
floor plan image Lower Level
Plan Details
  • Balconies and windows adorn the facade of this dramatic view home. Designed for an up sloping lot, the garage is located underneath the main living space.
  • The two-story great room is located in the front of the home with a wall of windows to allow for a fantastic view. Lounge on the covered deck or in front of the see-through fireplace. A more secluded den shares the fireplace offering a cozy place to work or relax.
  • The spacious kitchen accommodates every occasion. A center cook top island is equipped with a breakfast bar for busy mornings, and a nook provides an informal place for the family to gather. For entertaining or more formal occasions, retreat to the dining room with a beautiful coffered ceiling.
  • A lavish master suite has double doors leading to the front balcony. Amenities abound with a spa tub and walk-in closet. A loft overlooks the great room opening the space on the second floor. Two additional bedrooms complete the home adding to its family friendly nature.
  • Related Plans: Get an alternate version with house plans 6924AM, 6884AM, 69713AM and 69722AM.
What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,262 sq. ft.

1st Floor

1,302 sq. ft.

2nd Floor

960 sq. ft.

Workshop

74 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1
