Plan 66069WE
Crown Jewel by the Sea
Heated S.F.
2,905
Beds
3
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 66069WE

Main Level
slide image 0
2nd Floor
slide image 1
Ground Level
slide image 2

Plan 66069WE

1-800-854-7852

1-262-521-4596

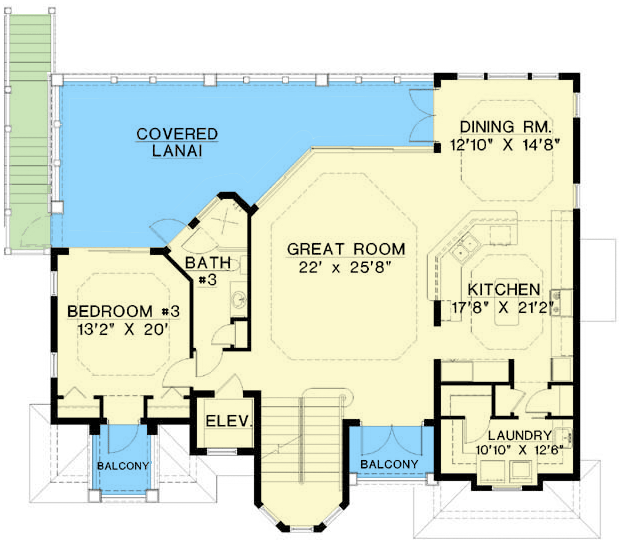

Main Level
floor plan image Main Level

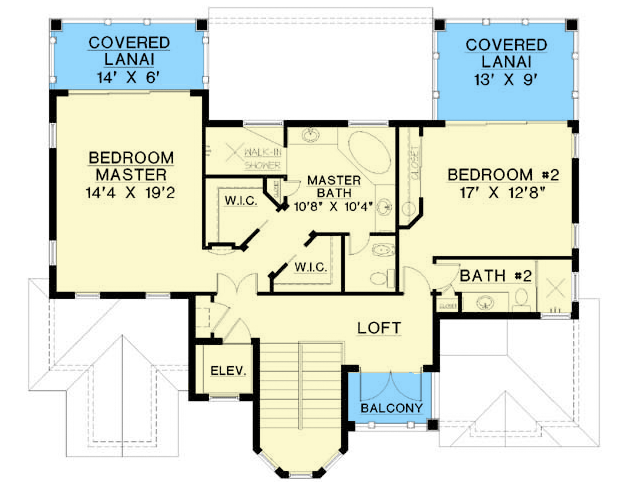

2nd Floor
floor plan image 2nd Floor

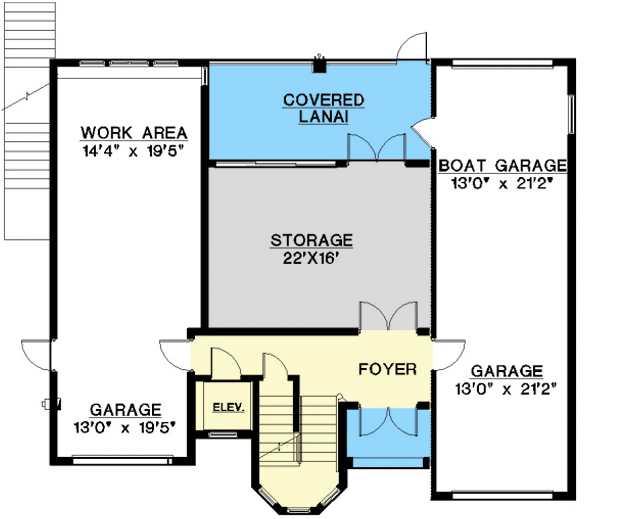

Ground Level
floor plan image Ground Level
Plan Details
  • This house plan is a crown jewel for living by the sea. Dual double length garages are deep enough to keep your boat hitched and ready for the water. Walls filled with glass soaring three stories high provide panoramic views.
  • The second floor is the main living area with all rooms capturing those million dollar bay views. The main living area consists of the great room, dining room, and kitchen, all open to one another and providing an open, casual atmosphere. The expansive kitchen, with its generous center island, is perfect for preparing those fresh caught seafood dinners.
  • Fortunate is the person that gets bedroom #2 with a private balcony off the front of the house as well as an entrance to the large covered lanai at the rear of the home. Great for quiet moments sipping coffee while enjoying the rising sun, or sharing a flawless sunset while enjoying a glass of wine with friends.
  • Much of the third floor is devoted to the tremendous master suite that has a private covered lanai, huge walk-in closets, and a soaking tub with a great view. Three bedrooms in all that are serviceable by an elevator to ease the day-to-day routines.
  • Building Restrictions: This house plan cannot be built in Key Largo or Islamorada, Florida. Contact us for details.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,905 sq. ft.

Lower Level

292 sq. ft.

1st Floor

1,502 sq. ft.

2nd Floor

1,111 sq. ft.

Entry

49 sq. ft.

Balcony / Veranda

157 sq. ft.

Lanai

930 sq. ft.

Storage

367 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

52' 0"

Depth

45' 0"

Max Ridge Height

35' 0"

Garage

Type

Drive Under

Area

1238 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

10'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Coastal

European

Florida

Mediterranean

Special Features

Butler Walk-in Pantry

Elevator

Laundry - Main Level

Loft

Master Suite - 2nd Floor
