Plan 69620AM
Decks and Drive Under House Plan
Heated S.F.
3,458
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 69620AM

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 69620AM

1-800-854-7852

1-262-521-4596

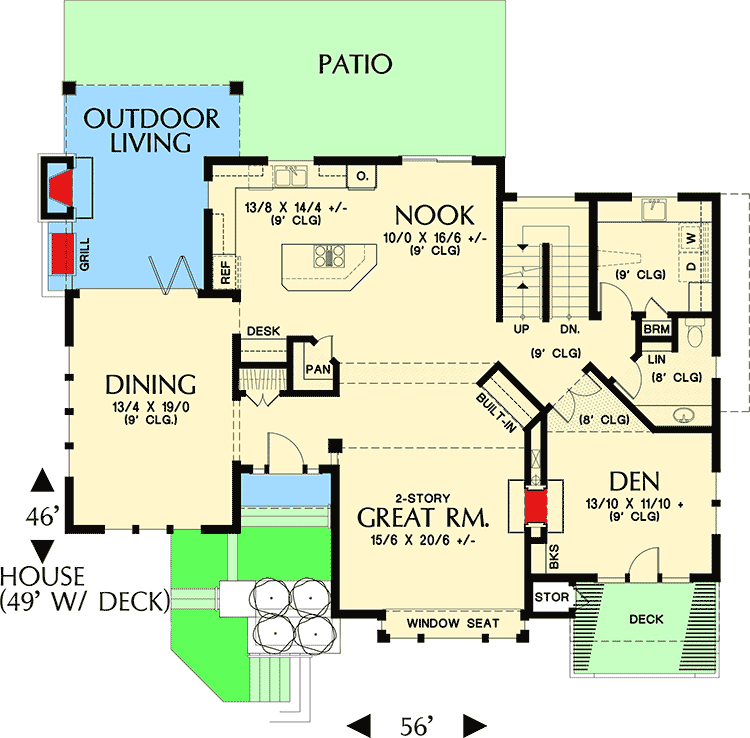

Main Level
floor plan image Main Level

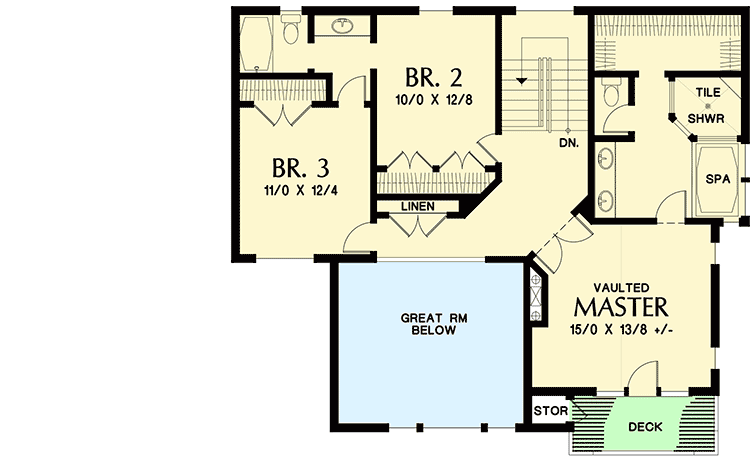

2nd Floor
floor plan image 2nd Floor

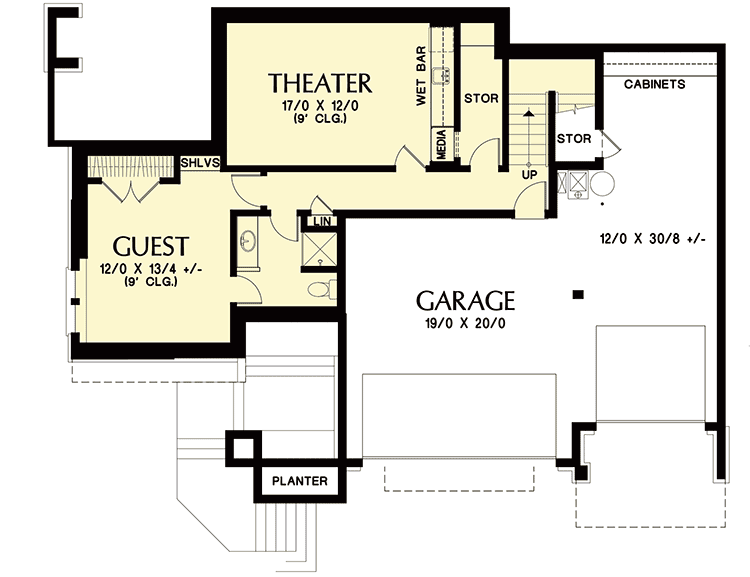

Lower Level
floor plan image Lower Level
Plan Details

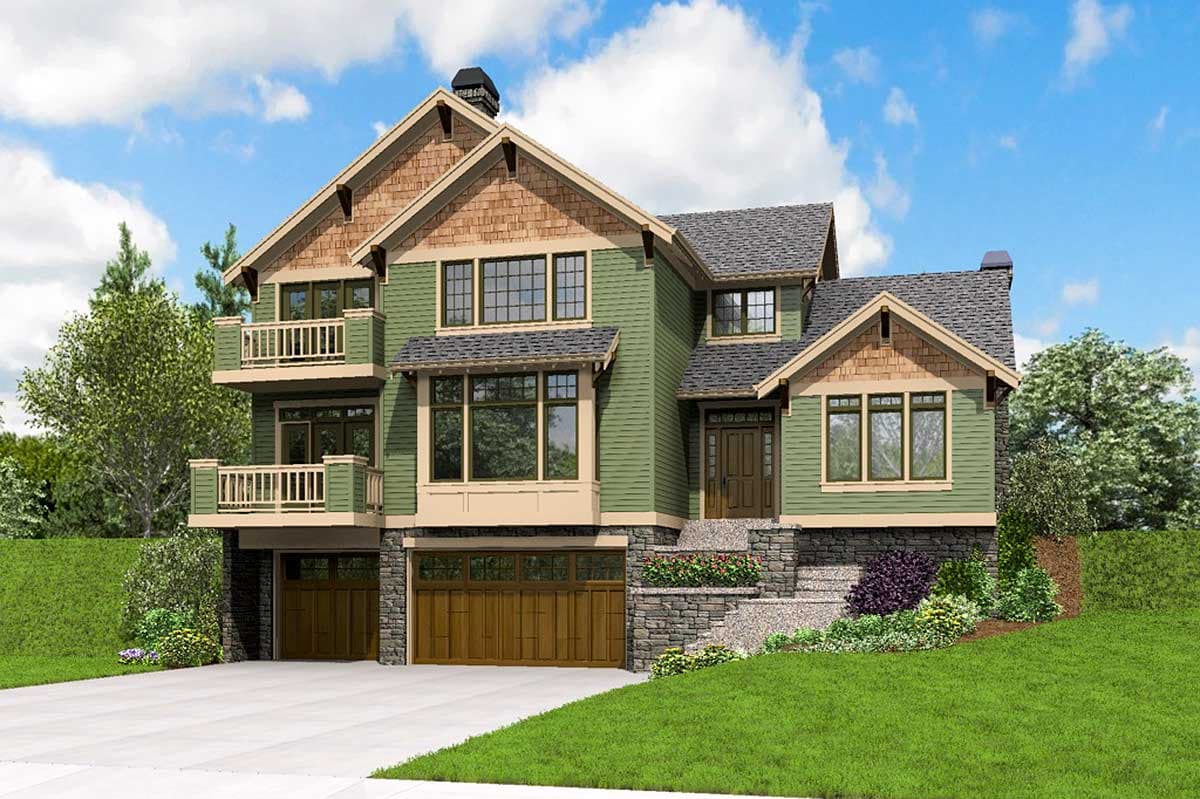

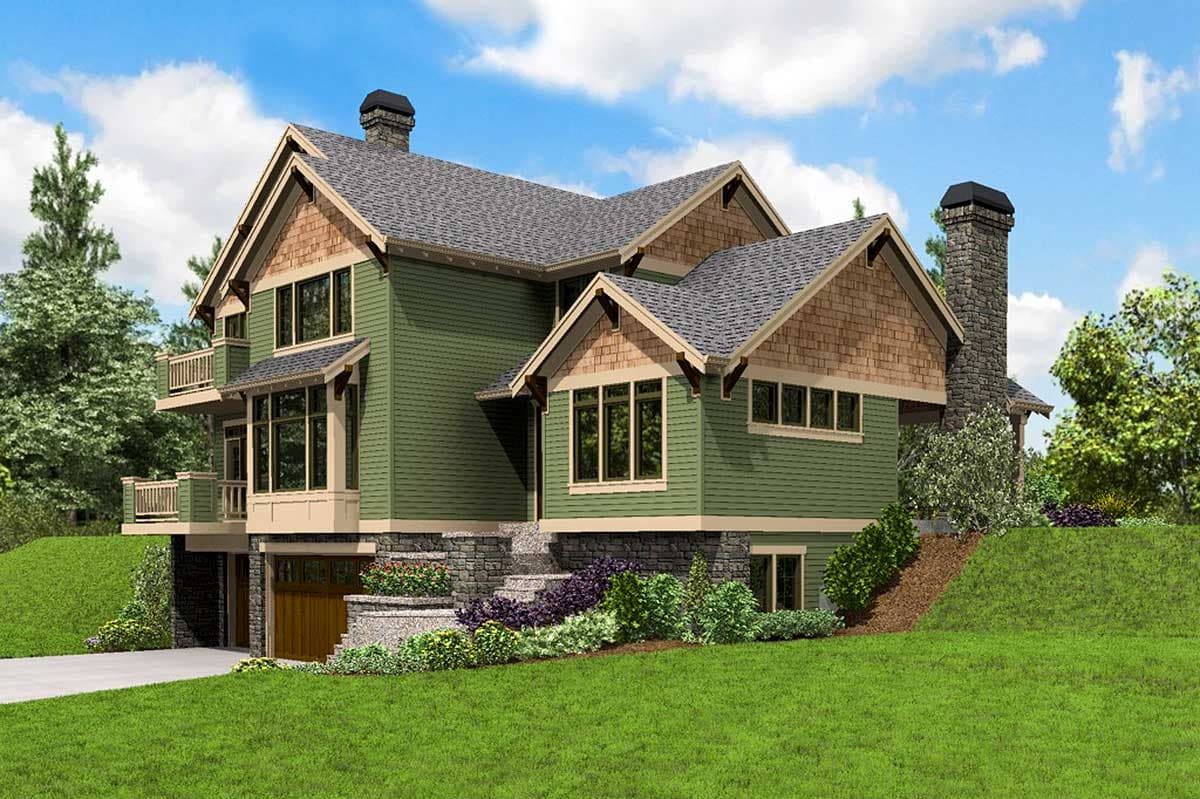

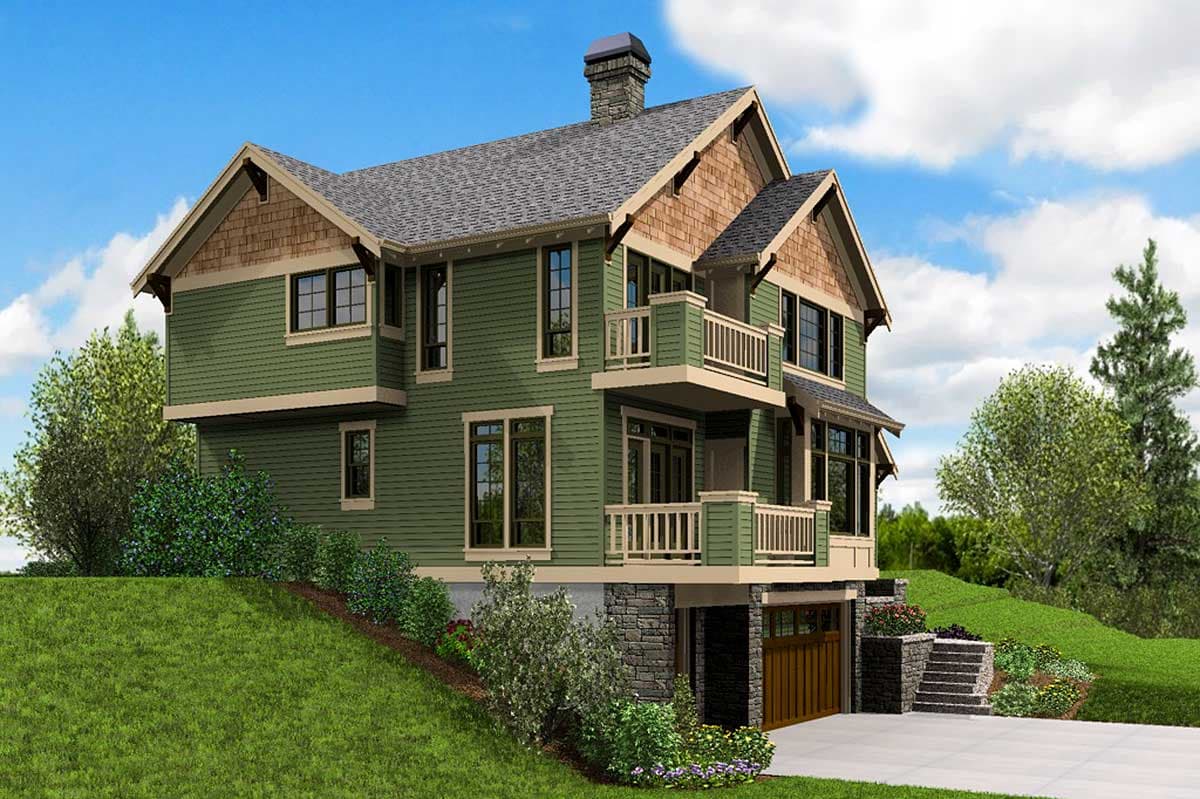

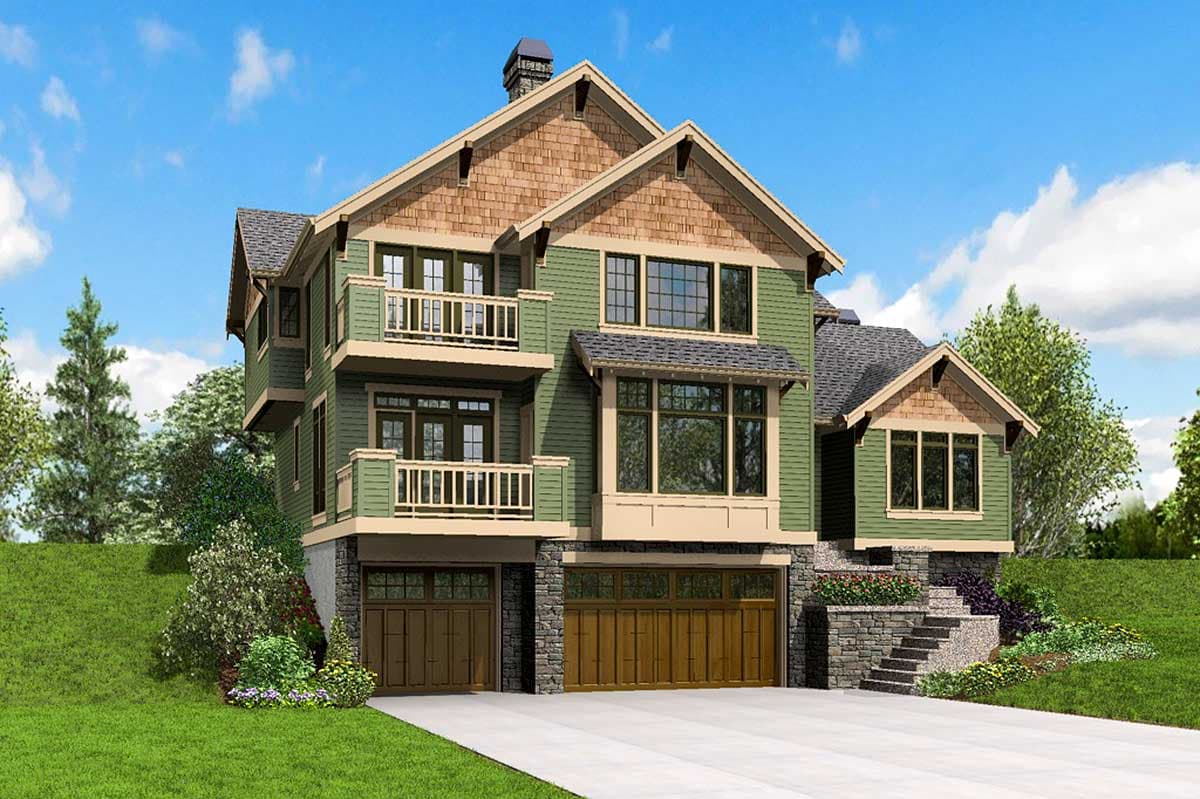

  • Designed for a lot that slopes to the front, this exciting Craftsman house plan has finished living space on three levels.
  • Enter from the garage and walk past the large home theater room with a wet bar or the guest bedroom with bath.
  • The main entrance is on the next level where all the living space is.
  • Features such as built-ins and a two-way fireplace plus folding doors in the huge dining room make this home an exciting place to live in.

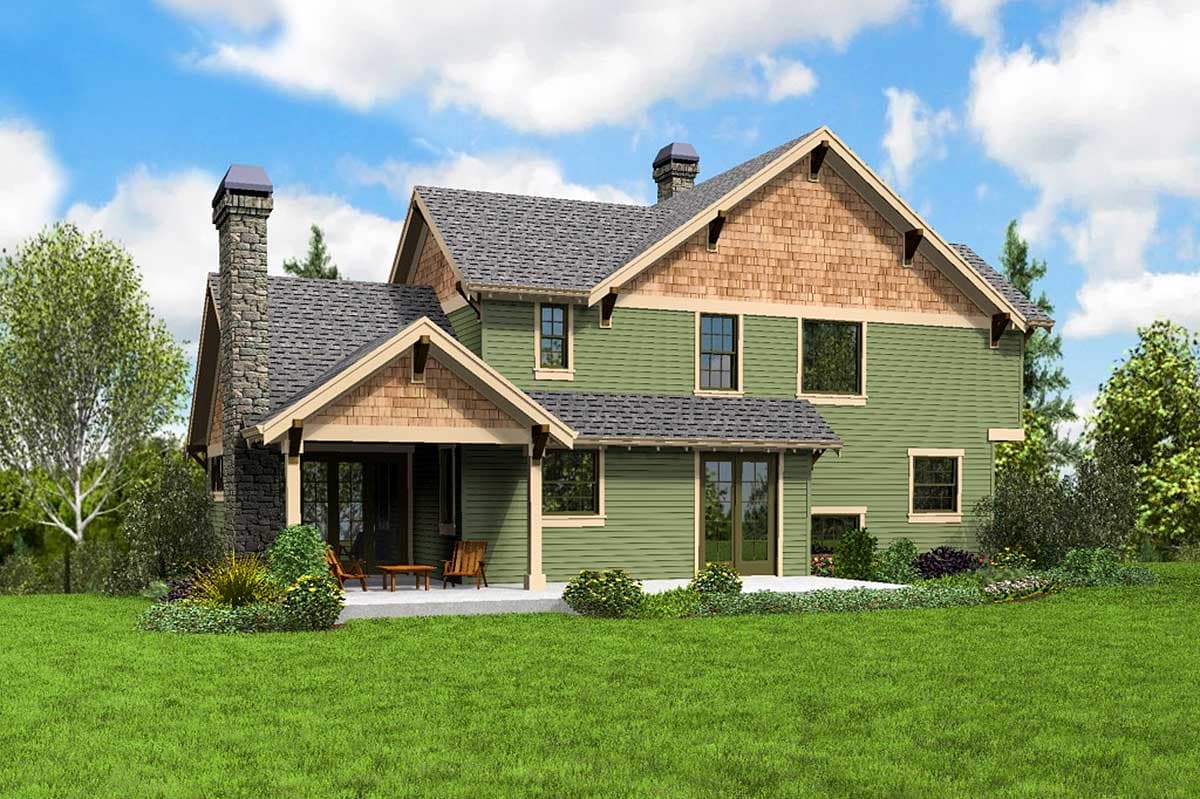

  • Get covered outdoor space plus an uncovered patio and a deck off the den.
  • Bring the outdoors in, with windows on three sides of the dining room.
  • On the top floor, the master suite gets its own private front-facing deck and a vaulted ceiling.
  • An open rail in the hallway lets you look down into the great room below.
What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,458 sq. ft.

Lower Level

787 sq. ft.

1st Floor

1,668 sq. ft.

2nd Floor

1,003 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 6"

Depth

46' 0"

Max Ridge Height

29' 2"

Garage

Type

Drive Under

Area

755 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Butler Walk-in Pantry

Den

Home Theater

In-Law Suite

Laundry - Main Level

Master Suite - 2nd Floor

Wet Bar

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,458 sq. ft.

Lower Level

787 sq. ft.

1st Floor

1,668 sq. ft.

2nd Floor

1,003 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 6"

Depth

46' 0"

Max Ridge Height

29' 2"

Garage

Type

Drive Under

Area

755 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Butler Walk-in Pantry

Den

Home Theater

In-Law Suite

Laundry - Main Level

Master Suite - 2nd Floor

Wet Bar

Plan Collections

Sloping Lot
