Plan 3936ST
Delightful Family Home
Heated S.F.
2,046
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 3936ST

Main Level
slide image 0
2nd Floor
slide image 1

Plan 3936ST

1-800-854-7852

1-262-521-4596

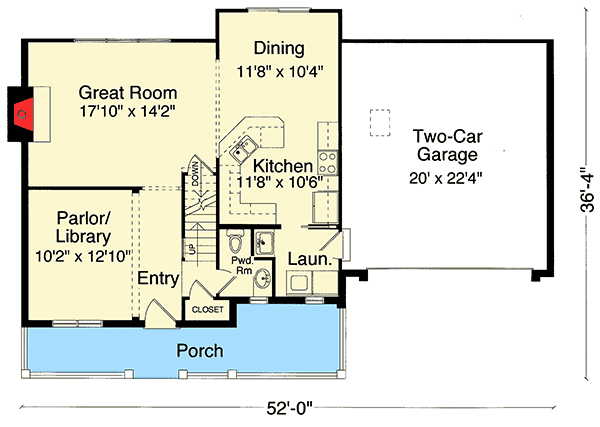

Main Level
floor plan image Main Level

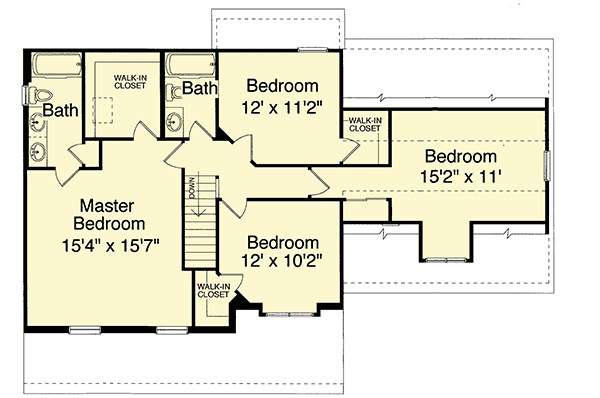

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A covered porch, parlor, large great room and family sized dining area combine to create a delightful home for family living.
  • An angled counter defines the kitchen and provides additional seating for the great room or dining area.
  • The master bedroom is located on the second floor and enjoys a large walk-in closet and private bath with double bowl vanity.
  • Three additional bedrooms offer an abundance of space and a full basement provides room for expansion.
What's Included
  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,046 sq. ft.

1st Floor

902 sq. ft.

2nd Floor

1,147 sq. ft.

Basement Unfinished

875 sq. ft.

Porch, Front

185 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

52' 0"

Depth

36' 4"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

454 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Special Features

Breakfast Nook

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

2,046 sq. ft.

1st Floor

902 sq. ft.

2nd Floor

1,147 sq. ft.

Basement Unfinished

875 sq. ft.

Porch, Front

185 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

52' 0"

Depth

36' 4"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

454 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Special Features

Breakfast Nook

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor
