Plan 82076KA
Designer Touches in Mediterranean House Plan
Heated S.F.
5,392
Beds
4
Baths
5
Stories
2
Cars
3
Floor Plan

Plan 82076KA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 82076KA

1-800-854-7852

1-262-521-4596

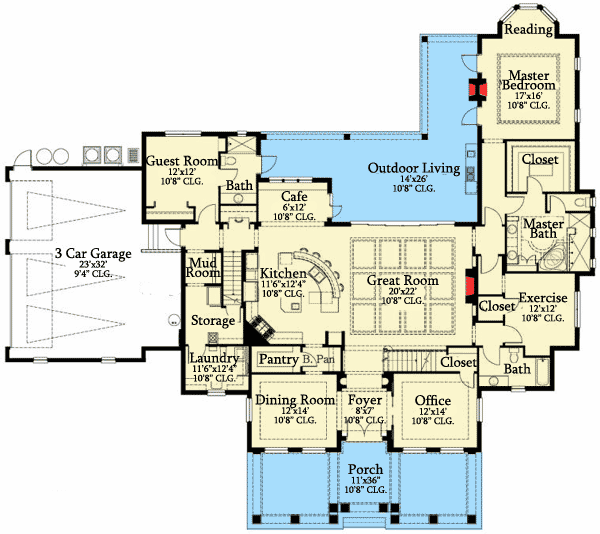

Main Level
floor plan image Main Level

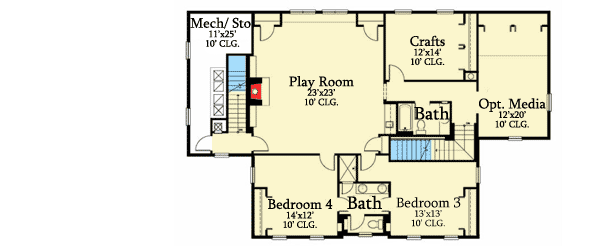

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Luxuries abound in this thoughtfully planned Mediterranean house that truly has the "Wow" factor.
  • Built-in display niches line the hall of the foyer, ready for your collectibles.
  • The stunning great room is enormous with a gorgeous coffered ceiling that can be seen from the kitchen and the cafe.
  • A curved island in the upscale kitchen has seating for five.
  • A superb master suite occupies the right wing of the home and boasts a tray ceiling, romantic fireplace and bayed reading area.
  • Two sets of doors open to the covered outdoor living area that has a fireplace as well.
  • The master bathroom is a dream with its tray ceiling, giant closet with an island for extra storage and a nearby exercise room that could also serve as a nursery.
  • On the second floor, a giant playroom keeps the kids toys away from the main floor rooms and a crafts room gets light from two windows.
  • There's even an optional media room for family movie night.
What's Included
  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,392 sq. ft.

1st Floor

3,506 sq. ft.

2nd Floor

1,886 sq. ft.

Porch, Front

544 sq. ft.

Porch, Rear

665 sq. ft.

Storage

196 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

102' 4"

Depth

90' 2"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

956 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10' 8"

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Multiple Stairs

Playroom

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

5,392 sq. ft.

1st Floor

3,506 sq. ft.

2nd Floor

1,886 sq. ft.

Porch, Front

544 sq. ft.

Porch, Rear

665 sq. ft.

Storage

196 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

102' 4"

Depth

90' 2"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

956 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10' 8"

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Multiple Stairs

Playroom

Plan Collections

Luxury
