Plan 51845HZ
Detached 1046 Sq Ft Garage with Dedicated Ground-Level Storage Plus 512 Sq Ft Bonus Above
Heated S.F.
512
Beds
0
Baths
1
Stories
2
Cars
2- 3
Floor Plan

Plan 51845HZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 51845HZ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Board and batten siding blends with natural wood elements for the perfect and subtle, farmhouse exterior on this 1,046 square foot detached garage with flexible space above.

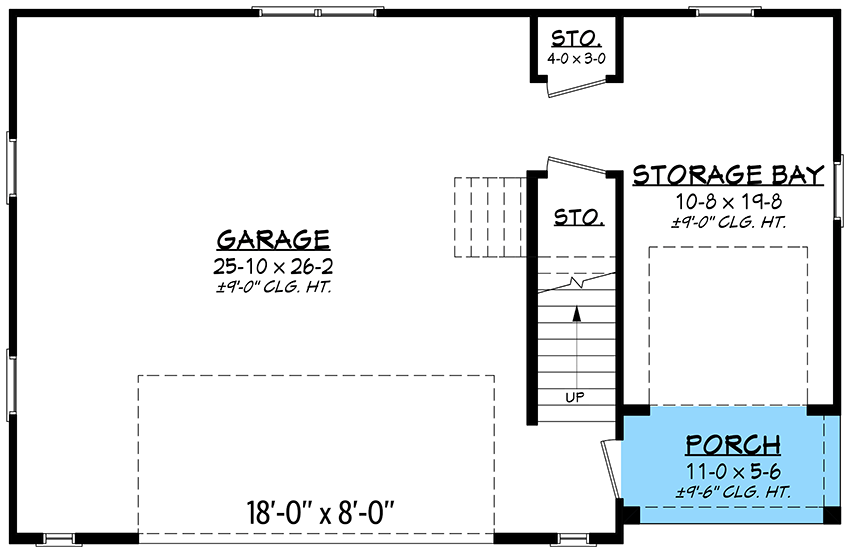

  • The stairwell separates the 2-car garage with an 18' by 8' overhead door on the left side of the main level from the dedicated storage bay on the right.

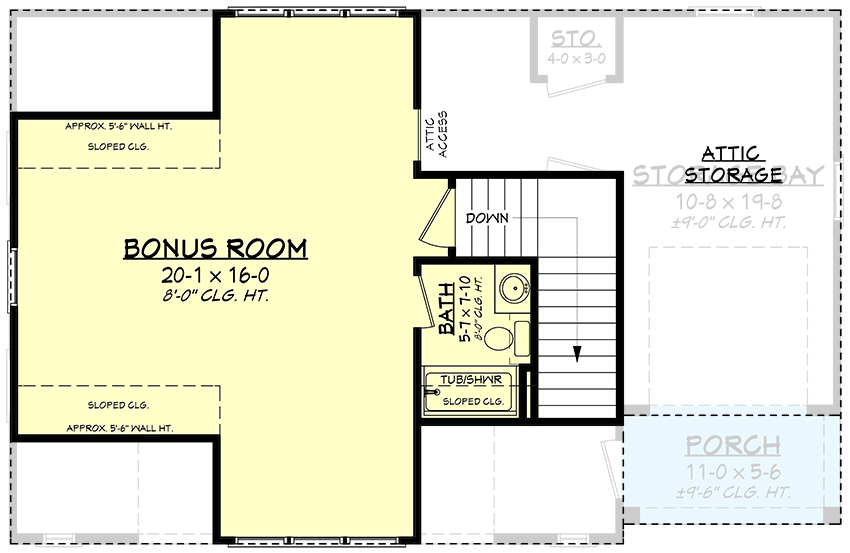

  • Upstairs, a sizable bonus room includes a full bath gives you a total of 512 square feet to play with.
What's Included
This house plan has 10 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation and roof plan
Page 3  Detailed first and second floor plans (includes window sizes, ceiling joist directions and plumbing fixture locations, etc.)

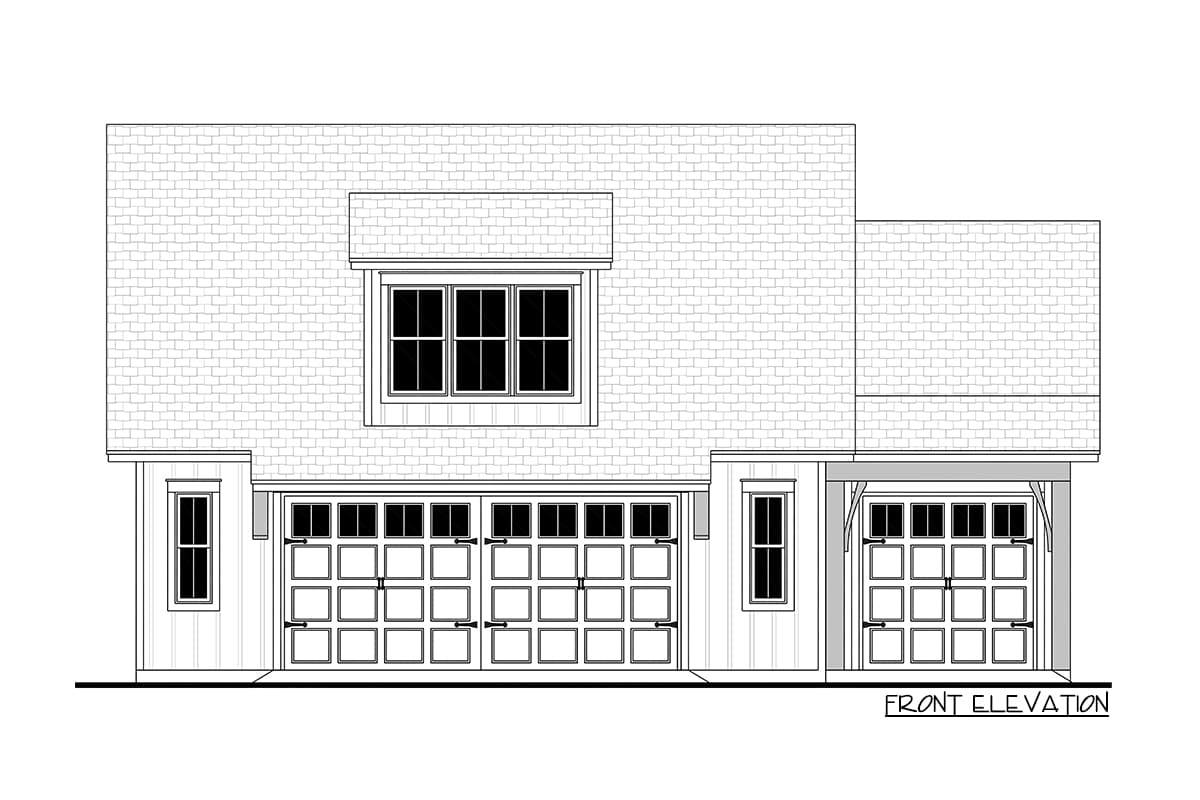

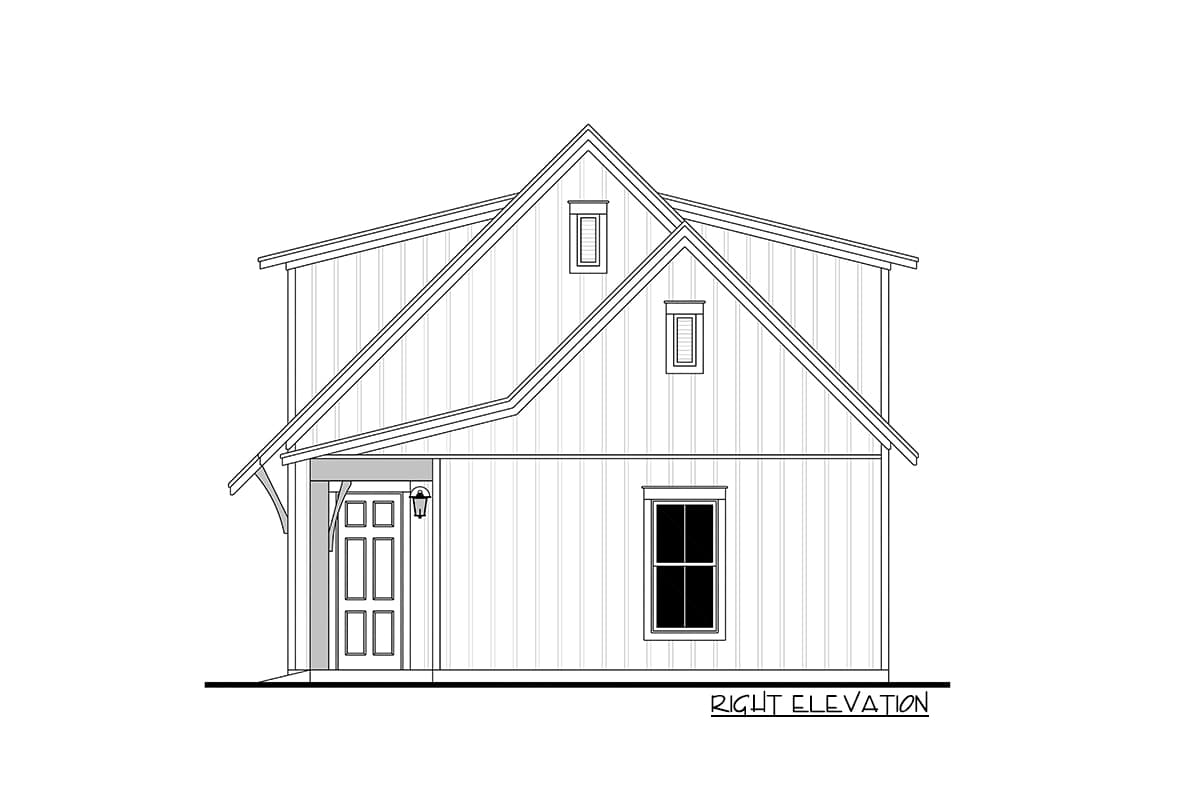

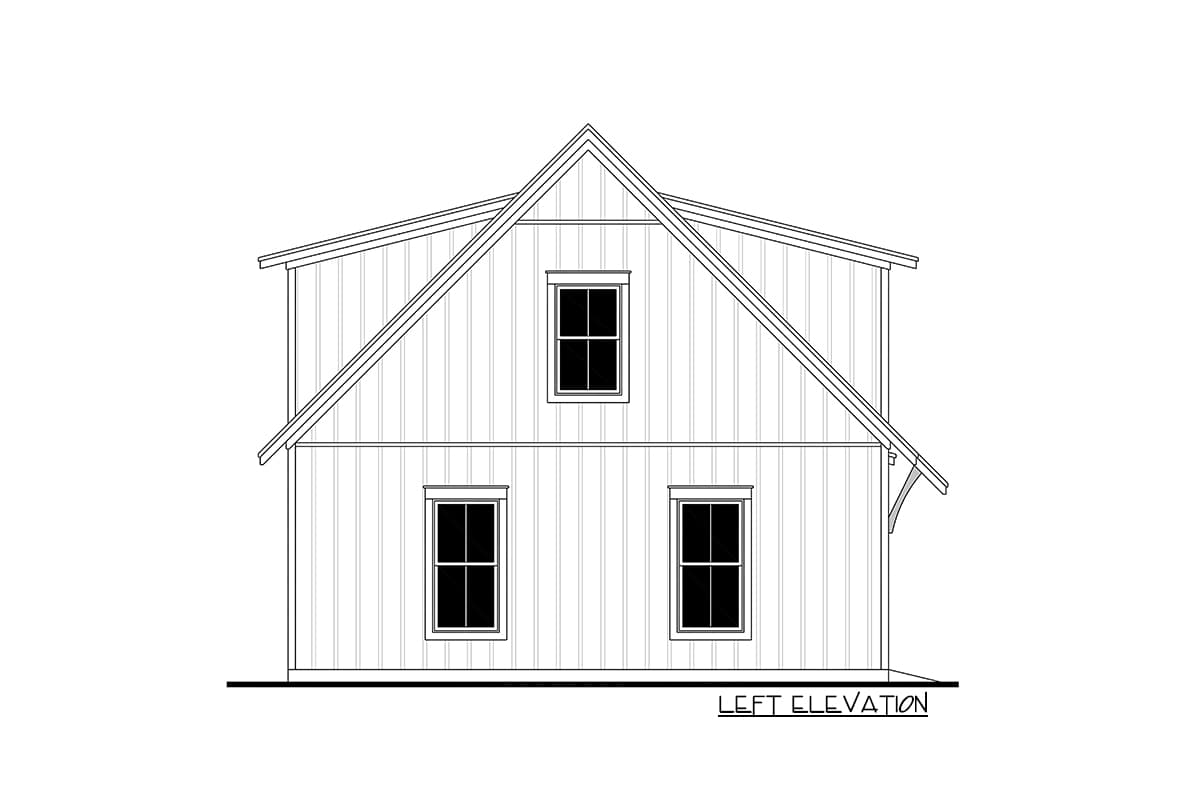

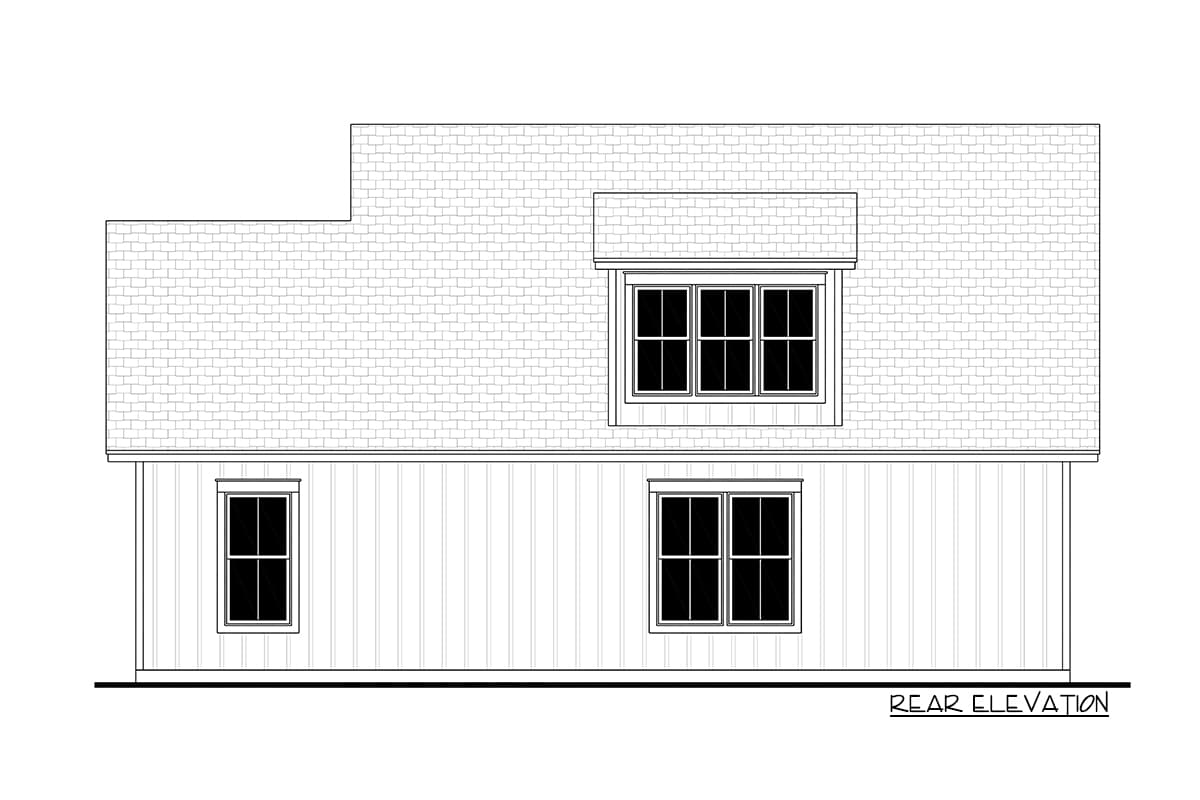

Page 4  Exterior views with additional details
Page 5  Cross sections
Page 6  Electrical plans
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
