Plan 81803AB
Detached 4-Car Garage with Half Bath
Heated S.F.
0
Beds
Baths
0.5
Stories
1
Cars
4
Floor Plan

Plan 81803AB

Main Level
slide image 0

Plan 81803AB

1-800-854-7852

1-262-521-4596

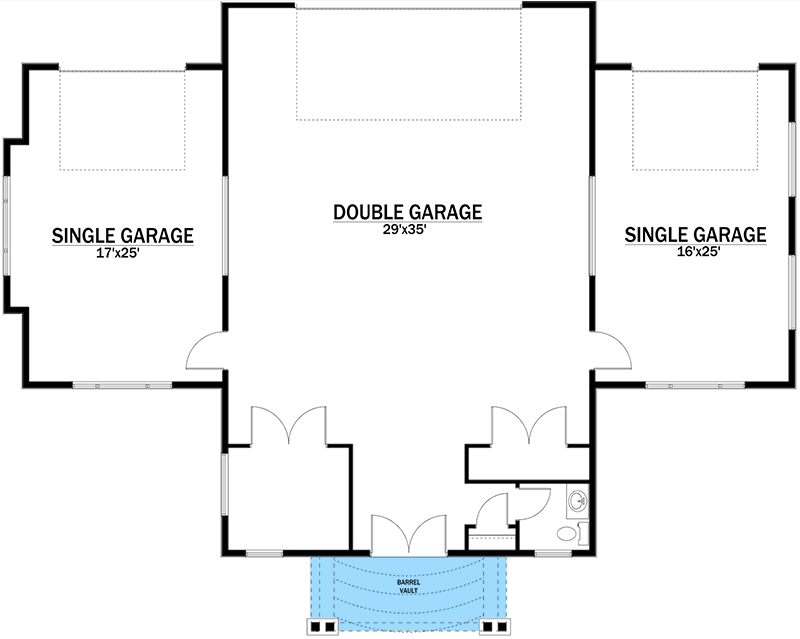

Main Level
floor plan image Main Level
Plan Details
  • Nested gables above a barrel-arched entry add to the curb appeal of this Detached 4-Car Garage, complete with a stone skirt.
  • A double garage is framed by two single bays with rear overhead doors.
  • The half bath is a nice addition and multiple closets allow you to organize your lawn supplies or tools.
  • Reach out to Architectural Designs to add a bedroom to this plan.
What's Included

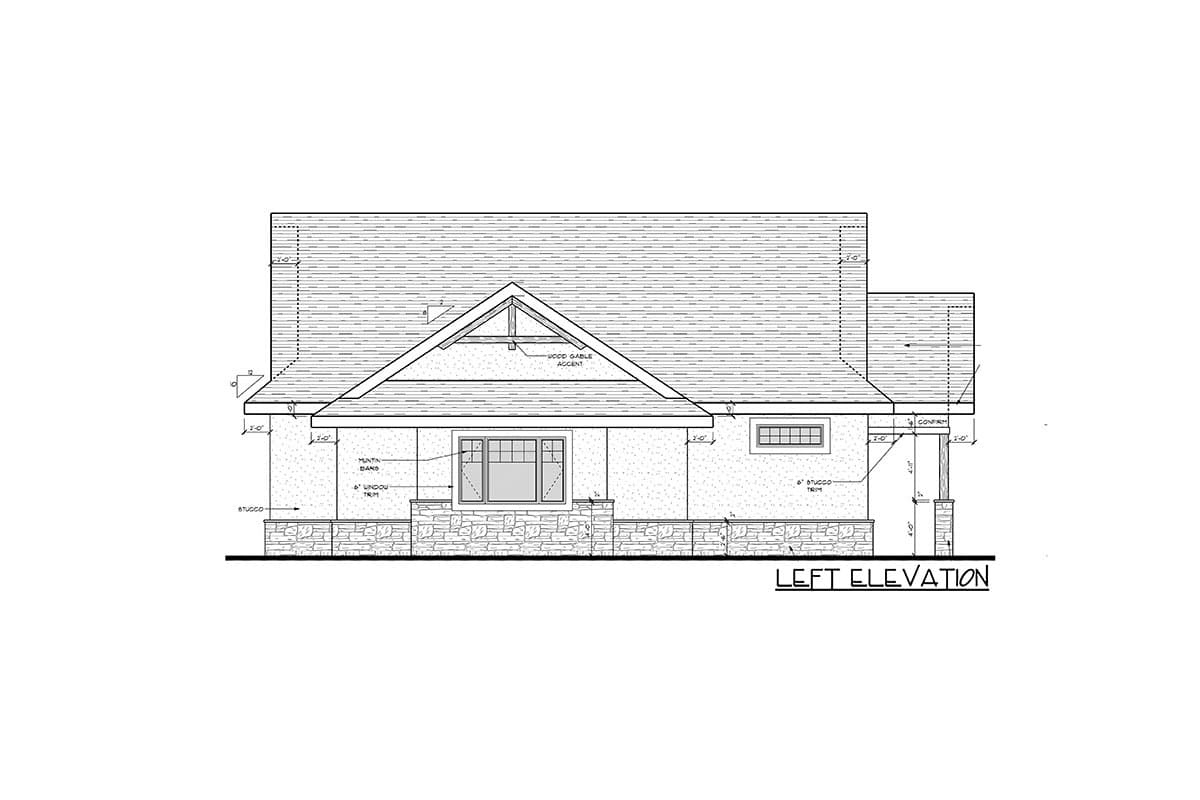

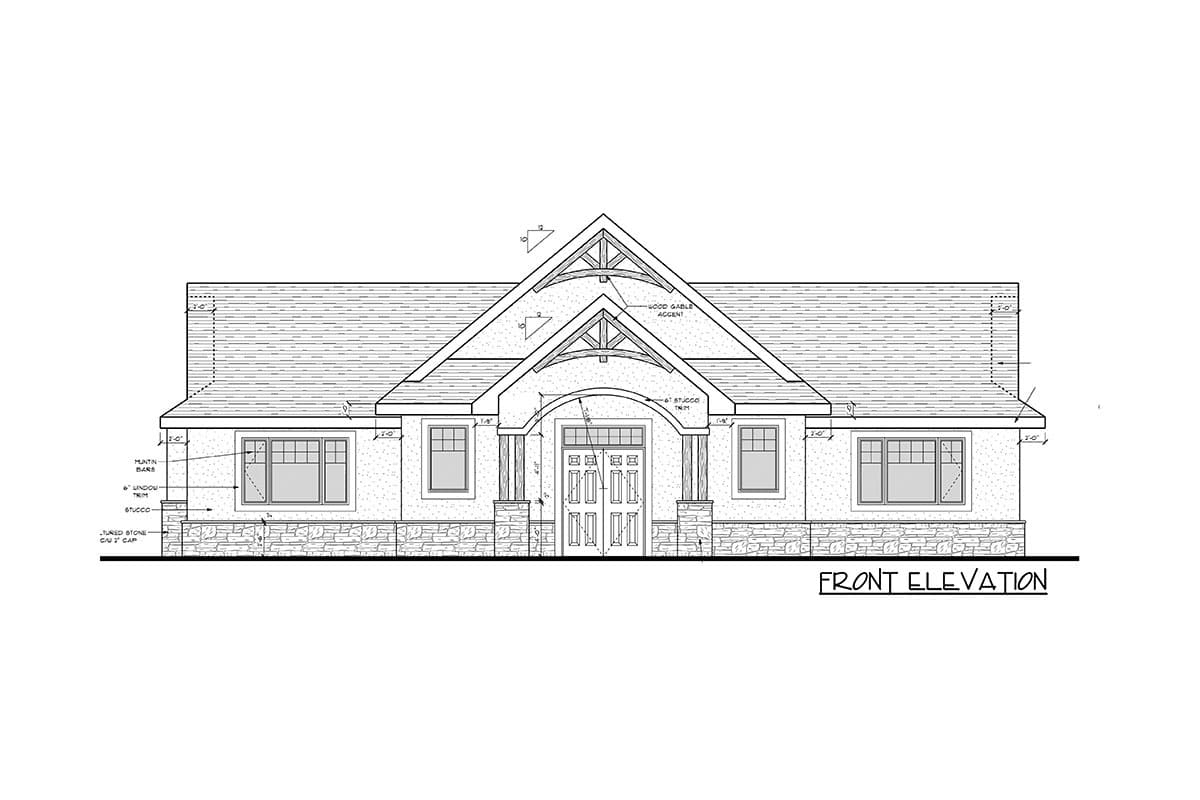

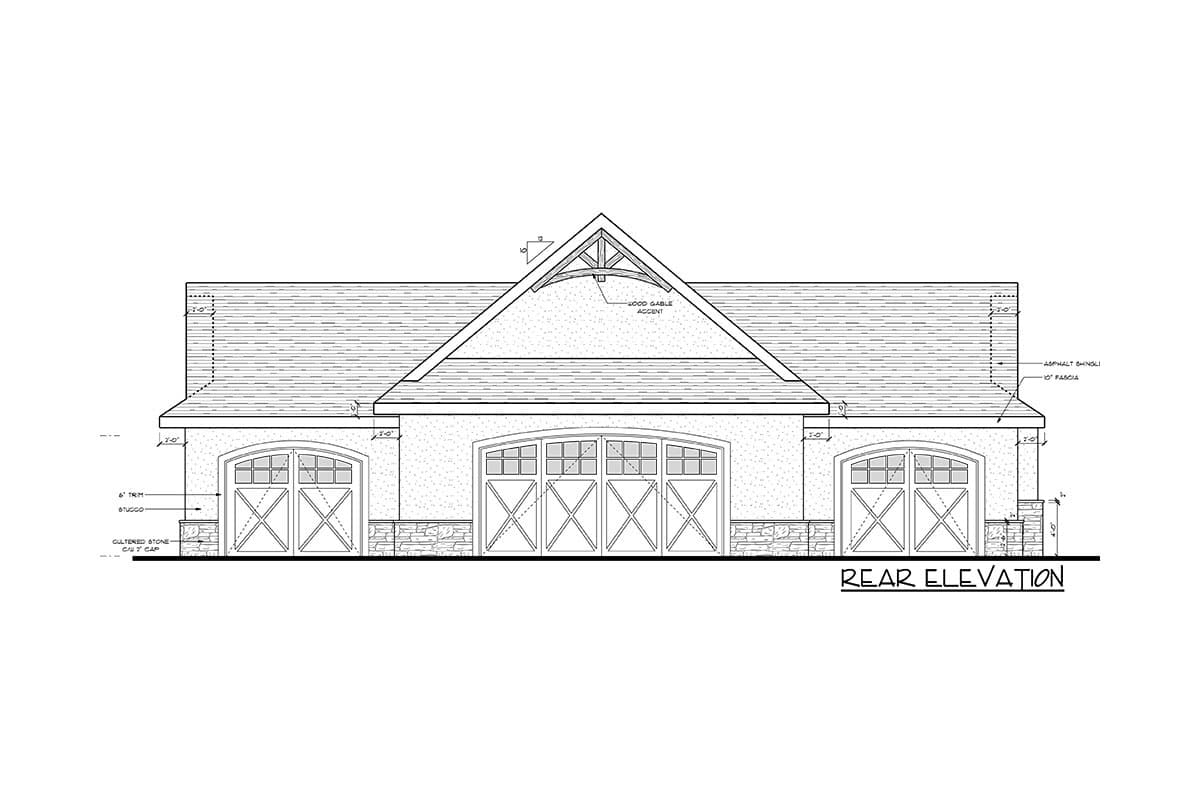

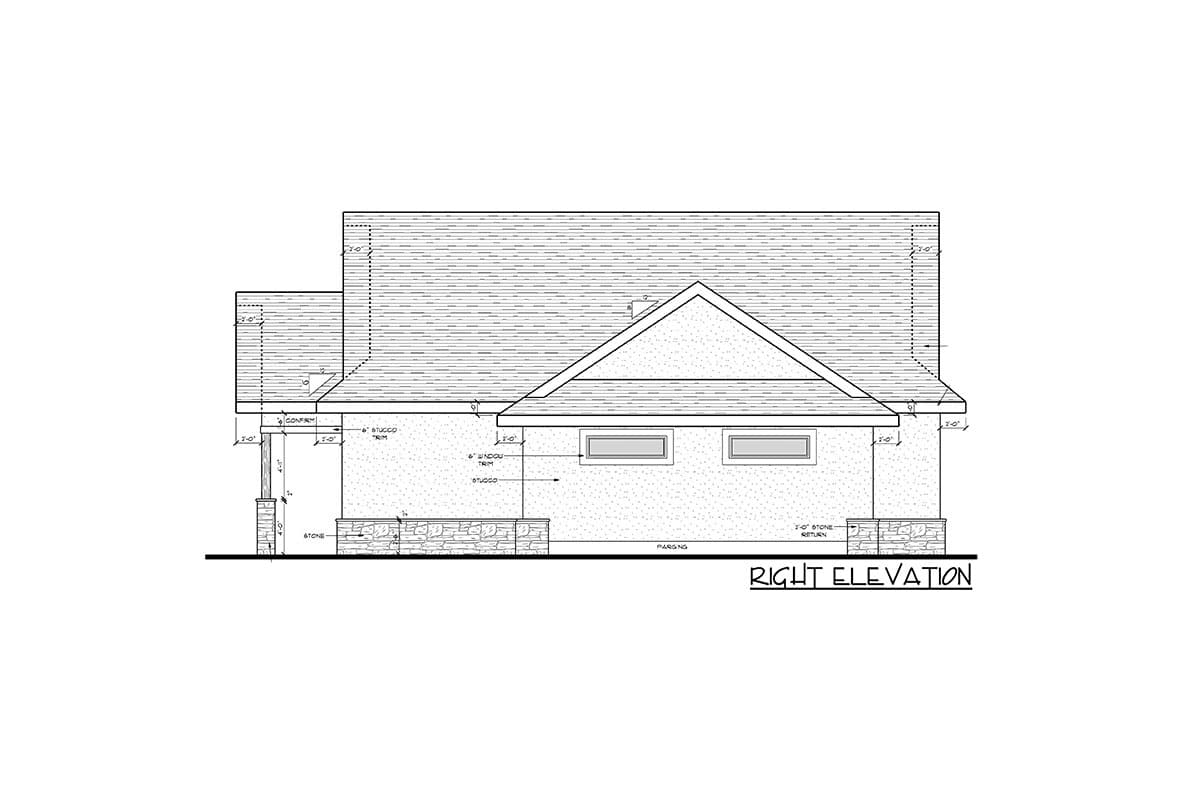

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan
What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 0"

Depth

45' 0"

Max Ridge Height

18' 6"

Garage

Type

Detached

Area

2230 sq. ft.

Count

4 Cars

Ceiling Heights

Lower Level

11'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

European

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 0"

Depth

45' 0"

Max Ridge Height

18' 6"

Garage

Type

Detached

Area

2230 sq. ft.

Count

4 Cars

Ceiling Heights

Lower Level

11'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

European

Plan Collections

Canadian House Plans
