Plan 680185VR
Detached 410 Square Foot 1-Car Garage with Workshop and 480 Square Foot Loft
Heated S.F.
410
Beds
Baths
0
Stories
2
Cars
1
Floor Plan

Plan 680185VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680185VR

1-800-854-7852

1-262-521-4596

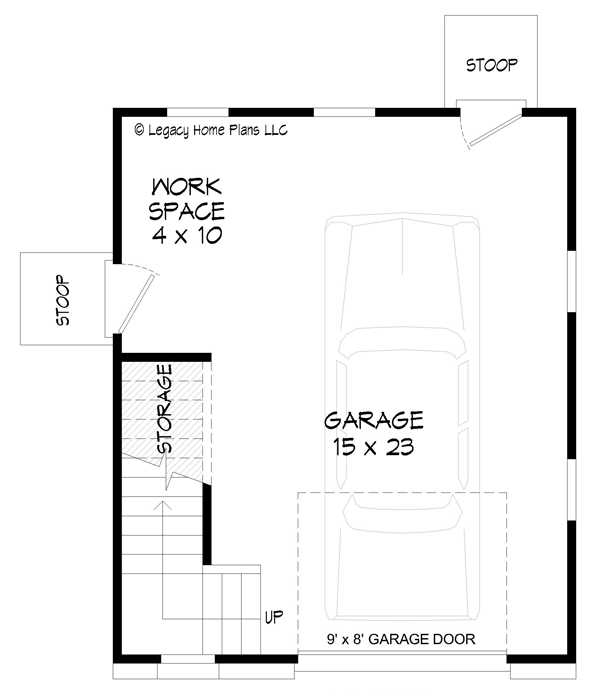

Main Level
floor plan image Main Level

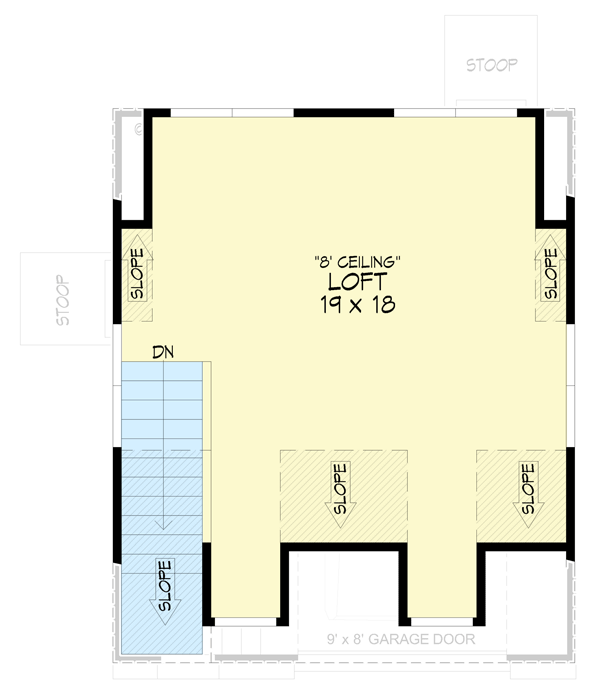

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This detached garage gives you 410 square feet of parking set behind a 9' by 8' overhead door.
  • A 40 square foot workshop is located in the back-left corner by the man door.
  • Stairs run along the front and side and take you to the 480 square foot loft above.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

410 sq. ft.

2nd Floor

410 sq. ft.

Workshop

40 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

20' 0"

Depth

24' 0"

Max Ridge Height

22' 4"

Garage

Type

Detached

Area

480 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Loft

Workshop

Square Footage Breakdown

Total Heated Area

410 sq. ft.

2nd Floor

410 sq. ft.

Workshop

40 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

20' 0"

Depth

24' 0"

Max Ridge Height

22' 4"

Garage

Type

Detached

Area

480 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Loft

Workshop
