Plan 72667DA
Detached 650 Sq Ft Garage with Dormered Living Area - 804 Sq Ft
Heated S.F.
804
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 72667DA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 72667DA

1-800-854-7852

1-262-521-4596

Main Level

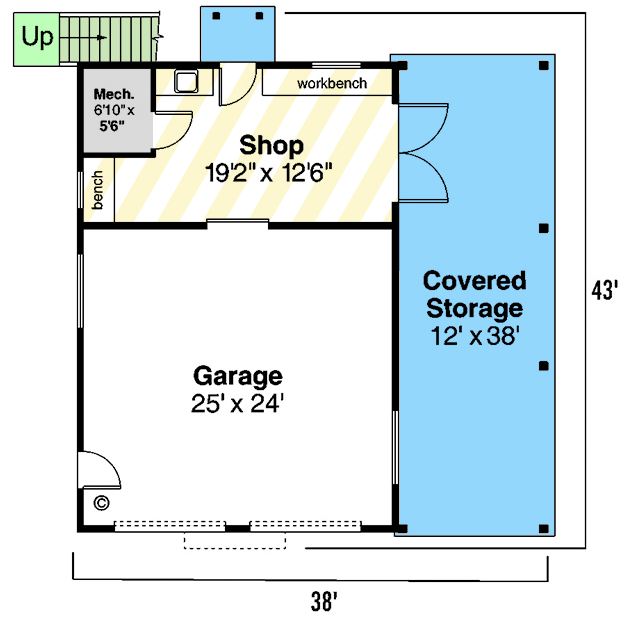

floor plan image Main Level
2nd Floor

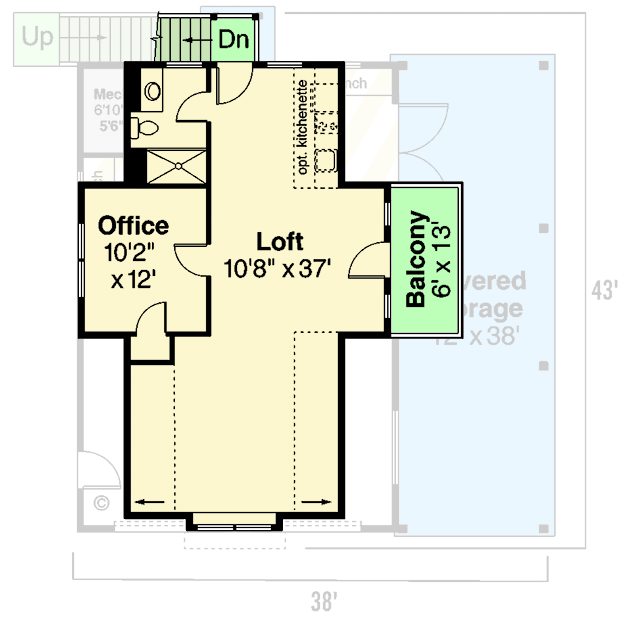

floor plan image 2nd Floor
Plan Details
  • This Craftsman garage plan can park up to two cars.
  • Both doors are the same size at 9' wide and 8' tall.
  • In the back is a shop with sink and a mechanical room.
  • On the second floor there is a loft with space for a sink, cook top and refrigerator.
  • There is also an office and full bathroom on the second floor.
  • Related Plans: Get alternate versions with plans 72816DA and 720040DA.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

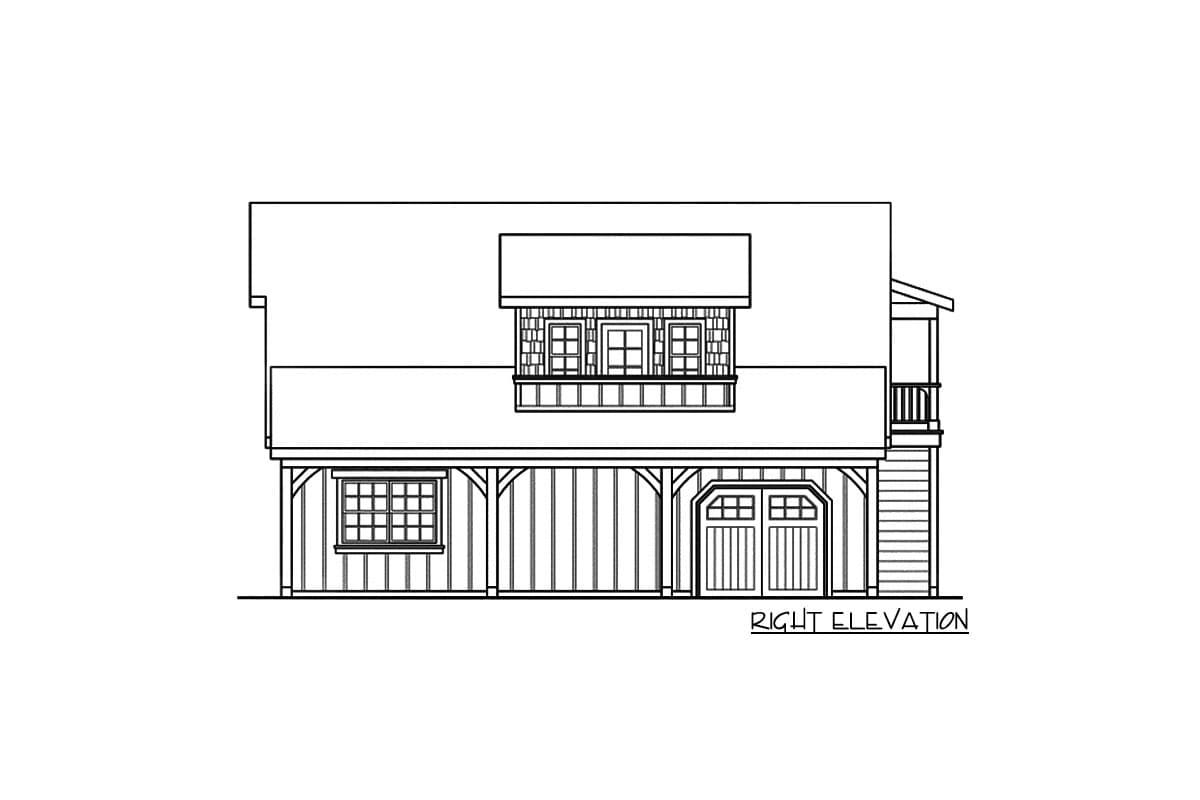

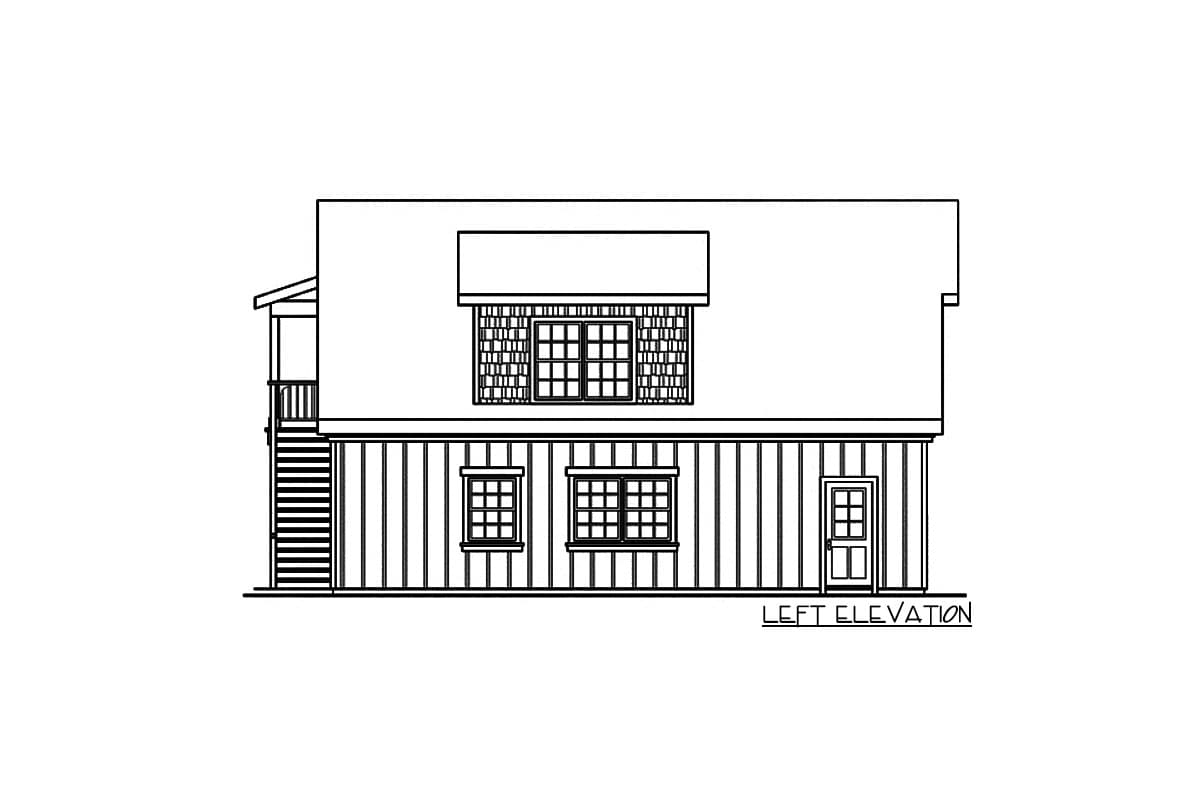

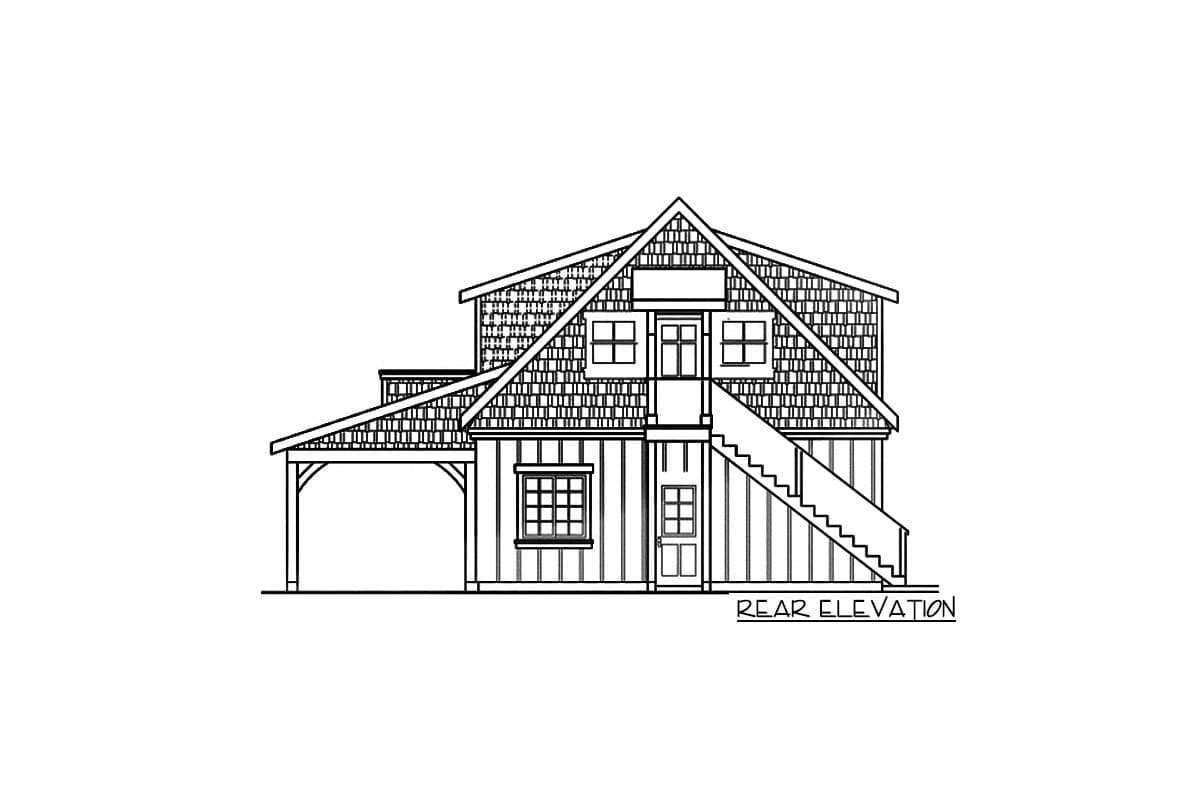

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

804 sq. ft.

1st Floor

804 sq. ft.

Covered Patio

456 sq. ft.

Workshop

338 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

42' 0"

Max Ridge Height

25' 3"

Garage

Type

Detached, Carport

Area

650 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

12 on 12

Architectural Style

Carriage

Country

Craftsman

Rustic

Special Features

Home Office

Loft

Master Suite - 2nd Floor

Workshop

Square Footage Breakdown

Total Heated Area

804 sq. ft.

1st Floor

804 sq. ft.

Covered Patio

456 sq. ft.

Workshop

338 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

42' 0"

Max Ridge Height

25' 3"

Garage

Type

Detached, Carport

Area

650 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

12 on 12

Architectural Style

Carriage

Country

Craftsman

Rustic

Special Features

Home Office

Loft

Master Suite - 2nd Floor

Workshop
