Plan 68547VR
Detached Garage Plan with Massive Loft Above
Heated S.F.
1,465
Beds
0
Baths
0
Stories
2
Cars
2
Floor Plan

Plan 68547VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 68547VR

1-800-854-7852

1-262-521-4596

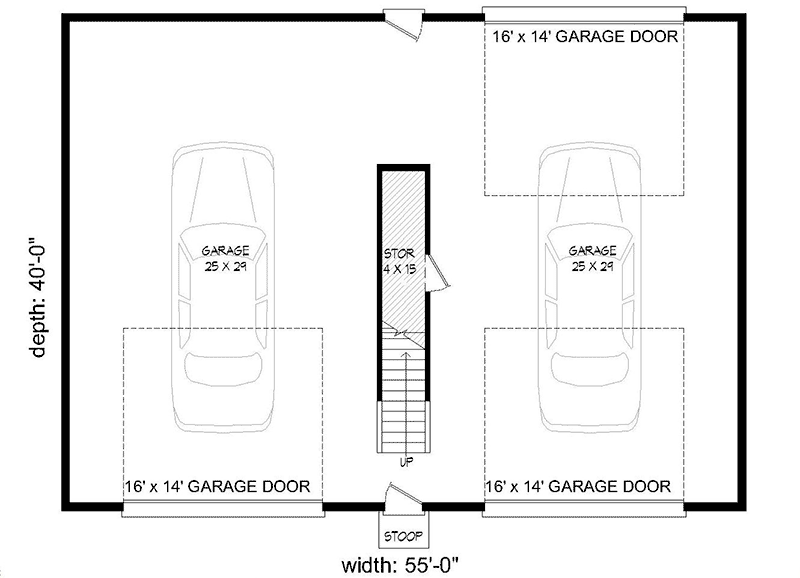

Main Level
floor plan image Main Level

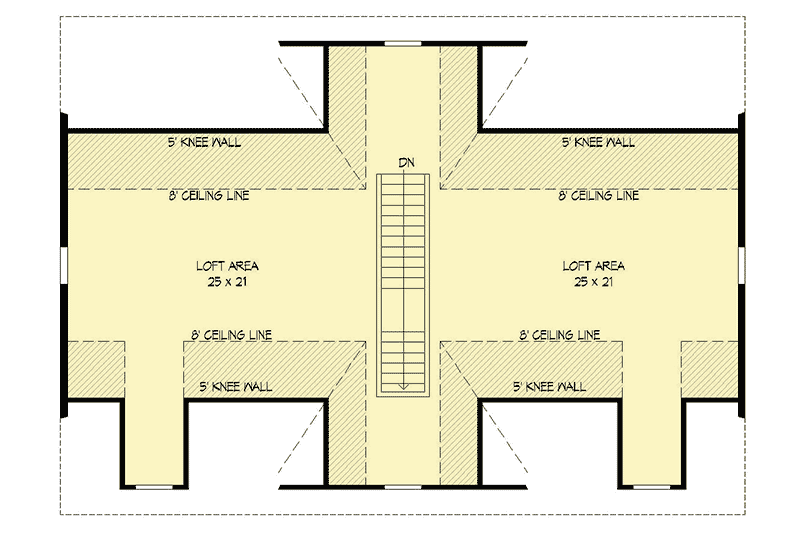

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This detached garage plan gives you parking for two cars on the main level. The right bay is drive-through with 16' by 14' doors on each side.
  • Get a massive loft space above that can be put to many uses.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,465 sq. ft.

2nd Floor

1,465 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

55' 0"

Depth

40' 0"

Max Ridge Height

29' 0"

Garage

Type

Detached

Area

2200 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

15'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Special Features

Loft

Square Footage Breakdown

Total Heated Area

1,465 sq. ft.

2nd Floor

1,465 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

55' 0"

Depth

40' 0"

Max Ridge Height

29' 0"

Garage

Type

Detached

Area

2200 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

15'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Special Features

Loft
