Plan 720049DA
Detached Garage with Drive-through RV Bay
Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
2
Floor Plan

Plan 720049DA

Main Level
slide image 0

Plan 720049DA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This garage plan can house up to 4 cars.
  • It has a unique feature in that it has a 14' x 14' rear door for easy RV pull through access.
  • The rear door mirrors the right side garage door at 14' x 14', while the smaller right side door is 12' x 12'.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

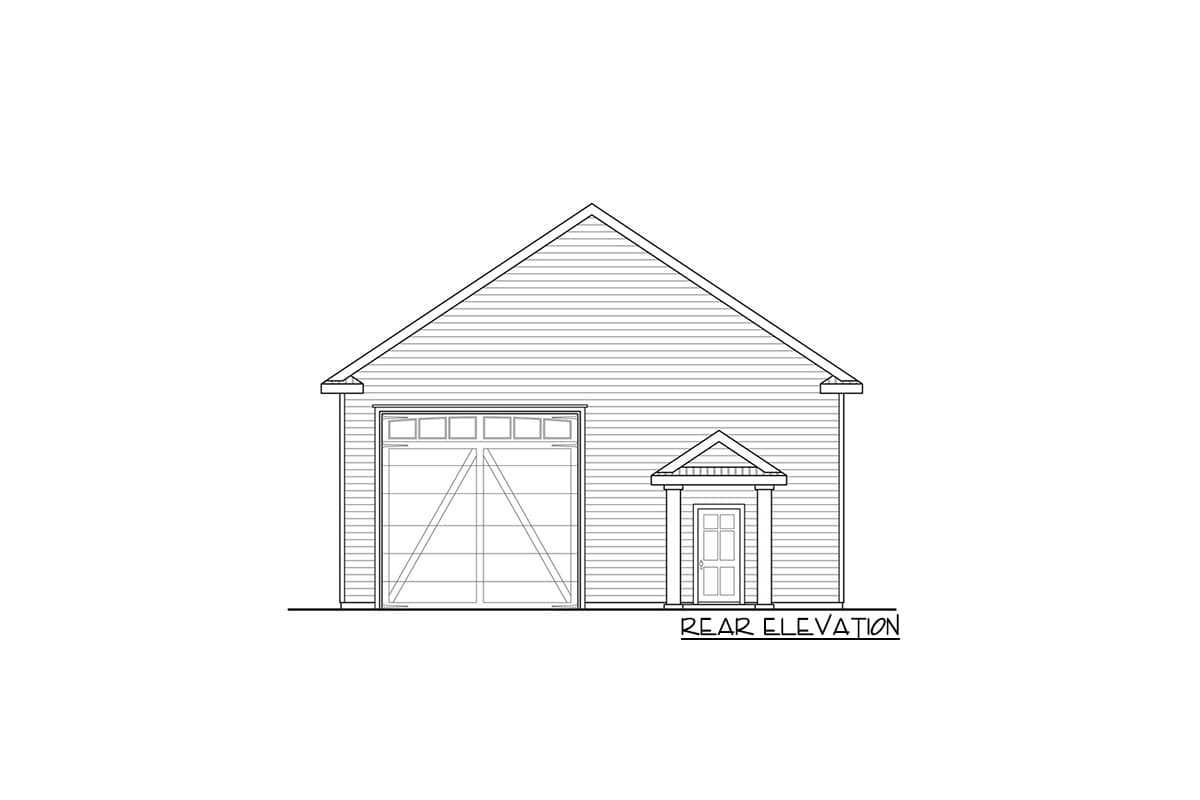

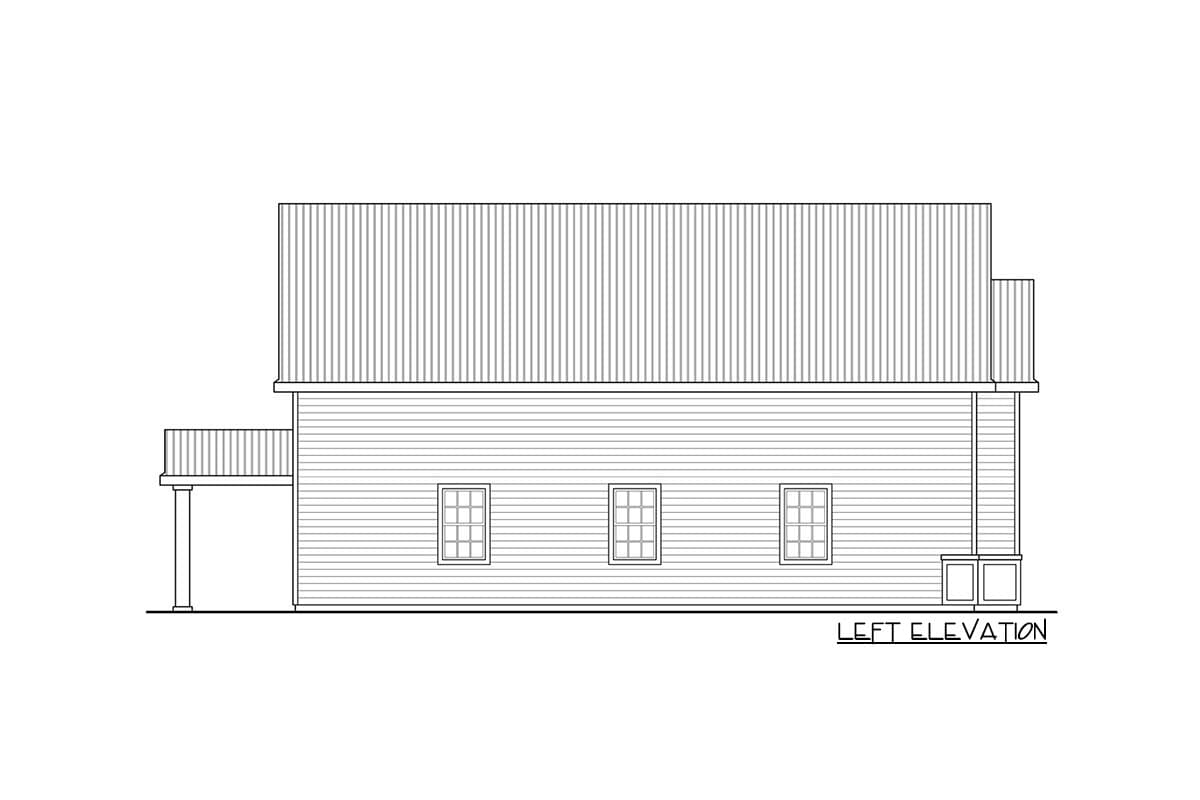

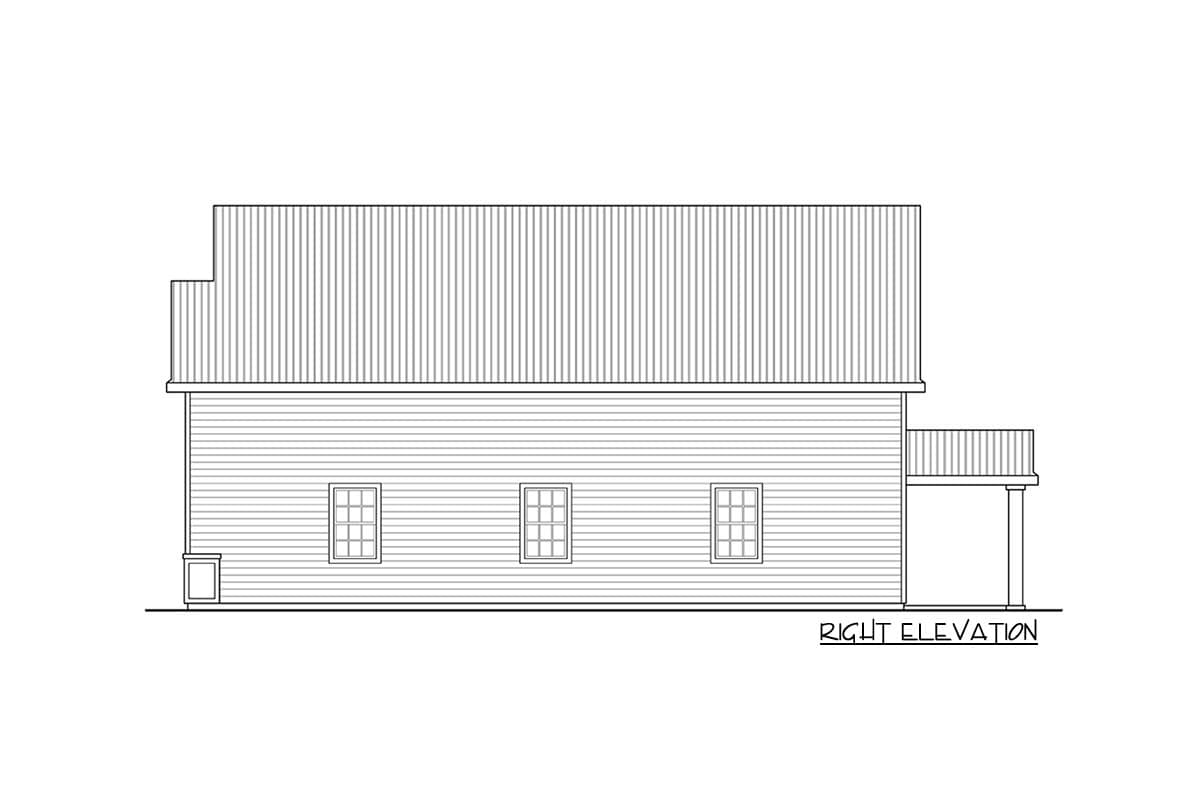

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

59' 0"

Max Ridge Height

29' 1"

Garage

Type

Detached, RV Garage

Area

1788 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

16'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

Traditional

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

59' 0"

Max Ridge Height

29' 1"

Garage

Type

Detached, RV Garage

Area

1788 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

16'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

Traditional
