Plan 720034DA
Detached Garage with Second Floor Apartment Loft
Heated S.F.
933
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 720034DA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 720034DA

1-800-854-7852

1-262-521-4596

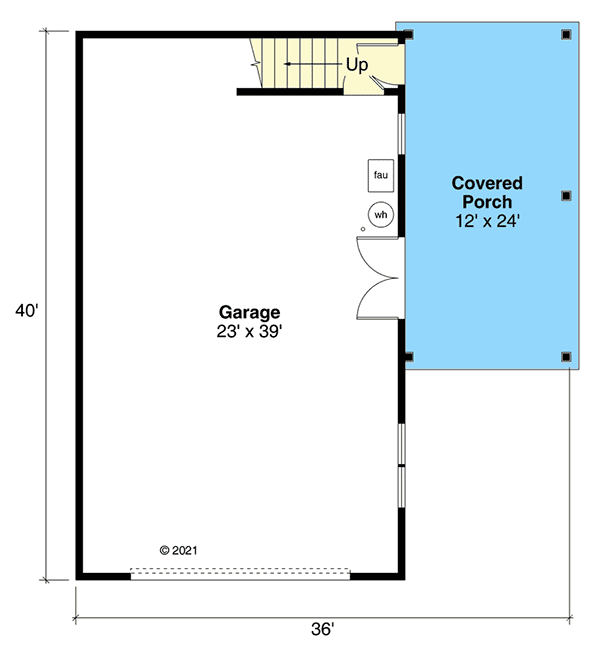

Main Level
floor plan image Main Level

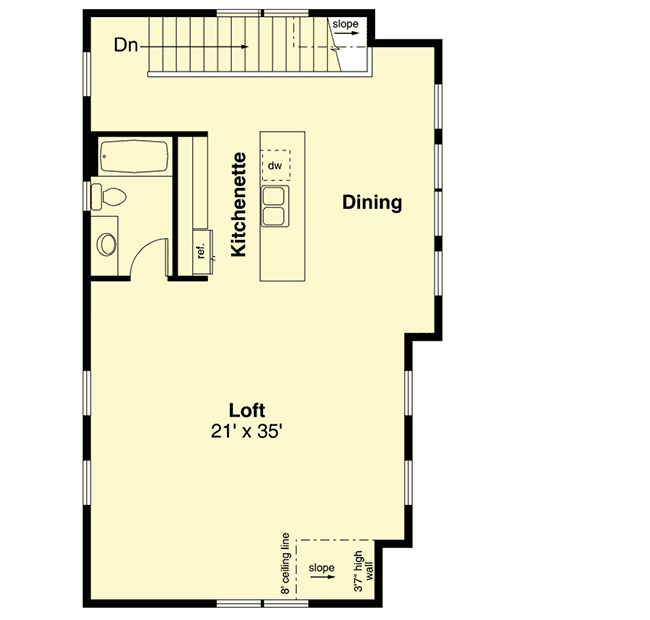

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This detached garage plan with finished space above has a beautiful Craftsman exterior.
  • The 16' wide x 8' tall garage door accommodates 2 cars.
  • Stairs running along the back of the garage lead to the second floor apartment loft.
  • A cozy kichenette with dining room open to the loft which can be furnished as a recreation room or as a studio bedroom for guests.
  • Related Plans: Get an alternate version with plans 720035DA and 720036DA.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

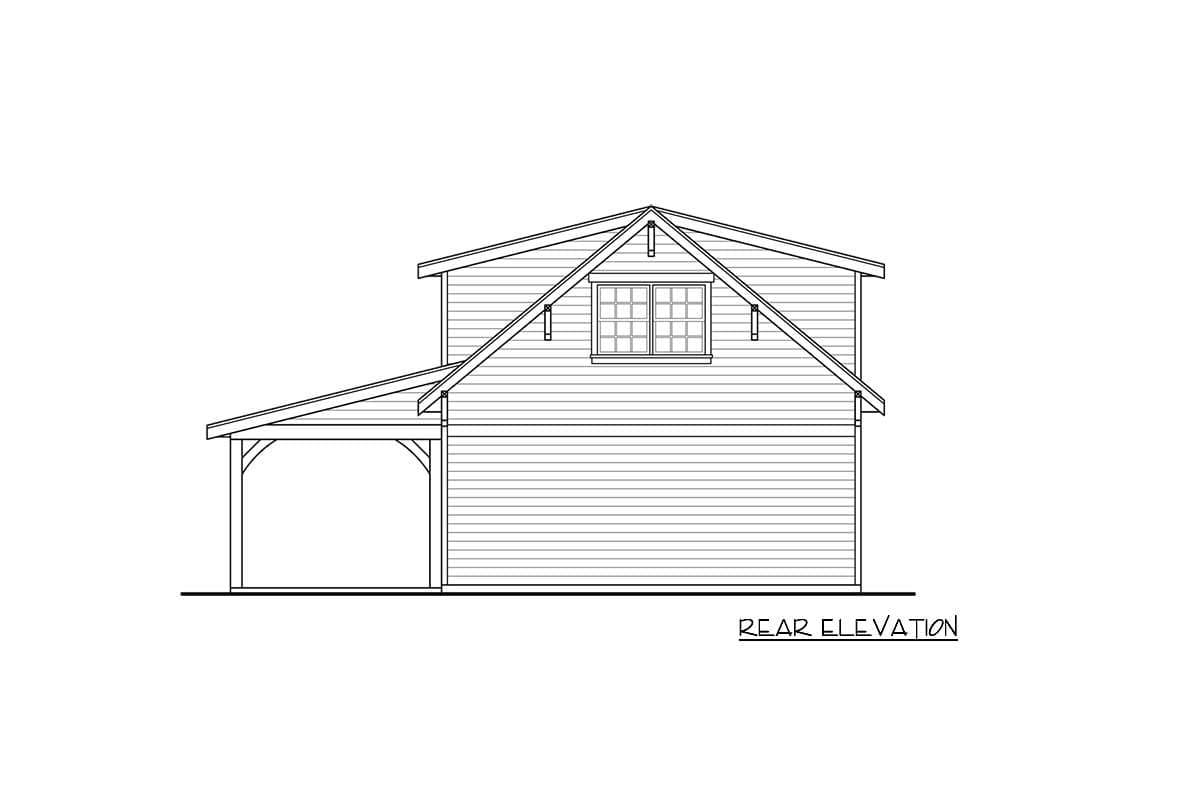

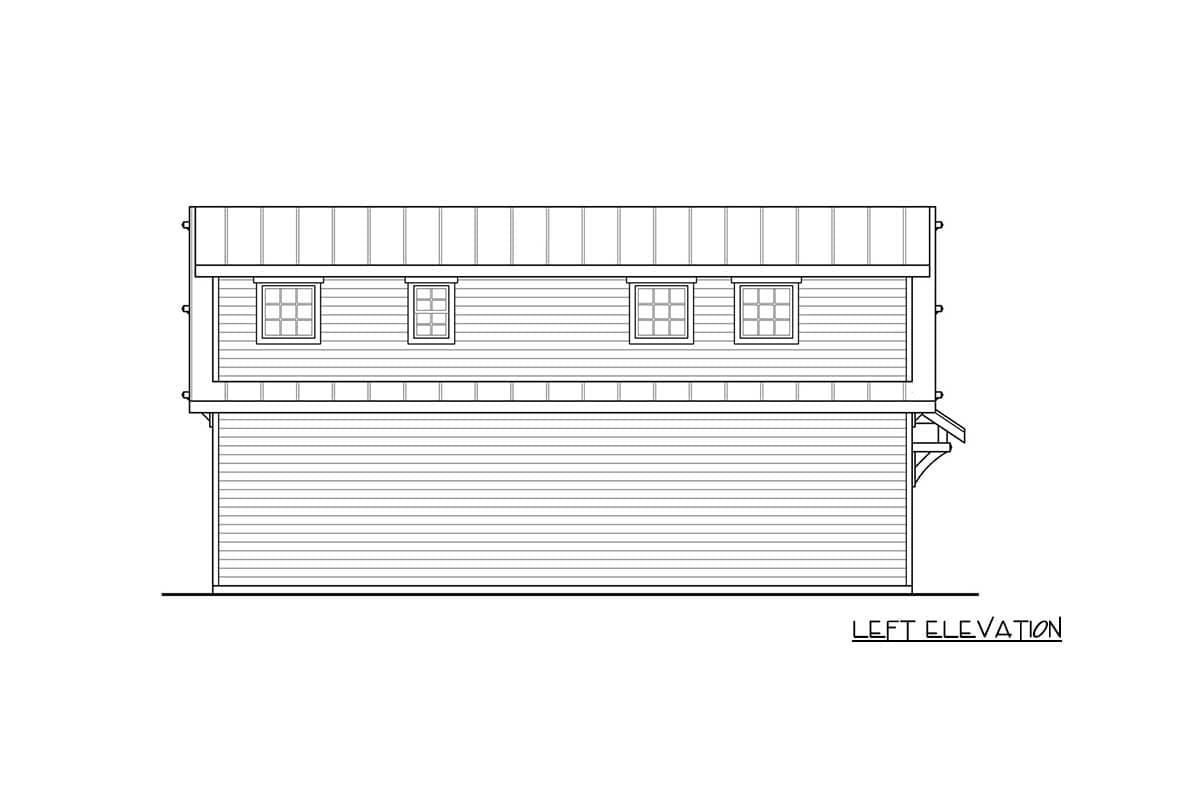

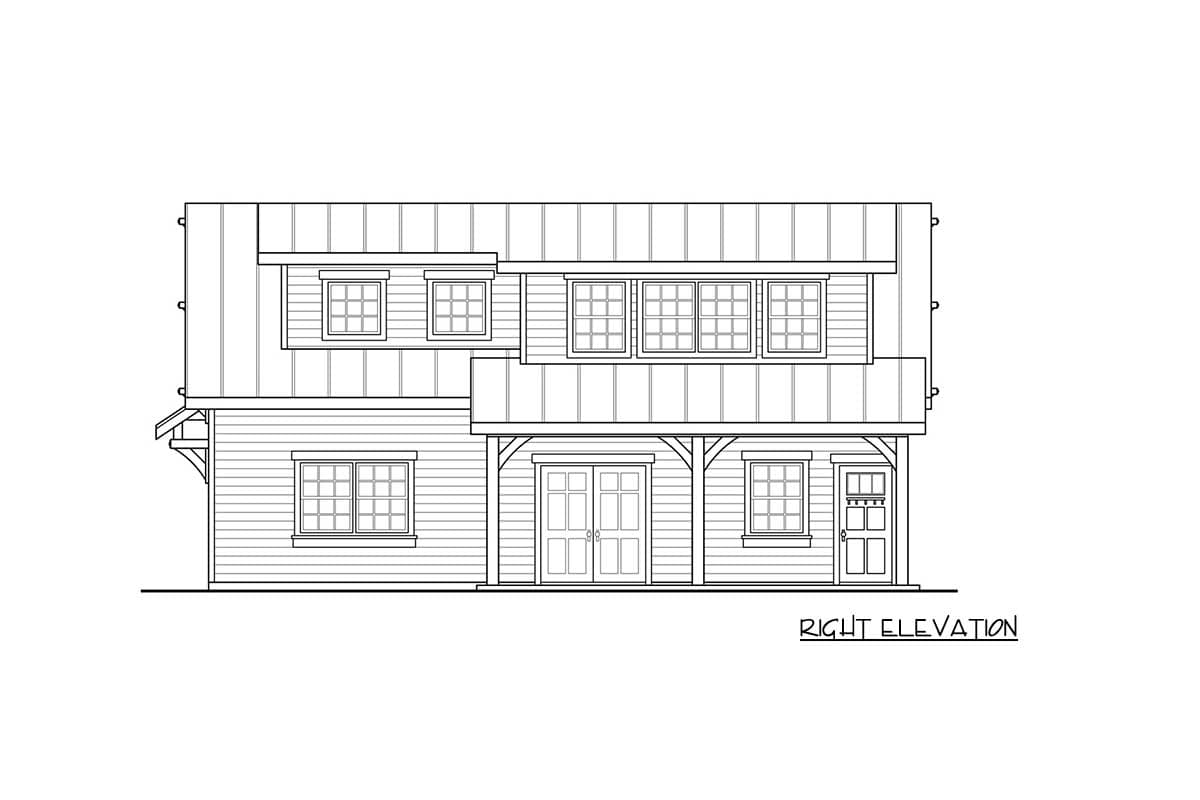

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

933 sq. ft.

1st Floor

57 sq. ft.

2nd Floor

876 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

40' 0"

Max Ridge Height

22' 3"

Garage

Area

903 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Carriage

Cottage

Country

Craftsman

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

933 sq. ft.

1st Floor

57 sq. ft.

2nd Floor

876 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

40' 0"

Max Ridge Height

22' 3"

Garage

Area

903 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Carriage

Cottage

Country

Craftsman

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - 2nd Floor
