Plan 666030RAF
Distinctive Contemporary House Plan
Heated S.F.
5,185
Beds
5
Baths
5.5
Stories
2
Cars
2
Floor Plan

Plan 666030RAF

Main Level
slide image 0

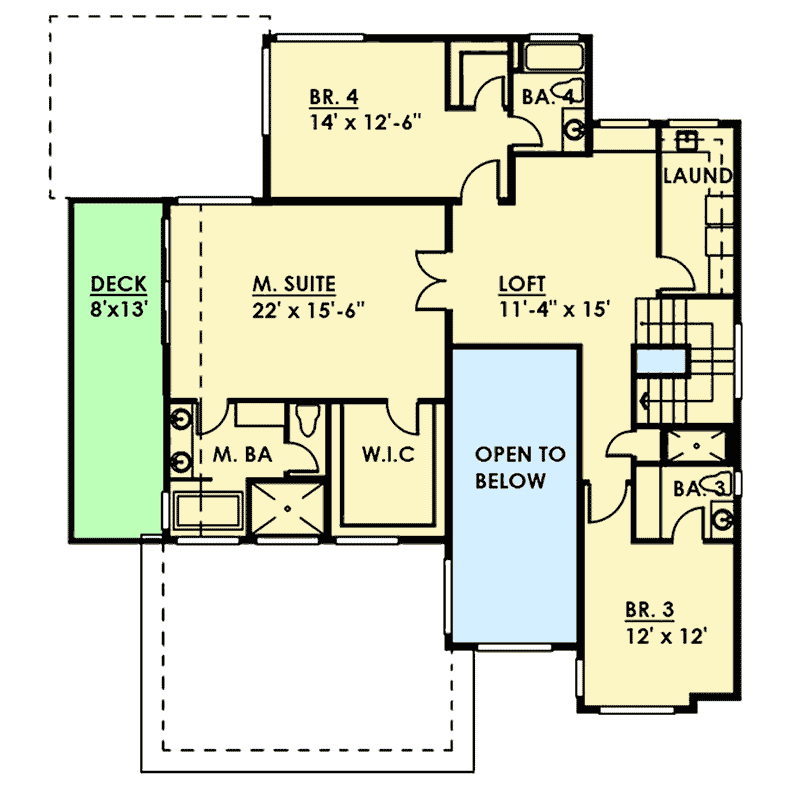

2nd Floor
slide image 1

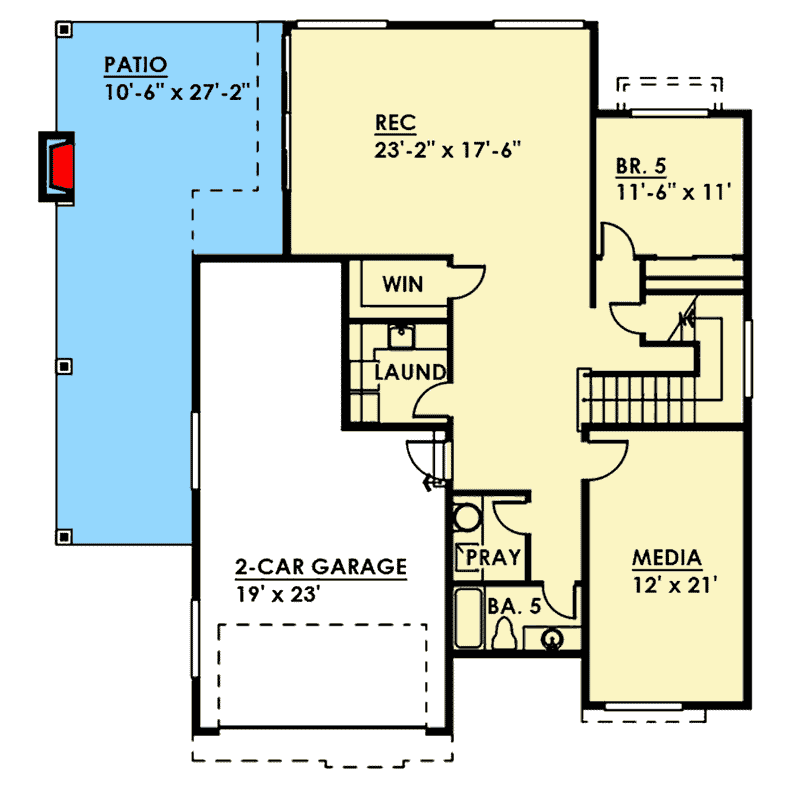

Lower Level
slide image 2

Plan 666030RAF

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Lower Level
floor plan image Lower Level
Plan Details
  • Flat and shed roof lines blend together to give this Contemporary house plan a distinctive look.
  • Lots of transom windows brighten the whole house and a vaulted ceiling soars up in the great room that opens to the dining area and kitchen.
  • The home comes with a small formal living room and a two-story high foyer that's nice and wide.
  • In back, a guest suite and home office completre this level.
  • On the top floor, the large master suite gets a private deck and shares the loft and laundry room with two other bedrooms.
  • The fifth bedroom and media room are on the ground level along with a huge rec room and another laundry room.
What's Included
  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,185 sq. ft.

Lower Level

1,336 sq. ft.

1st Floor

2,237 sq. ft.

2nd Floor

1,612 sq. ft.

Covered Patio

256 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 6"

Depth

67' 5"

Garage

Type

Attached, Drive Under

Area

726 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Butler Walk-in Pantry

Game/Rec Room

Home Office

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Master Suite - Sitting Area

Media Room
