Plan 82082KA
Downsize or a Starter Home Plan - 1429 Sq Ft
Heated S.F.
1,429
Beds
3
Baths
2
Stories
1
Cars
2

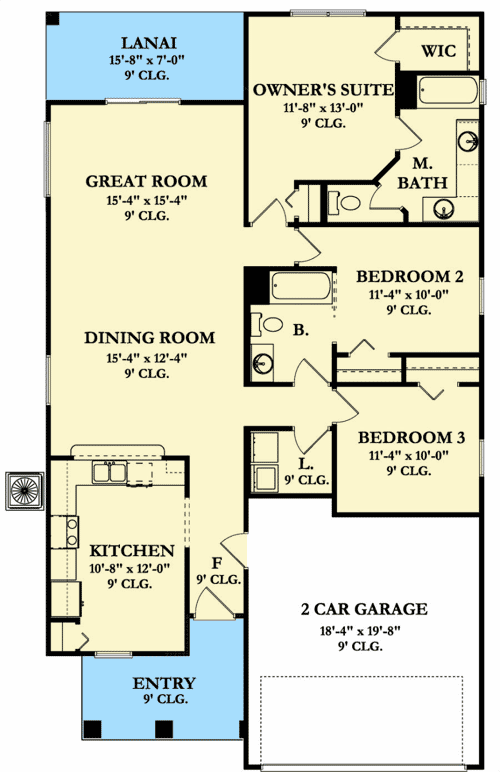

Floor Plan

Plan 82082KA

Main Level
slide image 0

Plan 82082KA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • Designed for a narrow lot, this three bedroom Florida house plan gives you the popular, open layout most customers ask for.
  • A big eat-in kitchen has a pass-through window that overlooks the combination dining room and great room.
  • Outdoor space come from the rear covered lanai that is big enough to grill on.
  • The owners suite is located in the back away from street noise.
  • Two other bedrooms have windows to the side of the home and share a hall bathroom.
  • Related Plans: Get alternate exteriors with house plans 82080KA and 82081KA.
What's Included
  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,429 sq. ft.

1st Floor

1,429 sq. ft.

Porch, Rear

110 sq. ft.

Entry

59 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

34' 8"

Depth

60' 0"

Max Ridge Height

18' 4"

Garage

Type

Attached

Area

391 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
