Dramatic 3-Bed Modern House Plan
Heated S.F.
1,664
Beds
3
Baths
1.5
Stories
2
Floor Plan

Plan 80923PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80923PM

1-800-854-7852

1-262-521-4596

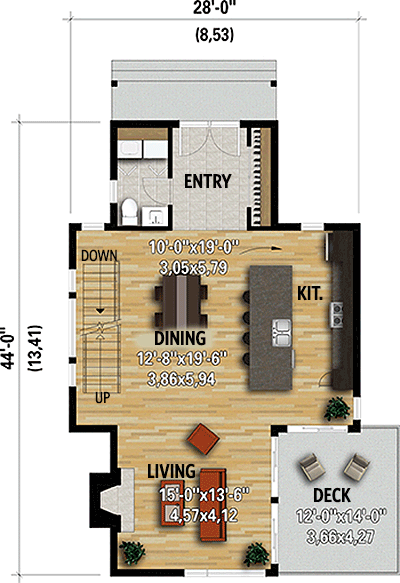

Main Level
floor plan image Main Level

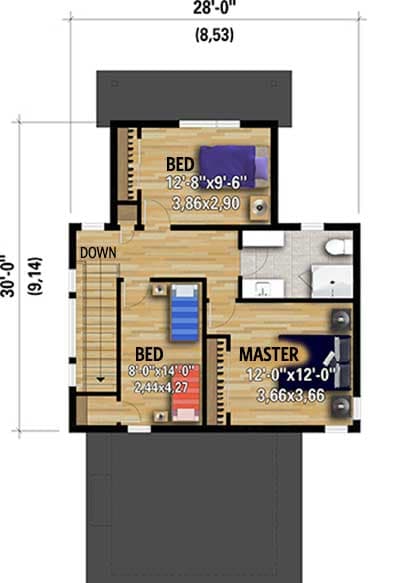

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A dramatic, skillion roof with matching angled windows contribute to this 3-bedroom, modern house plan's stunning curb appeal.
  • A powder bath and coat closet border the foyer upon entering. The main level offers a spacious, open-concept floor plan making entertaining a delight.
  • An oversized island in the kitchen provides ample workspace and seating for casual meals. A fireplace can be enjoyed throughout the heart of the home, and large, sliding doors lead to a deck off the back of the home.
  • Upstairs, discover three bedrooms and a bathroom with a shower.
  • NOTE: Please allow up to 20 business days for delivery.
What's Included
Please note this plan is designed to the National Building Code of Canada.

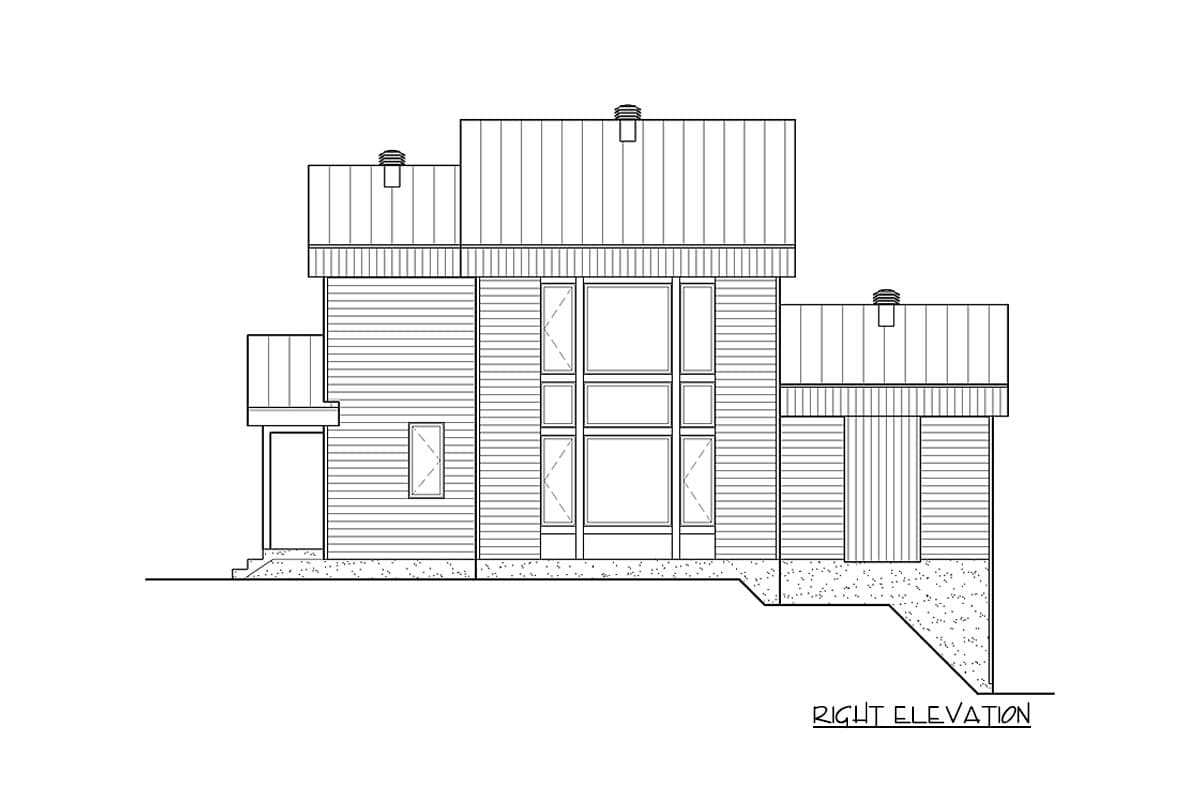

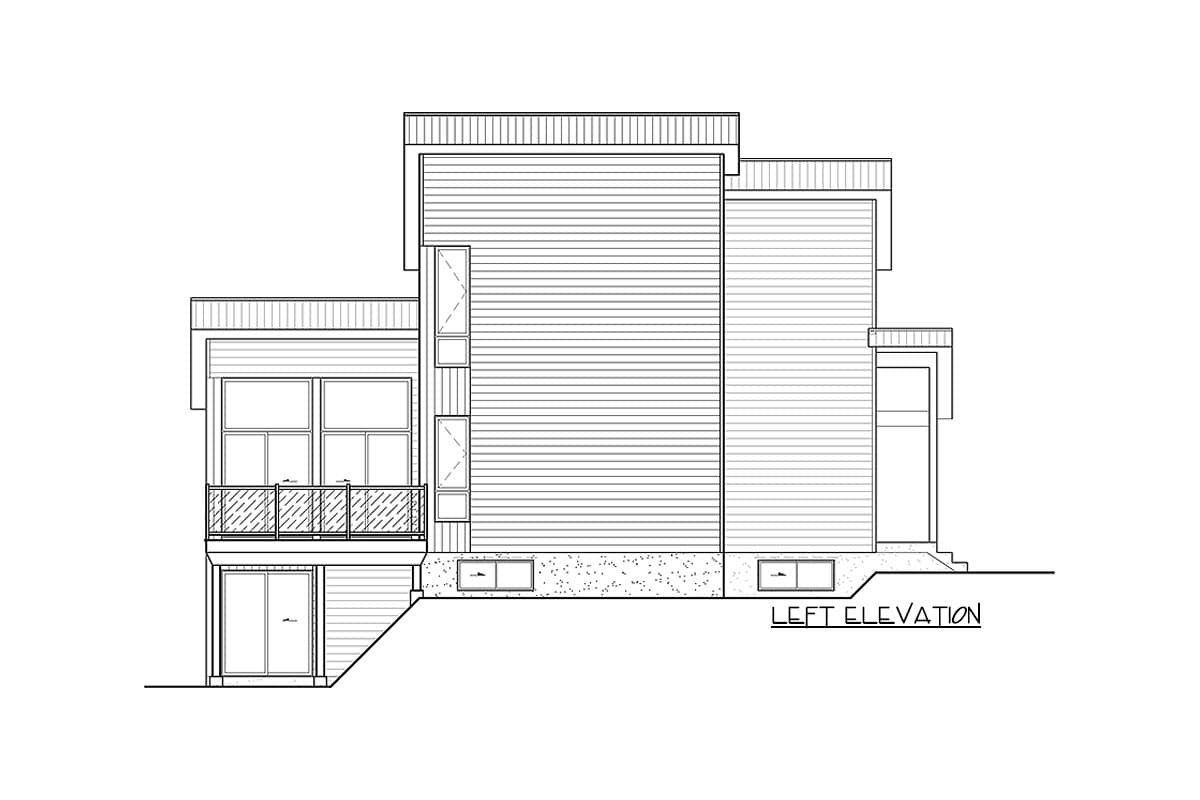

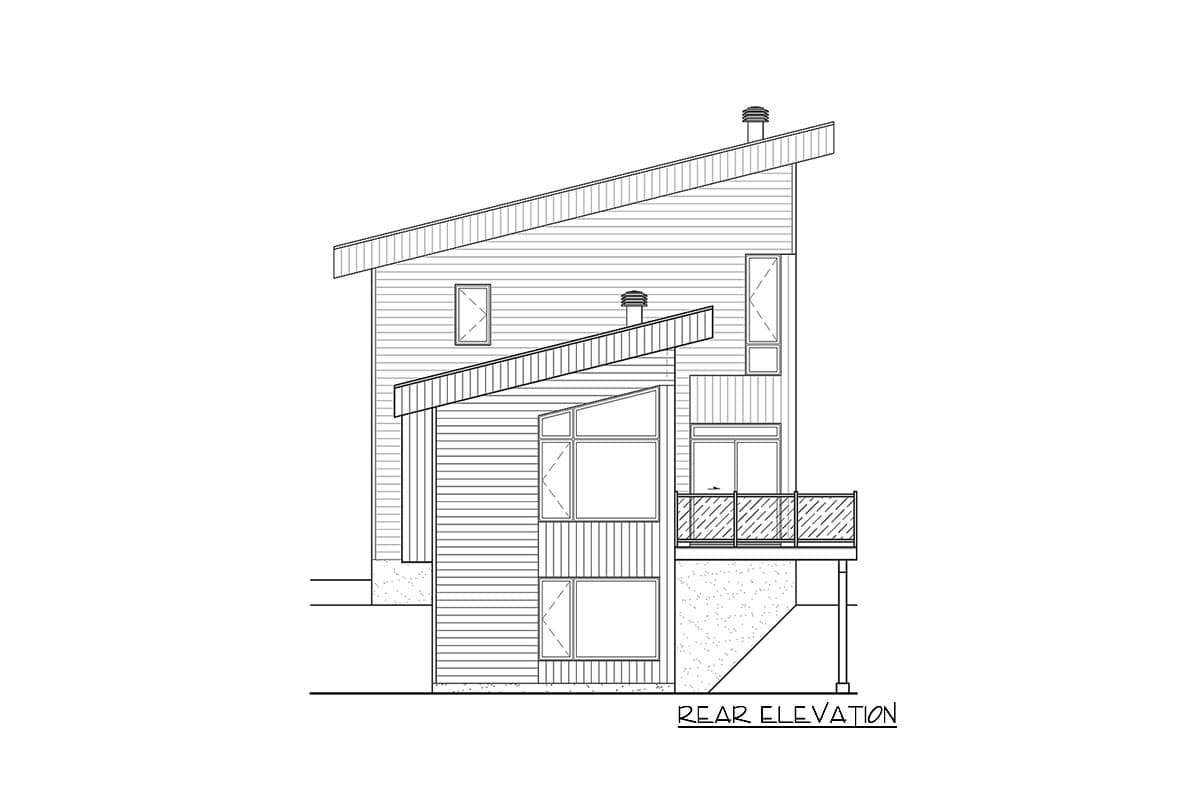

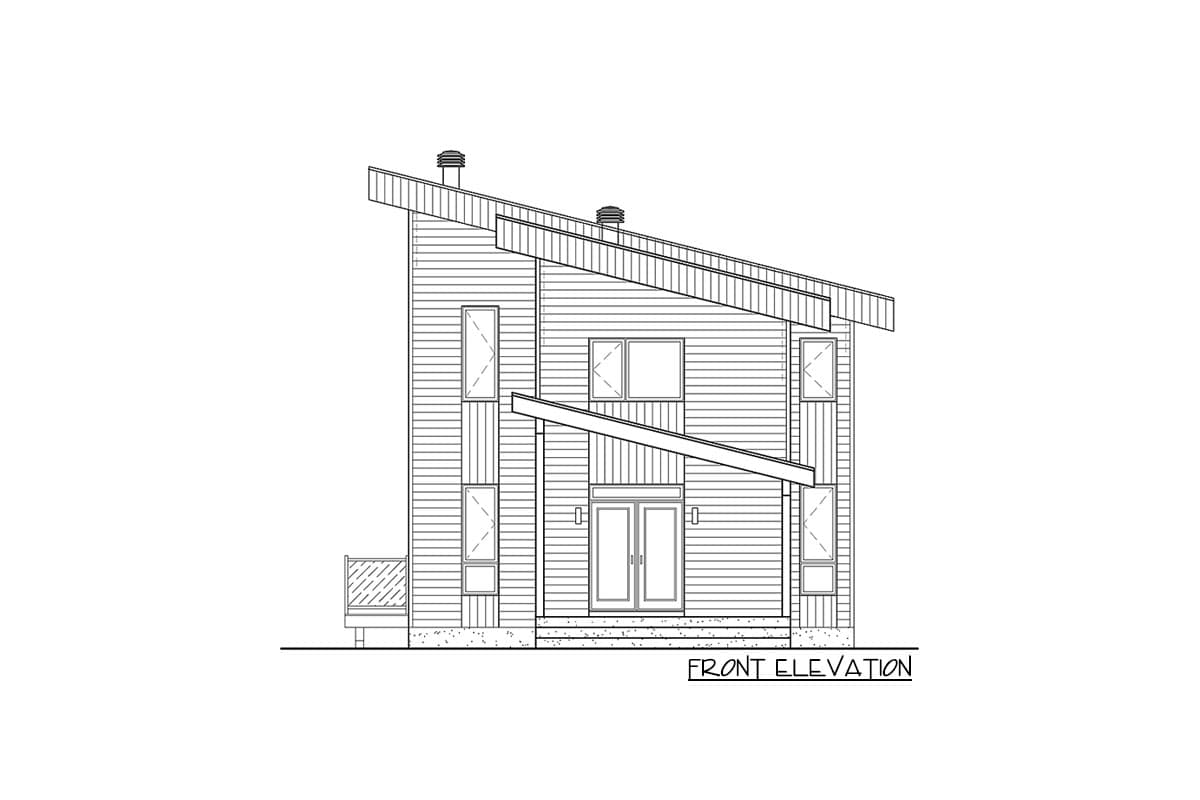

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,664 sq. ft.

1st Floor

944 sq. ft.

2nd Floor

720 sq. ft.

Basement Unfinished

944 sq. ft.

Porch, Front

168 sq. ft.

Porch, Rear

96 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

44' 0"

Max Ridge Height

37' 9"

Ceiling Heights

Lower Level

8'

First Floor

9' 2"

Second Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Mountain

Northwest

Vacation

Special Features

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,664 sq. ft.

1st Floor

944 sq. ft.

2nd Floor

720 sq. ft.

Basement Unfinished

944 sq. ft.

Porch, Front

168 sq. ft.

Porch, Rear

96 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

44' 0"

Max Ridge Height

37' 9"

Ceiling Heights

Lower Level

8'

First Floor

9' 2"

Second Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Mountain

Northwest

Vacation

Special Features

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric
