Name: Plan 36541TX: Dramatic Florida House Plan with Roof Deck
SKU: 36541TX
Price: 1570.0 USD
Availability: InStock

Plan 36541TX

Dramatic Florida House Plan with Roof Deck

Heated S.F.

4,144

Beds

Baths

Stories

Cars

Floor Plan

Main Level

2nd Floor

3rd Floor

Plan Details

There are four levels of pure luxury in this dramatic Florida house plan.
A ground level foyer on the garage level leads to a huge game room with wet bar and a bedroom and full bathroom.

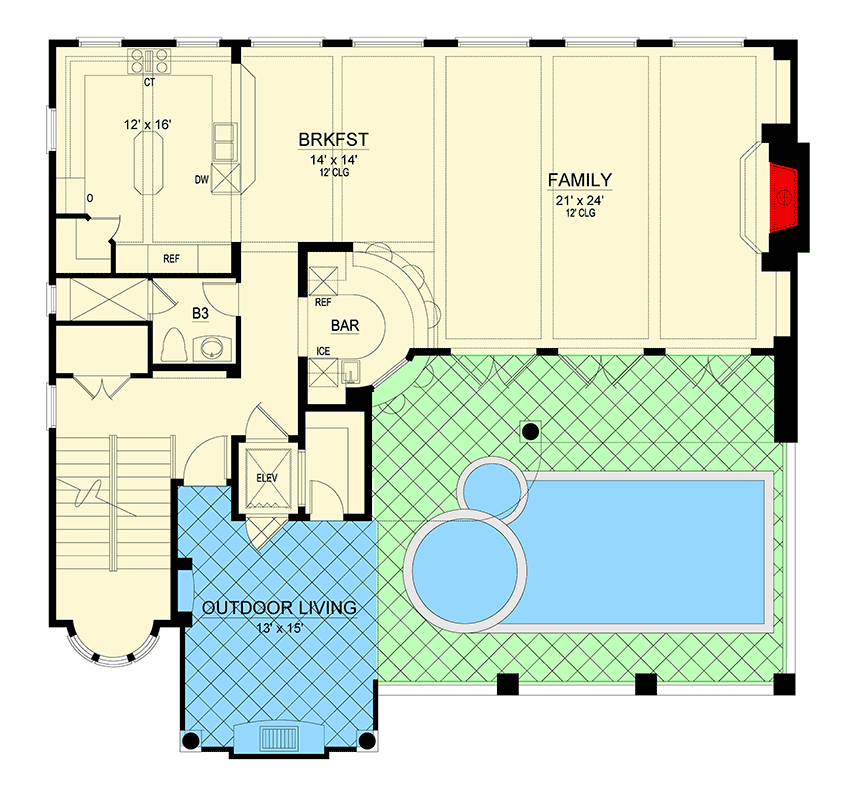

Take the stairs or the residential elevator up to the next level which is the main living area.
Here, another wet bar overlooks the beamed family room and breakfast nook.
Three sets of double doors open to an outdoor oasis with room for a pool.
The third floor belongs to the homeowners, giving them a gorgeous and opulent retreat.
The front-facing study has a tray ceiling, walk-in closet and a juliette balcony.
On the very top level, the views are magnificent from the airy terrace.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
