Plan 9042PD
Dramatic Stone Tower
Heated S.F.
1,610
Beds
3
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 9042PD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 9042PD

1-800-854-7852

1-262-521-4596

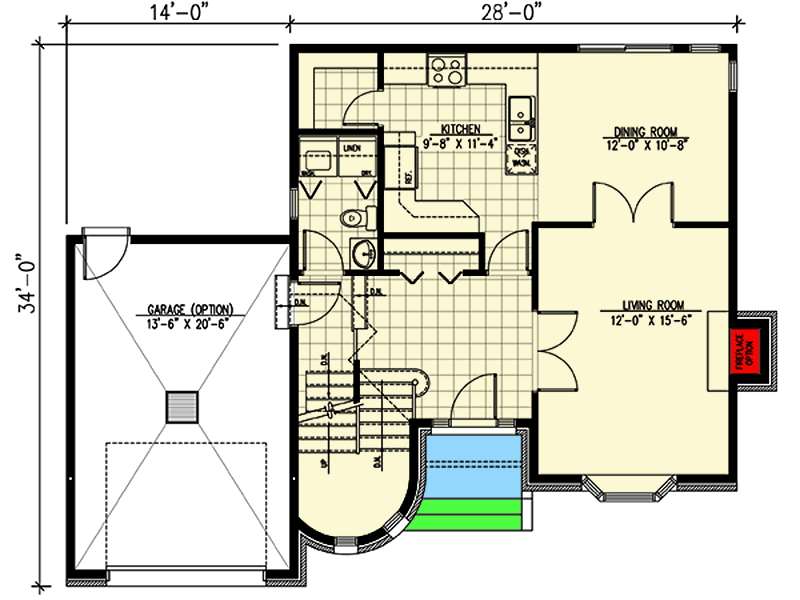

Main Level
floor plan image Main Level

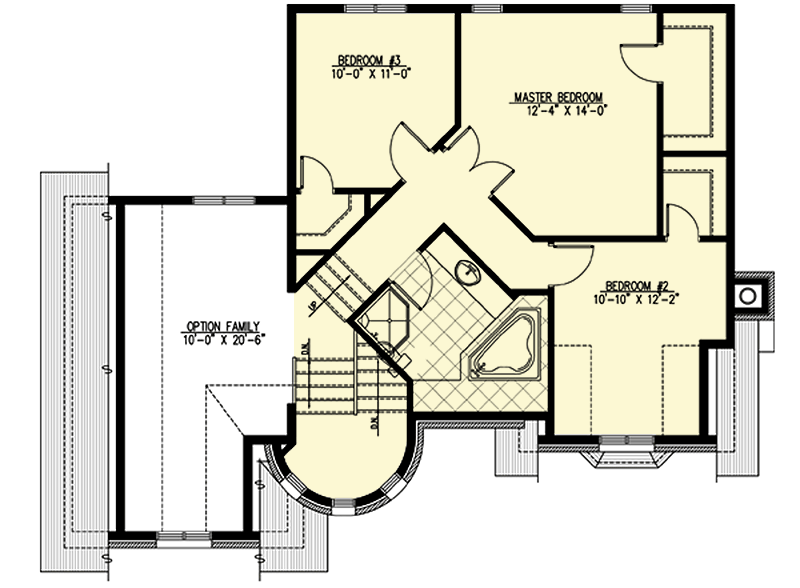

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A dramatic stair tower graces the stone exterior of this European style home plan with a steep hipped roof.
  • The large entry foyer opens to the living room with two sets of double doors, a bay window and a warm fireplace. The dining room boasts lots of windows and easy access to the kitchen.
  • Located on the second floor are three bedrooms, each with walk-in closet, a hall bath and bonus space.
  • As an added bonus you'll find an optional family room over the garage. It is accessible from the landing created as you walk up the turret and then angle towards the upstairs bedrooms.
  • Ceilings: 9' first floor; 8' second floor.
What's Included
Please note this plan is designed to the National Building Code of Canada.

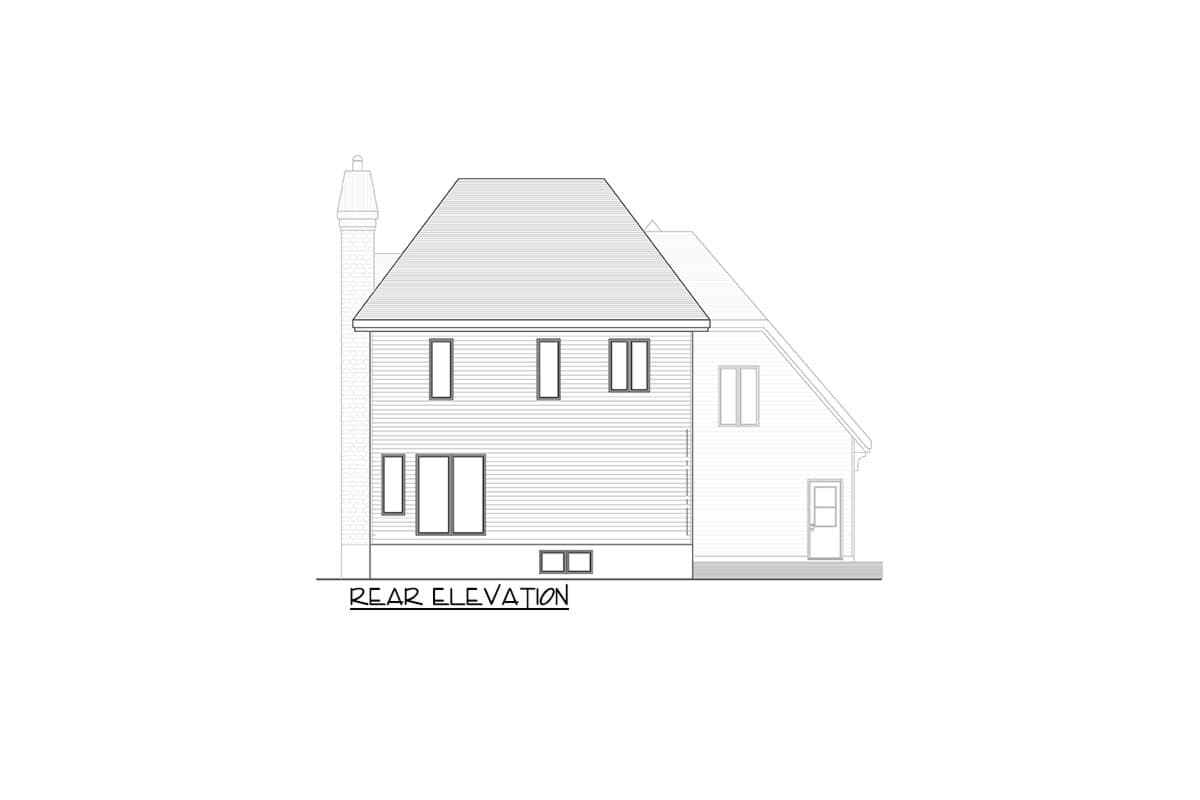

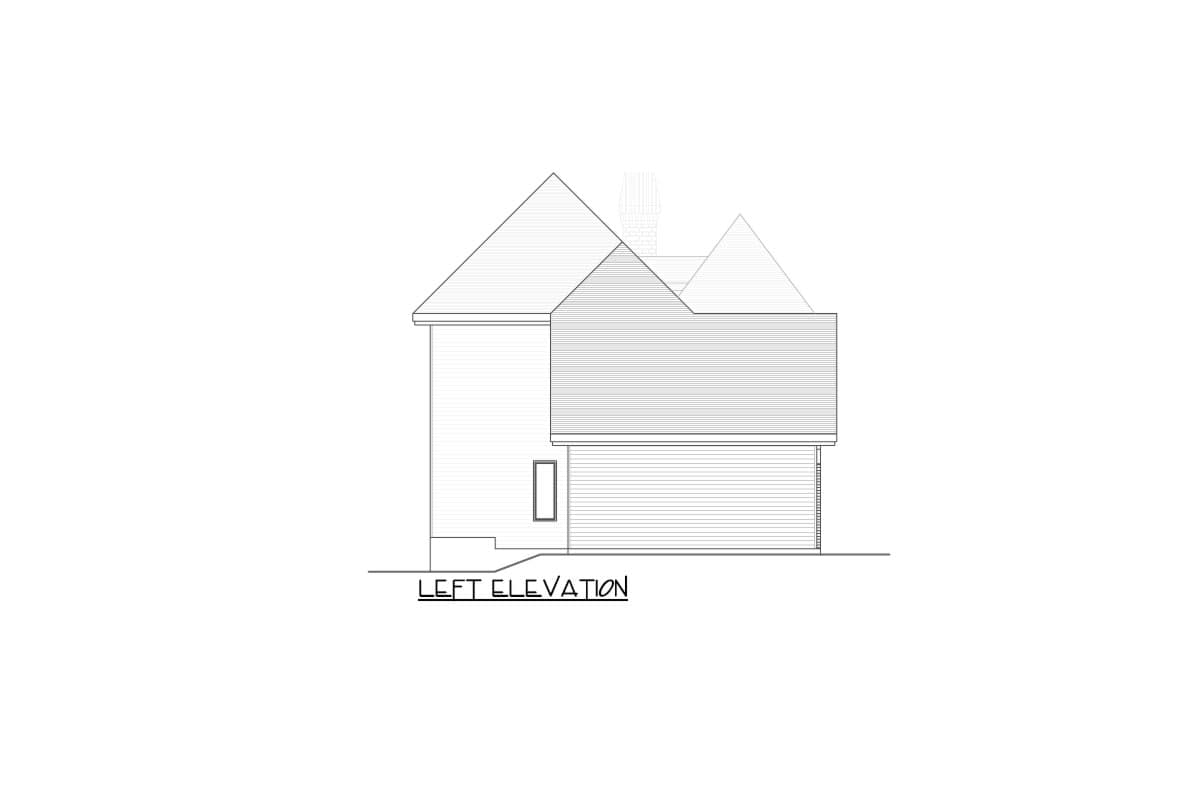

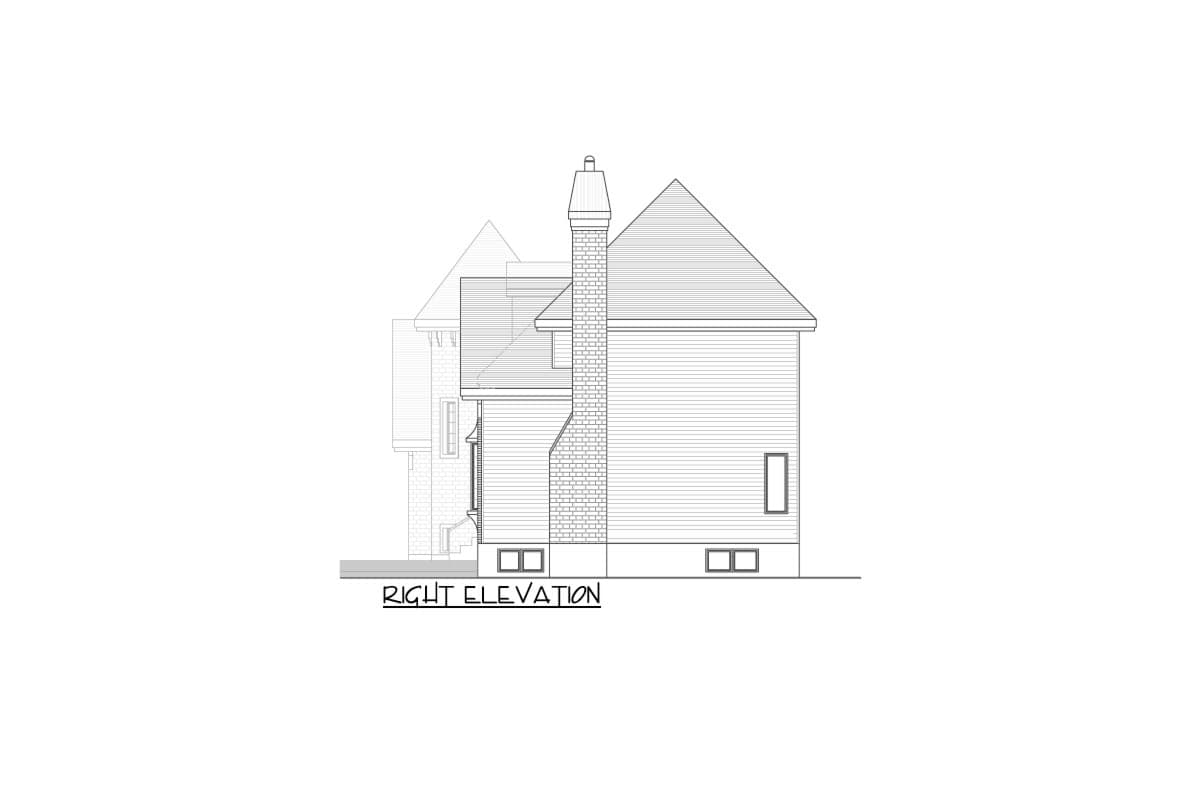

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,610 sq. ft.

1st Floor

798 sq. ft.

2nd Floor

812 sq. ft.

Basement Unfinished

798 sq. ft.

Bonus

222 sq. ft.

Porch, Front

24 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

32' 0"

Max Ridge Height

34' 9"

Garage

Type

Attached

Area

310 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

European

Special Features

Bonus Room

Butler Walk-in Pantry

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,610 sq. ft.

1st Floor

798 sq. ft.

2nd Floor

812 sq. ft.

Basement Unfinished

798 sq. ft.

Bonus

222 sq. ft.

Porch, Front

24 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

32' 0"

Max Ridge Height

34' 9"

Garage

Type

Attached

Area

310 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

European

Special Features

Bonus Room

Butler Walk-in Pantry

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery
