Plan 89294AH

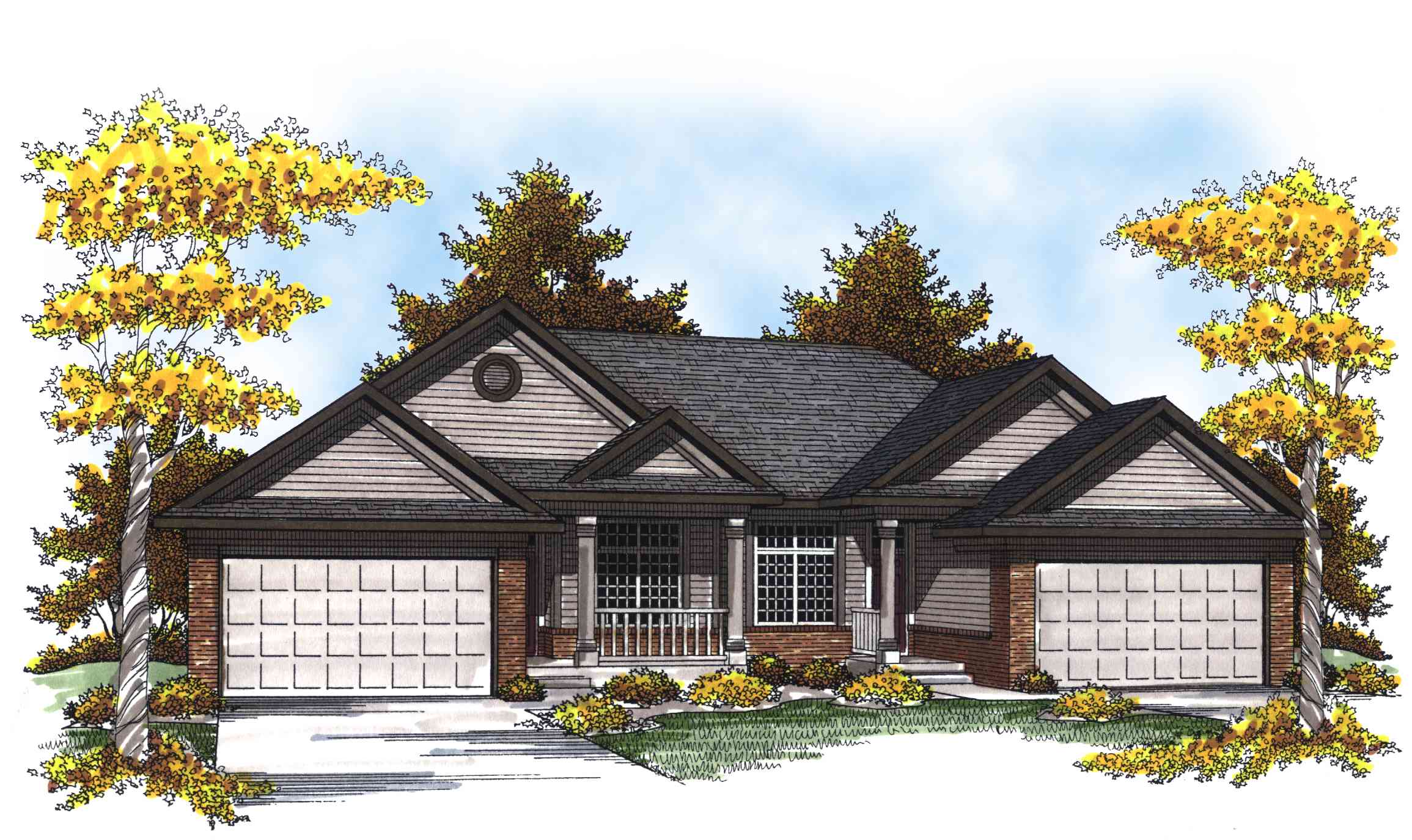

Duplex Home Plan with Curb Appeal
Heated S.F.
2,515
Units
2
Width
Depth
Floor Plan

Plan 89294AH

Main Level
slide image 0

Plan 89294AH

1-800-854-7852

1-262-521-4596

Main Level

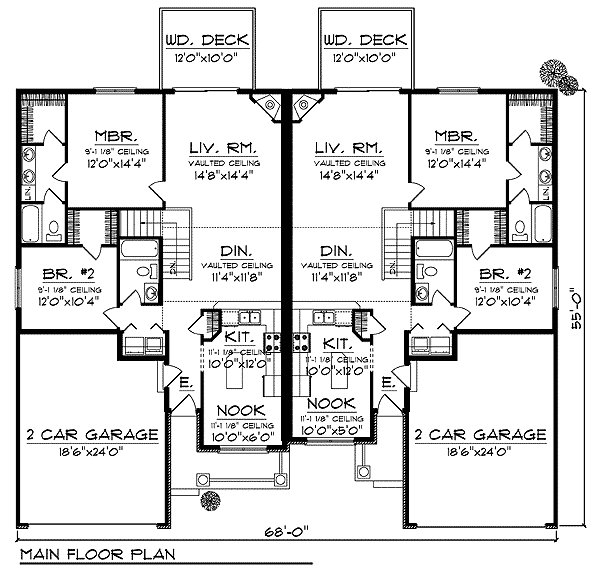

floor plan image Main Level

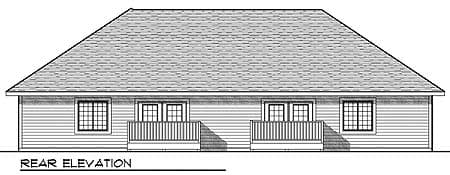

Plan Details
  • This traditional ranch duplex was designed with two identical units and a front fa'ade with a curb appeal that would be welcomed in most any neighborhood.
  • As you enter the unit you will find a kitchen/nook area with a breakfast bar that overlooks the main dining area.
  • A vaulted ceiling ties the living and dining rooms together and provides volume for the main living area.
  • The master bedroom suite features a walk-in closet and dual sinks, while the second bedroom also has a walk-in closet and the guest bath right outside the door.
  • Additional amenities include a main floor laundry, wood deck and two-car garage.
Unit A
1,263Sq. Ft.
1263 Sq. Ft.
1st Floor
2Beds
2Full Baths
2Vehicle
Attached
439 Sq. Ft.
34'width
55'depth
22'height
Unit B
1,263Sq. Ft.
1263 Sq. Ft.
1st Floor
2Beds
2Full Baths
2Vehicle
Attached
439 Sq. Ft.
34'width
55'depth
22'height
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,515 sq. ft.

1st Floor

2,515 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

55' 0"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

878 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,515 sq. ft.

1st Floor

2,515 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

55' 0"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

878 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
