Plan 38017LB
Duplex House Plan for a Narrow Lot
Heated S.F.
2,212
Units
2
Width
Depth
Floor Plan

Plan 38017LB

Main Level
slide image 0
2nd Floor
slide image 1

Plan 38017LB

1-800-854-7852

1-262-521-4596

Main Level

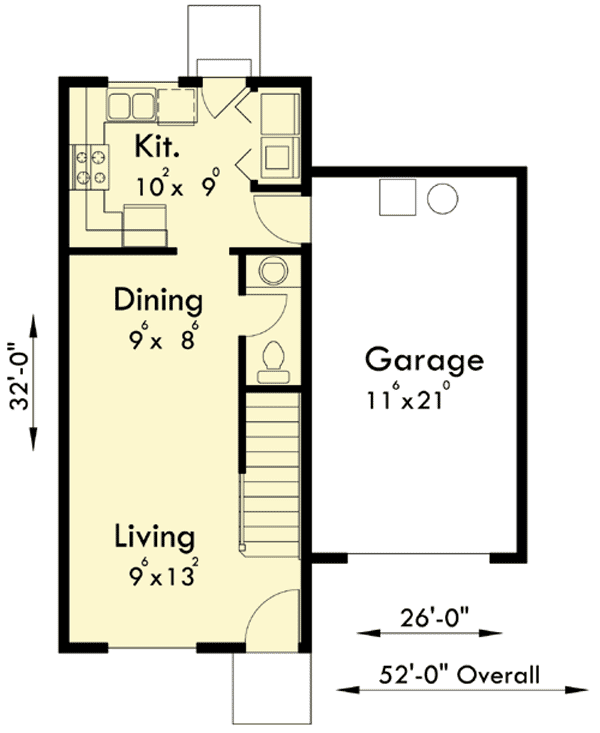

floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This duplex house plan gives you matching units with 1,106 square feet of living (448 sq. ft. on the main floor and 658 on the upper floor) and a 264 square foot garage.
  • Each unit is 26' wide making this great for use on a narrow lot.
Unit A
1,106Sq. Ft.
448 Sq. Ft.
1st Floor
658 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
264 Sq. Ft.
26'width
32'depth
25' 6"height
Unit B
1,106Sq. Ft.
448 Sq. Ft.
1st Floor
658 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
264 Sq. Ft.
26'width
32'depth
25' 6"height
What's Included
  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,212 sq. ft.

1st Floor

896 sq. ft.

2nd Floor

1,316 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2, 3, or 4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

32' 0"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Front

Special Features

Master Suite - 2nd Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,212 sq. ft.

1st Floor

896 sq. ft.

2nd Floor

1,316 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2, 3, or 4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

32' 0"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Front

Special Features

Master Suite - 2nd Floor

Plan Collections

Photo Gallery
