Plan 8163LB
Duplex House Plan with 1614 Square Foot 3 Bedroom Units
Heated S.F.
3,228
Units
2
Width
Depth
Floor Plan

Plan 8163LB

Basement
slide image 0
Main Level
slide image 1
2nd Floor
slide image 2

Plan 8163LB

1-800-854-7852

1-262-521-4596

Basement
floor plan image Basement
Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This duplex house plan gives you side-by-side 1,614 square foot 3 bedroom units with a drive under 2-car tandem garage (320 square feet).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,614Sq. Ft.
77 Sq. Ft.
Lower Level
770 Sq. Ft.
1st Floor
767 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
2Vehicle
Drive Under
320 Sq. Ft.
19' 6"width
54'depth
35' 11"height
Unit B
1,614Sq. Ft.
77 Sq. Ft.
Lower Level
770 Sq. Ft.
1st Floor
767 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
2Vehicle
Attached
720 Sq. Ft.
19' 6"width
54'depth
35' 11"height
What's Included

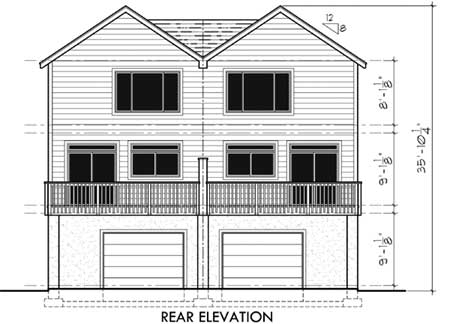

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,228 sq. ft.

Lower Level

154 sq. ft.

1st Floor

1,540 sq. ft.

2nd Floor

1,534 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 0"

Depth

54' 0"

Max Ridge Height

35' 11"

Garage

Type

Drive Under

Area

640 sq. ft.

Count

4 Cars

Entry Location

Rear

Special Features

Den

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

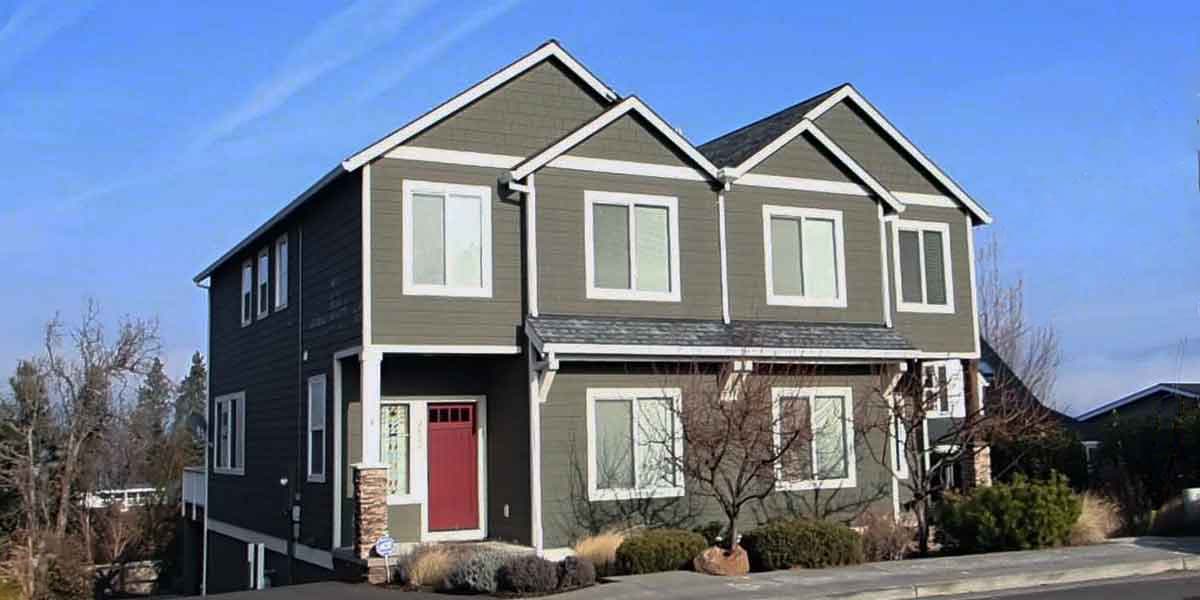

Photo Gallery
