Plan 59329ND
Duplex House Plan with 3 Bed 2 Bath Units - 1589 Sq Ft Each Unit
Heated S.F.
3,178
Units
2
Width
Depth
Floor Plan

Plan 59329ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 59329ND

1-800-854-7852

1-262-521-4596

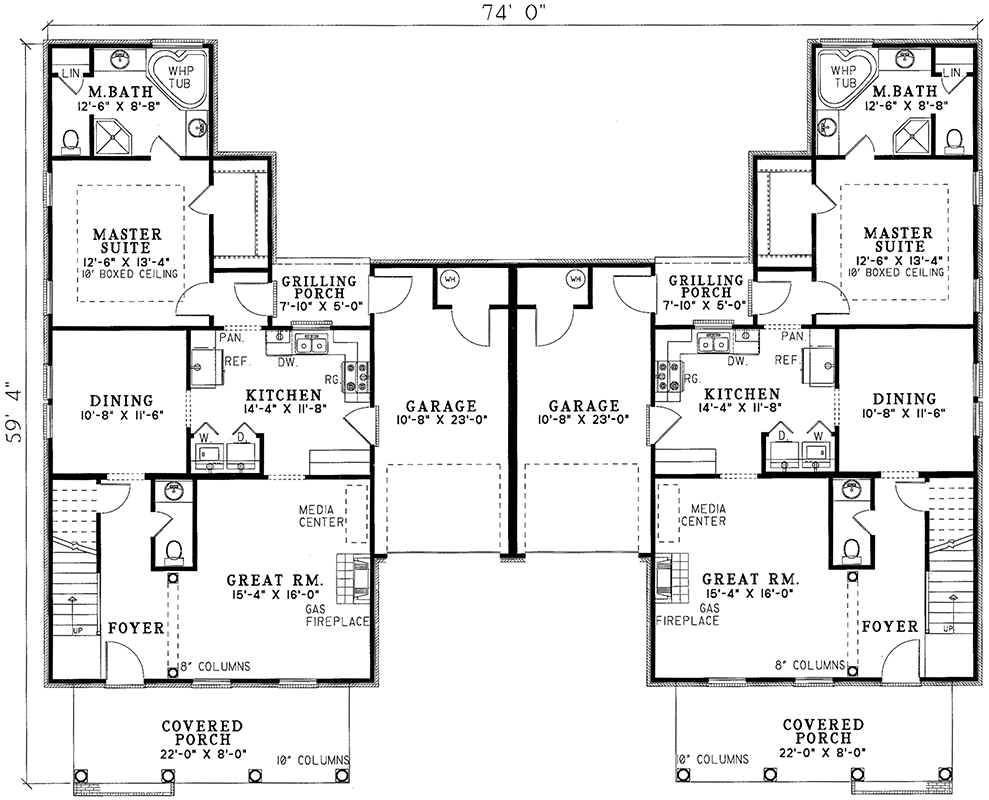

Main Level
floor plan image Main Level

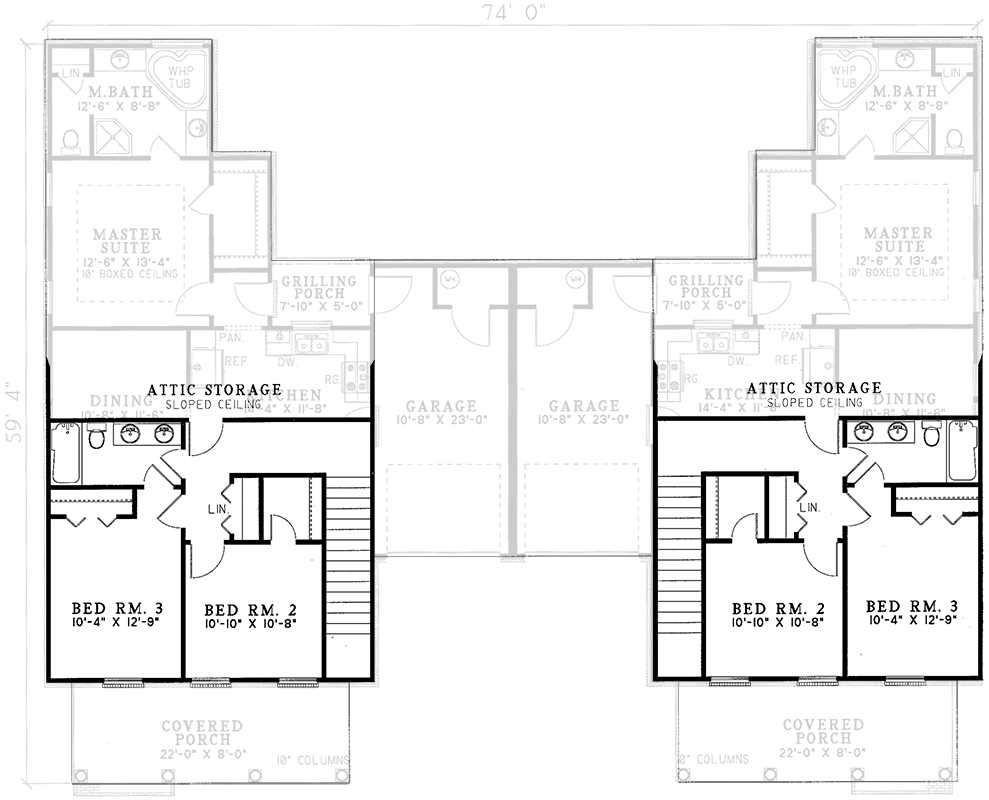

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This duplex house plan gives you matching 3 bed, 2 bath units, each with 1,589 square feet of heated living space (1,106 sq. ft. on the main floor and 483 sq. ft. on the second floor).
  • Upon entering the foyer you’ll notice columns lining the great room entry, a built-in media center and a cozy gas fireplace.
  • A centrally located kitchen enjoys a view of the grilling porch and quietly leads you to the private master suite. This suite has a ten foot boxed ceiling and a bathroom with separate vanities, corner whirlpool tub, separate shower, and a large linen closet.
  • The upstairs includes a full bathroom, two bedrooms and an abundance of attic storage.
Unit A
1,589Sq. Ft.
1106 Sq. Ft.
1st Floor
483 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
490 Sq. Ft.
37'width
59' 4"depth
26'height
Unit B
1,589Sq. Ft.
1106 Sq. Ft.
1st Floor
483 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
490 Sq. Ft.
37'width
59' 4"depth
26'height
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,178 sq. ft.

1st Floor

2,212 sq. ft.

2nd Floor

966 sq. ft.

Porch, Front

352 sq. ft.

Porch, Rear

106 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

74' 0"

Depth

59' 4"

Max Ridge Height

26' 8"

Garage

Type

Attached

Area

490 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

3.5 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,178 sq. ft.

1st Floor

2,212 sq. ft.

2nd Floor

966 sq. ft.

Porch, Front

352 sq. ft.

Porch, Rear

106 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

74' 0"

Depth

59' 4"

Max Ridge Height

26' 8"

Garage

Type

Attached

Area

490 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

3.5 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor
