Plan 21511DR
Duplex House Plan with 3 Bedroom Unit with 1-Car Garage - 1596 Sq Ft Each Unit
Heated S.F.
3,192
Units
2
Width
Depth
Floor Plan

Plan 21511DR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 21511DR

1-800-854-7852

1-262-521-4596

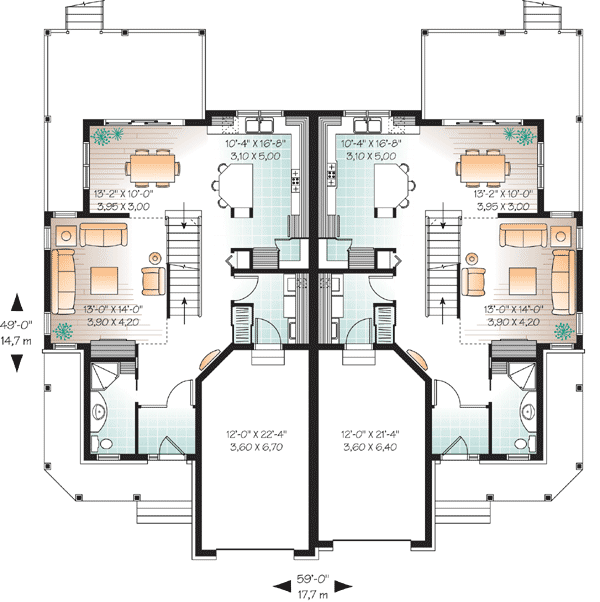

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This duplex gives you two units, each with 3 beds, 1.5 baths and 1,596 square feet of heated living and a 290 square foot 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,596Sq. Ft.
880 Sq. Ft.
1st Floor
716 Sq. Ft.
2nd Floor
3Beds
1Full Bath
1Half Bath
1Vehicle
Attached
290 Sq. Ft.
29' 6"width
49' 8"depth
33' 2"height
Unit B
1,596Sq. Ft.
880 Sq. Ft.
1st Floor
716 Sq. Ft.
2nd Floor
3Beds
1Full Bath
1Half Bath
1Vehicle
Attached
290 Sq. Ft.
29' 6"width
49' 8"depth
33' 2"height
