Plan 69381AM
Duplex House Plan with C-Shaped Kitchen and Bedrooms Upstairs - 1197 Sq Ft 2 Bed Units
Heated S.F.
2,394
Units
2
Width
Depth
Floor Plan

Plan 69381AM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 69381AM

1-800-854-7852

1-262-521-4596

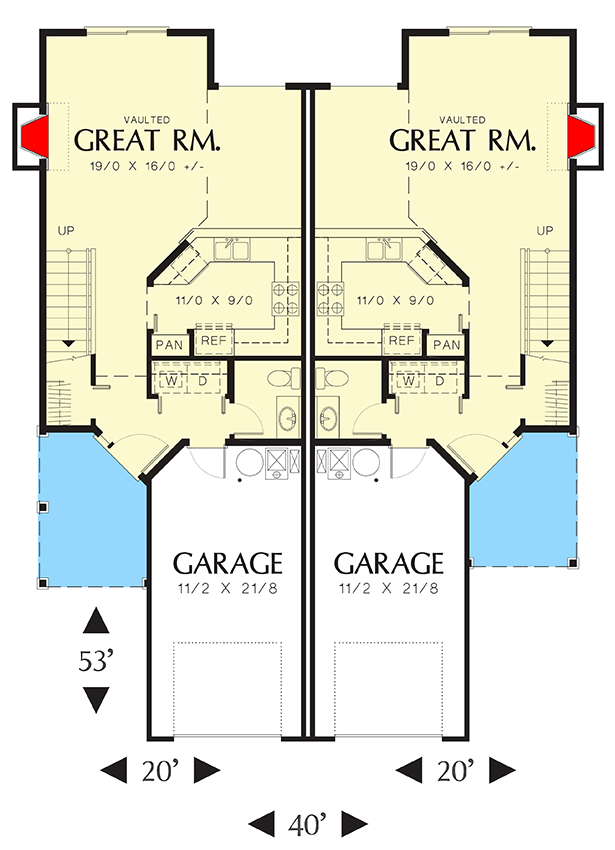

Main Level
floor plan image Main Level

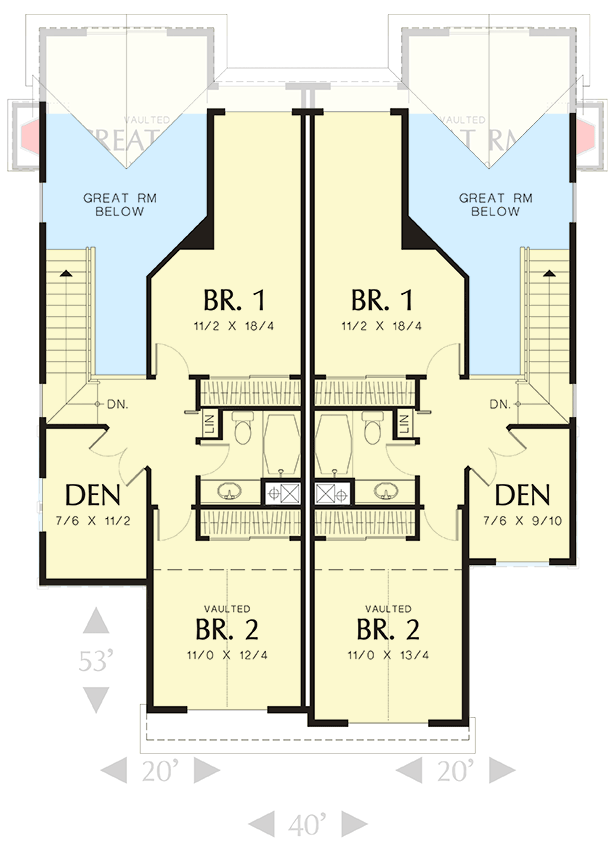

2nd Floor
floor plan image 2nd Floor
Plan Details

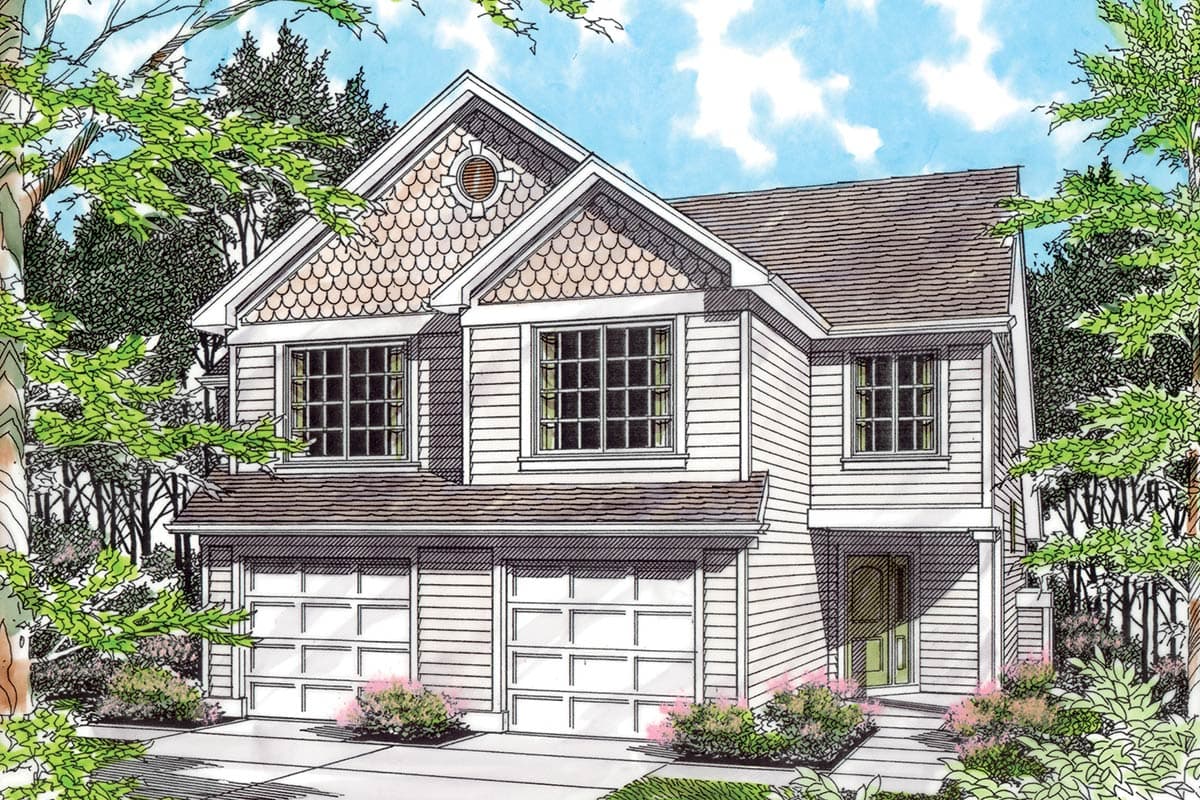

  • You have to look close to discern that this structure is not a single unit, but rather a duplex with nearly identical mirror-image sides. The exterior is graceful with cedar shingles, horizontal siding and multi-pane windows. Each side opens with a single-car garage and a covered front porch protecting an angled entry.
  • The laundry room, a half-bath and the garage access are immediately to the left of the entry; a coat closet is on the right. A vaulted great room with fireplace and eating space sits to the back of the plan--next to the modified U-shaped kitchen. A large pantry and a snack counter make the kitchen efficient.
  • The upper level holds two bedrooms - one is vaulted - and a cozy den opening through double doors. Both bedrooms share a full bath.
Unit A
1,197Sq. Ft.
596 Sq. Ft.
1st Floor
601 Sq. Ft.
2nd Floor
2Beds
1Full Bath
1Half Bath
1Vehicle
Attached
260 Sq. Ft.
20'width
53'depth
26' 9"height
Unit B
1,197Sq. Ft.
1197 Sq. Ft.
1st Floor
2Beds
1Full Bath
1Half Bath
1Vehicle
Attached
260 Sq. Ft.
40'width
53'depth
26' 9"height
What's Included

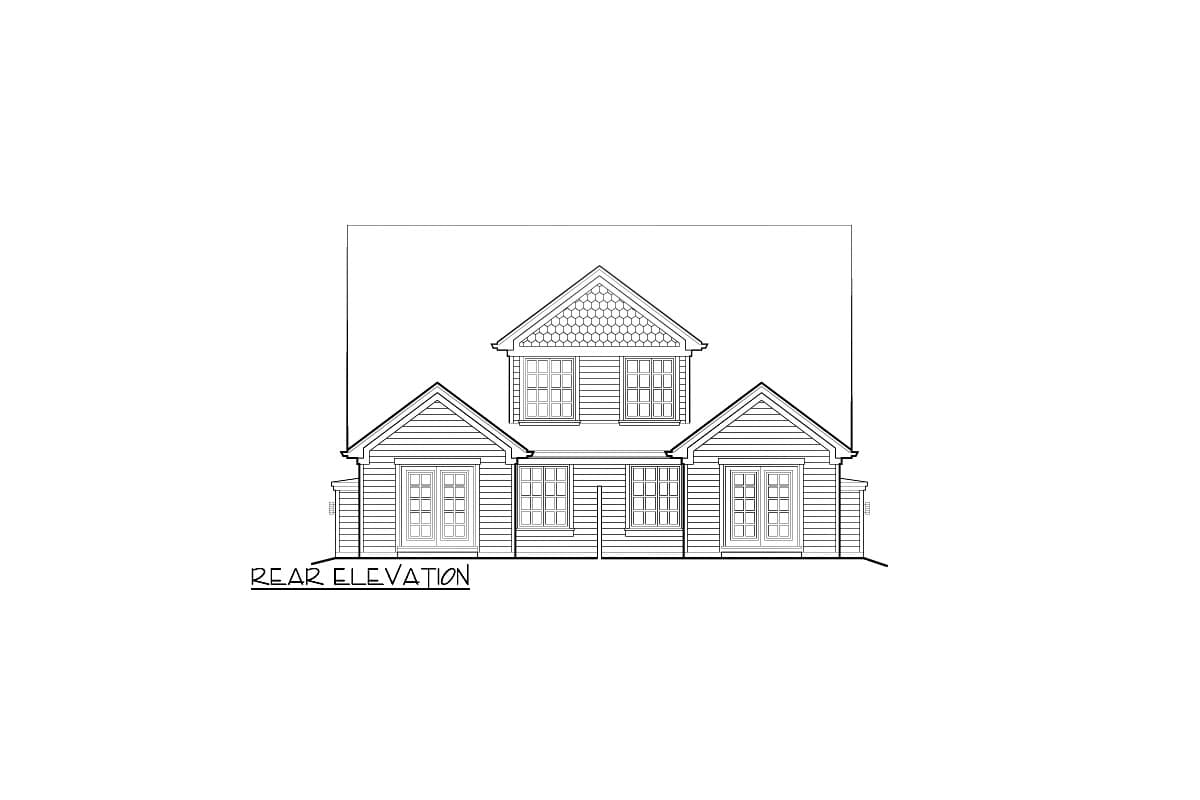

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,394 sq. ft.

1st Floor

1,192 sq. ft.

2nd Floor

1,202 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

53' 0"

Max Ridge Height

26' 9"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Shingle

Special Features

Den

Laundry - Main Level

Master Suite - 2nd Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,394 sq. ft.

1st Floor

1,192 sq. ft.

2nd Floor

1,202 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

53' 0"

Max Ridge Height

26' 9"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Shingle

Special Features

Den

Laundry - Main Level

Master Suite - 2nd Floor

Two Story Great Room
