Plan 72947DA
Duplex House Plan with Garage Separation - 3 Bedroom 1436 Sq Ft Units
Heated S.F.
2,872
Units
2
Width
Depth
Floor Plan

Plan 72947DA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 72947DA

1-800-854-7852

1-262-521-4596

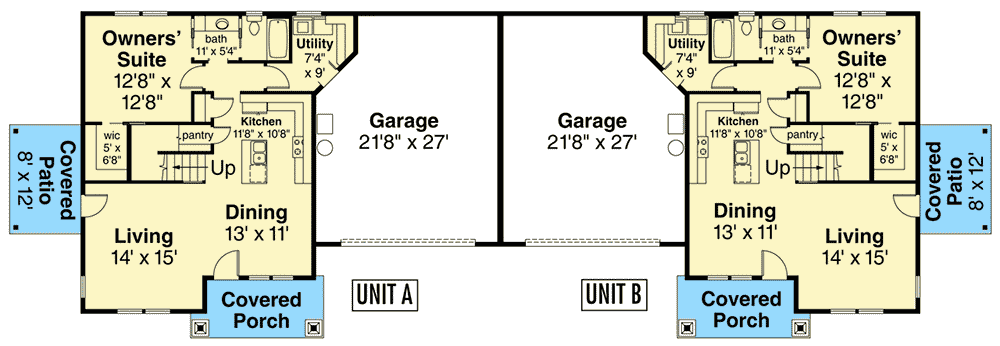

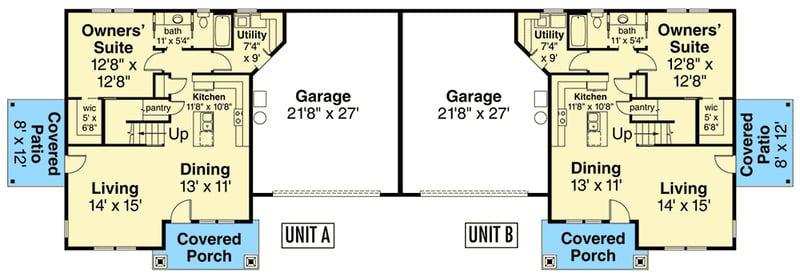

Main Level
floor plan image Main Level

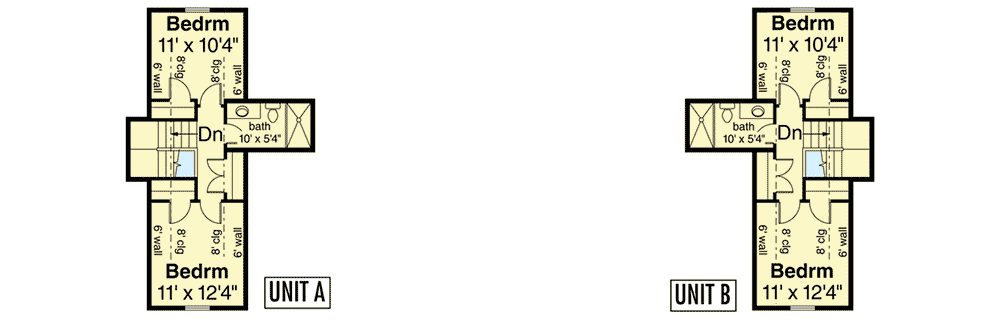

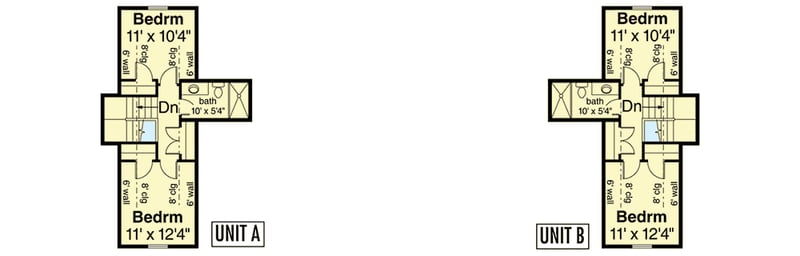

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The garages separate the living space from this two-family house plan. Each units has 2-car garages  (579 sq. ft.) and gives you 1,436 sq. ft. of heated living area each (993 sq. ft. on the main floor; 443 sq. ft. on the upper floor).
  • The living spaces are identical mirrors of each other with an open style living room, dining room, and kitchen at the front of each unit. A walk-in pantry is nestled under the staircase for plenty of storage.
  • The owners’ suite is at the back of the main floor with a galley style bathroom and walk-in closet. Across from the owners’ suite is a utility room which leads to the unit’s garage.
  • Up the stairs off the kitchen, you will find two more bedrooms and a full bath. Each unit has a covered porch at the entry and a private covered patio off the living room.
Unit A
1,436Sq. Ft.
993 Sq. Ft.
1st Floor
443 Sq. Ft.
2nd Floor
3Beds
2Full Baths
2Vehicle
Attached
579 Sq. Ft.
63'width
38'depth
21' 3"height
Unit B
1,436Sq. Ft.
993 Sq. Ft.
1st Floor
443 Sq. Ft.
2nd Floor
3Beds
2Full Baths
2Vehicle
Attached
579 Sq. Ft.
63'width
38'depth
21' 3"height
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

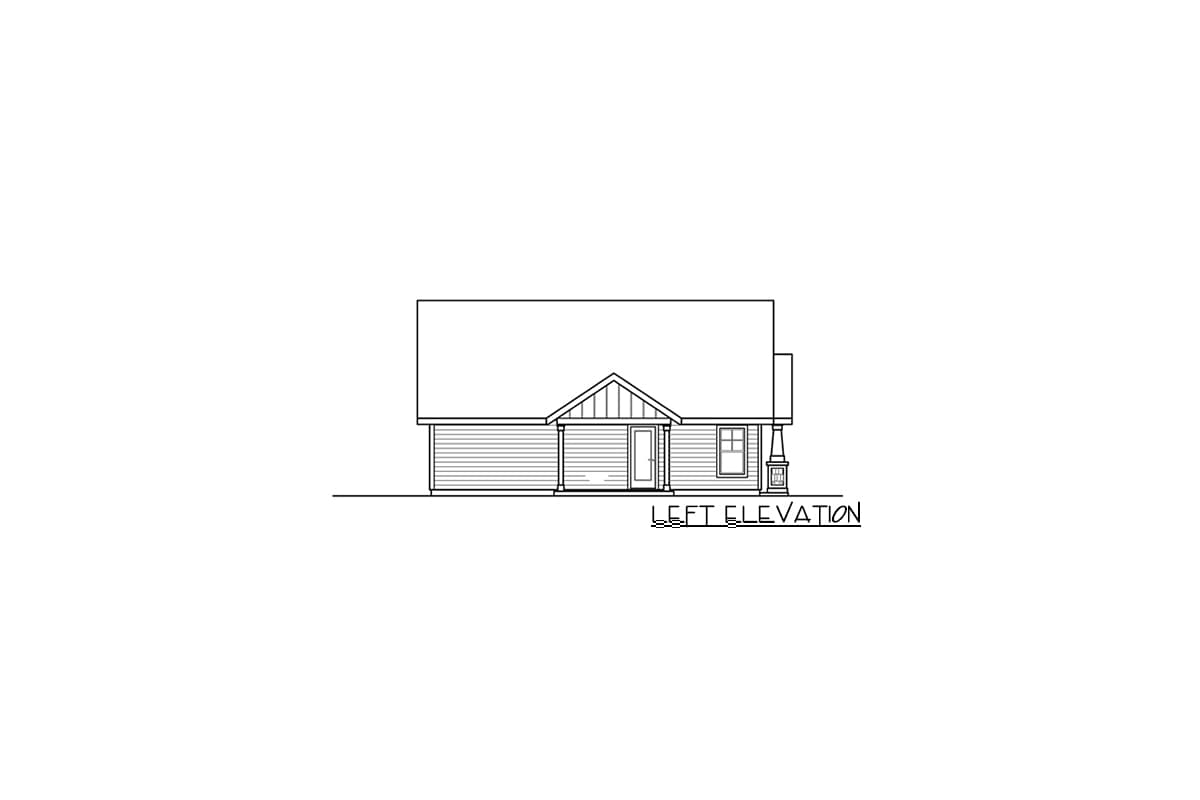

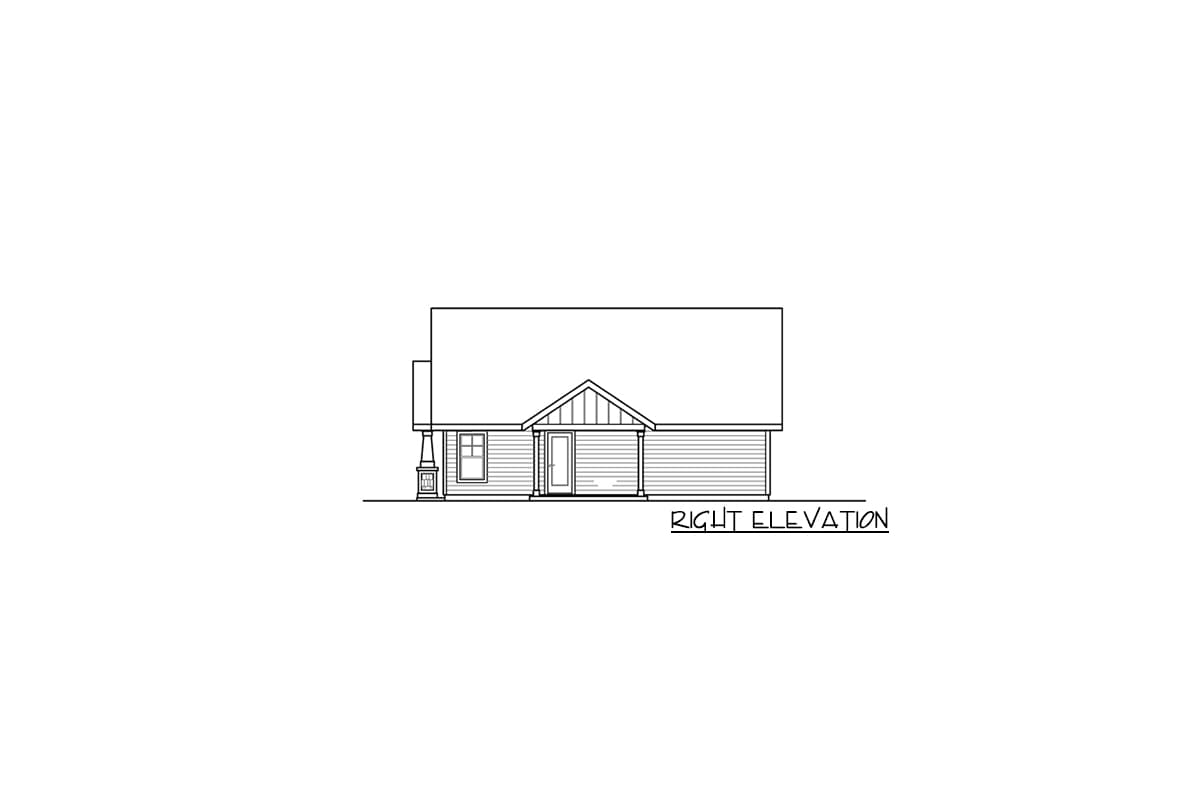

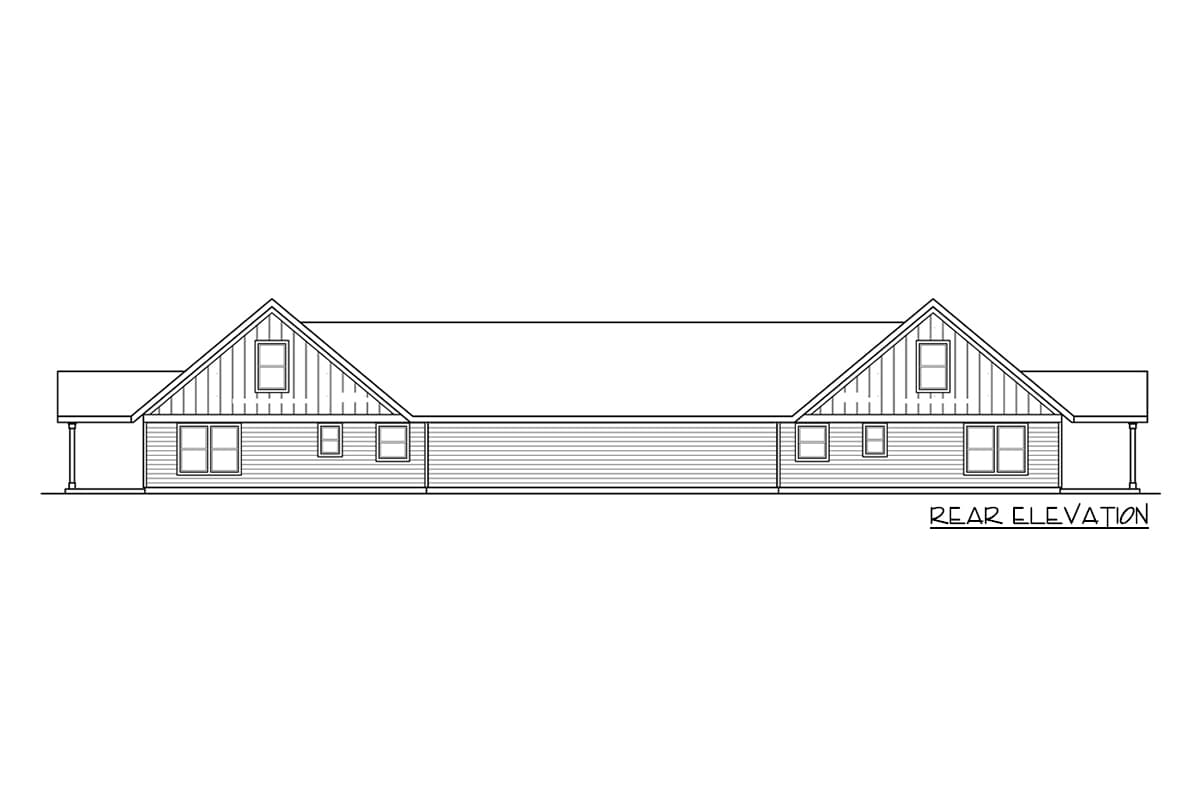

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,872 sq. ft.

1st Floor

1,986 sq. ft.

2nd Floor

886 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

116' 0"

Depth

38' 0"

Max Ridge Height

21' 3"

Garage

Type

Attached

Area

1158 sq. ft.

Count

4 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Architectural Style

Craftsman

Northwest

Traditional

Special Features

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,872 sq. ft.

1st Floor

1,986 sq. ft.

2nd Floor

886 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

116' 0"

Depth

38' 0"

Max Ridge Height

21' 3"

Garage

Type

Attached

Area

1158 sq. ft.

Count

4 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Architectural Style

Craftsman

Northwest

Traditional

Special Features

Master Suite - 1st Floor
