Plan 41860DB
Duplex House Plan with Matching 1649 Square Foot 3-Bed Units
Heated S.F.
3,298
Units
2
Width
Depth
Floor Plan

Plan 41860DB

Main Level
slide image 0
2nd Floor
slide image 1

Plan 41860DB

1-800-854-7852

1-262-521-4596

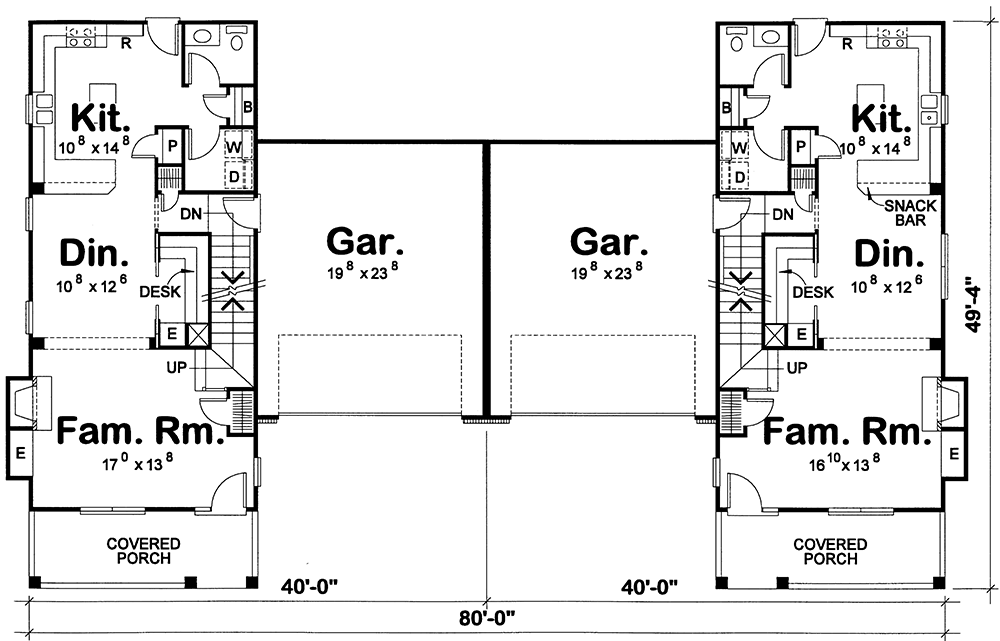

Main Level
floor plan image Main Level

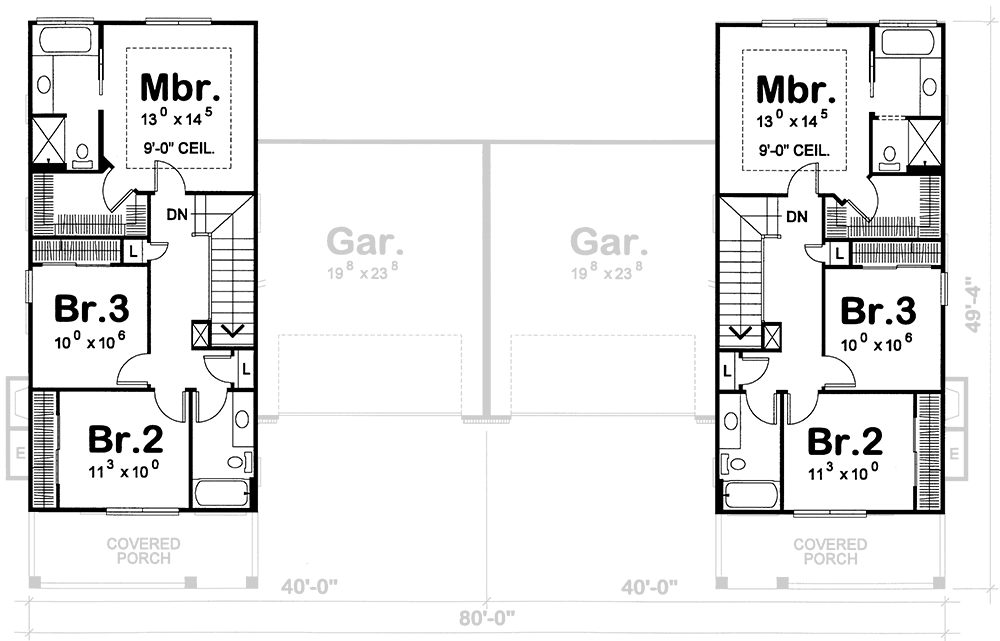

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This duplex house plan gives you matching 1,649 square foot units each delivering 3 beds, 2.5 baths and a 2-car 487 square foot garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,649Sq. Ft.
853 Sq. Ft.
1st Floor
796 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
2Vehicle
Attached
487 Sq. Ft.
40'width
49' 4"depth
28'height
Unit B
1,649Sq. Ft.
853 Sq. Ft.
1st Floor
796 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
2Vehicle
Attached
487 Sq. Ft.
40'width
49' 4"depth
28'height
What's Included
  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,298 sq. ft.

1st Floor

1,706 sq. ft.

2nd Floor

1,592 sq. ft.

Porch, Front

133 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 0"

Depth

49' 4"

Max Ridge Height

28' 1"

Garage

Type

Attached

Area

974 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

3,298 sq. ft.

1st Floor

1,706 sq. ft.

2nd Floor

1,592 sq. ft.

Porch, Front

133 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 0"

Depth

49' 4"

Max Ridge Height

28' 1"

Garage

Type

Attached

Area

974 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 2nd Floor
