Plan 36542TX
Duplex House Plan With Visual Variety
Heated S.F.
7,417
Units
2
Width
Depth
Floor Plan

Plan 36542TX

Main Level
slide image 0
2nd Floor
slide image 1

Plan 36542TX

1-800-854-7852

1-262-521-4596

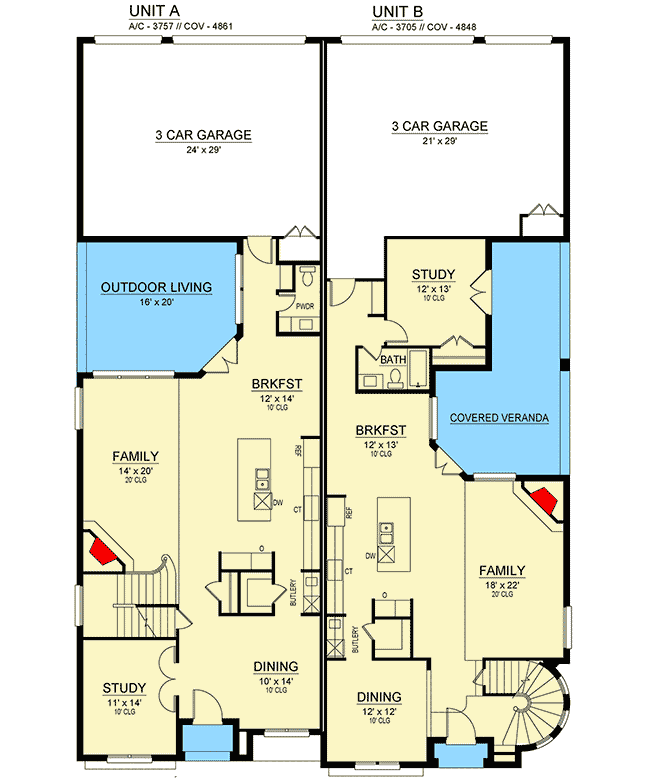

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This duplex house plan gives you the cost savings of building a single structure while having the visual variety associated with structures built at different times.
  • Unit A gives you 3,757 sq. ft. of heated living space and Unit B gives you 3,705 sq. ft. of heated living space.

Unit A
3,757Sq. Ft.
1541 Sq. Ft.
1st Floor
2216 Sq. Ft.
2nd Floor
4Beds
4Full Baths
1Half Bath
3Vehicle
Attached
765 Sq. Ft.
30'width
89'depth
35'height
Unit B
3,705Sq. Ft.
1491 Sq. Ft.
1st Floor
2114 Sq. Ft.
2nd Floor
4Beds
4Full Baths
1Half Bath
3Vehicle
Attached
765 Sq. Ft.
30'width
89'depth
35'height
What's Included
  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

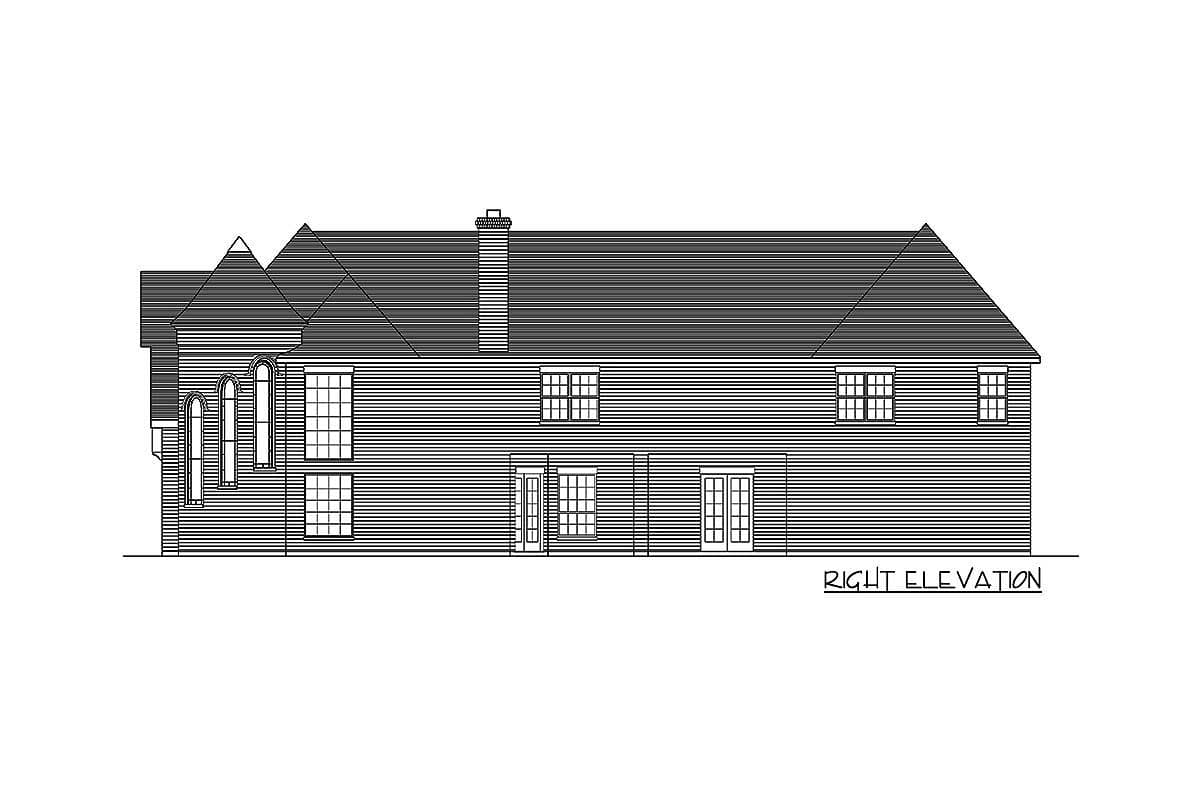

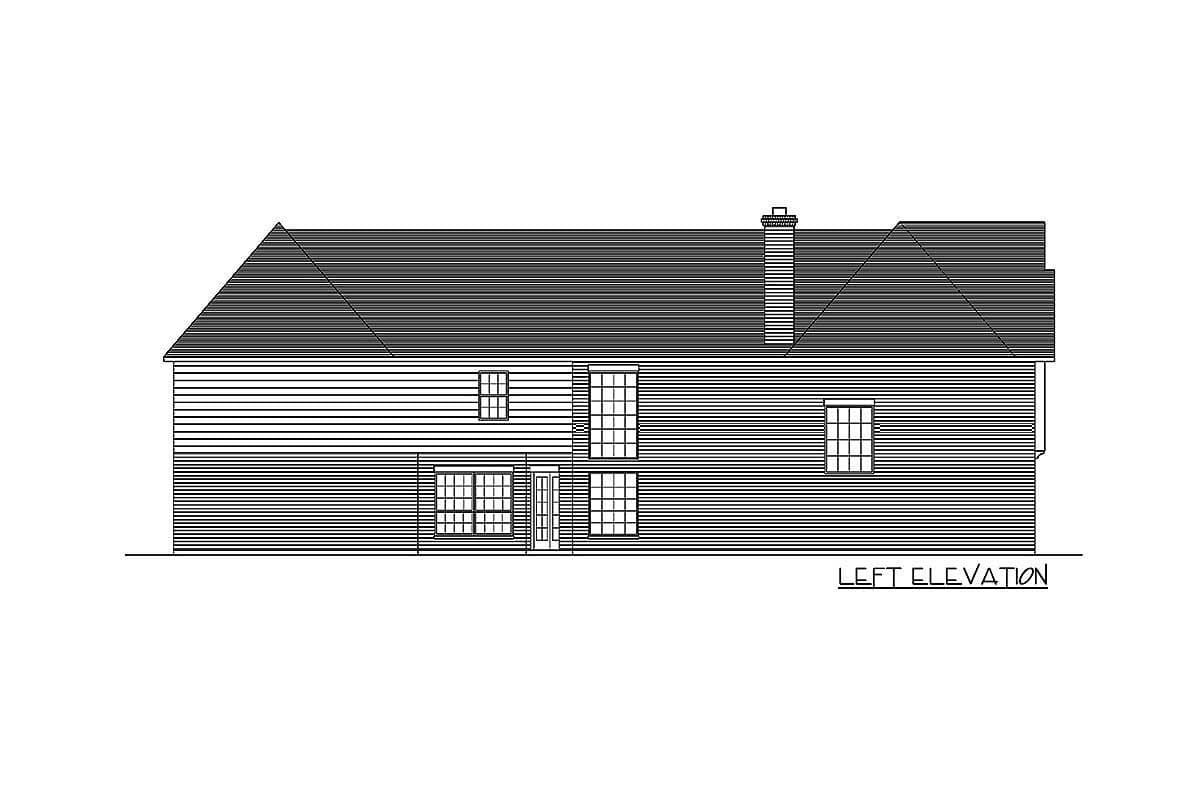

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

7,417 sq. ft.

1st Floor

3,032 sq. ft.

2nd Floor

4,430 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

30' 0"

Depth

89' 0"

Max Ridge Height

35' 0"

Garage

Type

Attached

Area

1531 sq. ft.

Count

6 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

European

Tudor

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

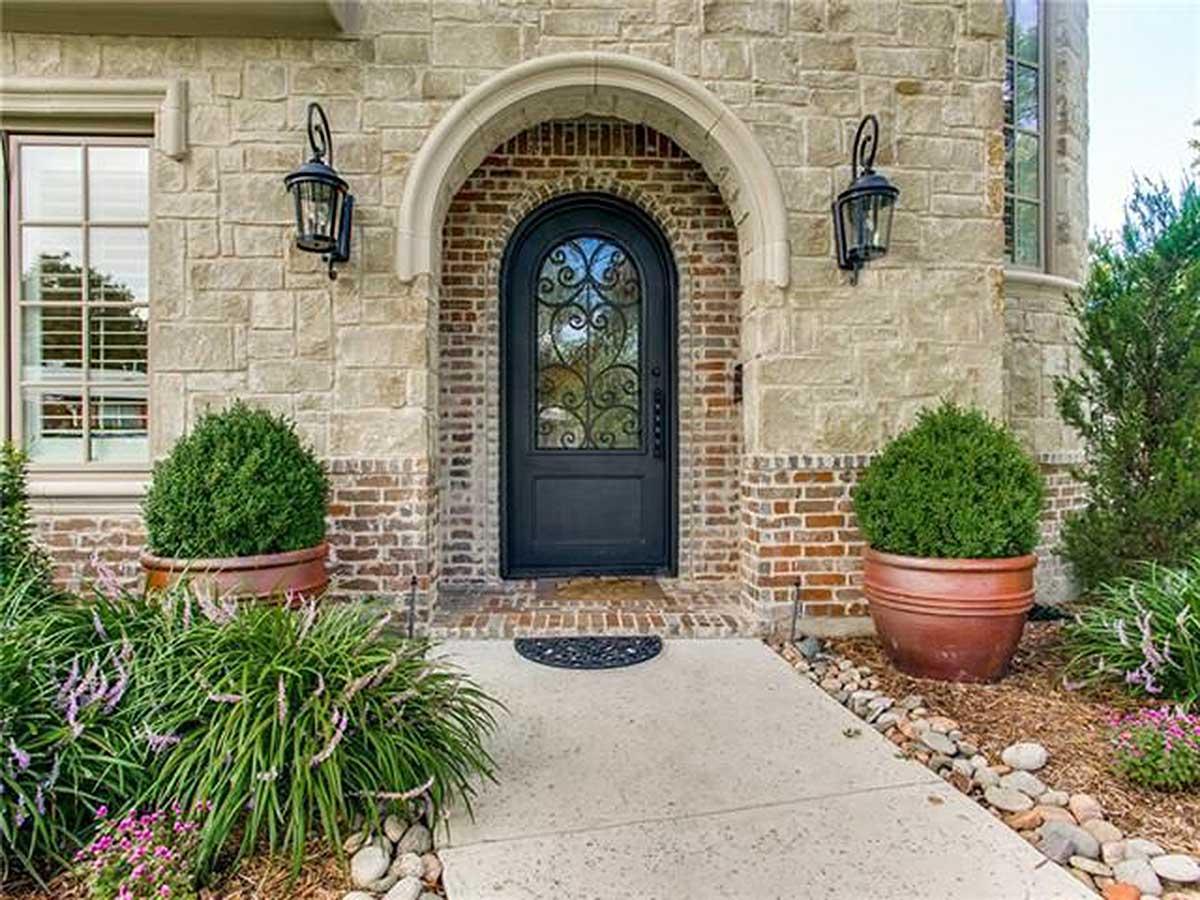

Photo Gallery
