Plan 60519ND
Duplex in Siding or Brick
Heated S.F.
1,704
Units
2
Width
Depth
Floor Plan

Plan 60519ND

Main Level
slide image 0

Plan 60519ND

1-800-854-7852

1-262-521-4596

Main Level

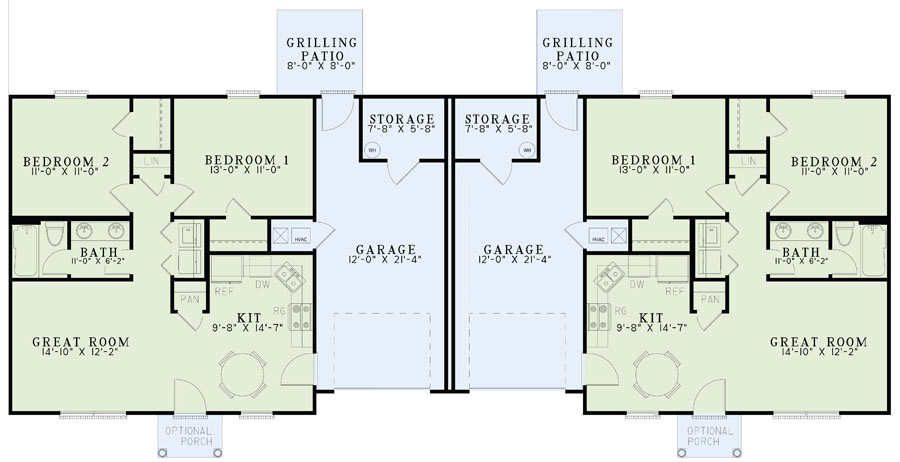

floor plan image Main Level
Plan Details
  • This duplex home plan features a pair of matching 2-bedroom units each giving you 852 sq. ft. of living space.
  • Related Plan: For an alternate floor plan, see duplex home plan 60518ND.
Unit A
852Sq. Ft.
852 Sq. Ft.
1st Floor
2Beds
1Full Bath
1Vehicle
Attached
345 Sq. Ft.
41' 4"width
34'depth
18' 6"height
Unit B
852Sq. Ft.
852 Sq. Ft.
1st Floor
2Beds
1Full Bath
1Vehicle
Attached
345 Sq. Ft.
41' 4"width
34'depth
18' 6"height
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,704 sq. ft.

1st Floor

1,704 sq. ft.

Porch, Combined

48 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 8"

Depth

34' 0"

Max Ridge Height

18' 6"

Garage

Type

Attached

Area

690 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,704 sq. ft.

1st Floor

1,704 sq. ft.

Porch, Combined

48 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 8"

Depth

34' 0"

Max Ridge Height

18' 6"

Garage

Type

Attached

Area

690 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
